Features
- 2 HP / 11 Amp motor 25,000 RPM
- Precision Centering Design – makes it easy to keep bit on intended outline when using jigs, templets, dovetail fixtures and similar guidance devices
- Macro and microfine Bit Depth Adjustment System with resettable depth indicator – for fast, precise depth adjustment
- Large 3-3/4 In. base opening plus 2 In. subwoofer opening – accepts large bits
- Right or left switch location – for user preference and consistency (motor does not rotate during depth adjustment)
- One-piece Armature Shaft – for accuracy and long bit shank capacity
- 10 ft. flexible rubber cord
- Classic Hardwood Handles – for comfort and beauty
- Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
- Optional RA1126 quick-change Templet guide adapter (sold separately) – for fast and easy change of Bosch RZ1-series Templet guide (or threaded Templet guides, if optional RA1100 adapter is also used)
- T-Handle Adjustment Wrench sold separately
- Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
- Power Switch – now includes dust-sealed power switch
What’s in The Box

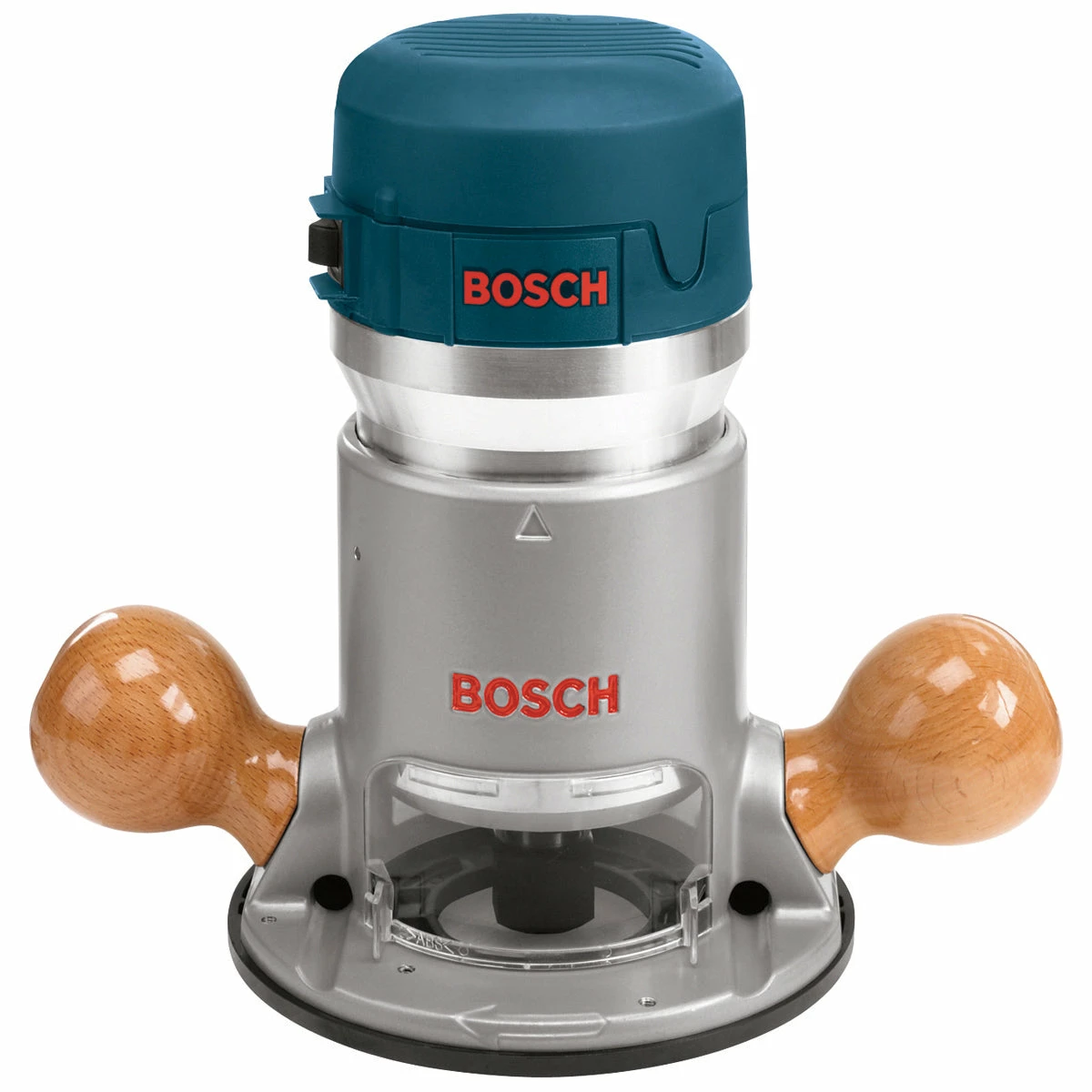

- 2 HP Fixed-Base Router – 1617
- Motor
- 1/4 in. Self-Releasing Collet Chuck
- 1/2 in. Self-Releasing Collet Chuck
- 16mm Shaft Wrench
- 24mm Collet Nut Wrench
- Tool-Free Templet Guide Adapter
- Chip Shield
Warranty
- 1-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Weight: | 7.5 lbs. |
| Amperage: | 11 |
| Base Opening: | 3-3/4 in. |
| Base Type: | Fixed |
| Collet Capacity: | 1/4 in. / 3/8 in. / 1/2 in. / 8mm |
| Cord Length: | 10 ft. |
| Depth Adjustment System: | Micro-Fine Depth Adjustment |
| Handle Style: | Dual Knob |
| Horsepower (Peak): | 2 |
| No-Load Speeds (RPM): | 25000 |
| Speed Settings: | 1 |
| Switch Type: | Toggle |
| Voltage: | 120V |
