Features

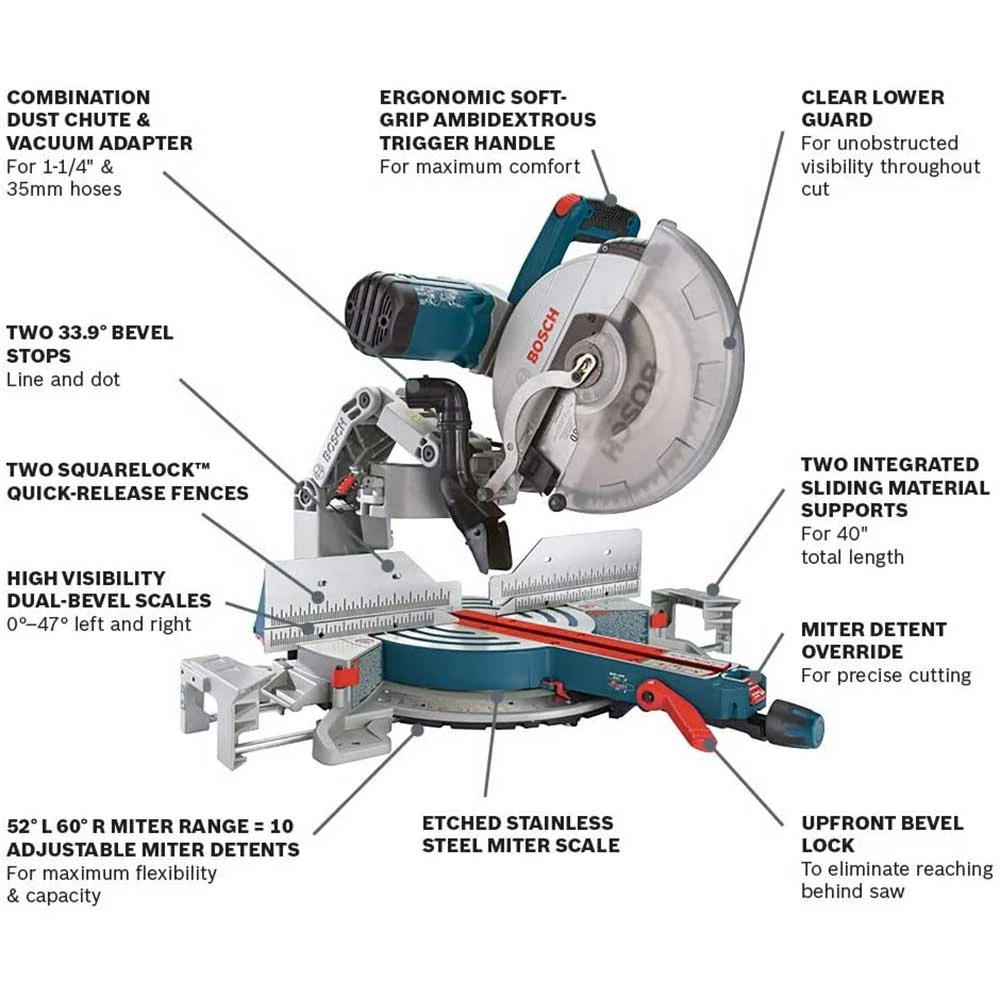

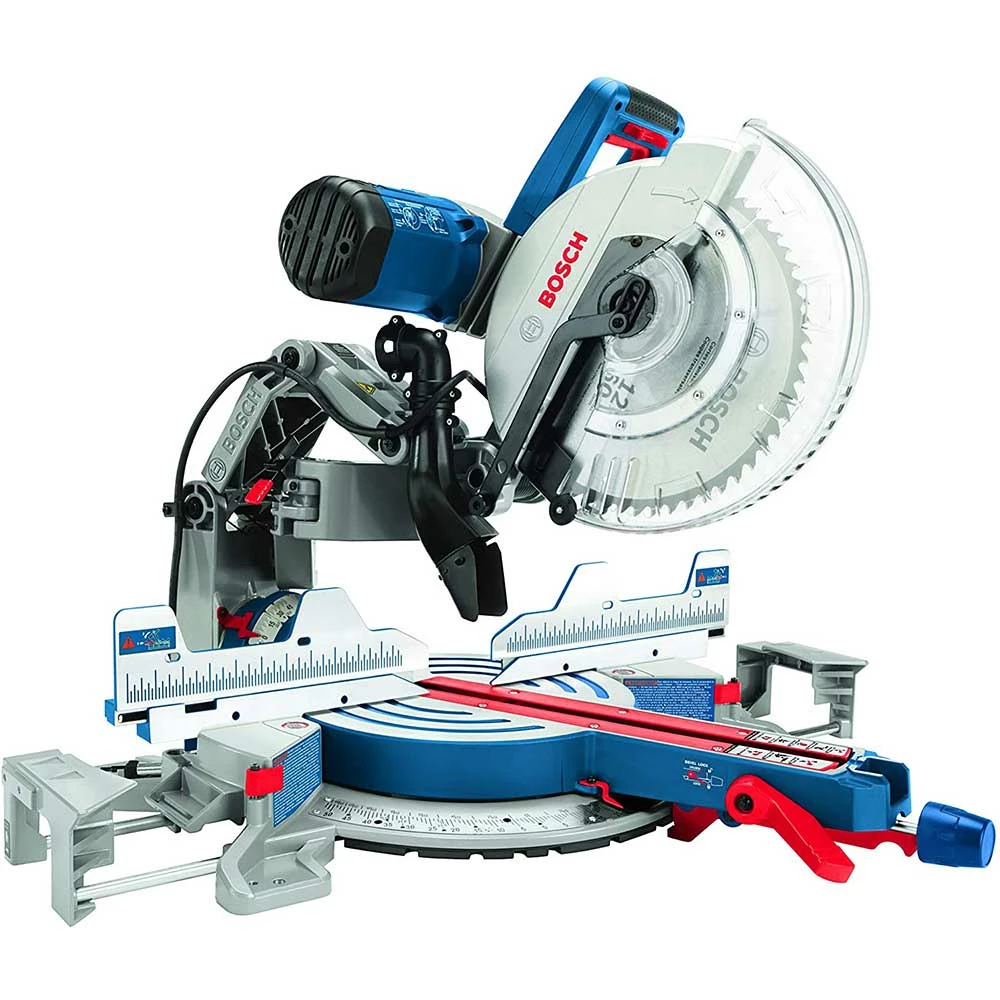

- The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance, and a space-saving design of the Bosch-exclusive Axial-Glide system

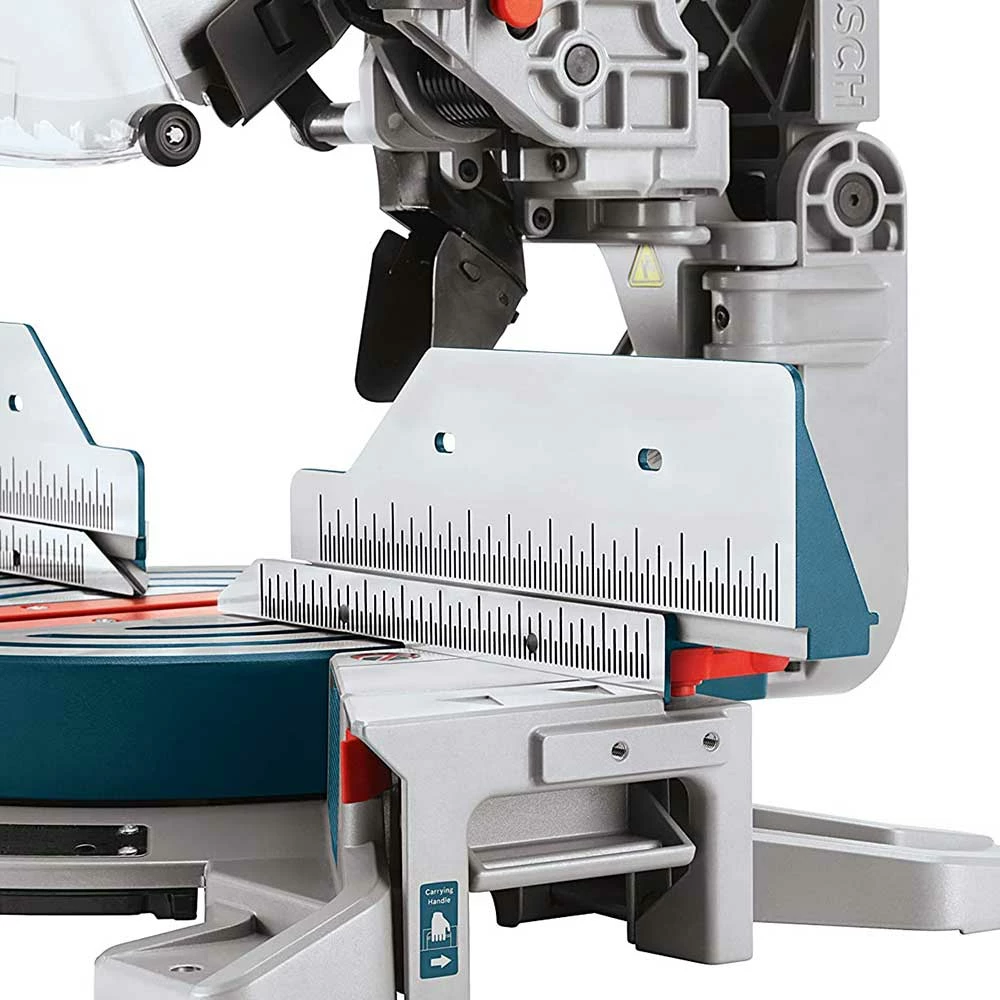

- Pre-aligned SquareLockfences help the saw maintain precision throughout its life
- A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
- The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
- Integrated expanding base extensions: 60 percent more left-to-right material support than leading competitor – 40 In. left to right
- Large easy-to-read uniform bevel and stainless steel miter scales: 52 degrees left/60 degree right miter capacity; 47 degrees left/47 degree right bevel capacity with marked detents and roof pitch angles
- Adjustable miter detents: detents at 0, 15, 31.6, 22.5, 45, 60 degree right super-accurate and durable design

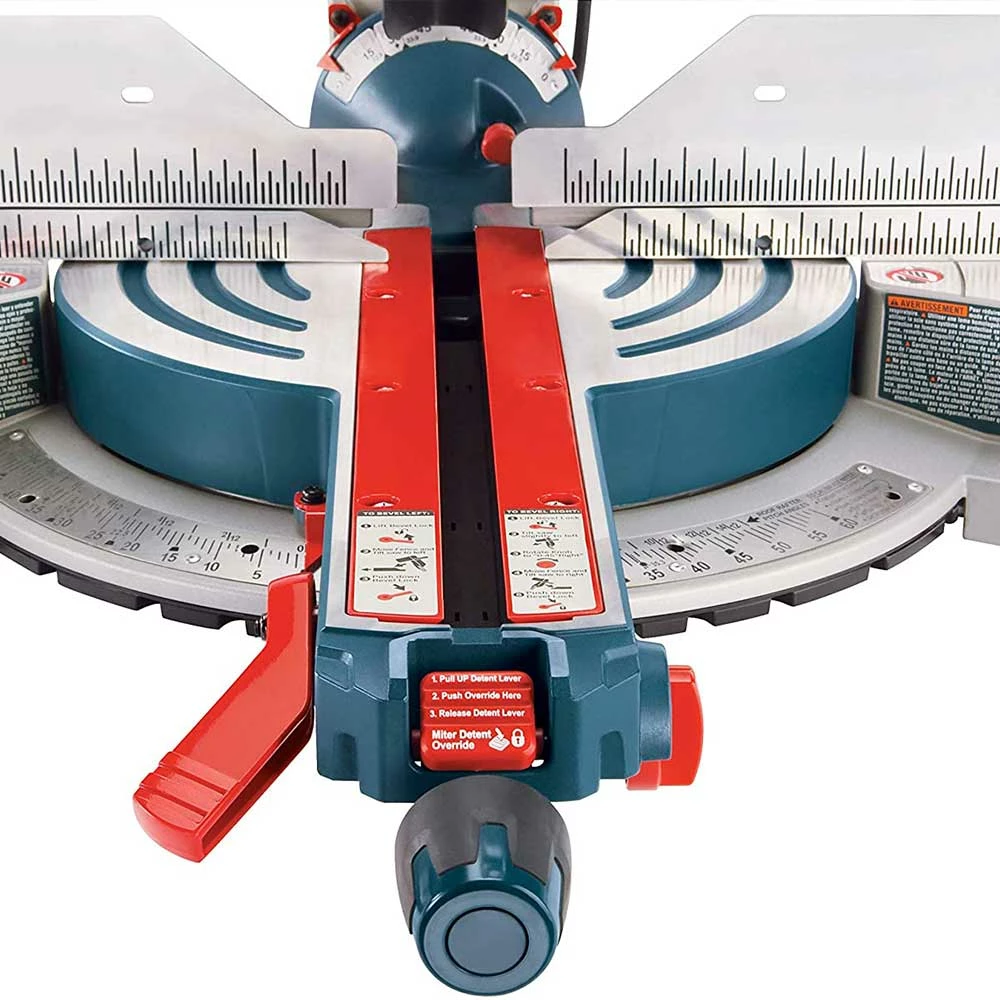

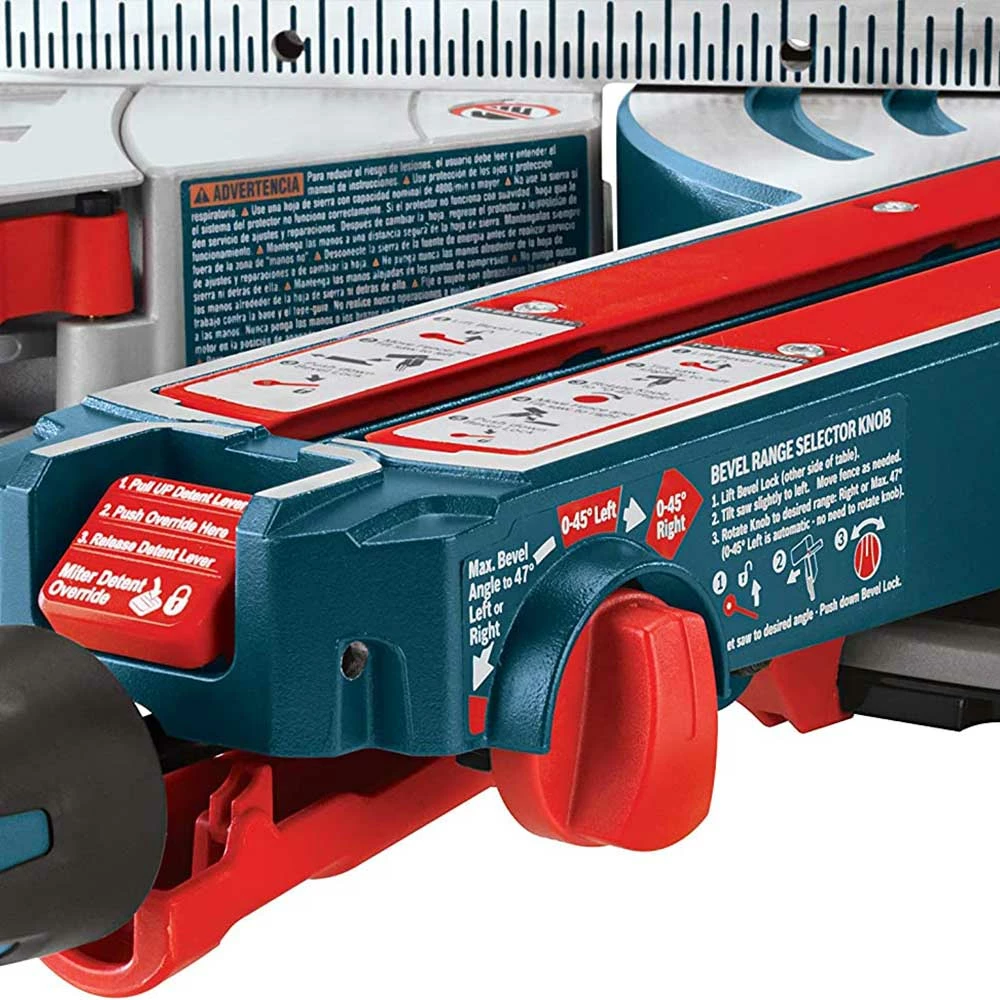

- Push-button miter Detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment

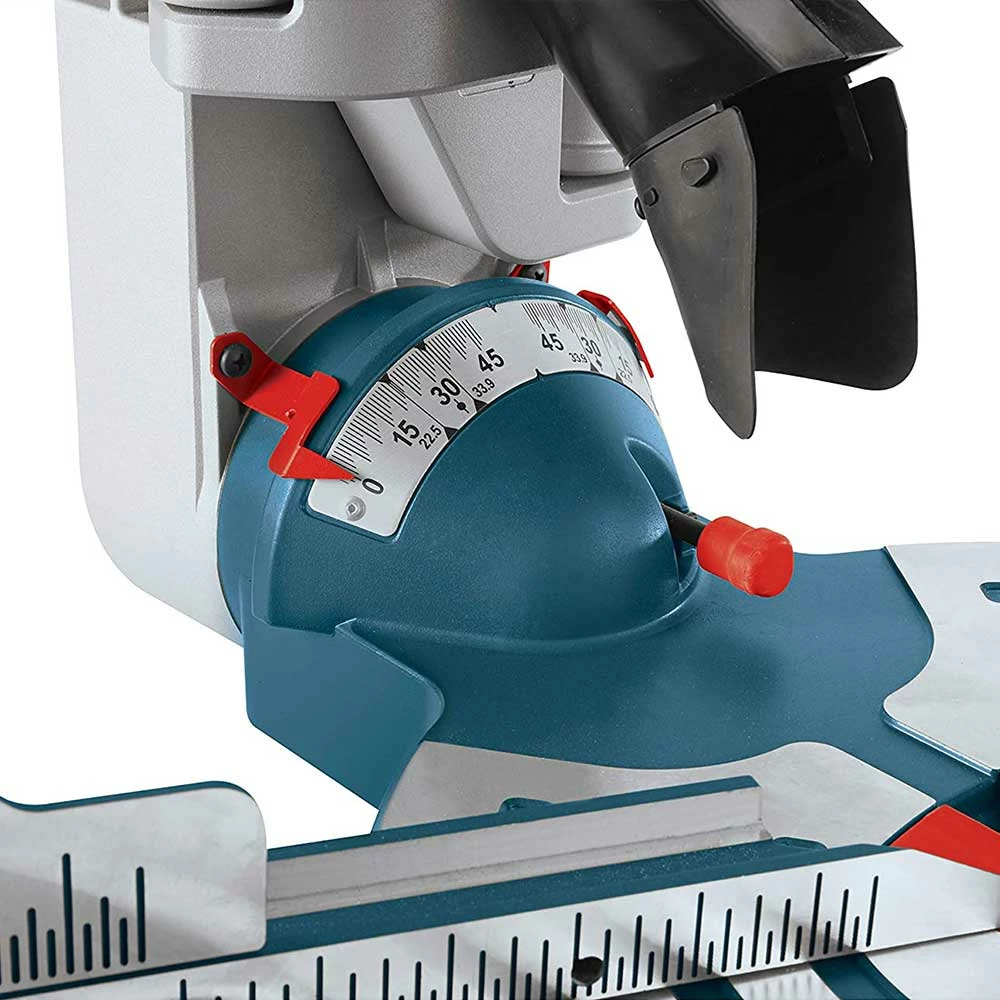

- Bevel detents: 0, 33.9, 45 degree left/right for accurate cuts
- Category best 90 percent dust collection – optimized for cutting 2x material with a vacuum
- Ergonomic ambidextrous trigger handle with soft grip – large form-fitting ergonomic handle provides comfort for all-day use
What’s in The Box
- GCM12SD 12 In. Dual-Bevel Glide Miter Saw
- Premium 12 In. 60-Tooth Carbide-Tipped Blade
- Wrench
- Toolless Vertical Work Clamp
- Dust Bag/Assembly
- Vacuum Adapter Elbow
- Owner’s Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | GCM12SD |
| Brand | Bosch |
| Voltage | 120V |
| Amp | 15 |
| Power | Corded |
| No Load RPM | 3600 |
| Bevel Angle Range | 47 degrees left and 47 degrees right |
| Bevel Stop | 0, 33.9, 45 and 47 degrees (L/R) |
| Blade Diameter | 12 in |
| Dust Collection | Yes |
| Electric Motor Brake | Yes |
| Max Base Molding Against Fence | 3-7/8 In |
| Max Crown Molding | 6 in |
| Miter Angle Range | 52 degrees left, 60 degrees right |
| Miter Detent | 0, 15, 22.5, 31.6, 45 degrees, (Left/Right) 60, (Right) |
| Miter Positive Stops | 0, 15, 22.5, 31.6, 45 degrees, (Left/Right) 60, (Right) |
| Length | 32.3 in |
| Width | 26.5 in |
| Height | 27 in |
| Weight | 65 lbs |
