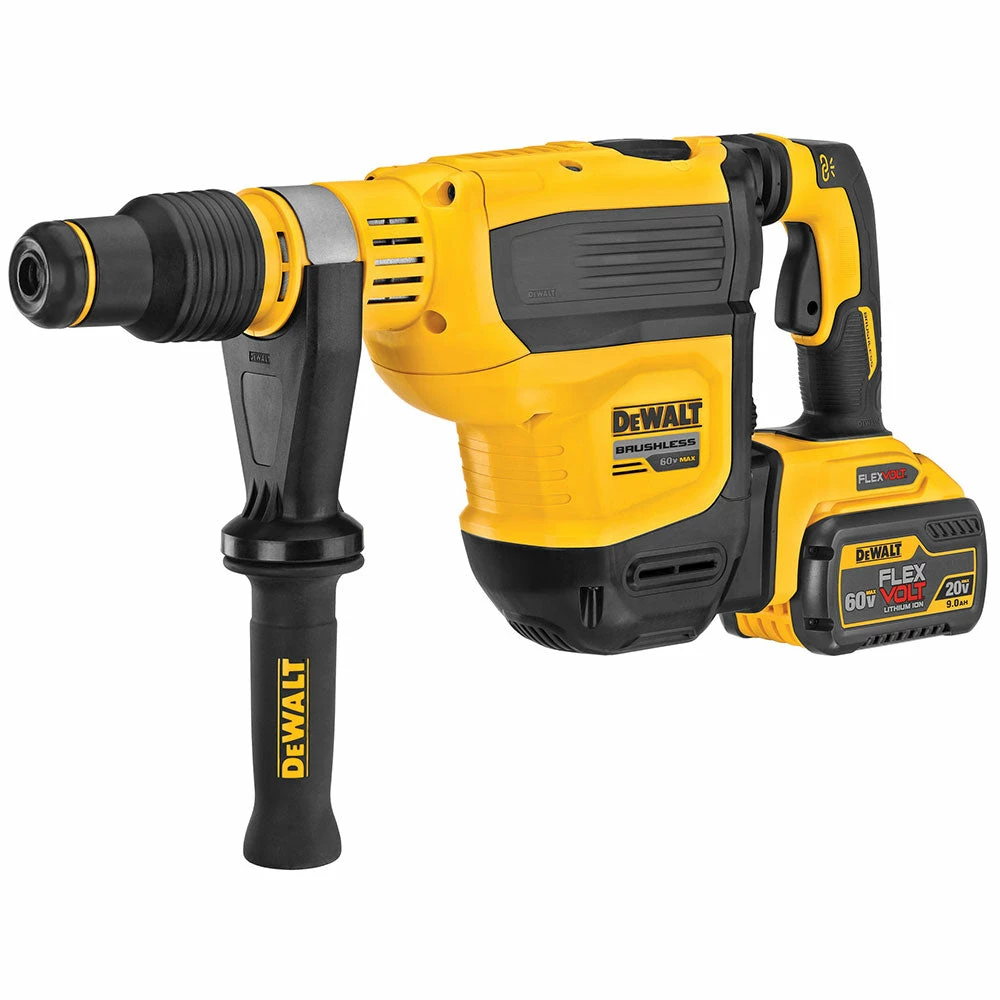

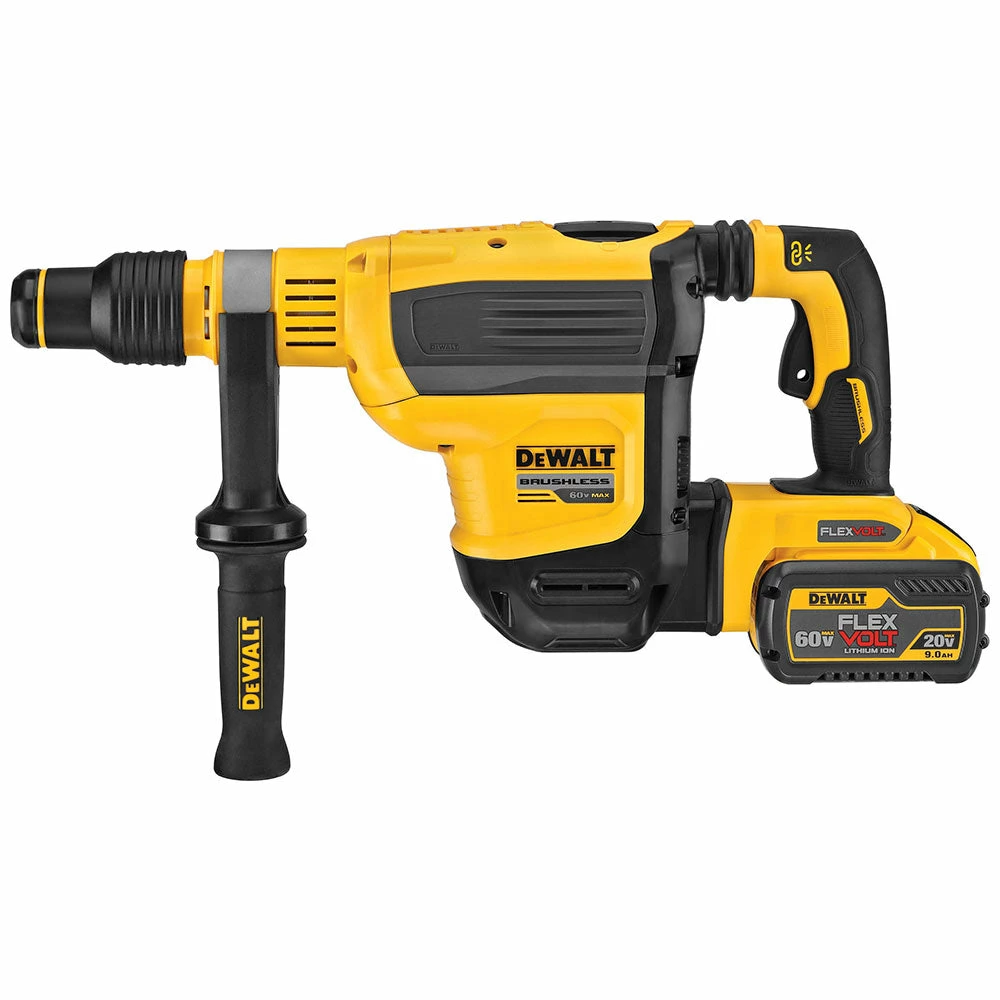

Tools & Equipment DeWALT DCH614X2 60V 1-3/4″ MAX FLEXVOLT Brushless Combination Rotary Hammer Kit

Features

• 10.5 Joules of impact energy for fast drilling and chipping, even in the hardest concrete
• E-CLUTCH system protects the user in bind-up situations by stopping the rotation of the bit

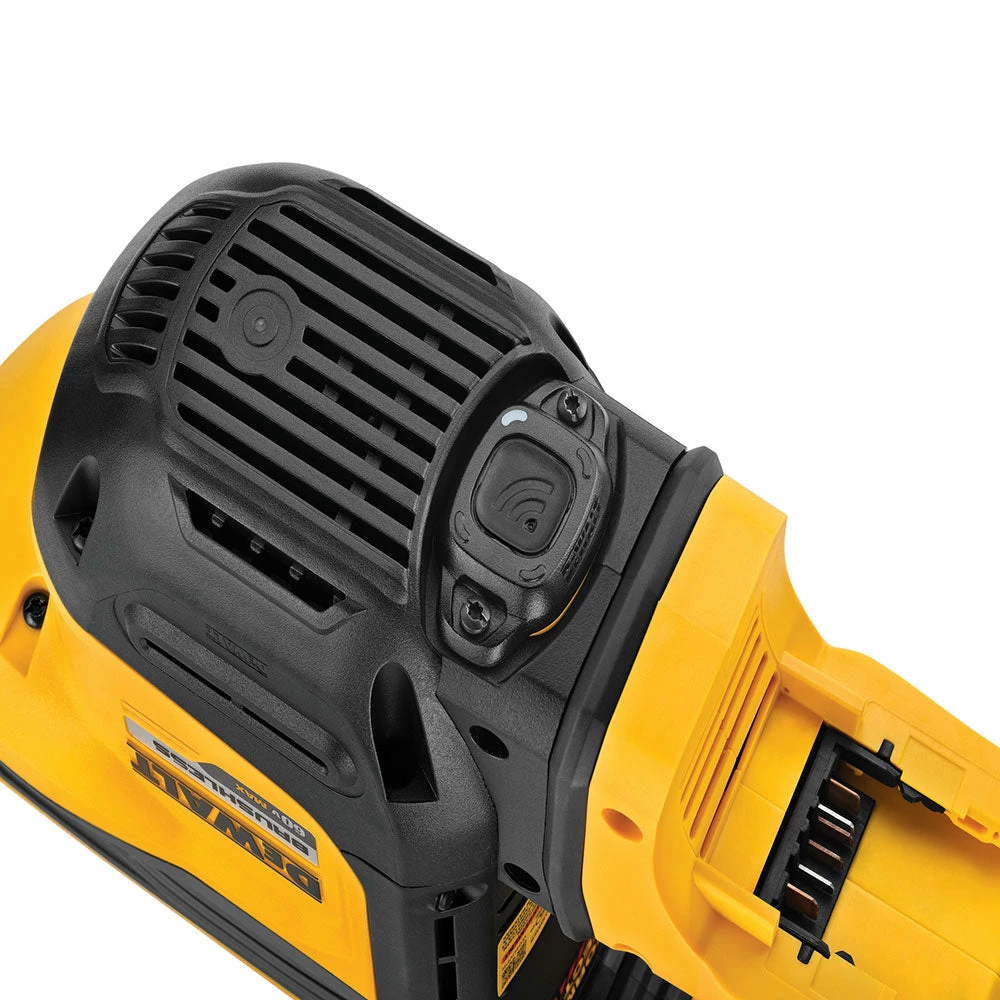

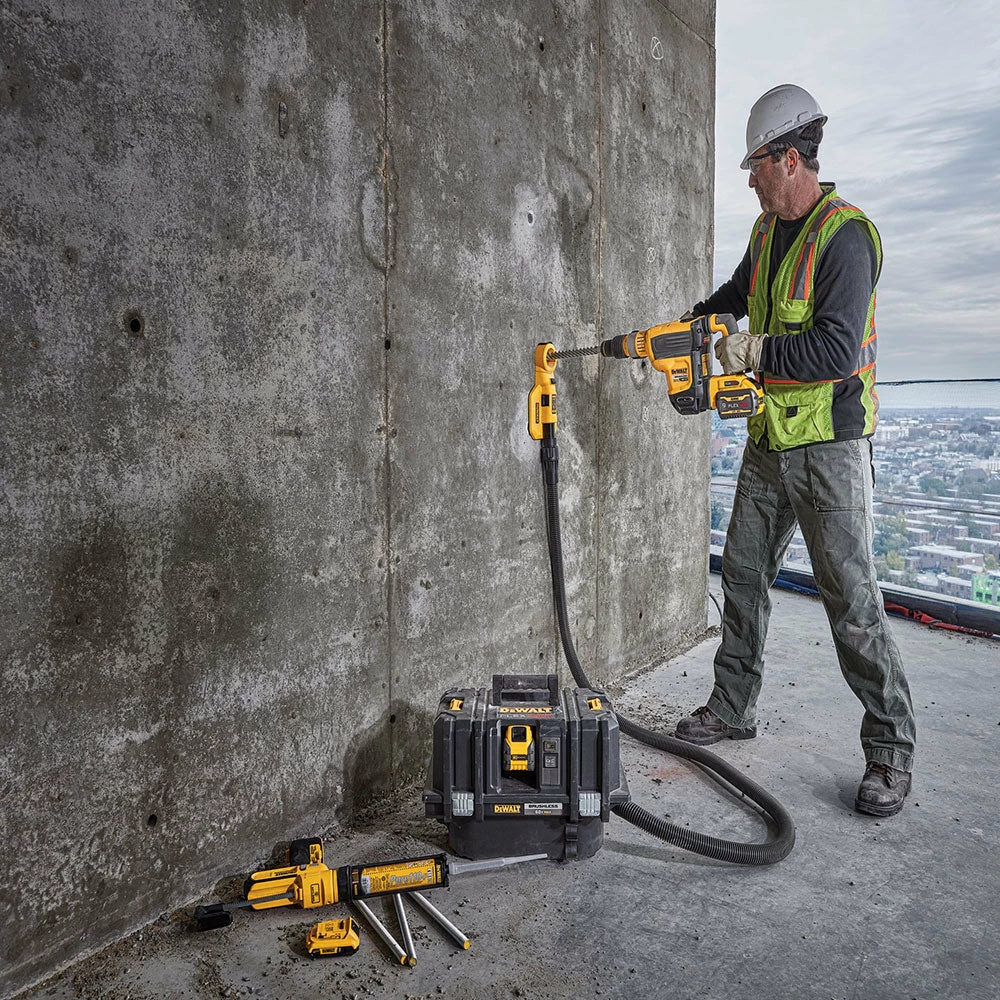

• Equipped with integrated WIRELESS TOOL CONTROL, which allows the user to link the tool to the DCV585 60V MAX dust extractor for remote extractor activation
• The SHOCKS Active Vibration Control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature
• 7-position, variable-speed control for precision hole placement, chipping, and drilling with Atomic Undercut bits
• Brushless motor and durable German engineered mechanisms
• Constant-speed electronics allow the tool to maintain speed under load
• Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the Tool Connect app
• The midweight design makes it ideally suited for high-performance, horizontal serial drilling for 5 – 8 rebar, dry coring up to 4in., chipping in any upper to lower wall and bushing applications

What’s in The Box

• DCH614 60V MAX Combination Rotary Hammer
• 360 degree Side Handle
• (2) FLEXVOLT DCB609 Batteries
• Fast Charger
• Kit Box
• Owner’s Manual

Warranty

• 3-Year Limited Factory Warranty
• 30 Day Satisfaction Guarantee

Specifications

SKU	DCH614X2
Brand	DeWalt
Volts	60V
Blows/Min	1450-2900 BPM
Max Diameter Core	4 in
Optimal Concrete Drilling	5/8 – 1-1/4 in
Impact Energy	10.5 Joules
No Load Speed	190-380 RPM
E-clutch	E-CLUTCH
Power	Cordless
Motor	Brushless
Vibration Control	Shocks
Length	20.7 in
Height	9 in
Weight	15 lbs
