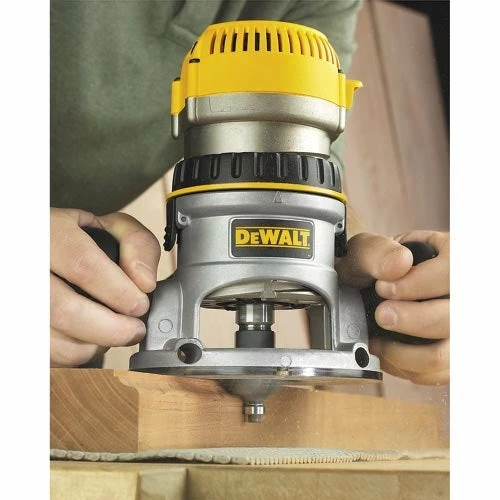

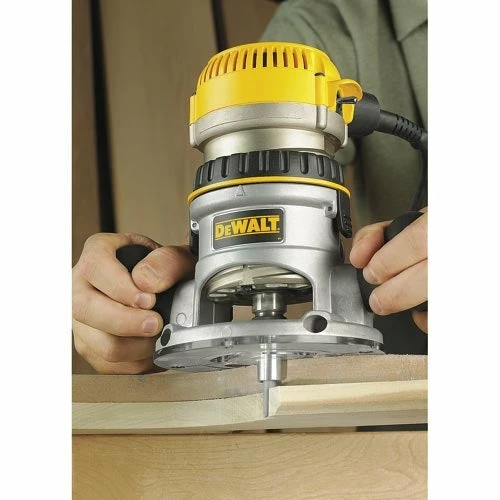

Tools & Equipment DeWALT DW616 1.75-Hp Fixed Base Woodworking Router

Features

• 1-3/4 HP (maximum motor HP), 11.0 amp motor provides the power to rout smoothly through the toughest hardwoods
• Micro-fine depth adjustment ring provides precise depth adjustments in 1/64 increments and adjusts vertically for a constant switch/cordset location
• Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
• Quick release motor latches for fast and easy motor pack removal for bit and base changes
• Detachable cordset offers cordset serviceability and removes the need for a shorty cord motor pack
• Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
• Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
• Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
• Dust-Sealed Switch protects against dust ingestion for longer switch life
• Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
• Nickel plated motor housing for a smooth, long-lasting depth adjustment
• Right or left switch and cordset location provides the ability to have the switch in your right or left hand
• Flat top for easy bit and depth changes
• Self-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits

What’s in The Box

• 1-3/4-Hp 11-Amp Router Motor Pack
• Fixed Base – DW6184
• (1) 1/4 In. and 1/2 in. Collet
• Sub-Base Concentricity Gauge
• (2) Wrenches
• Owner’s Manual

Warranty

• 3-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	DW616
Brand	DeWALT
Voltage	120V
Collet Diameter	1/4 in. and 1/2 in.
Amperage	11A
No Load Speed	24,500 Rpm
Horsepower	1-3/4 Hp
Base Dimension	6 in.
Depth Stop	Micro-Fine Depth Adjustment Ring
Product Weight	7.1 lbs.
