Features

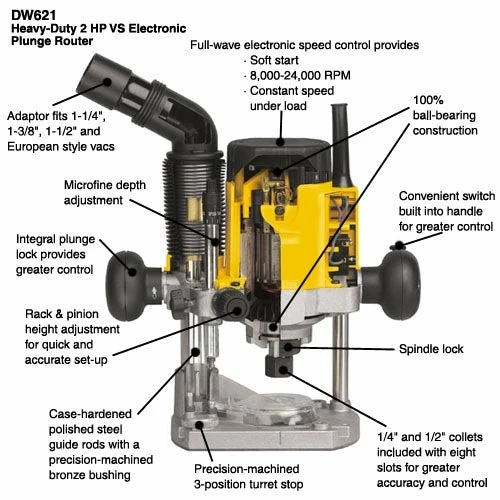

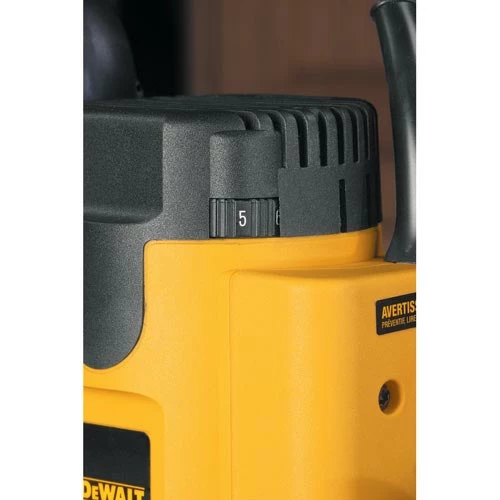

- Full wave electronic variable speed motor with soft start runs at 8,000-24,000 rpm with constant speed under load to ensure a quality finish in all materials.
- Rack and pinion depth adjuster, with micro-fine adjusting allows quick, accurate set ups.
- Only plunge router with built-in dust extraction through the column, removes 95% of the dust.
- Spindle lock button allows one-wrench bit changes.
- Innovative rubber-coated knobs have plunge-lock and on/off built-in for maximum user control.
- 1/4″ – 1/2″ collet capacity for greater versatility.
- 10 Amp motor uses state of the art circuitry for soft starts and smooth operation.
- One piece motor shaft and spindle ensures perpendicularity and accuracy.
- Guide Bushing adapter plate accepts standard guide bushings for template work.
- Phosphorous bronze bushings for the smoothest plunge.
- Micro-fine depth adjusts in increments of 1/256″ for extreme accuracy.
What’s in The Box
- 1/4″ and 1/2″ collets
- Template guide bushing adapter
- Wrench
- Owner’s Manual
Warranty
- 3-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Amps | 10.0 Amps |
| Horsepower | 2 HP |
| No Load Speed | 8,000-24,000 rpm |
| Collet Diameter | 1/4, 1/2″ |
| Plunge Stroke | 2-1/8″ |
| Depth Stop | 3 Stage Turret Stop |
| Base Dimension | 4-5/16 x 6-1/4″ |
| Spindle Lock | Yes |
