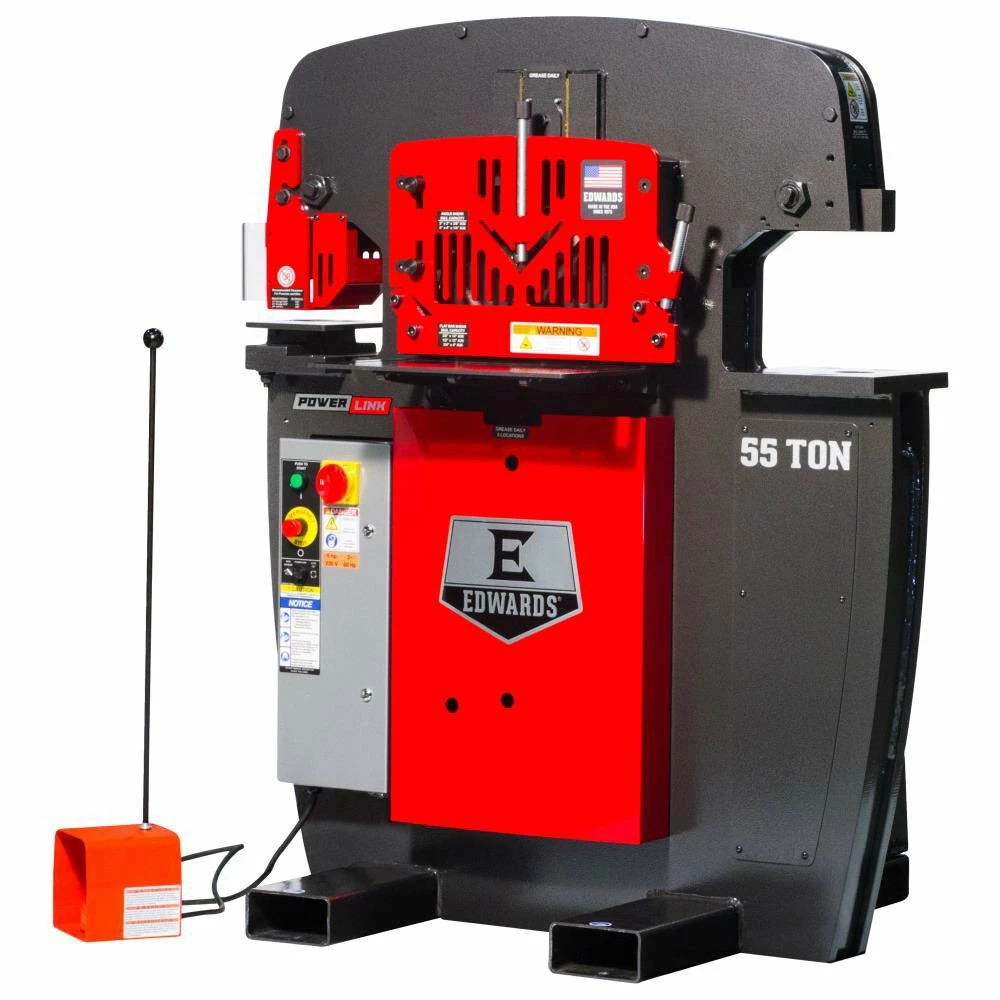

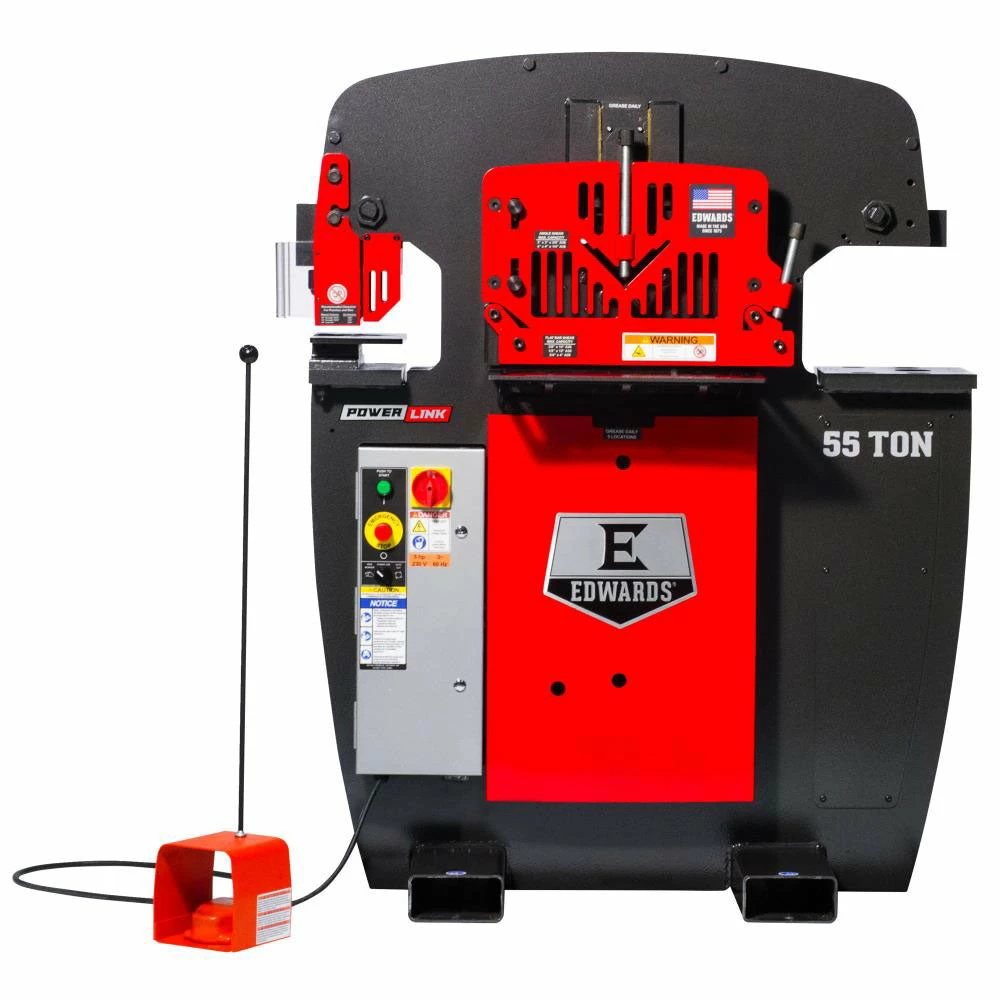

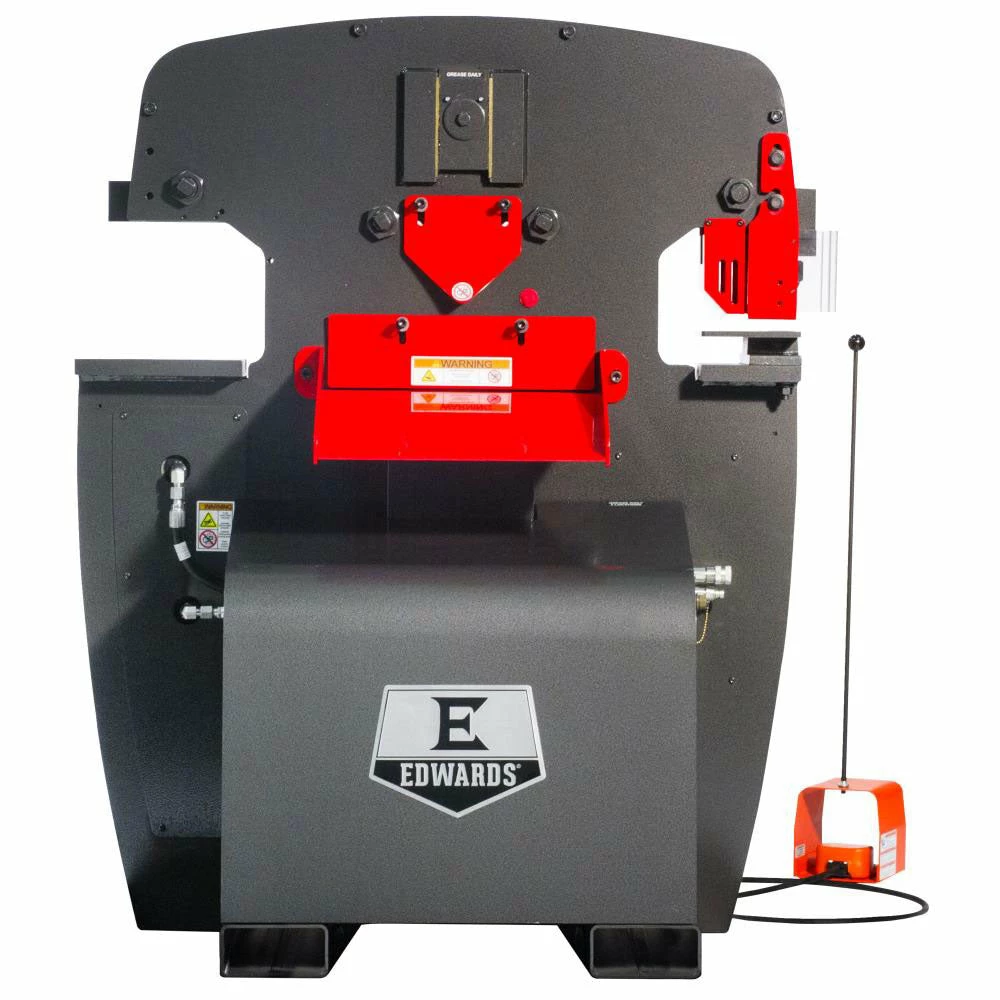

Tools & Equipment Edwards IW55-3P230-AC500 230V 55 Ton 3 Phase Ironworker W/ PowerLink System

Features

• Four workstations: standard (4) – punch, flat bar shear, angle shear and coper notcher
• 9 additional attachments available to convert the punch workstation to your specific needs
• ANSI B11.5 – 1988(02) compliant guarding
• ETL/UL approved controls
• Integrated e-stop, lock-out/tag-out
• Optimized workstation heights for improved efficiency
• Electric foot pedals with integrated jog control
• Adjustable electric stoke control

What’s in The Box

• Ironworker w/ PowerLink System – IW55-3P230-AC500
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	IW55-3P230-AC500
Brand	Edwards
Volts	230V
Power	55 Tons
Amperage	14
Horsepower	5
Max RPM	1725
Hydraulic Max GPM	3.5
Motor Phase	3
Valve Pressure	2500 PSI
Max Diameter	1 in
Throat Depth	7.5 in
Reservoir Capacity	7 gallons
Length	45 in
Width	51 in
Height	62 in
Weight	2480 lbs
