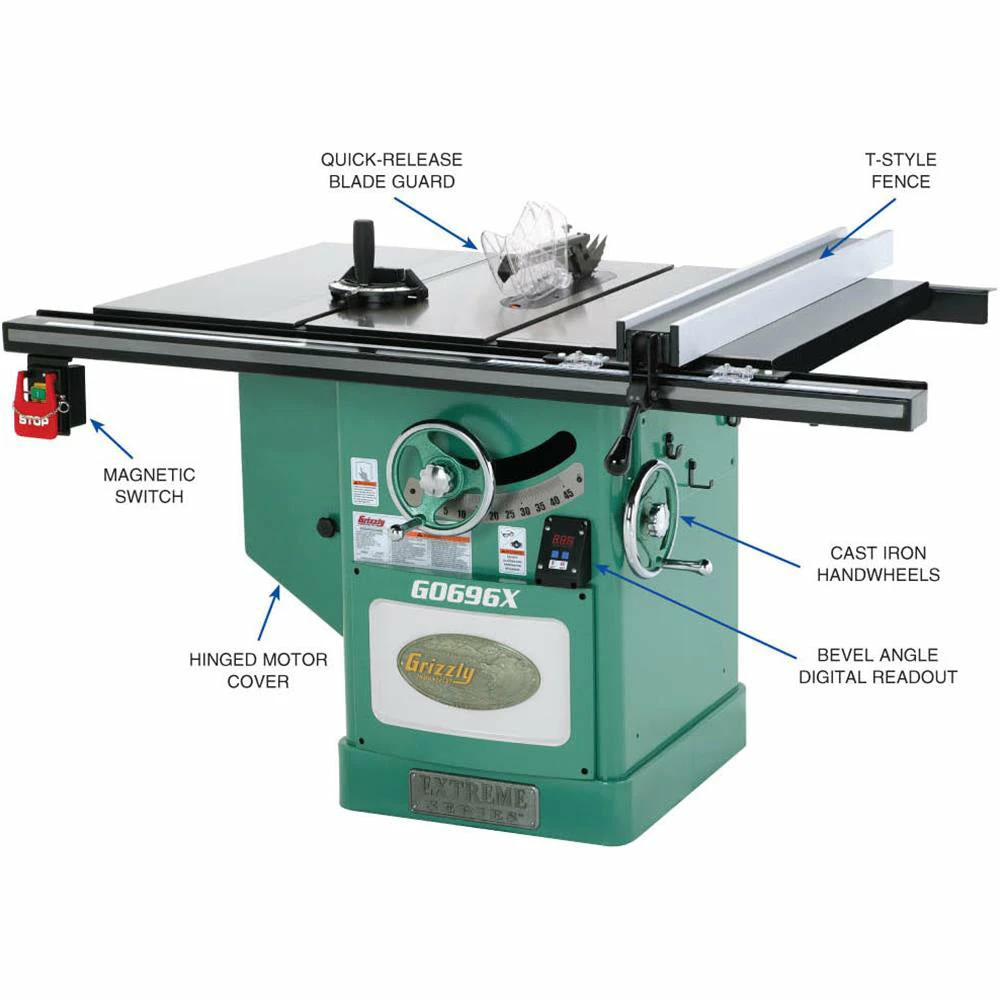

Tools & Equipment Grizzly G0696X 12 Inch 5 HP 220V Extreme Series Left-Tilt Table Saw

Features

• Precision ground cast iron table
• Cast iron trunnions
• 3/8 in x 3/4 in T-slots and miter gauge
• 4 in dust port
• Power transfer: Poly-V serpentine belt
• Steel cabinet

What’s in The Box

• 12 in 5 HP 220V Extreme Series Left Tilt Table Saw – G0696X
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G0696X
Brand	Grizzly
Motor	5 HP, Single Phase
Amps	18A
Blade Tilt	Left, 45 degrees
Table Height from Floor	35-3/4 in
Table Size with Wings	30-3/4 in x 48-1/4 in
Arbor Speed	3600 RPM
Arbor Size	1 in
Max Dado Width	3/4 in
Max Depth of Cut at 90 degrees	4 in
Max Depth of Cut at 45 degrees	2-3/4 in
Max Rip Capacity	36 in
Item Dimensions(inches)	75 W x 44 D x 42-1/2 H
Weight	756 lbs
