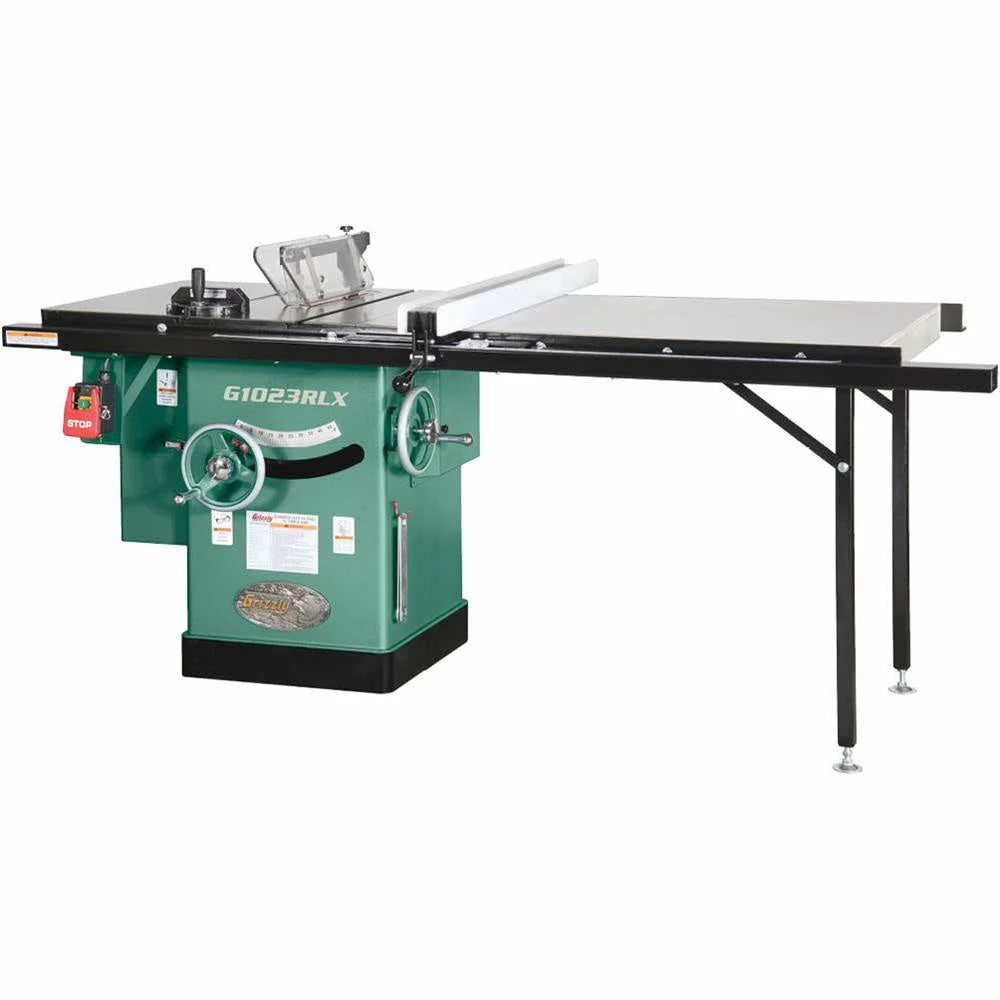

Tools & Equipment Grizzly G1023RLX 10 In 3 HP 240V Cabinet Left-Tilting Table Saw Extension Table

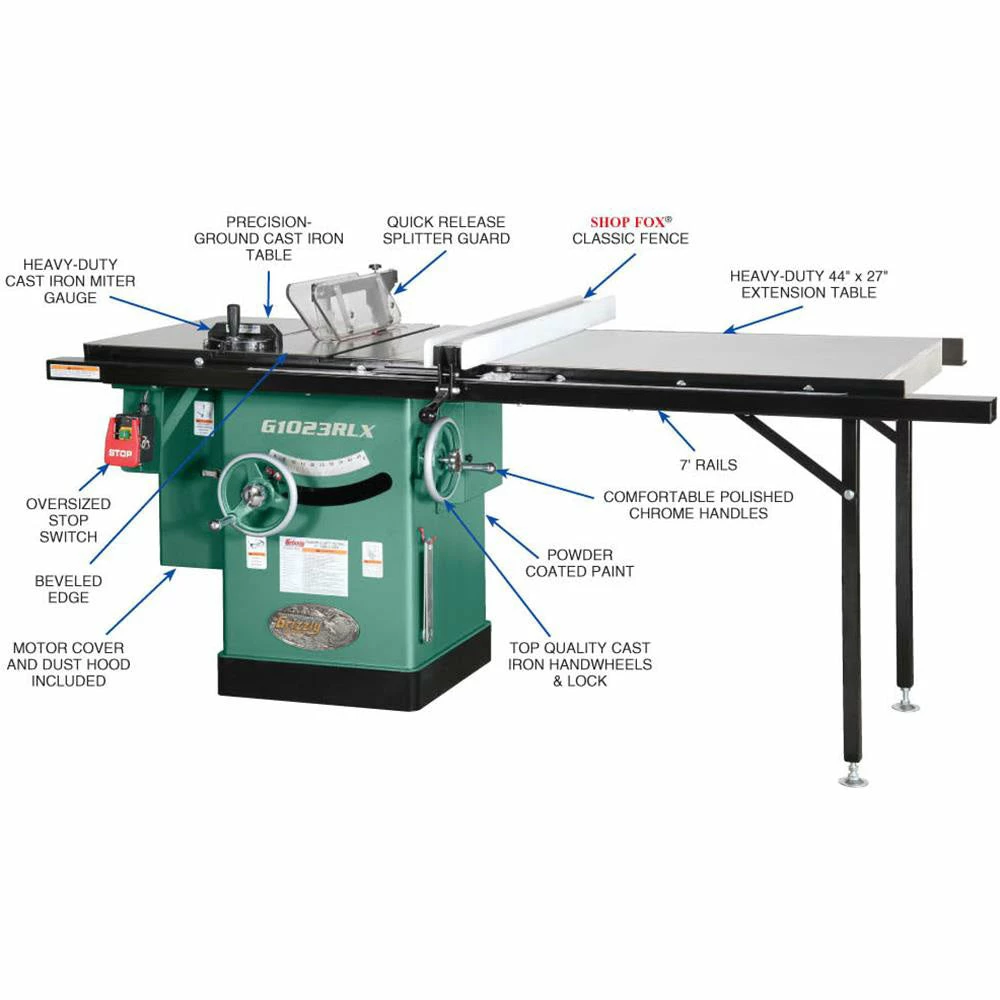

Features

• Heavy-Duty Miter Gauge
• Smooth and Quiet Poly-V Serpentine Belt System
• Precision-Ground Cast-Iron Table With Beveled Edge
• All Machined Cast-Iron Internal Structure
• Inboard And Outboard Arbor Bearing

What’s in The Box

• 10 in 3 HP 240V Cabinet Left Tilting Table Saw with Extension Table – G1023RLX
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	G1023RLX
Brand	Grizzly
Motor	3 HP, Single Phase
Volts	240V
Speed	3450 RPM
Amps	14A
Extension Table	44 in x 27 in
Cutting Capacity	8 in left and 53 right of blade
Max Depth of Cut at 90 Degrees	3 in
Max Depth of Cut at 45 Degrees	2-1/8 in
Arbor Size	5/8 in
Max Blade Diameter	10 in
Max Blade Tilt	45 degrees
Item Dimensions(inches)	84 W x 47 D x 39-3/4 H
Weight	522 lbs
