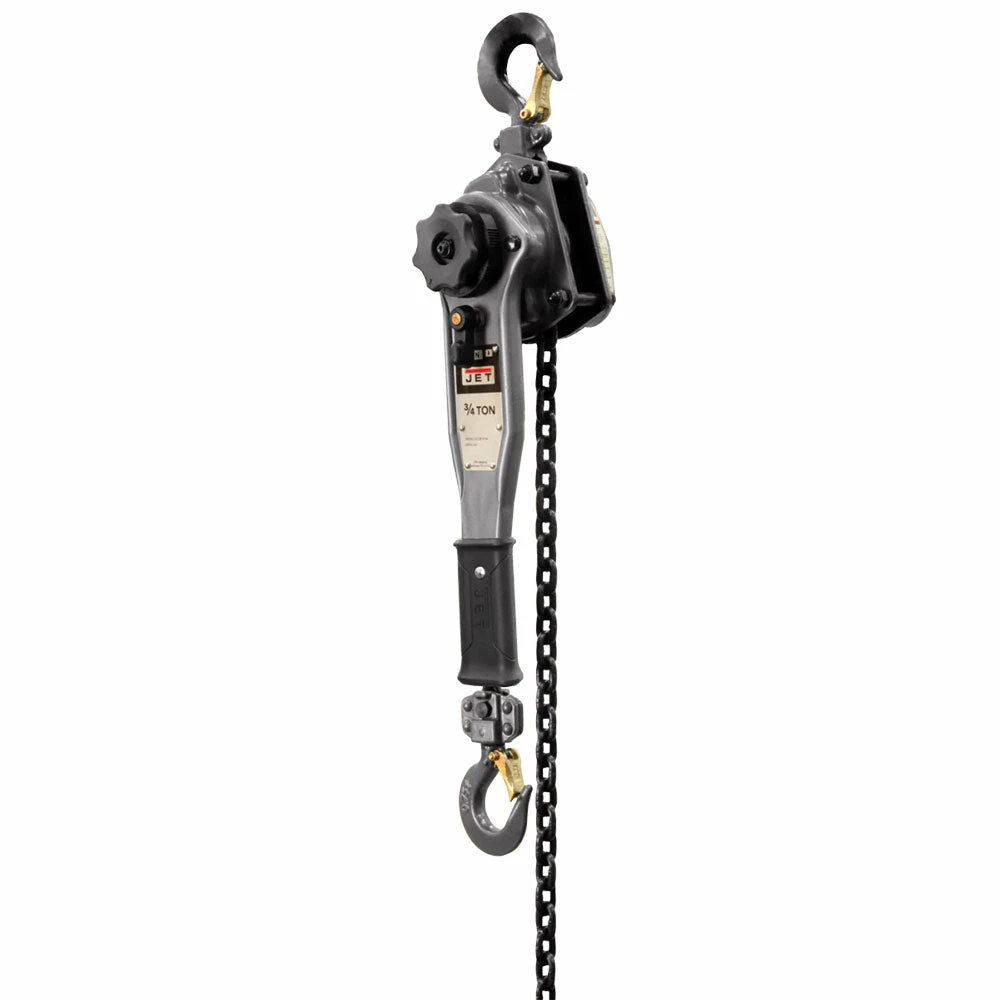

Tools & Equipment JET 287302 JLP-075A-15 3/4 Ton JLP-A Series Lever Hoist W/ 15′ Lift

Features

• Safety
• Innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing
• JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take-up of slack chain and is engineered not to free chain under load
• The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
• Durability
• Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Optional Shipyard Hook are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
• Grade 80 black oxide coated load chain for added durability
• Needle bearings support the load sheave to increase efficiency and promote smooth operation
• Impact-resistant all-steel construction for added durability and protection
• Standards
• This product complies with ANSI / ASME B30.21 and HST-3 Standards
• Load tested to 125 percent of capacity with certificate

What’s in The Box

• 3/4 Ton Lever Hoist
• Owner’s Manual

Warranty

• Limited Lifetime Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	287302
Brand	Jet
Load Capacity	3/4 ton
Lift	15 ft
Overload Protection	No
Ship Yard Hooks	No
Headroom	12-4/5 in
Handle Length	11 in
Lever Pull Force (LBF)	31
Lift per Turn	4/5 in
Number of Falls	1
Load Chain Dimensions (mm)	6 x 18
Hook Throat Opening	1-1/2 in
Width	5-5/6 in
Weight	19 lbs
