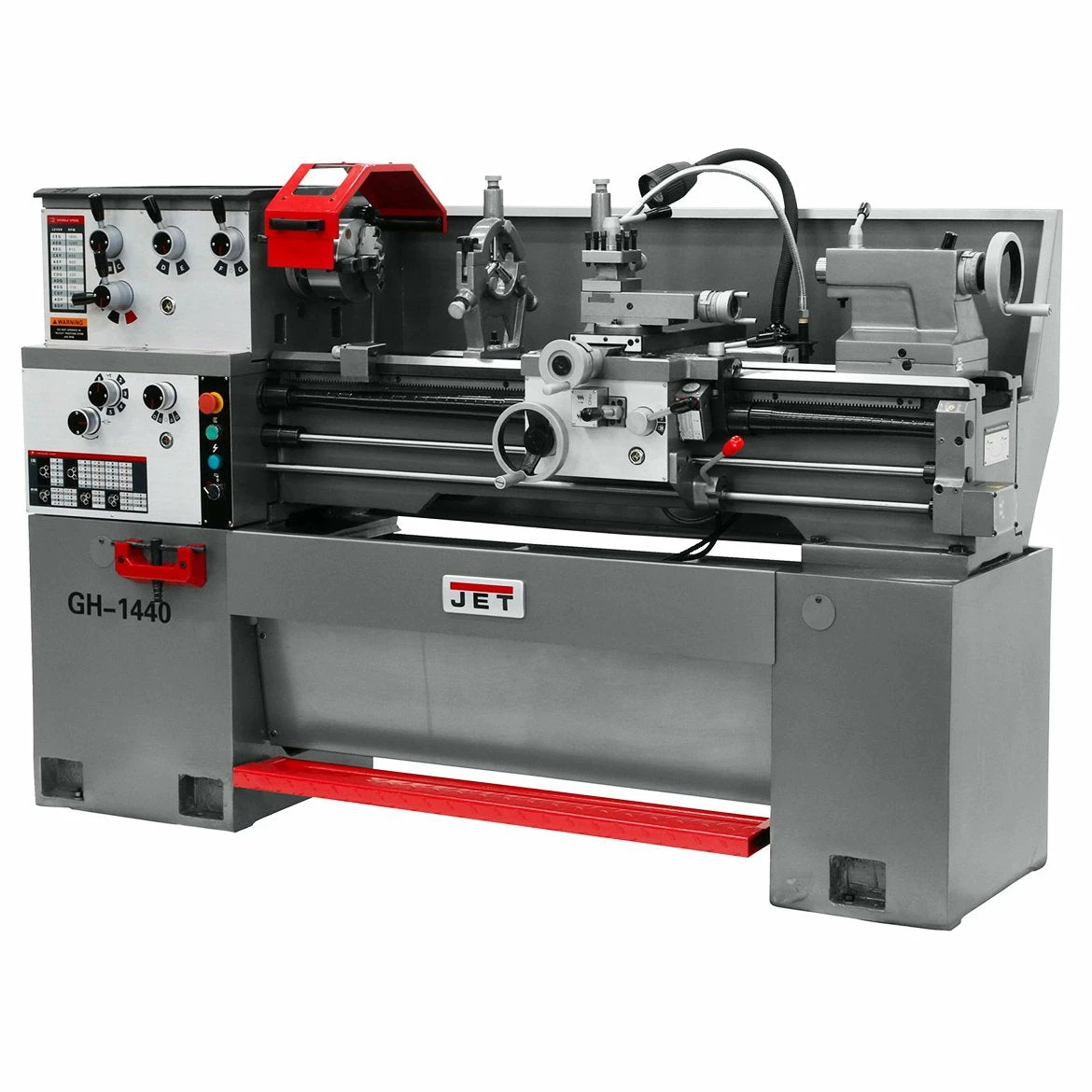

Tools & Equipment Jet 322840 220-Volt 14-Inch X 40-Inch 3-Hp 3-Phase Adjustable Geared Head Lathe

Features

• V-way bed design is induction hardened and ground
• Splined, not keyed, shafts are utilized
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Independent leadscrew and feed rod
• Adjustable gibs are incorporated in the carriage and slideways
• Safety on/off switch
• Emergency Stop within easy reach of the Operator
• Electronic Chuck Key Docking Station
• Chuck Guard
• Foot Brake
• Gearbox provides larger threading and feed capabilities with no gear changes

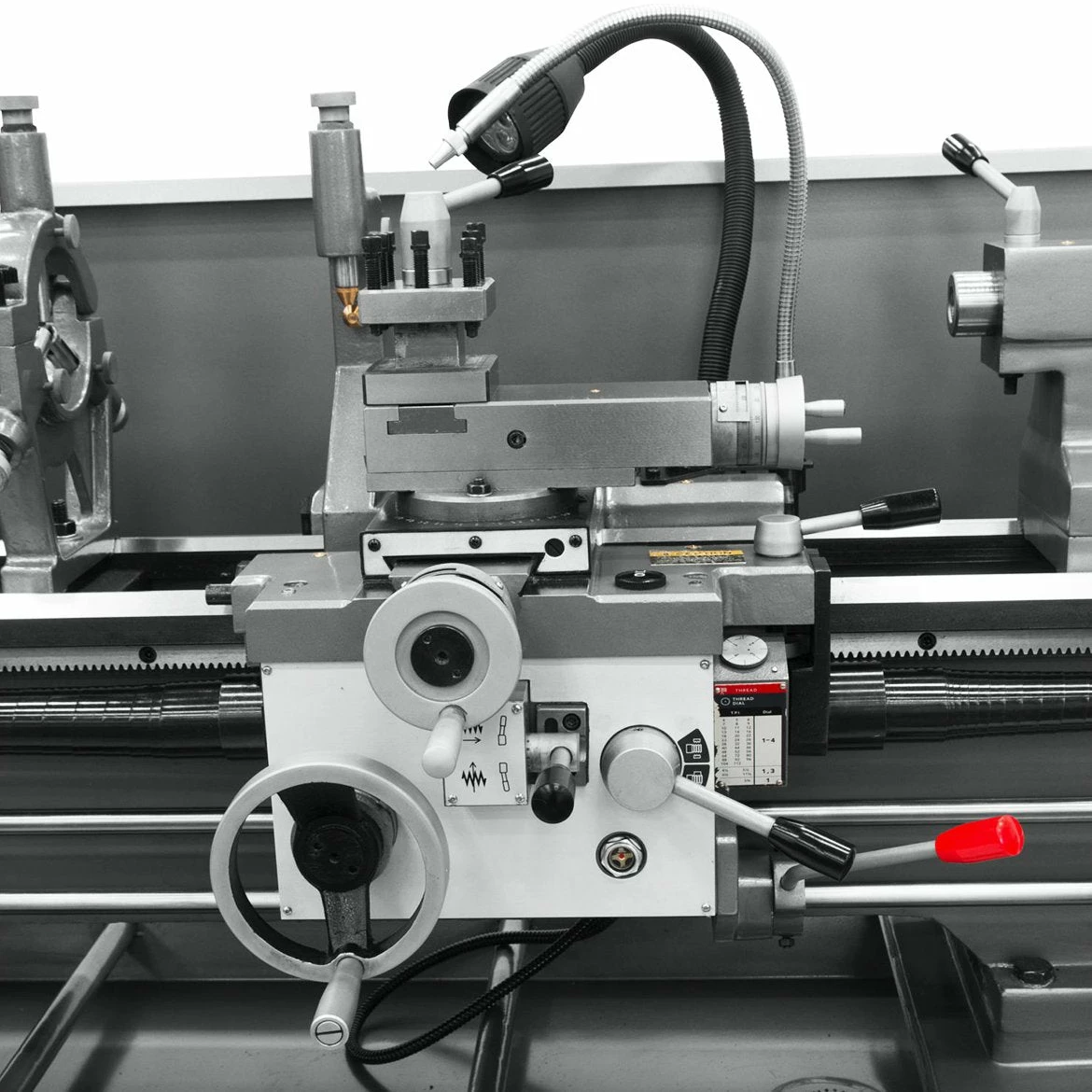

• Spindle actuation control is apron mounted
• Gap bed section provided for larger diameter work
• Inch-metric dials are standard
• Compound and cross slide have backlash elimination

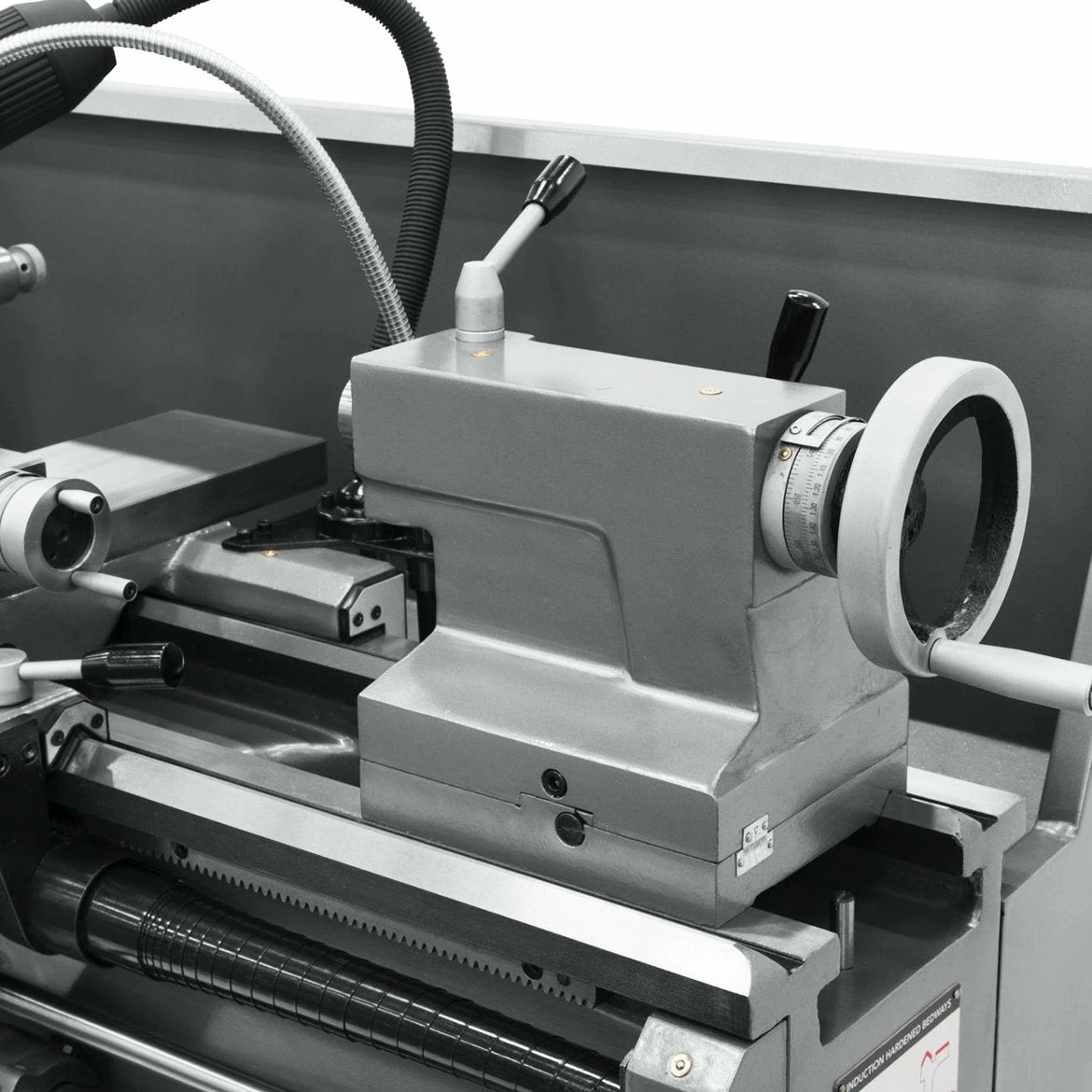

• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Front removable chip tray
• Spindle jog button for easy gear engagement and spindle inching
• Coolant system
• Full length splash guard

What’s in The Box

• 14-Inch x 40-Inch Geared Head Lathe
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	322840
Model	GH-1440-3
Brand	Jet
Voltage	230v
Horsepower	3 Hp
Phase	3-Phase
Swing Over Bed	14 in.
Swing Over Cross Slide	8-1/5 in.
Swing Through Gap	20 in.
Length of Gap	9-3/8 in.
Distance Between Centers	40 in.
Spindle Bore	1-1/2 in.
Spindle Mount	D1-4
Spindle Taper w/ Sleeve	MT-5
Number of Spindle Speeds	12
Range of Spindle Speeds	40 Rpm – 1,800 Rpm
Number of Longitudinal and Cross Feed Rates	40
Range of Longitudinal Feeds	0.012 Ipr – 0.0294 Ipr
Range of Cross Feeds	0.0004 Ipr – 0.0103 Ipr
Number of Inch Threads	40
Range of Inch Threads	4 Tpi – 112 Tpi
Number of Metric Threads	23
Range of Metric threads	0.45 – 7.5
Max Tool Size	5/8 in. x 5/8 in.
Compound Slide Travel	3-1/2 in.
Cross slide Travel	6-3/8 in.
Carriage Travel	37-1/2 in.
Tailstock Spindle Travel	4-3/4 in.
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity	2-5/8 in.
Steady Rest Capacity	3-1/2 in.
Width of Bed	10-1/5 in.
Length	74-4/5 in.
Width	28 in.
Height	46 in.
Product Weight	2,336 lbs.
