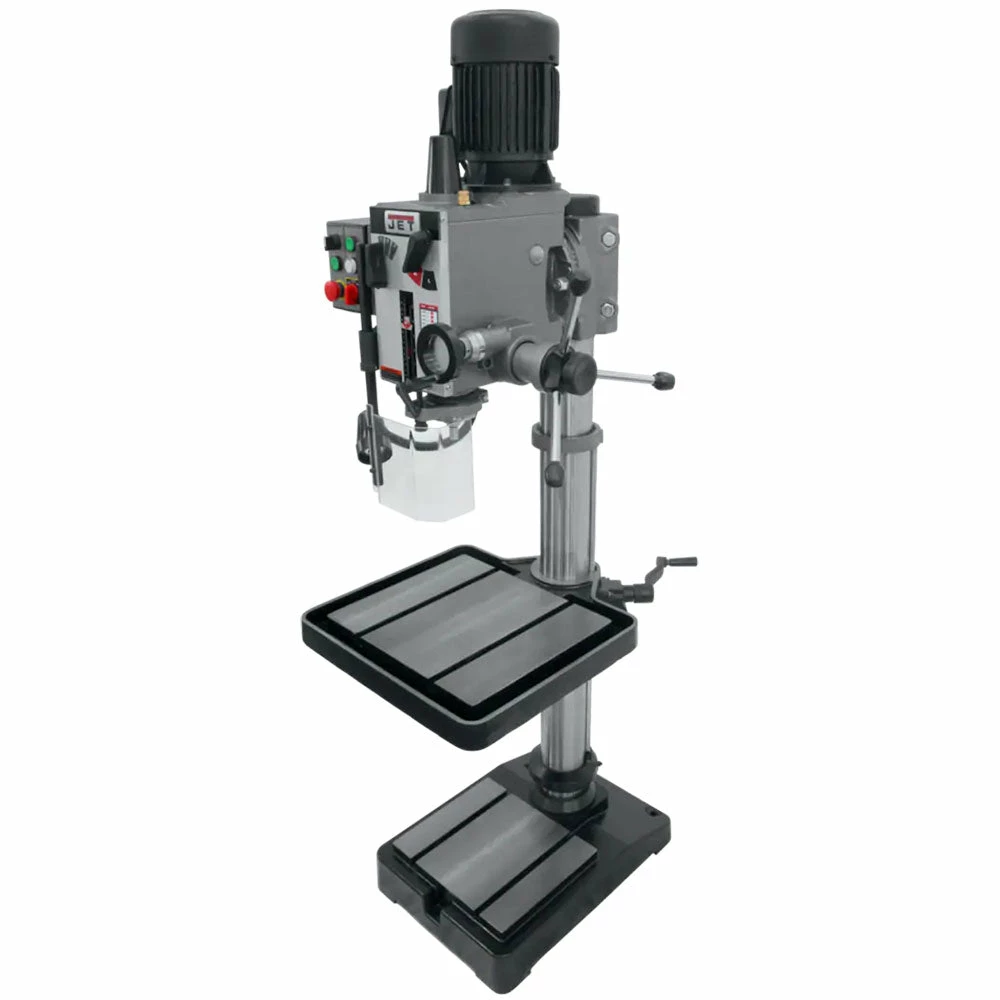

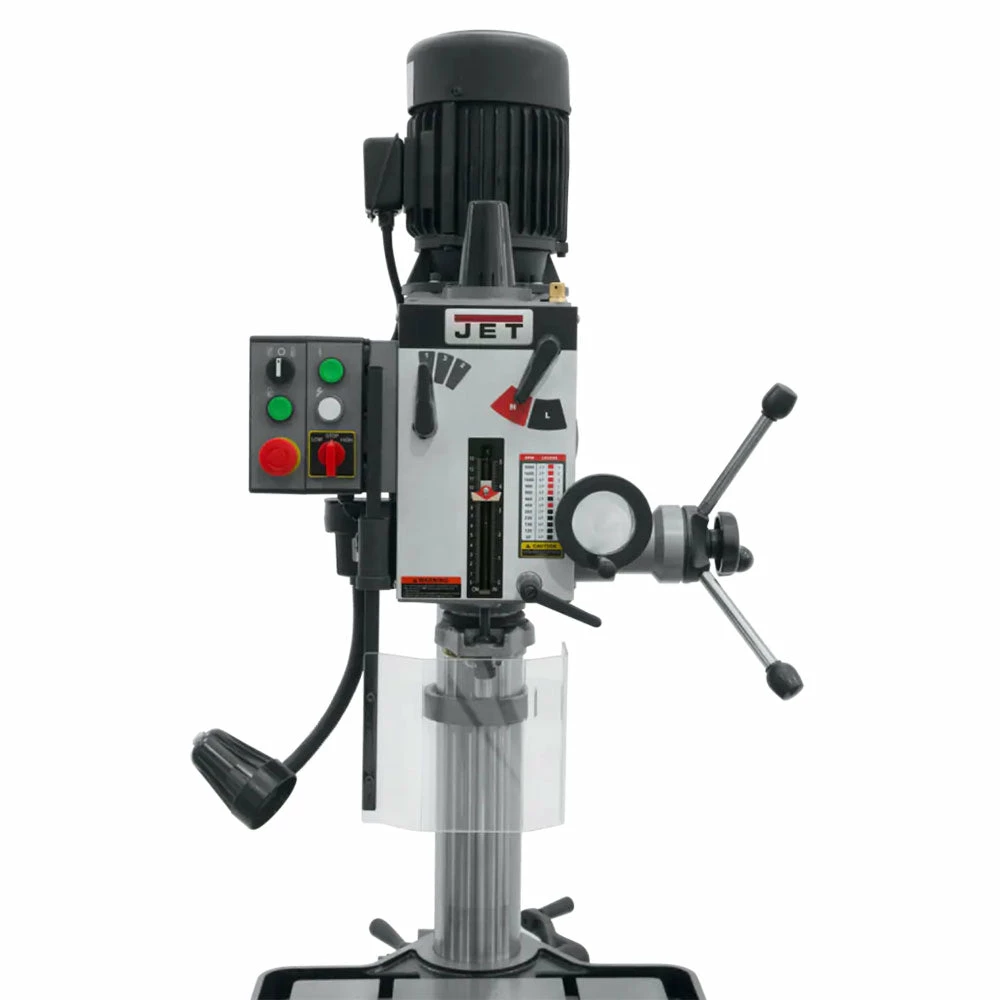

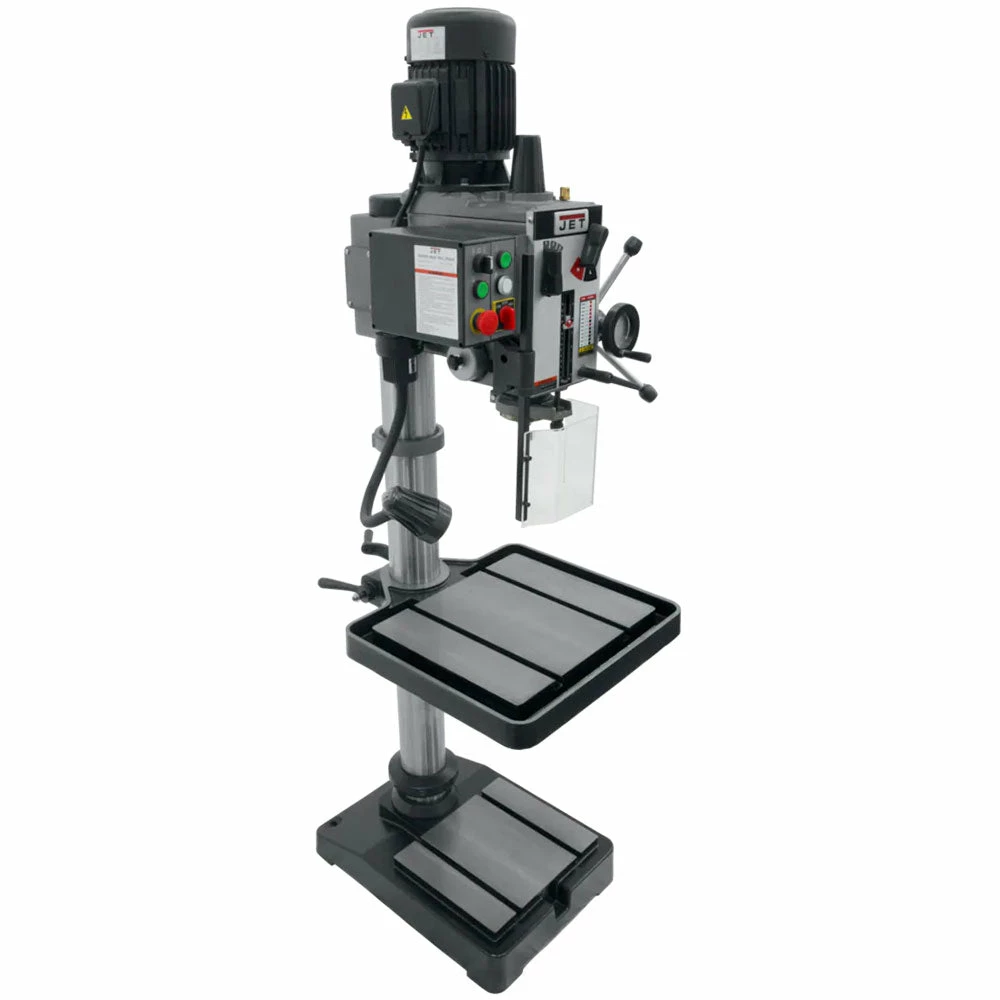

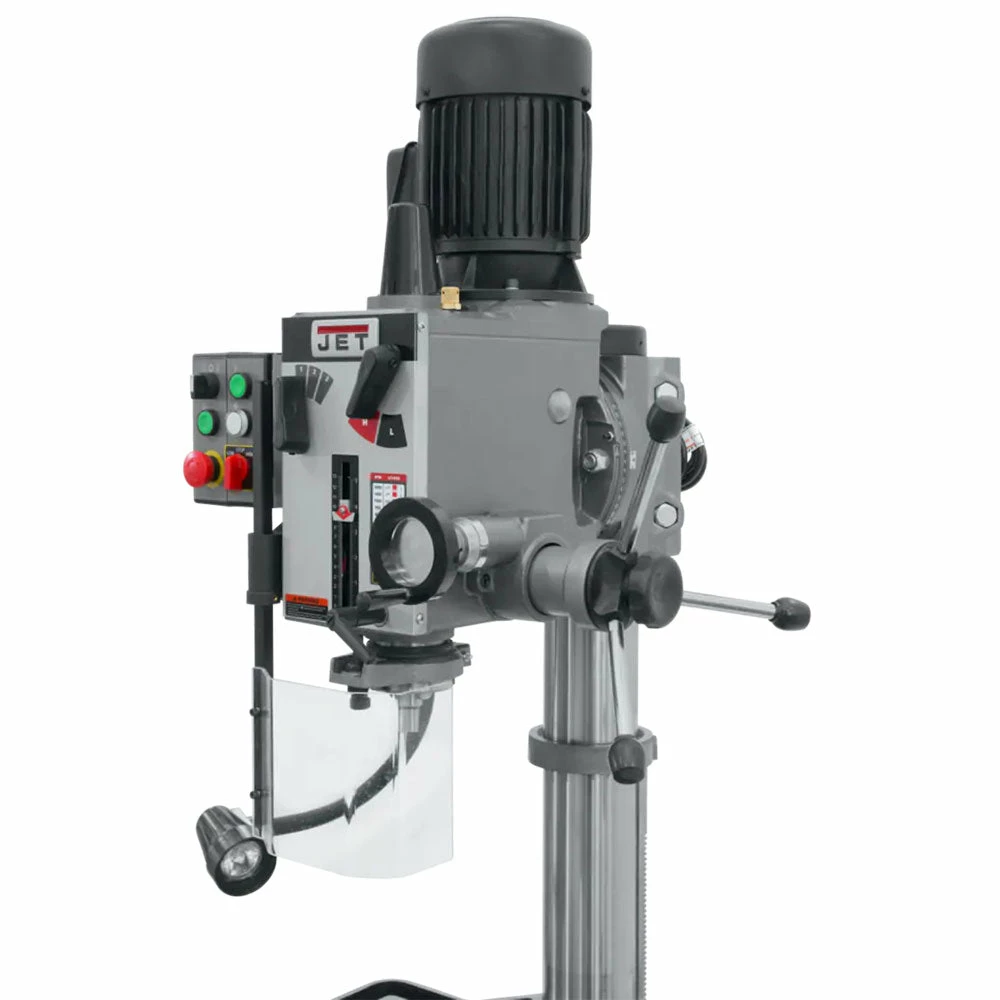

Tools & Equipment JET 354022 GHD-20T 230V 3 Phase 20″ Gear Head Tapping Drill Press

Features

• Heavy-duty design allows a variety of precision drilling and tapping applications
• Integrated tapping and reversing controls
• Large production table and T-slotted base
• Easy-to-read internal depth gauge
• Calibrated fine down feed built-in
• TEFC motor
• Built-in spindle lock
• Head tilts left or right
• Easily accessible table raiser
• Drill chuck arbor
• Drawbar

What’s in The Box

• Gear Head Tapping Drill Press
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	354022
Brand	Jet
Volts	230
Horsepower	2
Phase	3
Style	Geared Head
Drills to Center of Circle	20 in
Drilling Capacity Cast iron	1-1/2 in
Drilling Capacity Mild Steel	1-1/4 in
Tapping Capacity Cast Iron	15/16 in
Tapping Capacity Mild Steel	15/16 in
Column Diameter	4-1/2 in
Distance Column to Spindle	10 in
Range of Spindle Speeds (RPM)	60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Taper (in x TPI)	MT-3
Spindle Travel	5 in
Spindle Distance to Base	44-5/16 in
Spindle Distance to Table (Max)	30-1/2 in
Quill Diameter	3 in
Quill Feed	Manual
Table Travel	25-1/2 in
T-Slots Number and Size	2 and 5/8 in
T-Slot Center	9 in
Work Table Weight Capacity	275 lbs
Table Size (L x W)	21-3/4 x 19-1/2 in
Base Work Table	15-1/4 x 13 in
Base Slots Number and Size	2 and 5/8 in
Dimensions (L x W x H)	32 x 24 x 71
Weight	700 lbs
