Features
- Large hand wheel and built-in gauge provides easy blade tensioning
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Easy access chip tray allows quick cleanup
- Blade is fully guarded, regardless of blade guide position
- Carbide blade guides feature parallel double-row ball bearing support
- Coolant is distributed through the blade guides
- Built-in, self-propelled blade brush extends blade life
- Fully adjustable hydraulic down feed with separate on/off control valve
- Automatic shut-off after cut
- Coolant system
- Adjustable material stops
- 1″ Bi-Metal blade
What’s in The Box

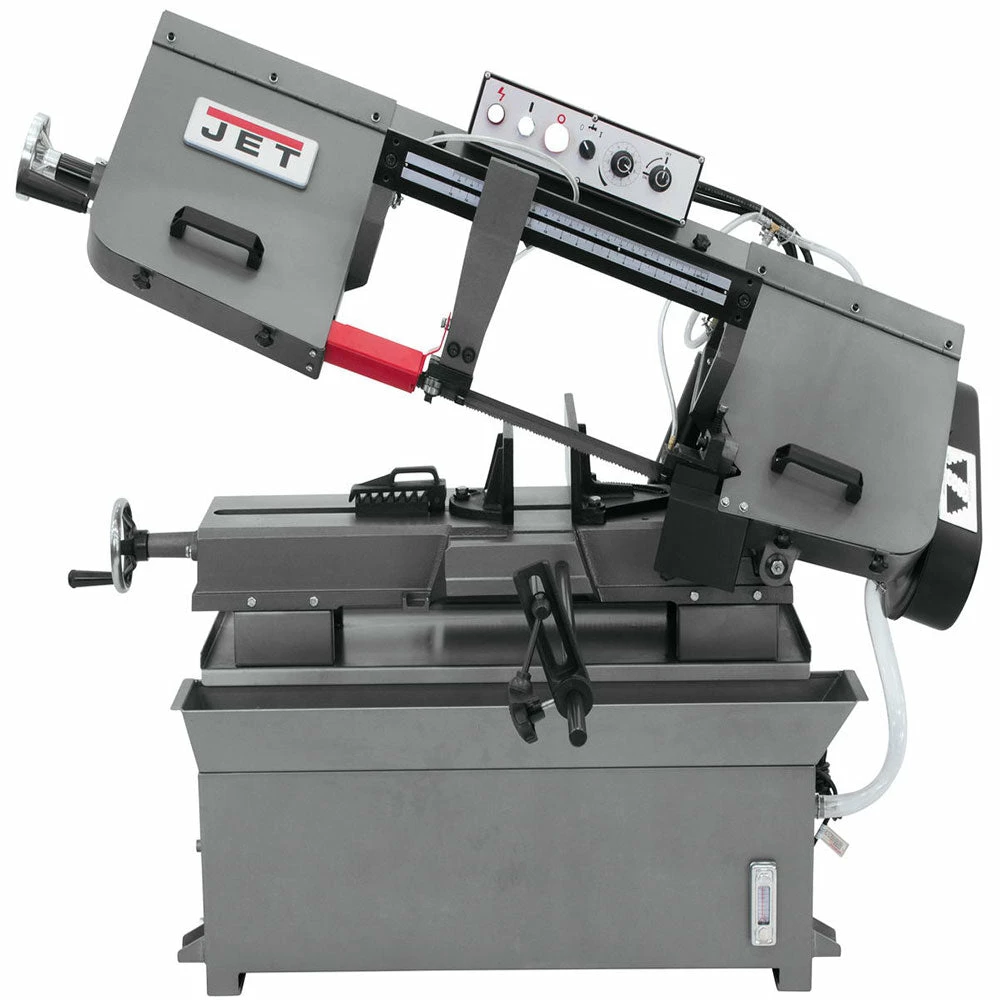

- Jet HBS-916W 115V/230V 1-HP 9″ X 16″ Single Phase Horizontal Bandsaw – 414468
- Owner’s Manual
Warranty
- 5 Years Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | 414468 |
| Brand | JET |
| Motor | 1-1/2 hp |
| Motor Phase | 1 |
| Motor Volts | 115/230V |
| Cutting Capacity (W X D) | 9 x 16 in |
| Round at 90 degrees | 9 in |
| Round at 45 degrees | 6-1/8 in |
| Rectangle at 90 degrees | 8-1/2 x 14 and 2 x 16 |
| Rectangle at 45 degrees | 9 x 6-1/8 |
| Blade Speeds | 82, 132, 170, 235 SFPM |
| Blade Wheel Diameter | 13 in |
| Blade Length | 119-1/2 in |
| Blade Size | 1 x .035 x 119-1/2 |
| Bed Height | 25 |
| Drive | Belt Drive |
| Length | 65 in |
| Width | 28 in |
| Height | 42 in |
| Weight | 704 lbs |
