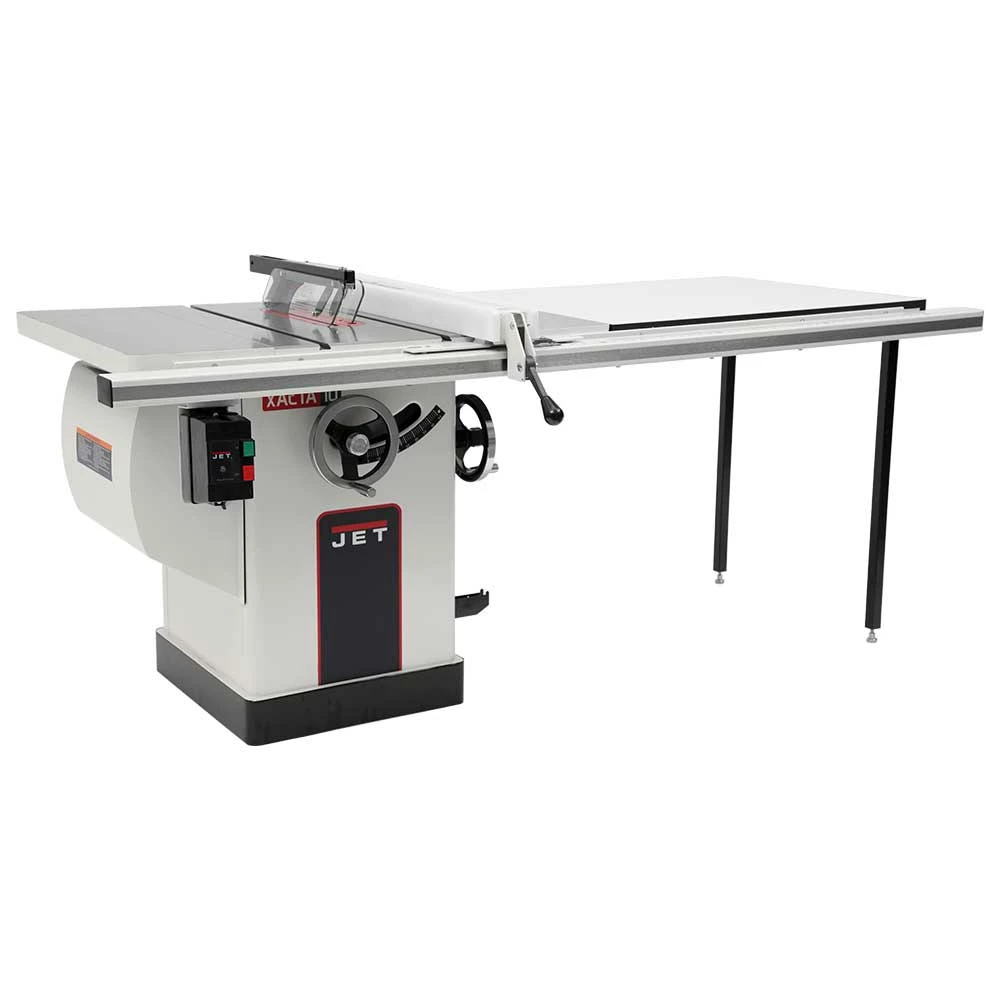

Tools & Equipment JET 708677PK 5-Hp 230V 50″ Heavy Duty Cast Iron RIP Deluxe Xacta Saw

Features

• EXCLUSIVE 30″ Commercial XACTA® Fence II with T-square design
• Quick release riving knife greatly reduces binding/kickback risk
• Push button arbor lock for rapid blade change
• Shrouded Blade increases dust collection efficiency
• Standard 11″ left and right cast iron extension wings provides the largest table surface in its class
• Poly-V drive belt system delivers quiet, efficient operation
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Built-in 4″ dust collection port
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
• Arbor wrench
• Powder coated paint for a long-lasting, chip-resistant finish

What’s in The Box

• Deluxe Xacta Saw 5HP, 1Ph, 50″ RIP 708677PK
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Blade Diameter (In.)	10
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4300
Maximum Depth of Cut (In.)	3
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Rip Left of Blade (In.)	13
Maximum Rip Right of Blade (In.)	50
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10
Maximum Diameter of Dado (In.)	8
Maximum Width of Dado (In.)	13/16
Table Type	Cast Iron
Table Size (L x W) (In.)	29 x 20
Table Size with Extension (L x W) (In.)	29 x 42
Miter Gauge Type	Deluxe
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	18
