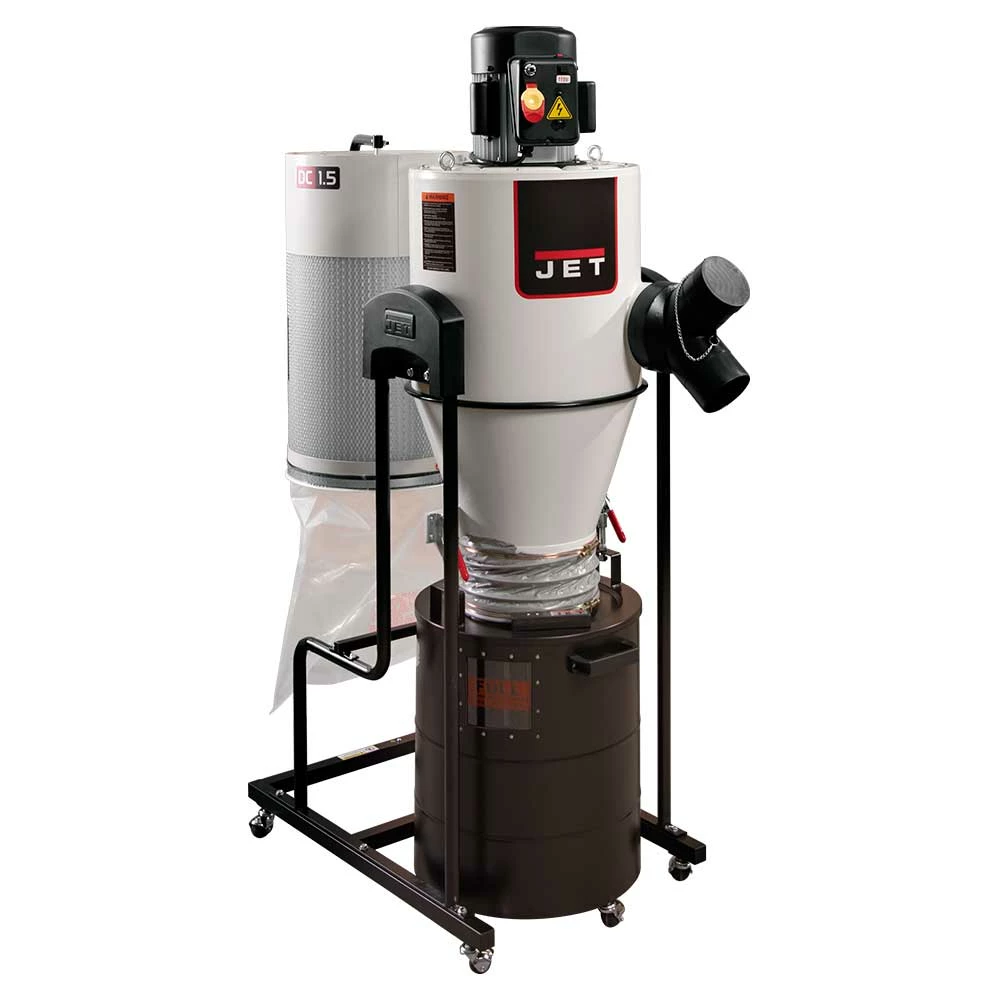

Tools & Equipment Jet 717515 JCDC-1.5 115-Volt 1.5-Hp Single Phase Cyclone Dust Collector

Features

• The cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

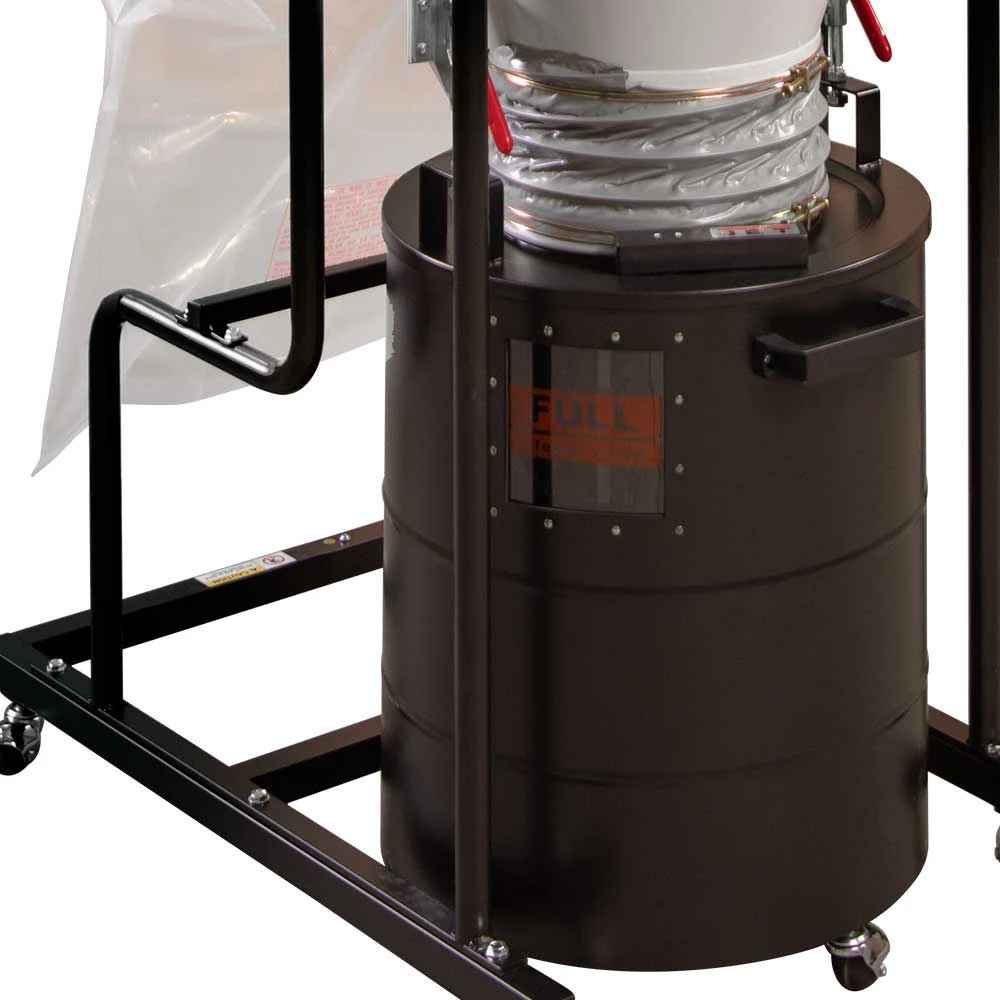

• Heavy debris is captured in 20-gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

What’s in The Box

• JET JCDC-1.5 115V 1.5 HP Cyclone Dust Collector – 717515
• Owner’s Manual

Warranty

• 3 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	717515
Brand	JET
Motor Power	1.5 HP
Motor Voltage	115
Motor Amps	14
Bag Capacity	20 cu, ft.
Color	White
Product Type	Dust Collector
Interior Hose Diameter	4 in
Static Pressure Loss	1535
Max Static Pressure	8.2
Canister Filter Length	15.7 in
Sound Rating	75 Db
Canister Collection Bag (Dia.xL/in)	23.6 x 19.6
Dimensions of Unit (LxWxH)	22 in x 47 in x 67.5 in
Weight	175 lbs
