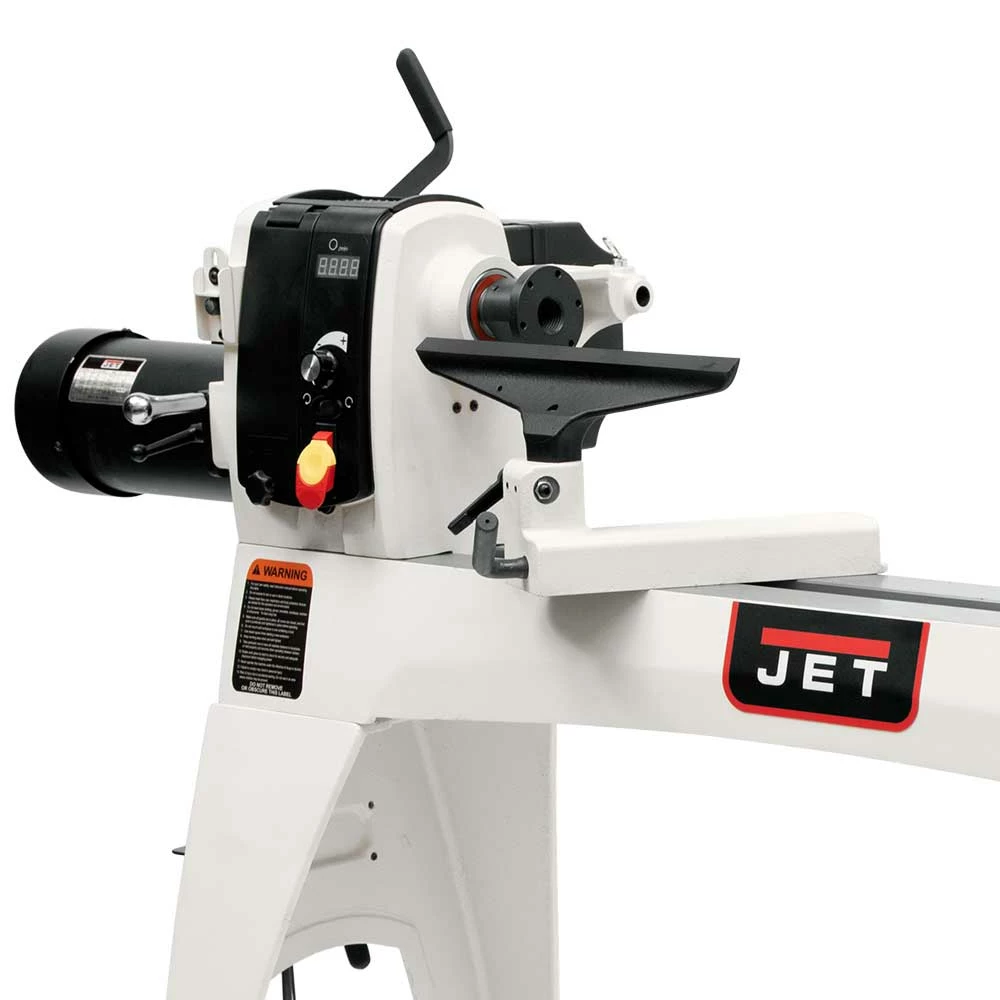

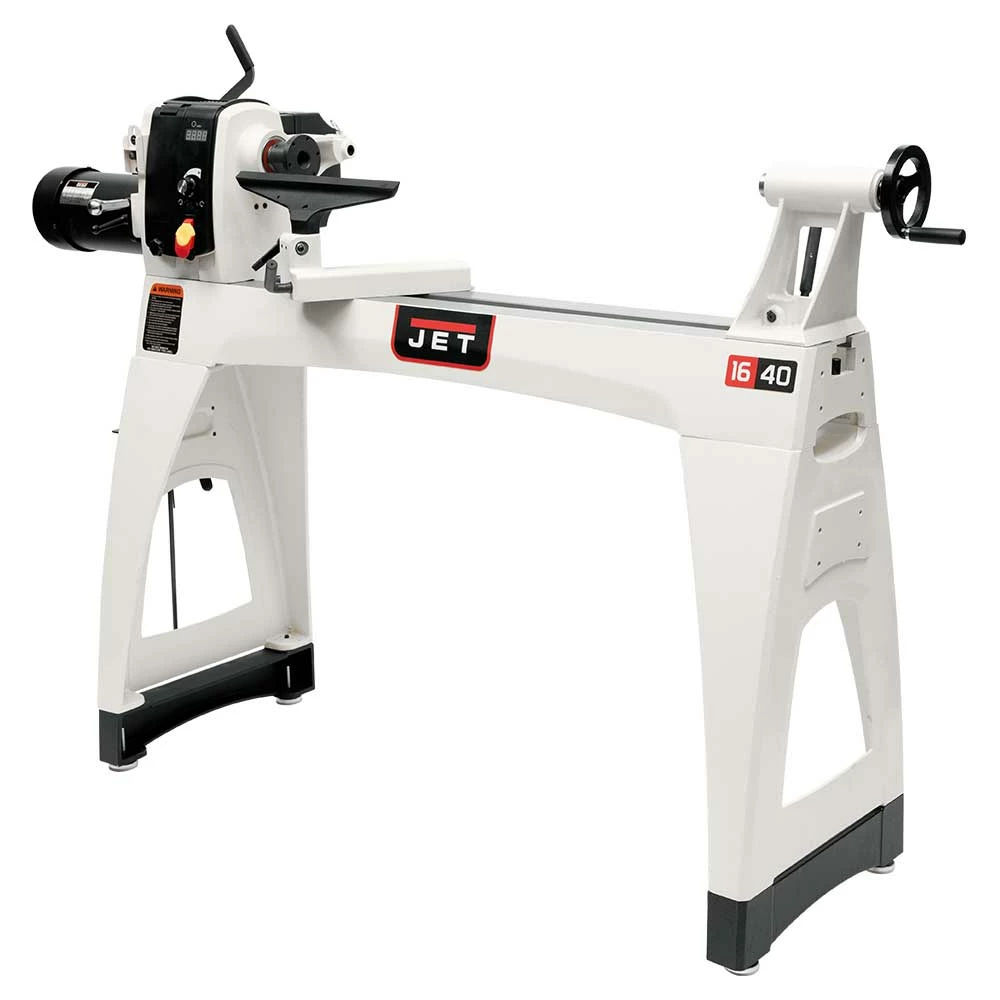

Tools & Equipment Jet 719500 JWL-1640EVS 115V 1.5-HP 16″ X 40″ Variable Speed Woodworking Lathe

Features

• Headstock slides for maximum versatility
• Extended spindle nose houses dual headstock spindle bearings
• Improved tailstock quill locking mechanism incorporates an anti-rotation key

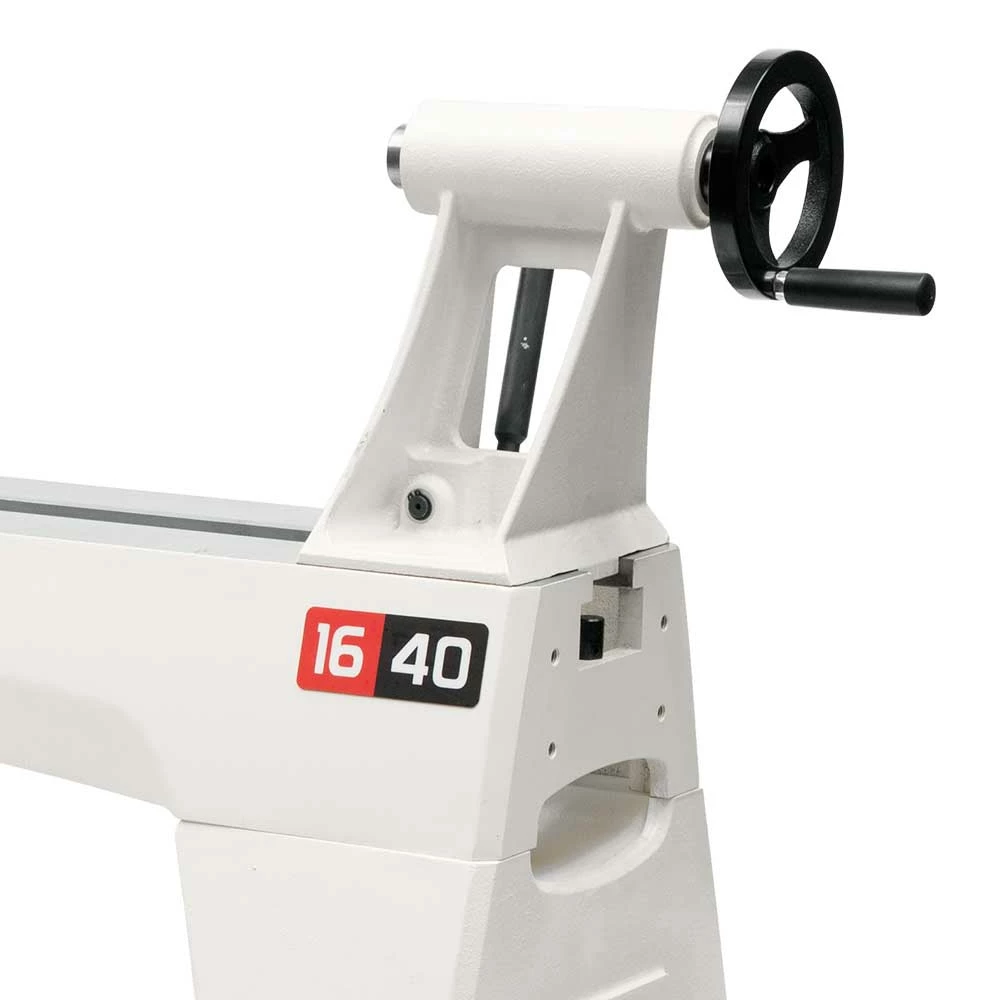

• Tailstock features Acme threads for smooth and durable movement
• Banjo uses non-marring, positive locking wedge system to securely hold tool post
• Tool post locking mechanism designed for year of consistent strength
• Spindle lock latch frees up both hands
• Electronic infinitely variable speed from 40 – 3200 RPM
• 36 integrated indexing positions
• Newly designed headstock locking handle accessible from front of lathe
• Convenient leg-mounted tool holder
• Inverter is enclosed for added protection
• E Drive Inverter features a built in EMI filter
• Conveniently located digital readout
• Rubber tool mat on top of headstock

What’s in The Box

• Jet JWL-1640EVS 115V 1.5-HP 16″ X 40″ Variable Speed Woodworking Lathe – 719500
• Owner’s Manual

Warranty

• 5 Years Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	719500
Brand	JET
Motor Power	1-1/2 HP
Motor Phase	3
Motor Volts	230V
Motor Amps	4.6
Swing Over Bed	16-1/2 in
Bed Gap	1-3/4 in
Swing Over Tool Rest base	12-7/8 in
Distance Between Centers	40
Headstock Movement	Slide
Spindle Bore	5/8 in
Tailstock Bore	3/8 in
Spindle Taper	MT2
Quill Travel	4-1/2 in
Outboard External Threads	3/4-14 LH
Spindle Speeds	High 120-3200/Low 40-1200
Speed Range	40-3200
Number Indexing Positions	36
Centerline of Spindle to Floor	44-1/2 in
Outboard Turning	Yes
Bed Construction	Cast Iron
Recommended Circuit Size	20
Length	73 in
Width	52-1/2 in
Height	20 in
Weight	300 lbs
