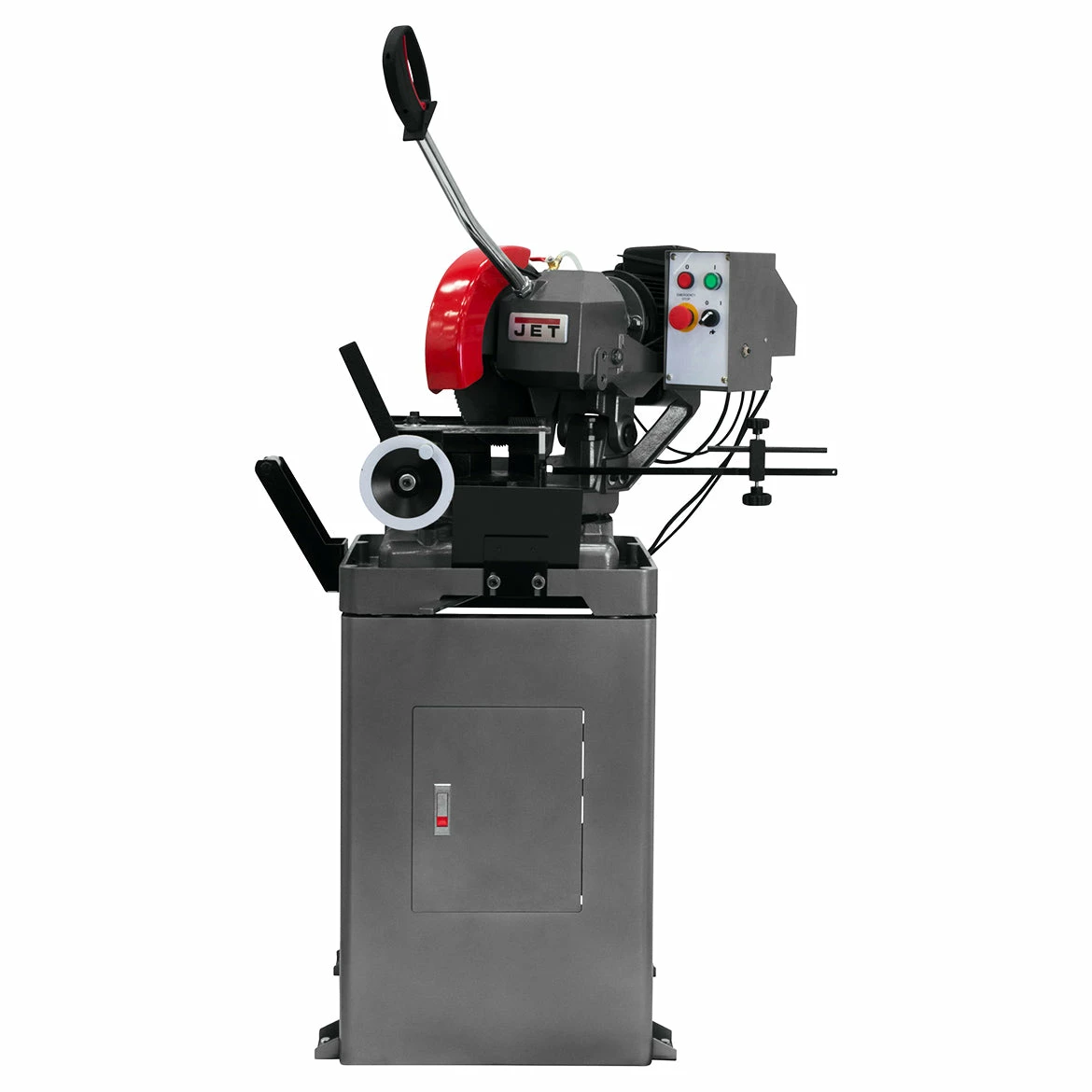

Tools & Equipment JET CS-315 2-Hp 220V 315mm Professional Cast Iron Ferrous Manual Cold Saw

Features

• Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
• Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
• Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
• Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
• Blade drive reduction gearbox operates in an oil bath for increaded durability
• Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
• 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
• Quick tension and release mitering capabilities with stops at 45° right, 45° left
• Fully adjustable material depth stop for sawing repeatability and increased production

What’s in The Box

• JET CS-275, 275mm 220V 1PH Ferrous Manual Cold Saw
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	414228
UPC	731325266139
Style (Type)	Ferrous
Blade Speeds (RPM)	54
Tubing Round at 90 Degrees (In.)	3-2/7
Tubing Round at 45 Degrees (In.)	3-2/7
Tubing Square at 90 Degrees (In.)	2-1/2 x 2-1/2
Tubing Square at 45 Degrees (In.)	2-1/5 x 2-1/5
Tubing Rectangle at 90 Degrees (In.)	3-1/9 x 2
Tubing Rectangle at 45 Degrees (In.)	2-1/5 x 2
Solid Round at 90 Degrees (In.)	3-2/7
Solid Round at 45 Degrees (In.)	3-2/7
Solid Square at 90 Degrees (In.)	2-1/2 x 2-1/2
Solid Square at 45 Degrees (In.)	2-1/5 x 2-1/5
Solid Rectangle at 90 Degrees (In.)	3-1/9 x 2
Solid Rectangle at 45 Degrees (In.)	2-1/5 x 2
Blade Size (Mm.)	275 x 32 x 2
Maximum Vise Opening (In.)	4
Motor (HP)	1-1/2 HP, 220V, 1 Ph
Overall Dimensions (L x W xH) (In.)	40 x 39 x 72
Weight (Lbs.)	360
