Tools & Equipment JET J-7020 1-1/2-Hp 115/230V 10″ X 16″ Heavy Duty Cast Iron Horizontal Bandsaw

Features

• For added safety, the motor and electrics follow strict guidelines and electrical requirements to be certified by CSA Group
• Swing away control panel houses major saw controls
• Variable speed drive system allows the operator to easily fine tune the blade speed

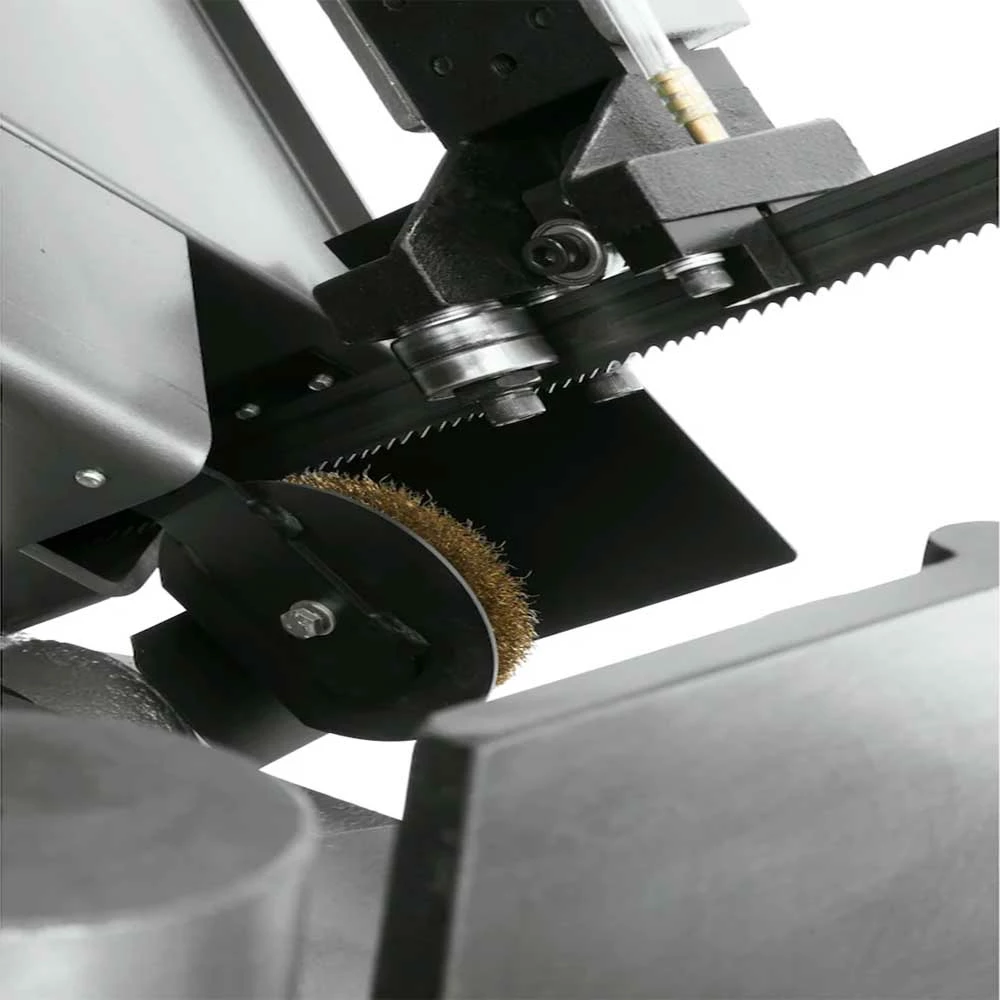

• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Patented 3-Jaw vise with rapid action moveable jaw for faster set up
• One-piece wheel cover
• Coolant system
• Cast iron blade wheels
• Adjustable material stop
• 1″ Bi-metal blade

What’s in The Box

• JET J-7020 10″ x 16″ Horizontal Bandsaw 115/230V 1PH
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	414472
Cutting Capacity (W x D) (In.)	10 x 16
Round at 90 Degrees (In.)	10
Round at 45 Degrees (In.)	10
Rectangle at 90 Degrees (In.)	10 x 10 and 7 x 16
Rectangle at 45 Degrees (In.)	6-1/2 x 11
Vise Swivels (Deg.)	45°
Blade Speeds (SFPM)	100 – 350
Blade Wheel Diameter (In.)	14
Blade Length (In.)	130
Blade Size (In.)	1 x .035 x 135
Bed Height (In.)	23-1/2
Motor (HP)	1-1/2 HP, 115/230V, 1Ph
Weight (Lbs.)	927
Overall Dimensions (L x W x H) (In.)	75-1/2 x 33 x 41
