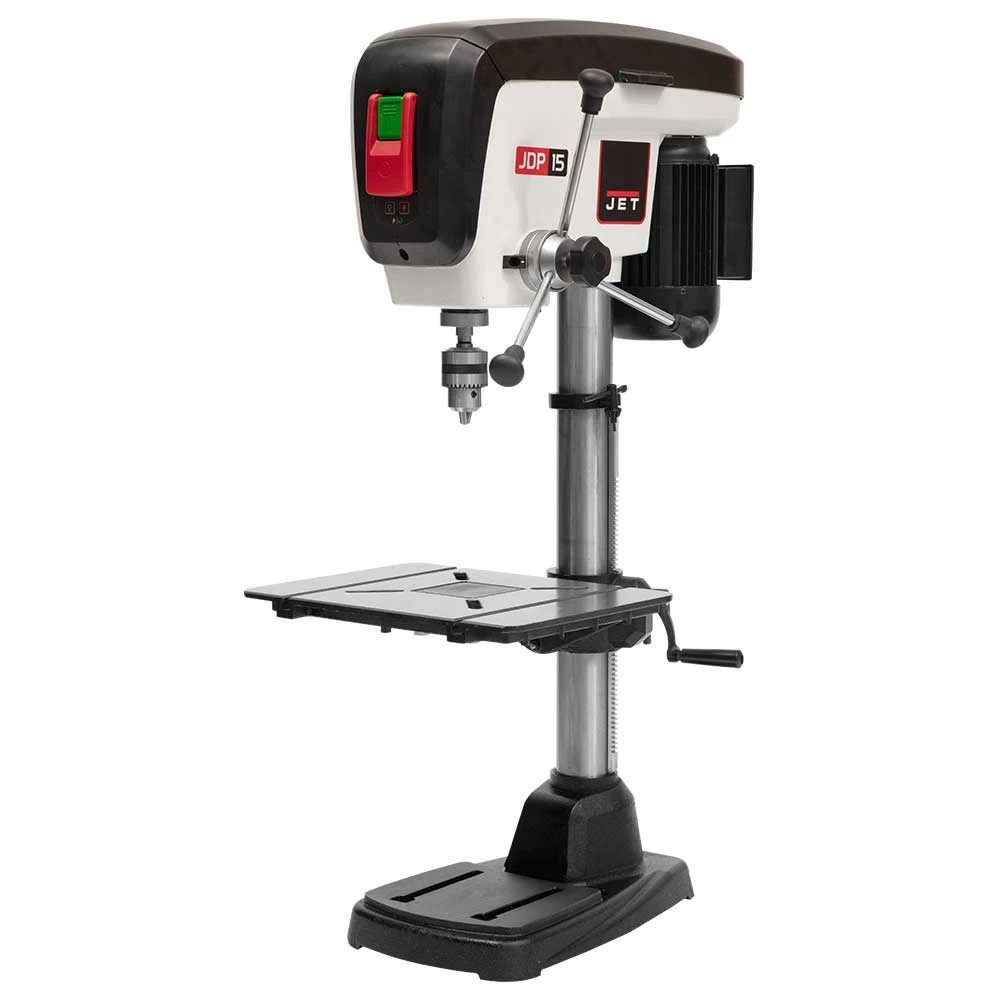

Tools & Equipment Jet JDP-15B 15-Inch Belt Tensioning Depth Benchtop Drill Press – 716200

Features

• Spindle travels a full 3-1/8 with one revolution of the handle
• Large 12-1/2 x 17 precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability

Whats in The Box

• 15 Benchtop Drill Press
• Owner’s Manual

Warranty

• 30 Day Satisfaction Guaranteed

Specifications

Sku	JDP-15B
Model	716200
Brand	Jet
Height	12.81
Length	36.5
Gross Weight	165.5
Volume	8.997
Width	33.25
Motor Power (HP)	3/4
Number of Spindle Speeds	16
Motor Voltage (V)	115
Spindle Speed Range (RPM)	210 – 3500
Spindle Distance to Table (Max.) (In.)	18-5/16
Style (Type)	SV_1375591258774
Table Tilt (Deg.)	45 Left and Right
Column Diameter (In.)	2-3/4
Swing (In.)	15
Chuck Size (In.)	5/8
Base Size (In.)	18 x 11-3/8
Motor Amps	9
Table Size (L x W) (In.)	12-1/2 x 17
Spindle Travel (In.)	3-1/8
Motor Phase (PH)	1
Prewired Voltage (V)	115 only
Weight (Lbs.)	154
Spindle Taper	MT2/JT3
Spindle Distance to Base (In.)	26-3/4
Assembled Machine Dimensions (L x W x H) (In.)	27 x 17 x 42-1/2
