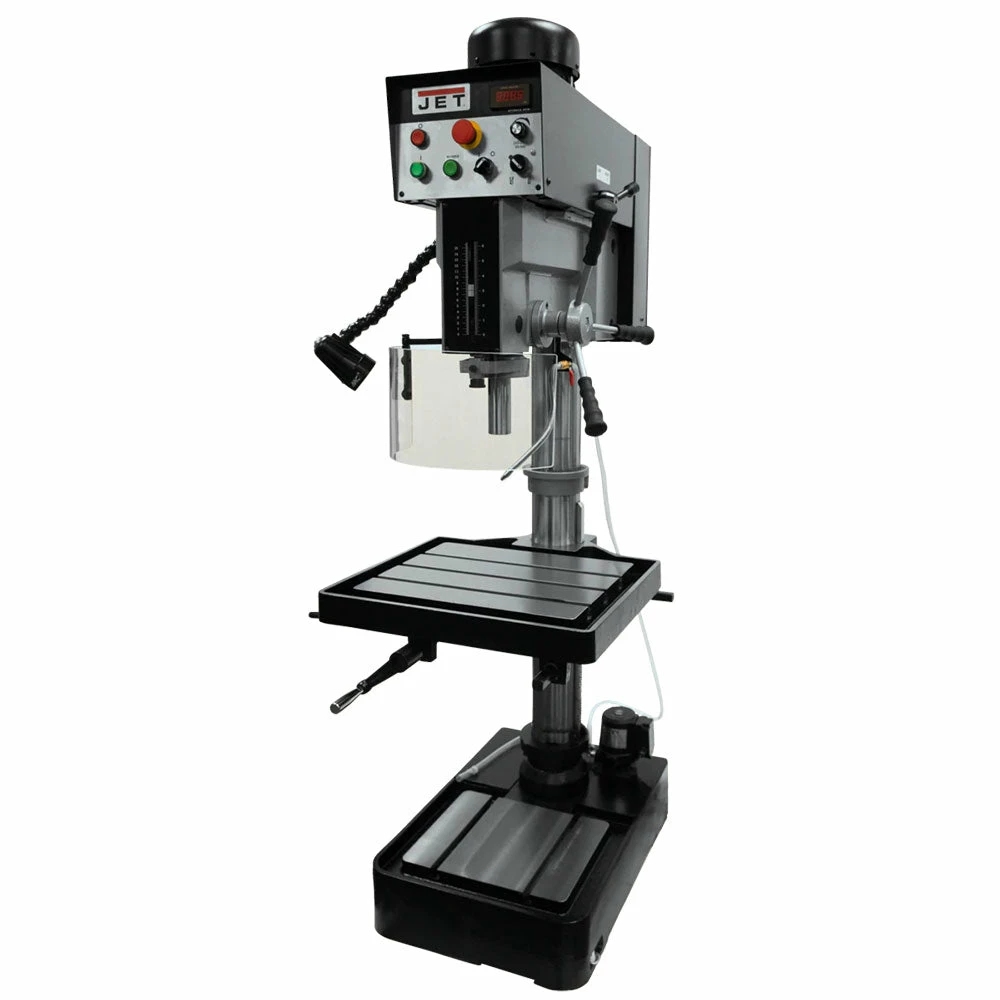

Tools & Equipment JET JDP-20EVST-230 230V 2 HP 1-1/2″ Variable Metalworking Tapping Drill Press

Features

• Heavy-duty steel column for increased precision and rigidity
• Heavy-Duty cast head for more accuracy and rigidity
• Large Precision Ground T-slot Production Table for easy setups
• Latest AC Inverter Variable Speed Technology
• CSA Coolant System
• The spindle is supported by high-quality ball bearings
• CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
• LED Machine Lamp
• Spindle Guard
• Emergency Stop
• The spindle is supported by high-quality ball bearings
• Variable Spindle Speeds from 65 – 2,000 RPM’s
• High Torque at all speeds both forward and reverse
• Continuous Speed Adjustment while in operation
• Front Mounted LED Spindle RPM Readout
• Forward and Reverse for Tapping
• Front Mounted Positive Control Depth Stop
• Large Hand Grips designed with the Users comfort in mind

What’s in The Box

• Tapping Drill Press
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	354225
Brand	Jet
Volts	230
Horsepower	2
Phase	3
Style	Variable Speed
Drills to Center of Circle	20 in
Drilling Capacity Cast iron	1-1/2 in
Drilling Capacity Mild Steel	1-3/8 in
Tapping Capacity Cast Iron	7/8 in
Tapping Capacity Mild Steel	3/4 in
Column Diameter	4-1/2 in
Distance Column to Spindle	10-7/16 in
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	65-540 /245- 2,000
Column Diameter	4-1/2 in
Spindle Taper (in x TPI)	MT-3
Spindle Travel	6 in
Spindle Distance to Base	44-1/2 in
Spindle Distance to Table (Max)	30-1/4 in
Table Travel	20 in
Table T-Slots, Number and Size	2 Slots for 5/8 bolts
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	7-7/16 in
Table Size (Lx W)	22 x 18-3/4 in
Work Table Weight Capacity	154 lbs
Base Dimensions	27 x 19 in
Base Slots Number and Size	2 and 5/8 in
Dimensions (L x W x H)	38.18 x 27.16 x 79.52 in
Weight	792 lbs
