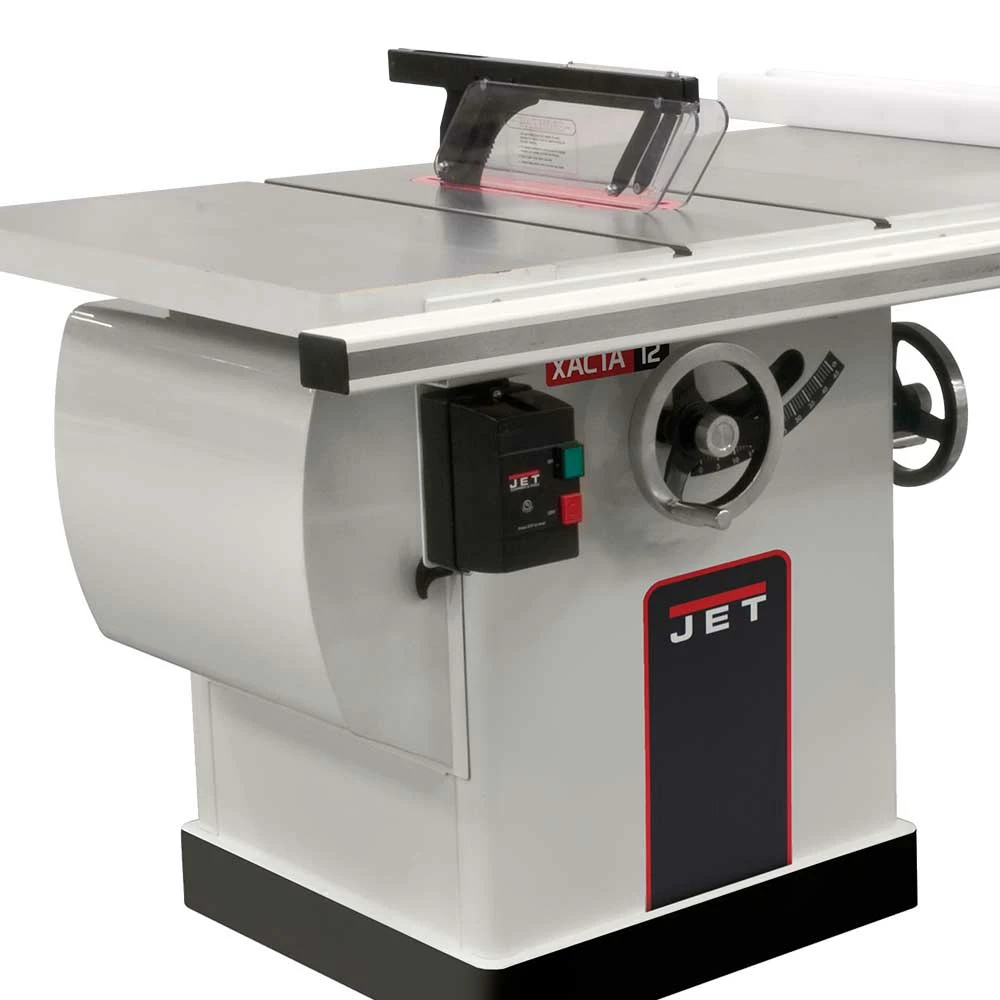

Tools & Equipment JET JTAS-12-DX 5-Hp 230V 12″ Heavy Duty High Precision Xacta Saw

Features

• Riving knife maintains close blade proximity to reduce chance of kickback
• 80” of solid cast iron provides a massive work surface
• Poly V-Belt increases efficiency and reduces slipping and vibration
• Collection shroud around the blade and integrated hose improve dust collection
• Integrated arbor lock is accessed from table top for rapid blade change
• External tool storage for the fence and miter gauge
• 40-1/2” fence provides greater stability and better support when ripping
• Dado insert included
• Maximum rip left of the blade is 14″
• Removal of blade guard, pawls and riving knife takes only seconds

What’s in The Box

• JTAS-12-DX, 12″ Xacta Saw, 5HP 1PH 708546PK
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Cabinet
Blade Diameter (In.)	12
Arbor Diameter (In.)	1
Arbor Speed (RPM)	4300
Maximum Depth of Cut (In.)	4
Maximum Depth of Cut at 45 Degrees (In.)	2-7/8
Maximum Rip Left of Blade (In.)	14
Maximum Rip Right of Blade (In.)	50
Maximum Diameter of Dado (In.)	8
Maximum Width of Dado (In.)	13/16
Table Type	Cast Iron
Table Size (L x W) (In.)	31-1/2 x 24
Table Size with Extension (L x W) (In.)	31-1/2 x 80
Miter Gauge Type	T-Slot with Stops
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	20
