Tools & Equipment JET JTM-4VS 3-Hp 230/460V Heavy Duty Variable Speed Vertical Milling Machine

Original price was: $596.00.Current price is: $91.99.

Elevate Your Shopping Experience

Quality You Can Count On

Your Security is Our Promise

Safe Payments for a Better Shopping Experience

Meehanite Castings

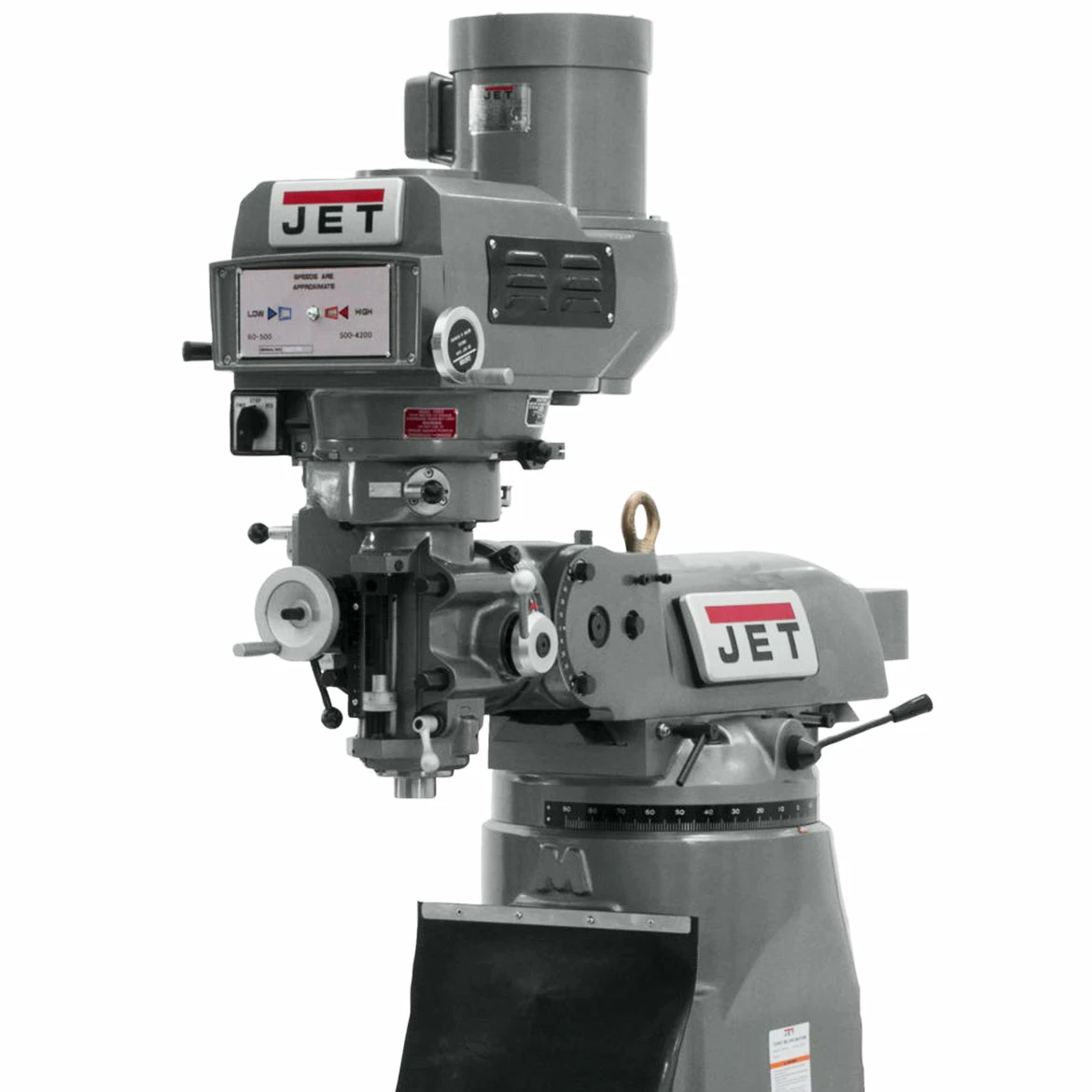

Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome plated motor shaft with lower bearing support
Spindle head is internally cooled
Heavy duty splined motor drive
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle brake
Locks on all movable surfaces

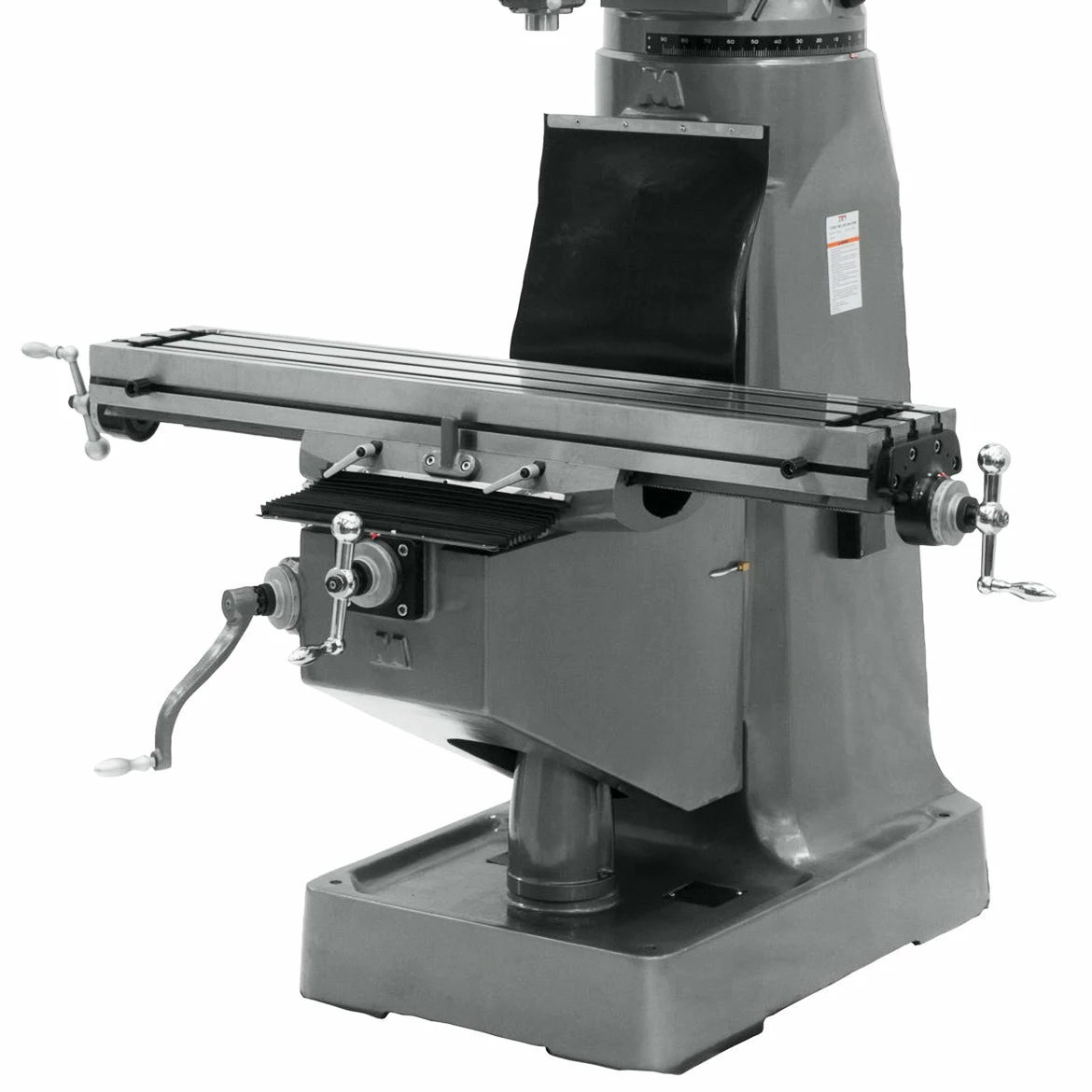

Precision hardened and ground ways and table
Adjustable gibs throughout
Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
Tolerance test sheet included
One shot lubrication system
Way covers
Draw bar
Tool box with tools

Spindle Taper (In. x TPI)	R-8
Table Size (L x W) (In.)	9 x 42
Quill Diameter (In.)	3-3/8
Number of Spindle Speeds	8
Range of Spindle Speeds (RPM)	80 – 2,720
Quill Down Feed Rates (IPR)	.0015 – .003 – .006
Spindle Travel (In.)	5
Head Movement (Deg.)	90 R and L, 45 F and B
Max Distance Spindle to Table (In.)	17-1/2
Distance Spindle to Column (Max.) (In.)	19
Distance Spindle to Column (Min.) (In.)	4-1/2
Collet Capacity	1/8 – 7/8
Table Longitudinal Travel (In.)	23-7/8
Table Cross Travel (In.)	12-1/2
T-Slots Number and Size (In.)	3 – 5/8
T-Slot Centers (In.)	2-1/2
Work Table Weight Capacity (Lbs.)	550
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Motor (HP)	2 HP, 115/230V, 1Ph
Prewired (V.)	230
Overall Dimensions (L x W x H) (In.)	57 x 64 x 82
Weight (Lbs.)	2,200
