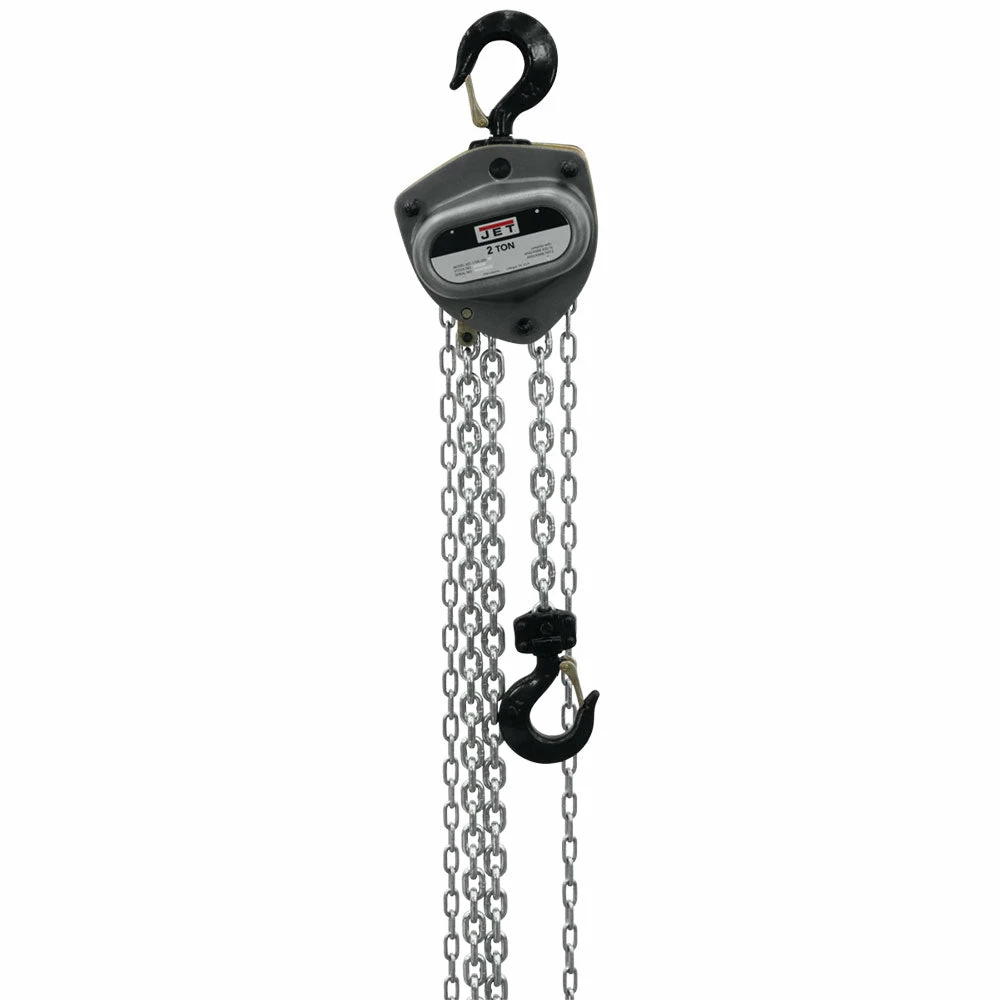

Tools & Equipment JET L100-200WO-20 2 Ton Chain Lever Hoist W/ 20′ Lift Overload Protection

Features

• Safety
• Backed by a lifetime replacement warranty, JET’s revolutionary single-piece brake design fuses the three components into the safest brake system on the market
• Slip clutch style overload protection that prevents lifting or pulling damaging loads beyond the rated capacity of the hoist and when triggered, the overload protection can be reset on site
• Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
• Durability
• Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20 percent stronger than Grade 80 load chain
• Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• Intended for the harshest environments, the heat-treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
• Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
• Impact-resistant all-steel construction for added durability and protection
• The lightweight design and smaller body are ideal for confined areas and low headroom applications
• Standards
• This product complies with ANSI / ASME B30.16 and HST-2 Standards
• Load tested to 125 percent of capacity with certificate

What’s in The Box

• Chain Lever Hoist
• Owner’s Manual

Warranty

• Limited Lifetime Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	L100-200WO-20
Brand	Jet
Load Capacity	2 tons
Lift	20 ft
Overload Protection	Yes
Headroom	14-3/4 in
Hand Chain Overhaul (ft) to Lift Load 1 ft	70
Hand Chain Pull Force (LCBF to Move Load	79
Number of Falls	1
Load Chain Dimensions (mm)	8 x 24
Weight	59 lbs
