Tools & Equipment Klein 93PLL Cordless Rechargeable Li-Ion Self-Leveling Green Planar Laser Level

Features

• Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines

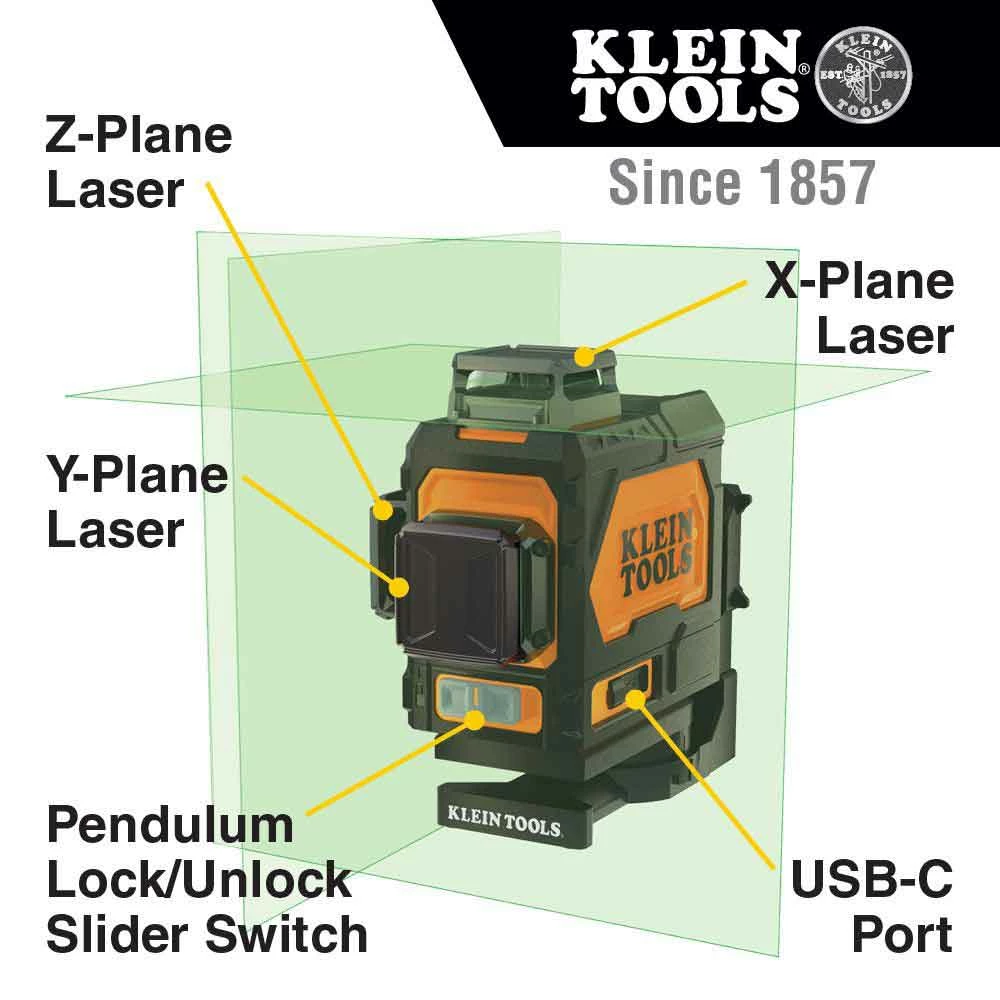

• Projects independently or together in X-, Y- and Z-planes for various layout and alignment options
• View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane
• More than 9 hour run time with integrated rechargeable Li-Ion battery

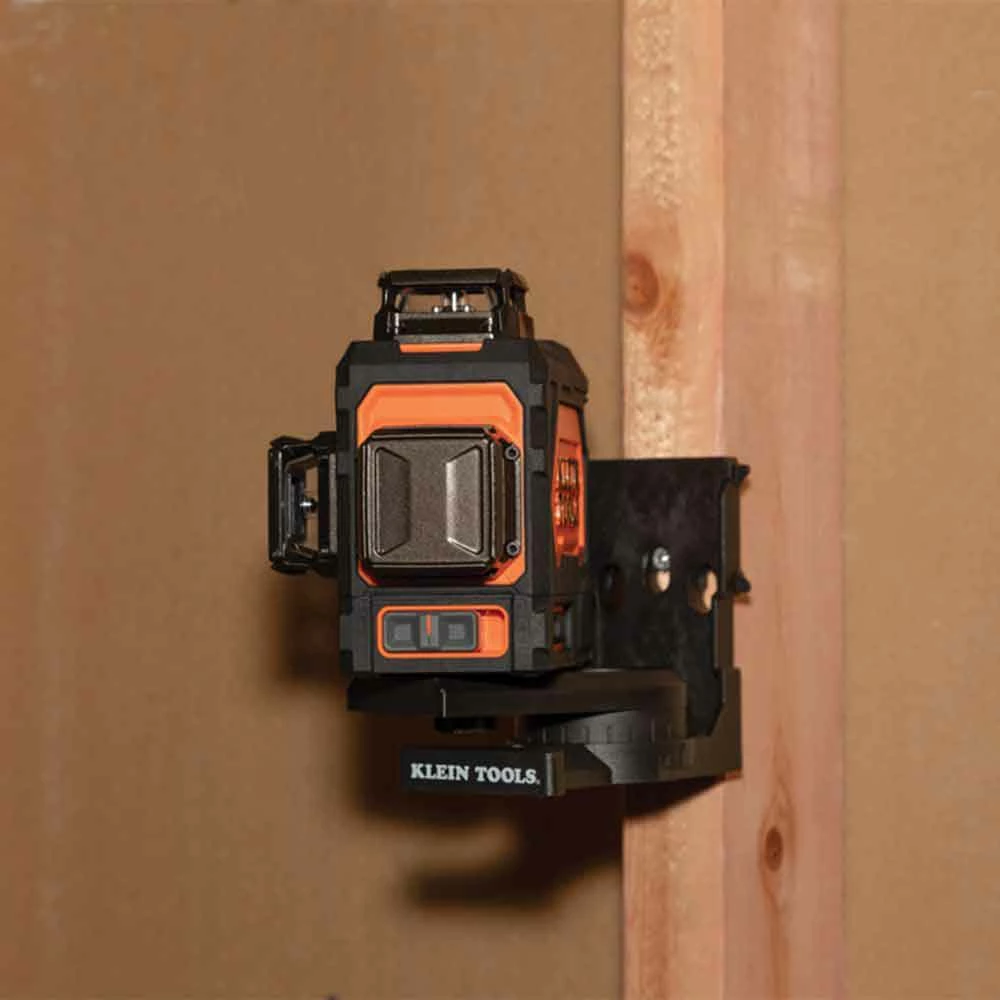

• Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads
• Rugged body provides IP54 water and dust resistance; hard plastic carrying case included
• Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, protective hard carrying case, and instructions

What’s in The Box

• Self-Leveling Green Planar Laser Level
• Li-Ion Battery
• USB-A to USB-C Cable
• Magnetic Mounting Bracke

t

• Hard Carrying Case
• Owner’s Manual

Warranty

• 3 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	93PLL
Brand	Klein
Type	Laser
Application	Self-Leveling Laser Alignment Instrument
Special Features	Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360 degrees Planar Lines
Material	ABS Housing and Electronic Components
Batteries	Lithium-Ion
Laser Wavelength	510-530 nm
Laser Safety	1mW Each Beam, Class 2 Laser Product
Number of Beams	3
Laser Color	Green
Plumb Laser	No
Indoor Range	91 ft
Outdoor Range	91 ft
Maximum Distance	91 ft
Accuracy	+/- 4.5 mm per 10 m
Pulse Mode	No
Receiver	No
Magnet Type	Rare Earth Magnets
Drop Protection	3.3 ft
Ingress Protection	IP54 – Water and Dust Resistant
Transit Locking Mechanism	Yes
Low Battery Indicator	Yes
Standard	EN61326-1 – 2013, EN60825-1 – 2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
Bag or Case	Hard Carrying Case
Length	5.5 in
Height	3.5 in
Width	4.8 in
Weight	1.4 lb
