Tools & Equipment Klein CL320KIT Digital Clamp Meter Infrared/Probe Thermometer HVAC Kit

Features

• HVAC Kit with testers for the HVAC Professional; Cat. No. CL320 HVAC Digital Clamp Meter with AC Auto-Ranging, Cat. No. IR07 Dual IR/Probe Thermometer, and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight

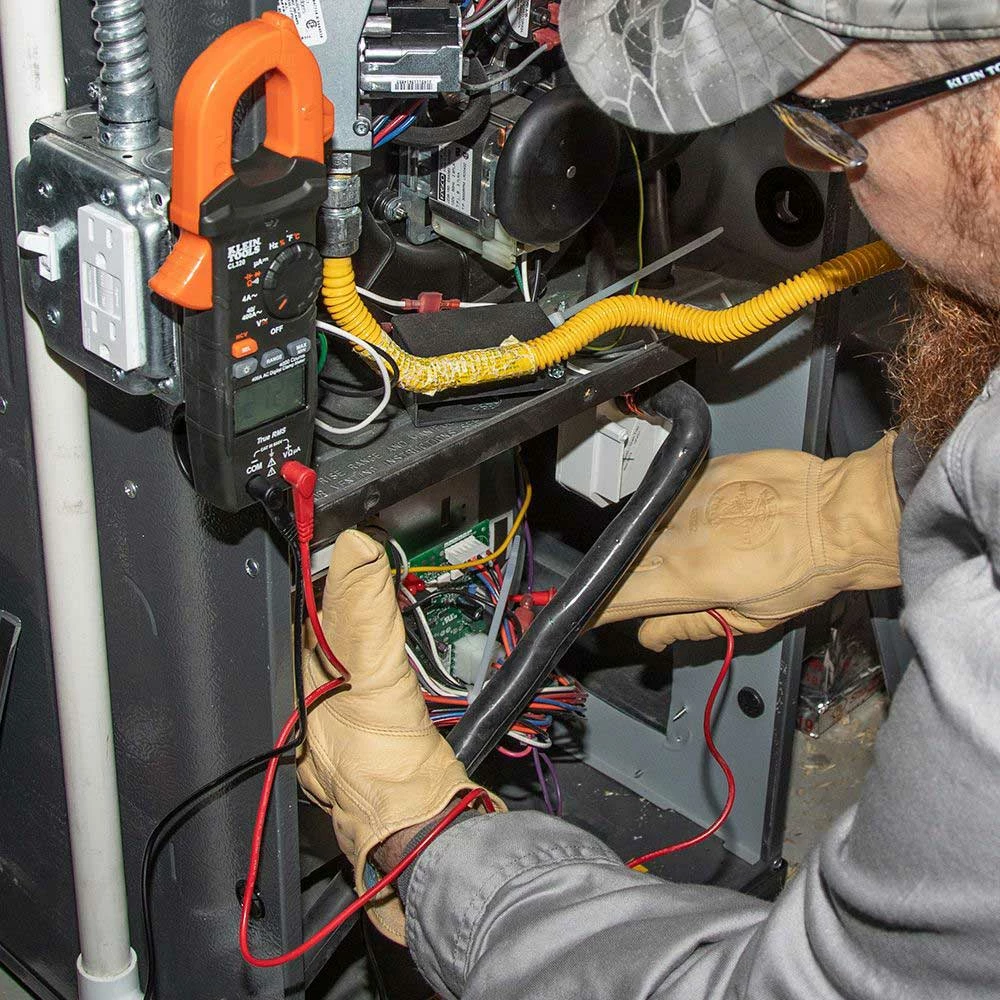

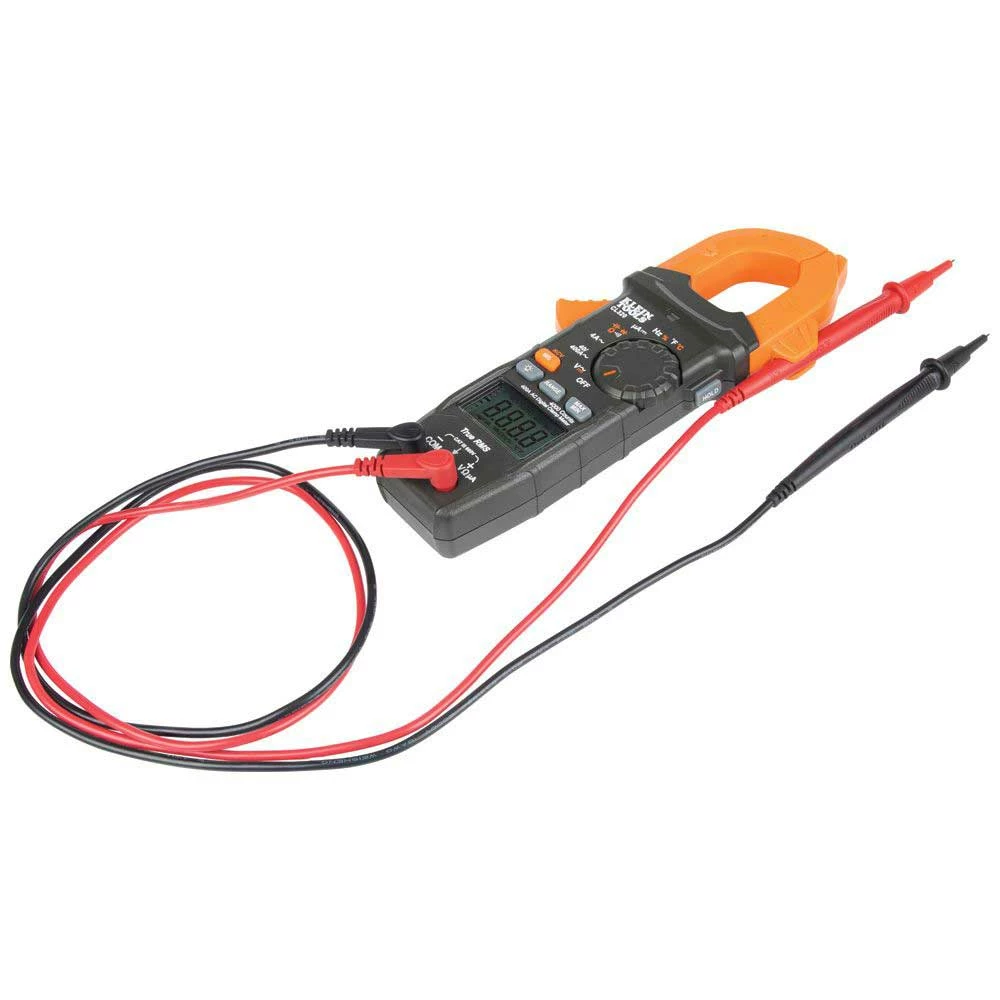

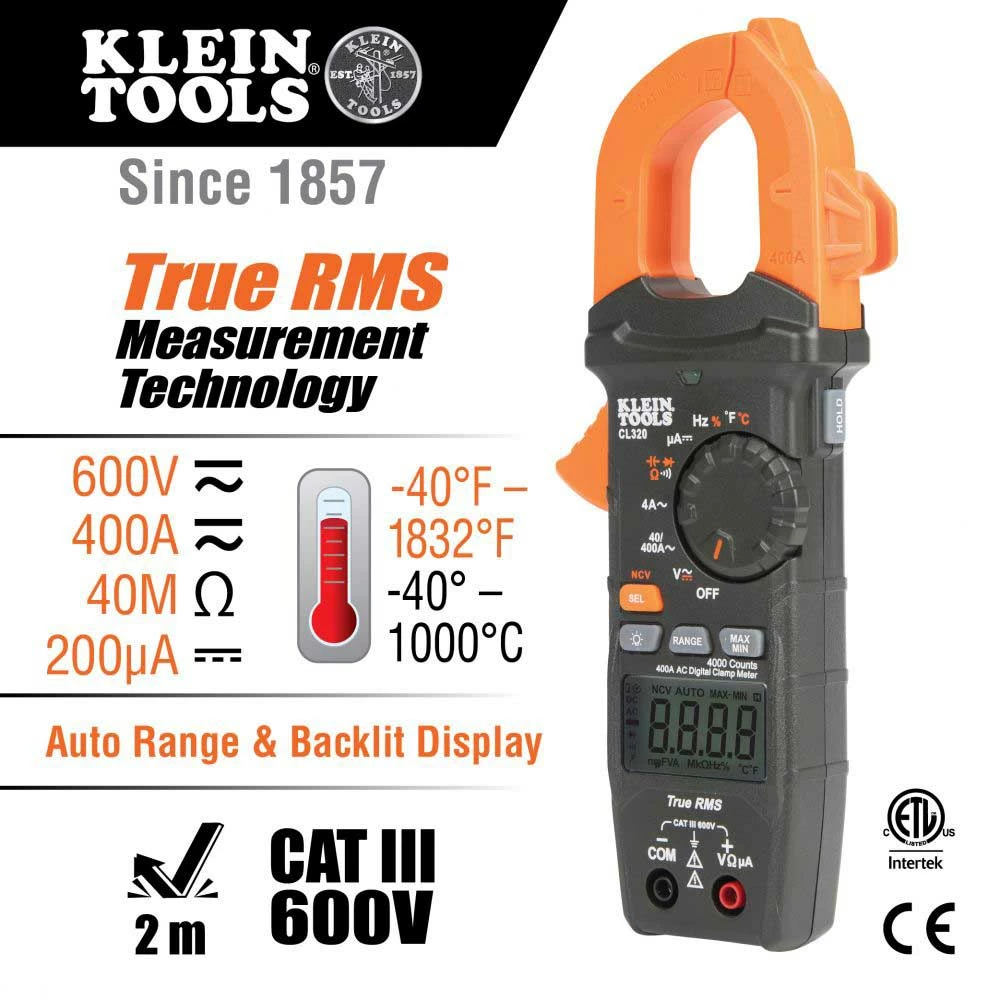

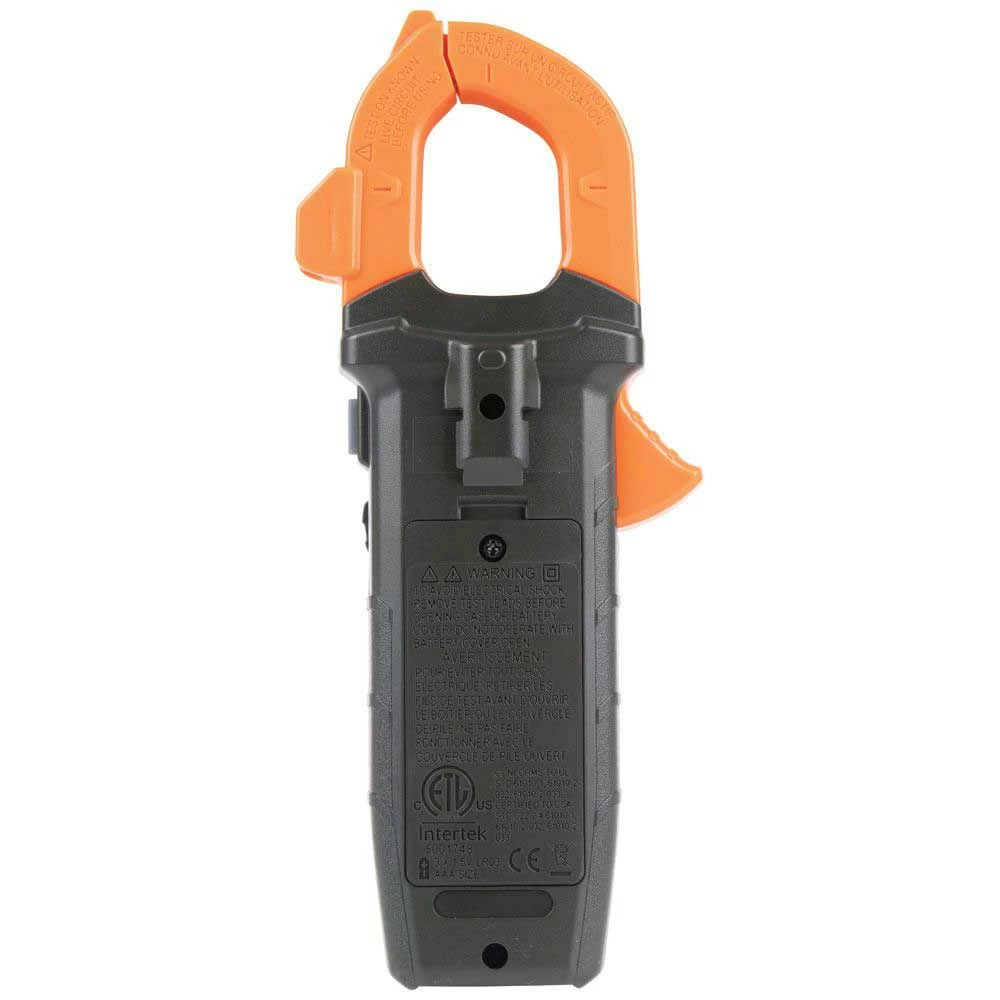

• HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

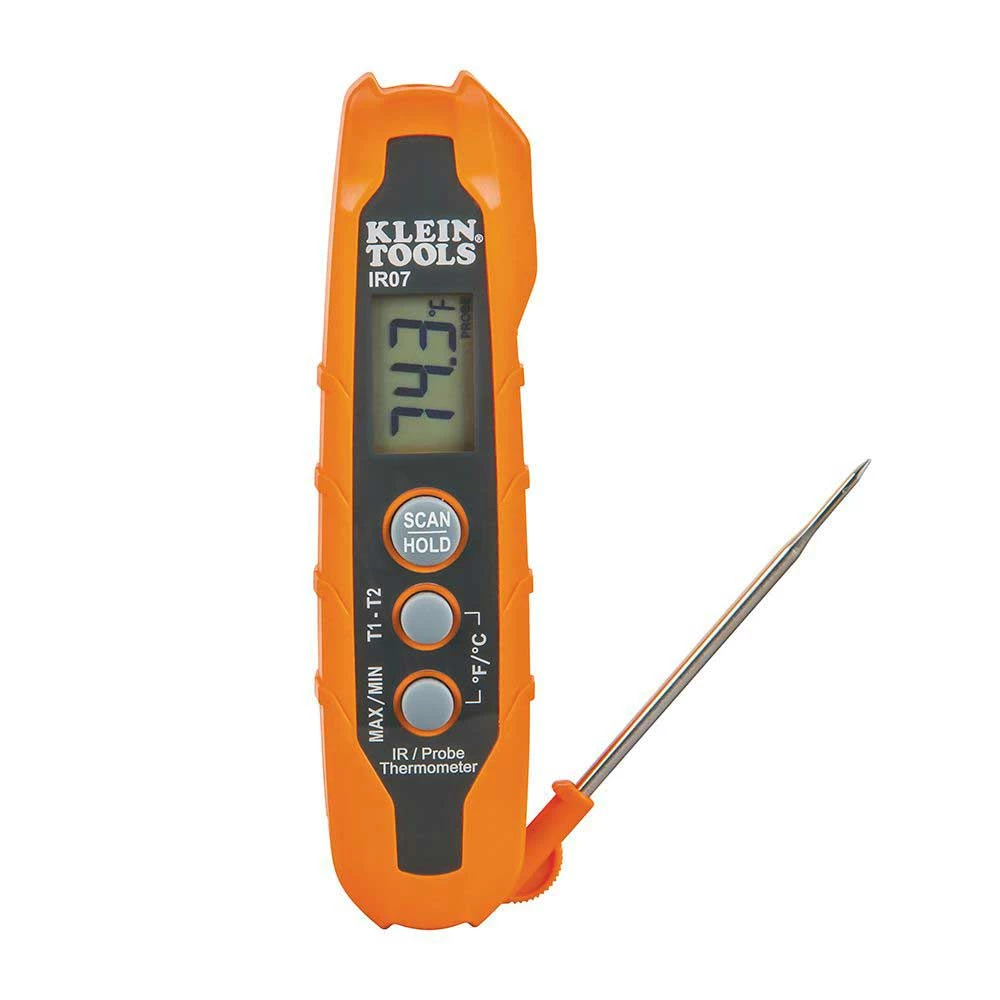

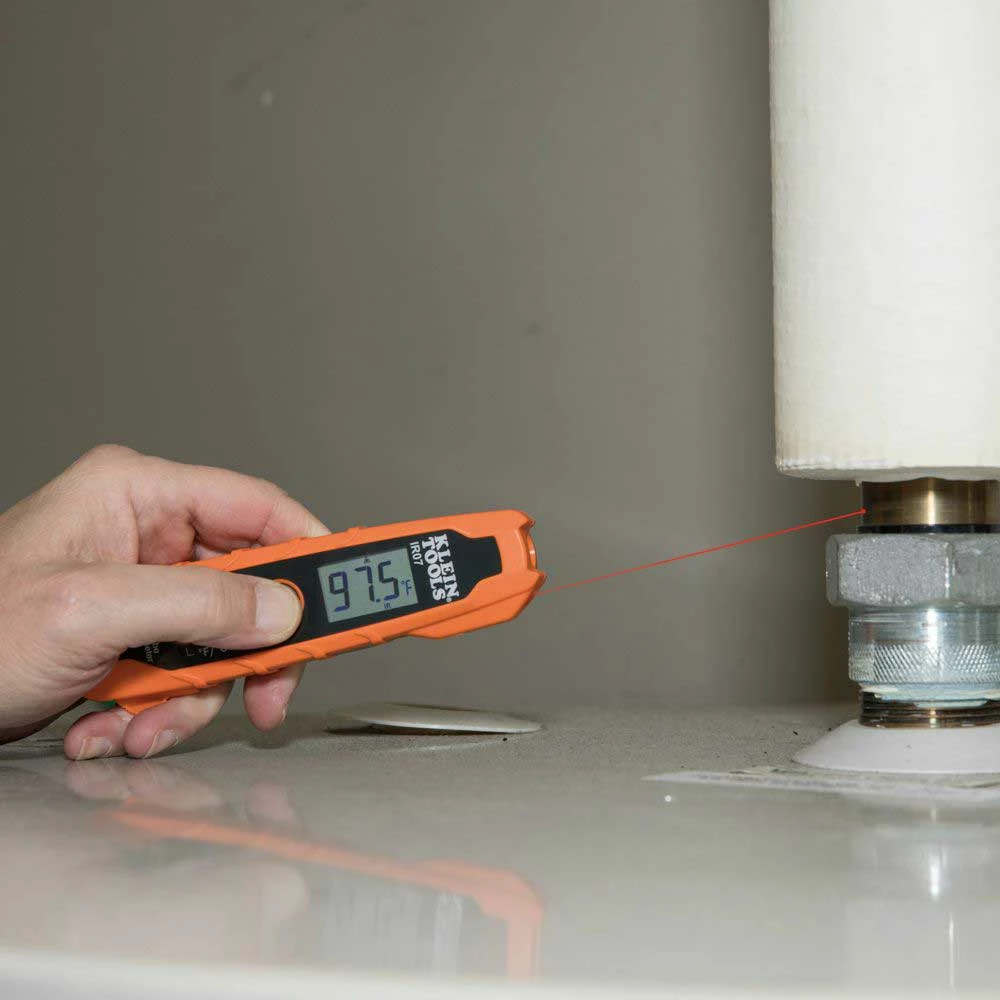

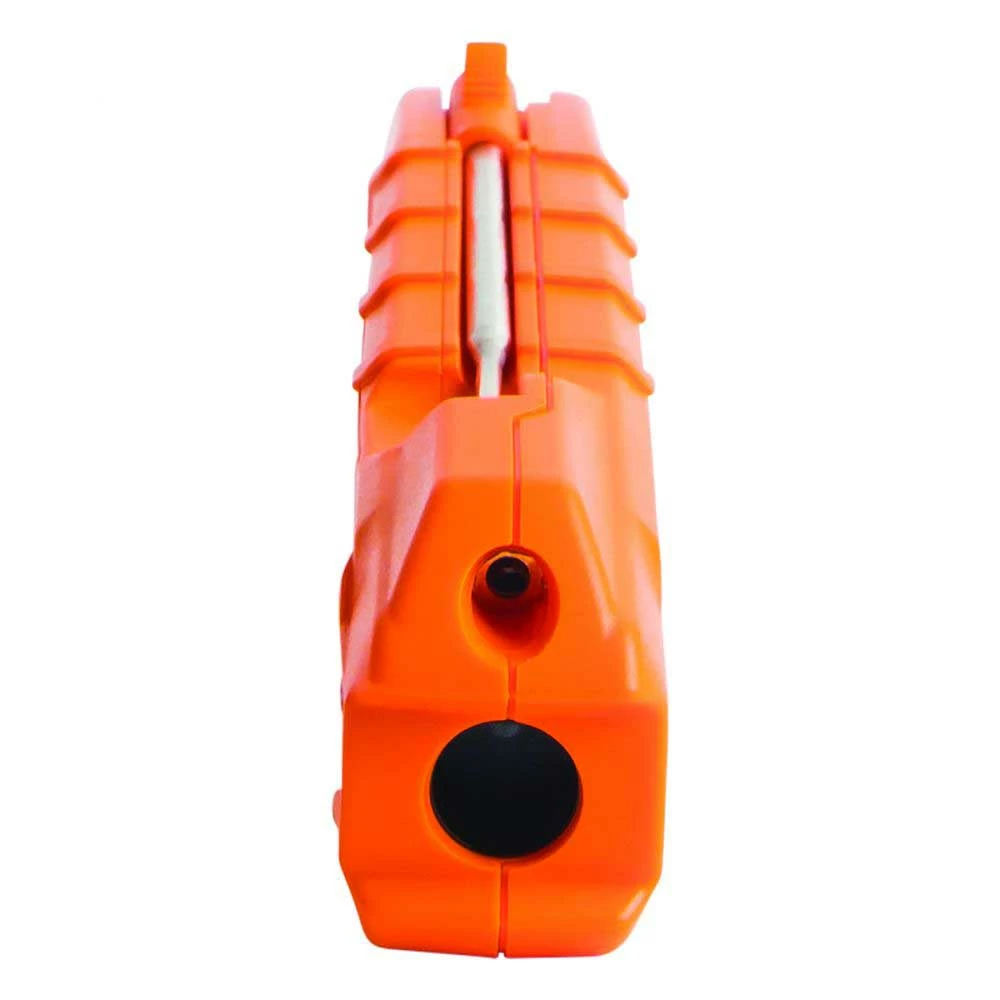

• Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)

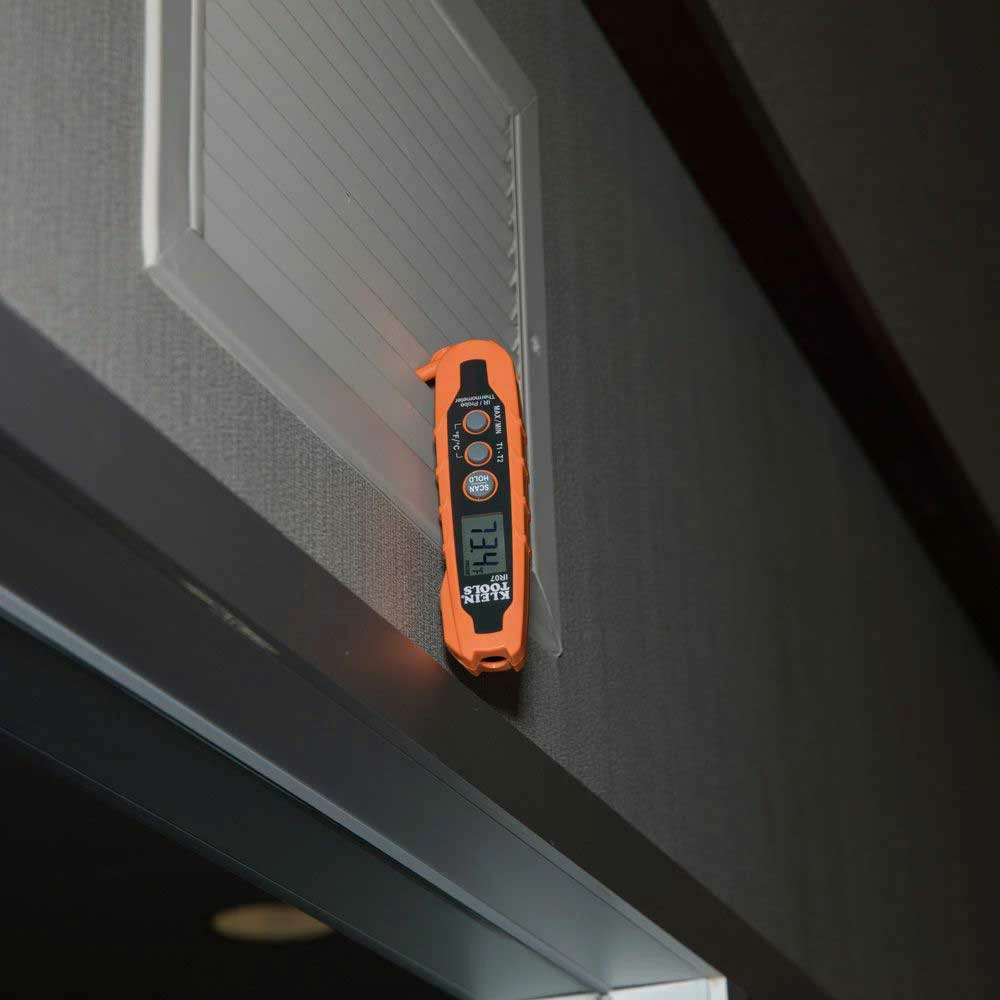

• Measure air vents and duct temperature using temperature probe with a hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures; IR07 is not a medical device and is NOT intended for use on people or animals

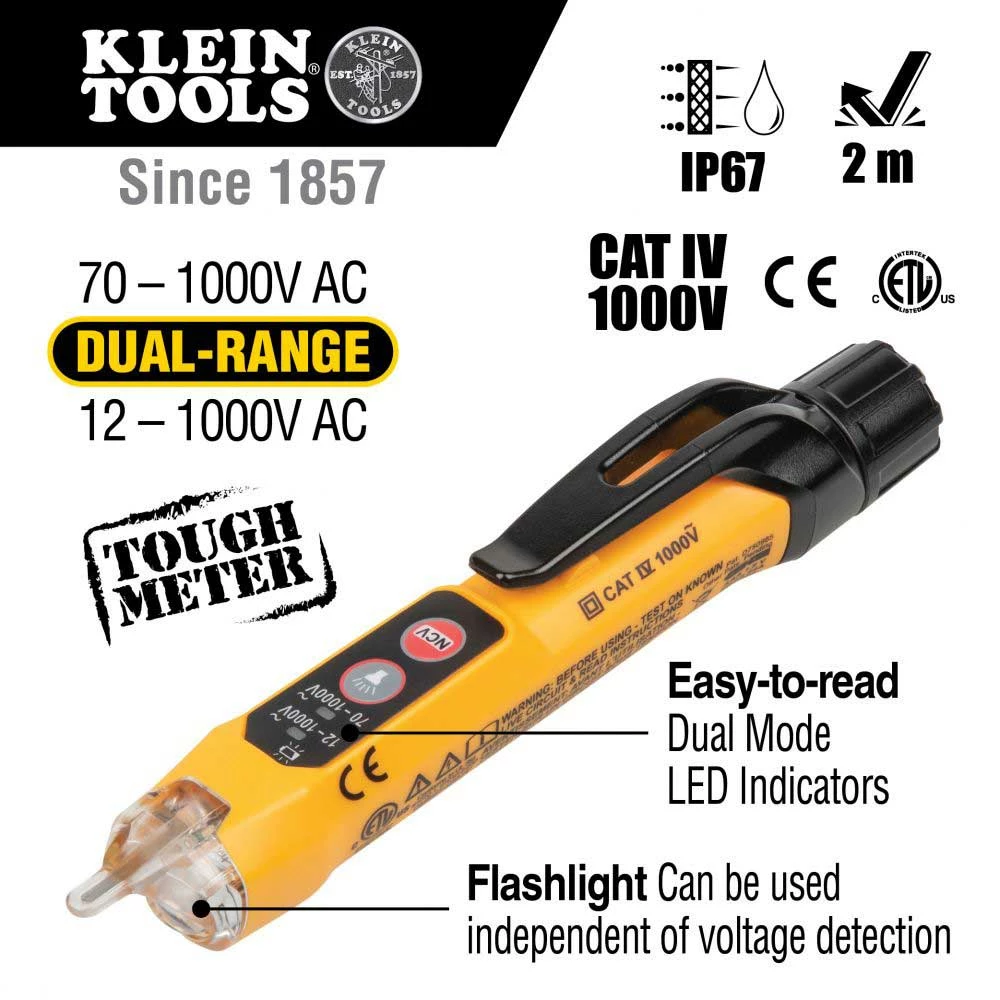

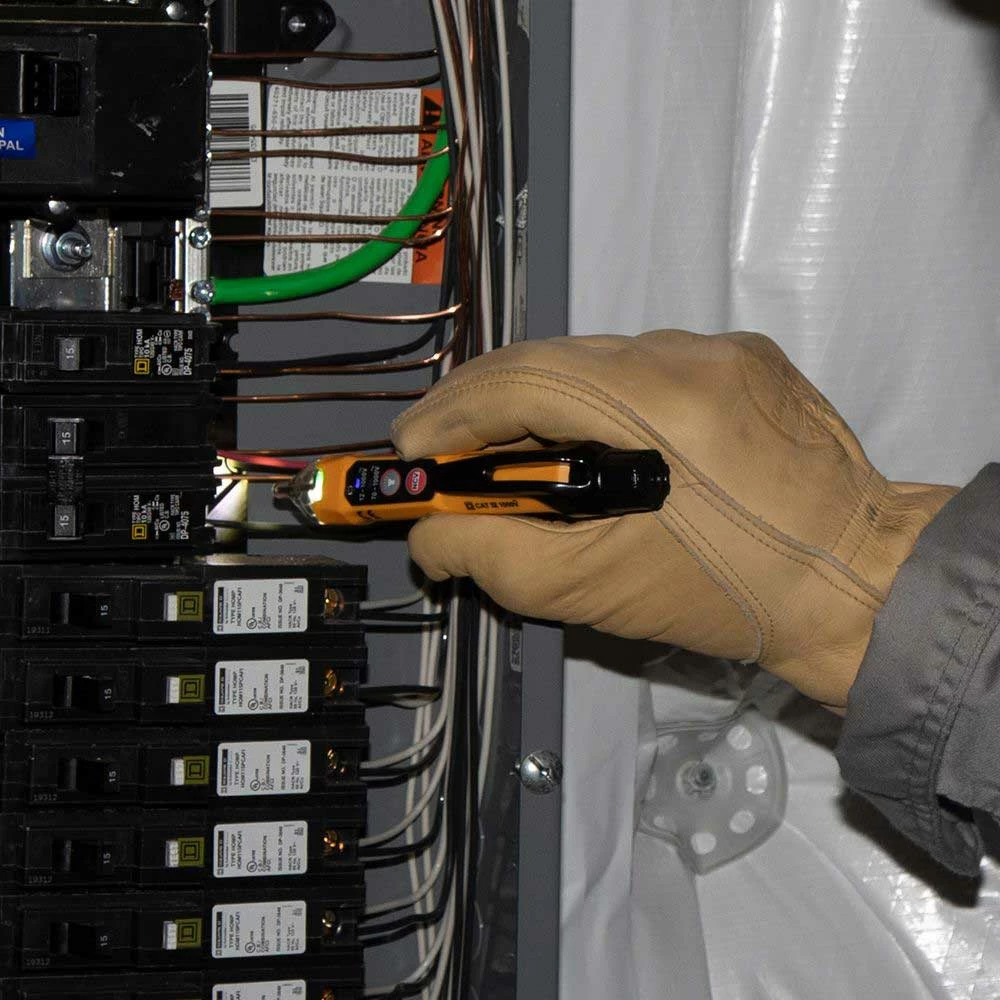

• Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications; detects voltage with simultaneous visual and audible voltage indicators
• Bright flashlight illuminates work area and may be used independently of voltage detection function; CAT IV 1000V rating provides expanded operation and protection

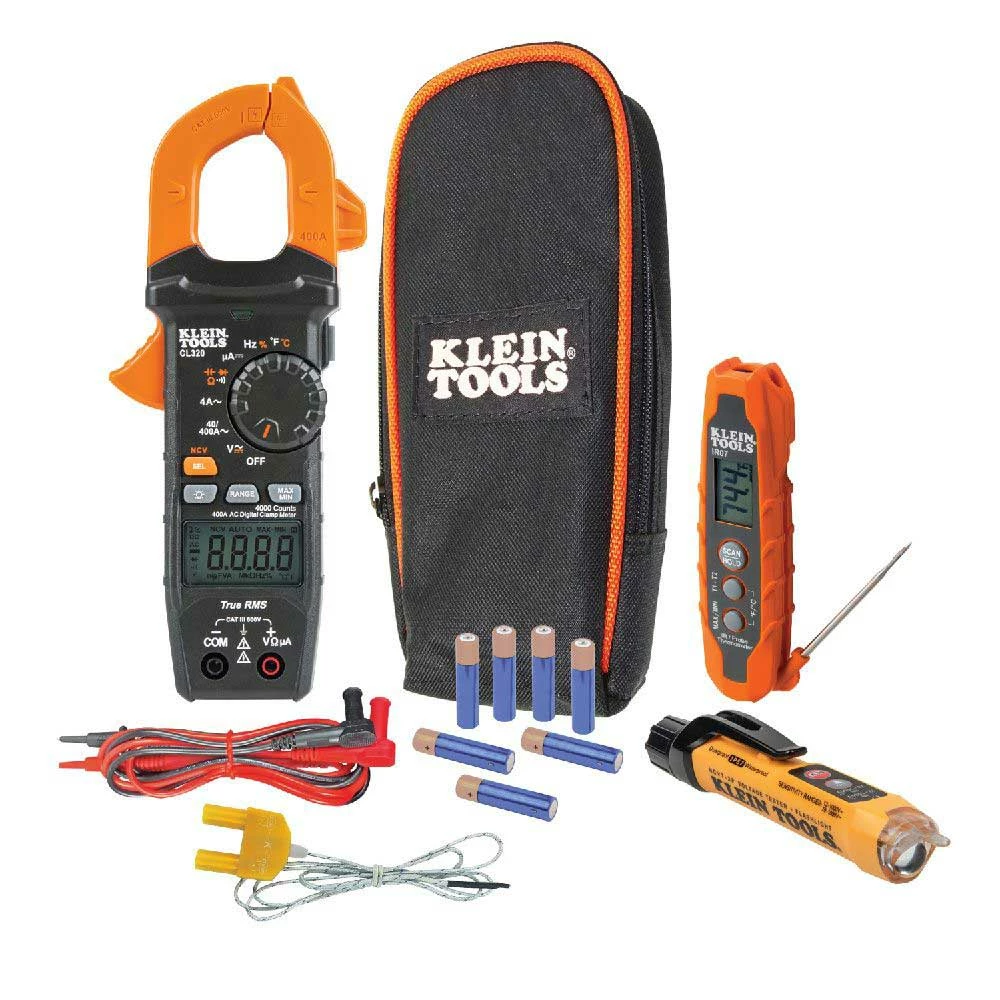

What’s in The Box

• Cat. Nos. CL320, IR07, and NCVT3P
• Test Leads with CAT III/CAT IV Safety Caps
• Thermocouple
• 7 x AAA Batteries
• Storage Pouch
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	CL320KIT
Brand	Klein
Voltage	Cat. No. CL320- 600V AC/DC- Cat. No. NCVT3P- 1000V AC
Type	HVAC Testers
Ohms (Resistance)	40MO
Application	HVAS Electrical and Temperature Testing
AC Voltage	600V
DC Voltage	600V
Frequency	10 Hz to 1 MHz
Current	400 A AC
Special Features	Cat. No. CL320- Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology, CAT. No. NCVT3P- NCVT with flashlight, Cat.No. IR07 Both IR and Probe Temperature
Material	ABS/Electronic
DC Polarity Indicator	Yes
Batteries	7 x AAA
DC Micro Amp	200 A
Auto Power Off	Yes
Temperature Range	-40 to 1832 F (-40 to 1000 C)
Jaw Size	1.6 in
Standard	Cat. No CL320, CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified, Cat. No. NCVT3P- CAT IV 1000
Drop Protection	6.6 ft
Display	4000 Count LCD
Capacitance	4000 F
Length	8.4 in
Width	3.5 in
Height	1.5 in
Weight	1.5 lbs
