Features

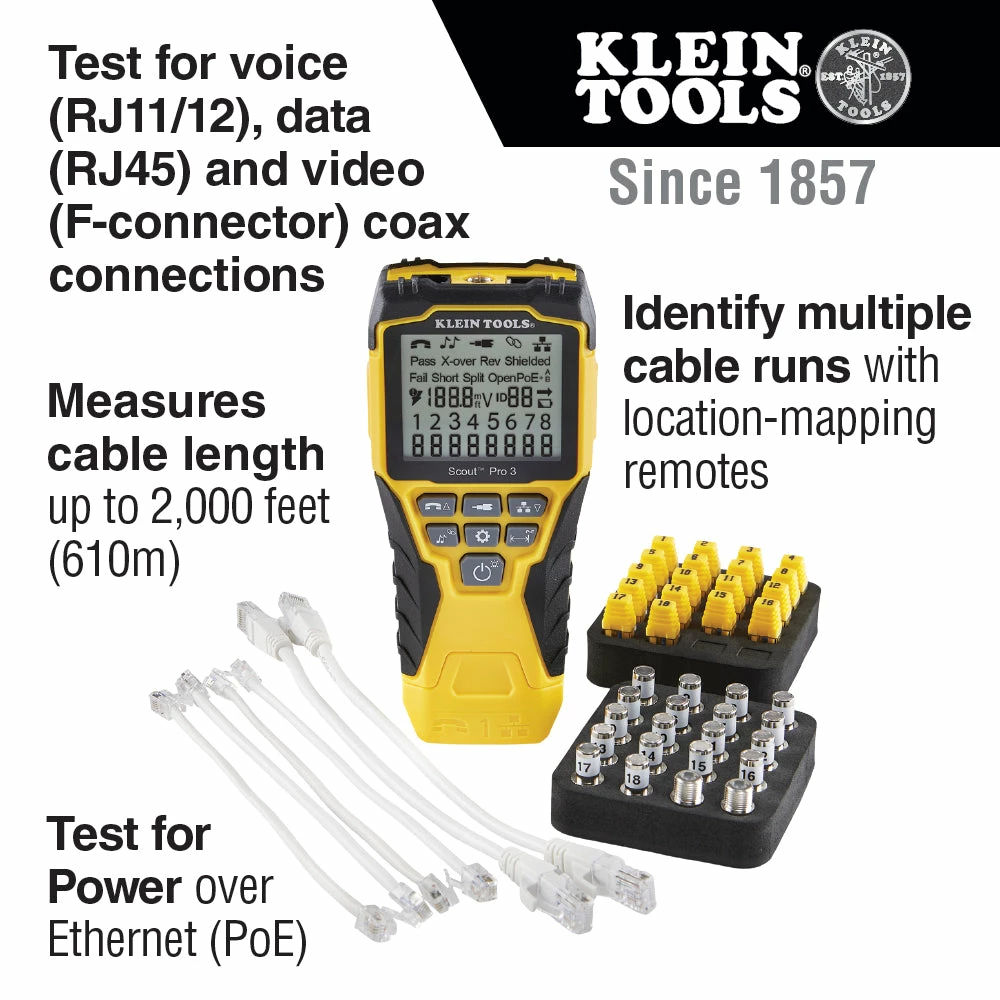

- Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
- Trace cables, wire pairs and individual conductor wires with a tone generator

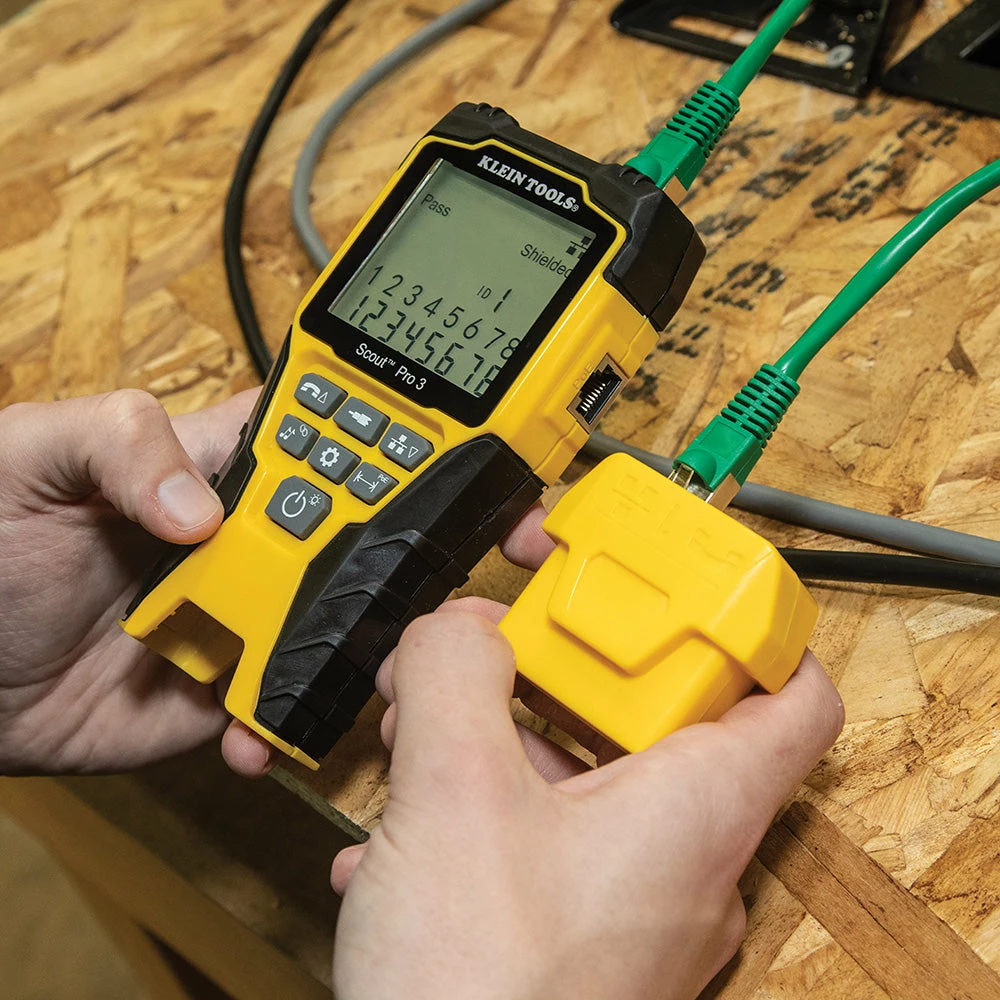

- Self-storing Test + Map Remote (#1) tests, maps and IDs a cable run in a single step

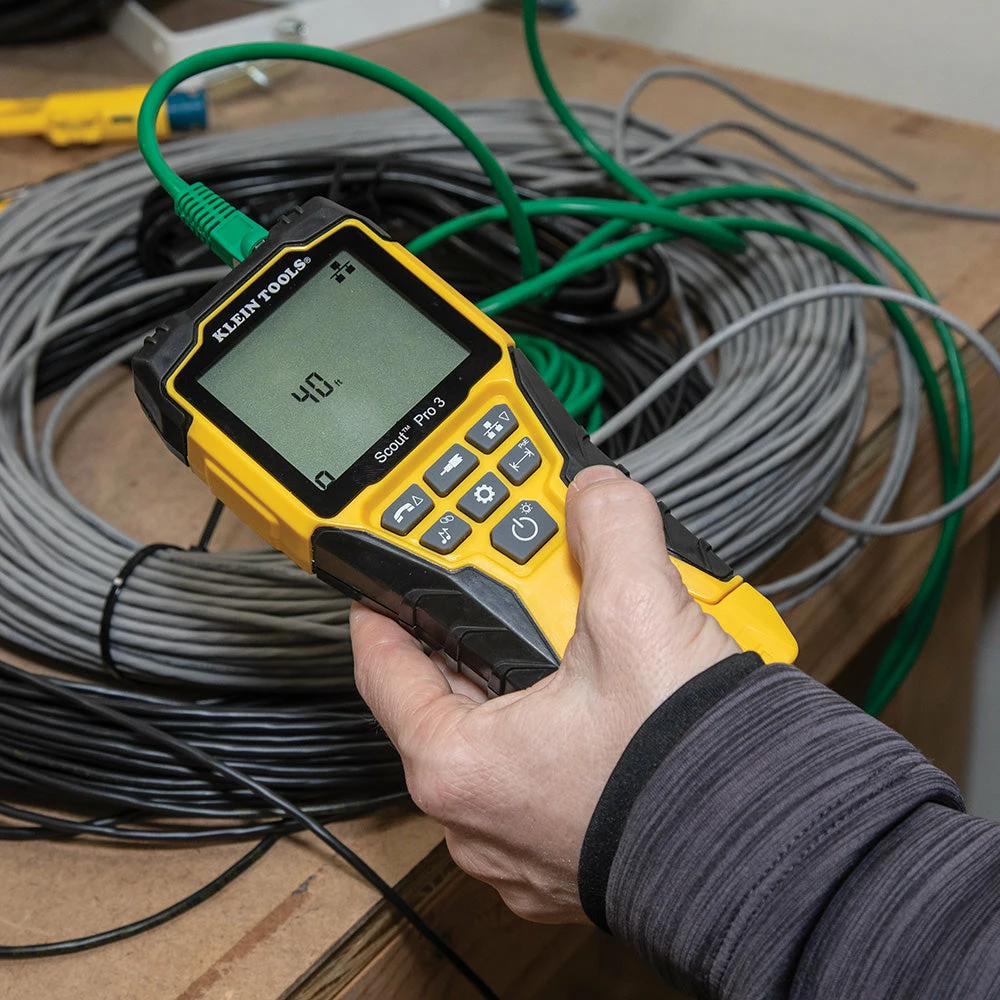

- Measures cable length up to 2,000 feet (610 m)
- Identify multiple cable runs with location-mapping remotes
- Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers
- Detect, identify and test Power over Ethernet (PoE)

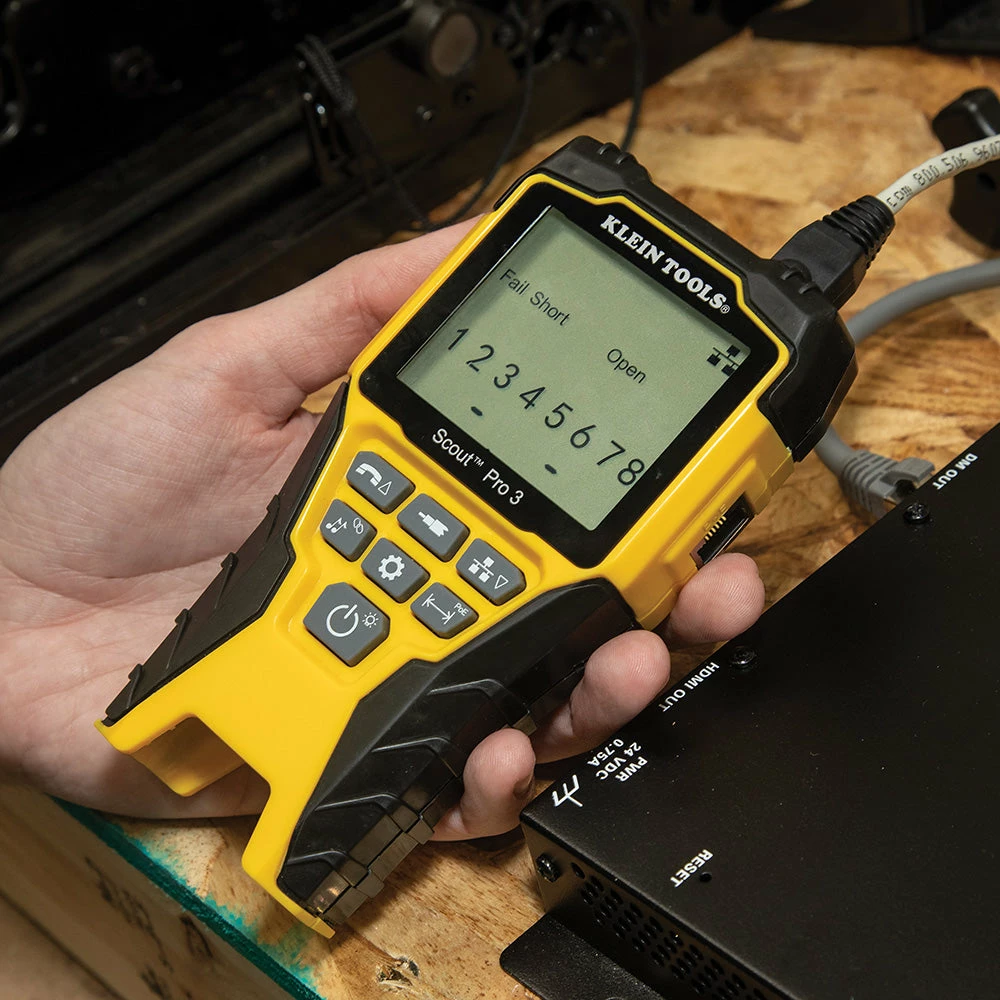

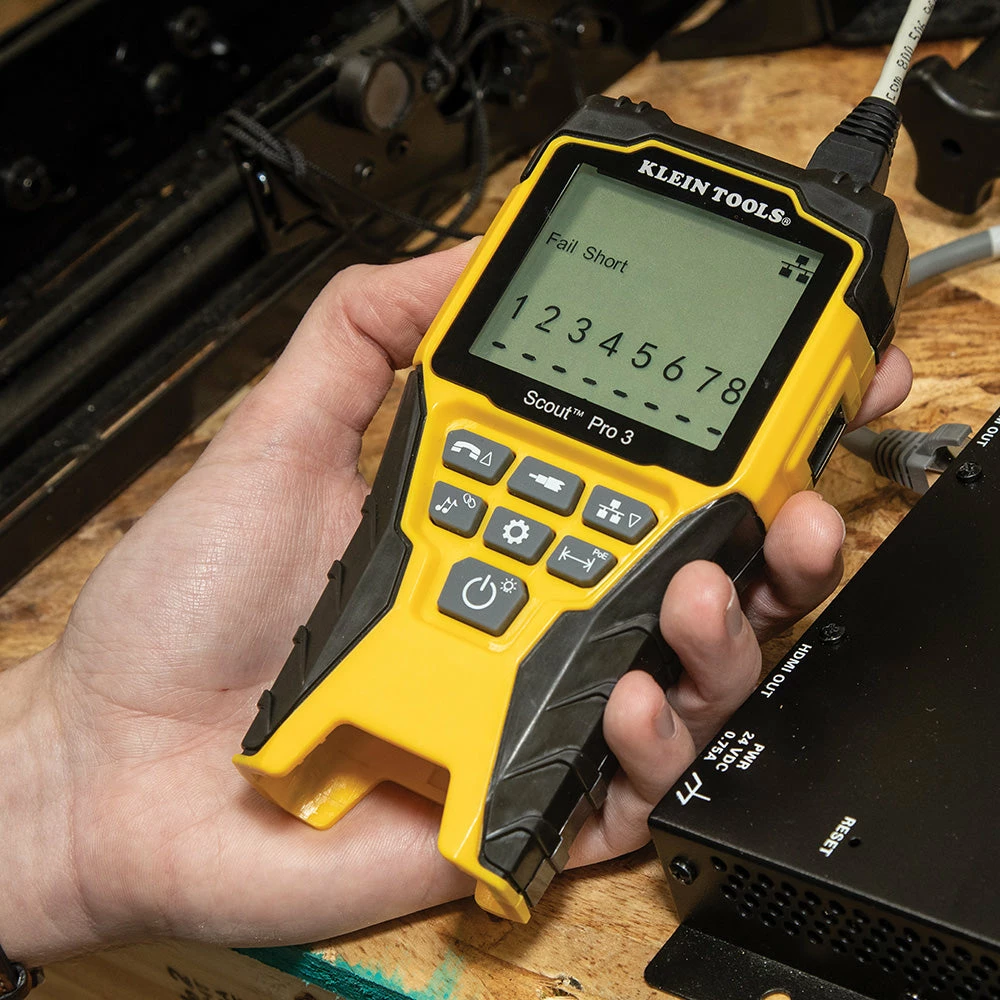

- Backlit LCD screen displays cable length, wiremap, cable ID and test results
- Hub blink mode to identify port location on a hub or a switch

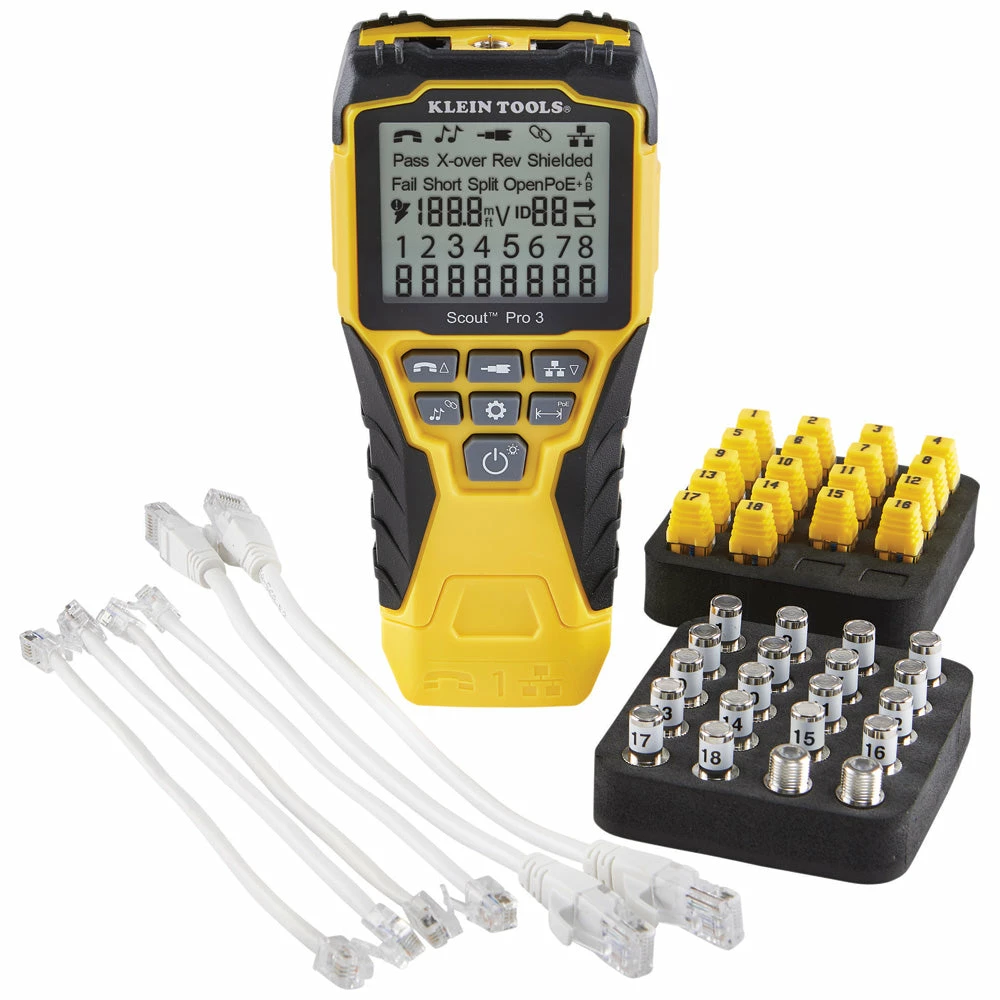

- Includes 1 Self-storing Test + Map Remote (31), 18 RJ45 LAN locator remotes, 18 F coax locator remotes, 2 female-to-female coax adapters and a 9V battery
- Convenient padded carrying case keeps everything together and in reach
What’s in The Box
- Tester, Self-storing Test + Map Remote (#1)
- 18 – RJ45 LAN Locator Remotes
- 18 – F Coax Locator Remotes
- 2 – Coaxial Barrel Adapters (female-to-female)
- 2 – RJ45 Jumper Cables (6”)
- 2 – RJ11 Jumper Cables
- 2 – RJ12 Jumper Cables
- Carrying Case
- 1 x 9V Battery
- Owner’s Manual
Warranty
- Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | VDV501-852 |
| Brand | Klein |
| Application | Cable Testing |
| Material | Plastic Metal |
| Type | Twisted Pair, DATA, Voice, LAN, and Coaxial |
| Cable Type | DATA- Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7 COAXIAL- RG59, RG6/6Q |
| Test-n-map ID Remotes | Self Storing |
| Location ID | (18) RJ45 Data and F-Coax Locator Remotes |
| Batteries | 9v Alkaline |
| Battery Life | 50 hours active |
| Drop Protection | 2m |
| Supported Remotes | 18 |
| Connection and Adapter Types | RJ11, RJ12, RJ45, Coax F |
| Display | LCD |
| Multiple Style Tone Generator | Yes (5) Requires Tracing Probe (Cat. No. VDV500-123) Sold Separately |
| Faults Detected | Open, Short, Miswire |
| Test and Measure Types | Ethernet, Data, Coaxial |
| Length | 7 in |
| Width | 1.5 in |
| Height | 3.2 in |
| Weight | 1.2 lbs |
