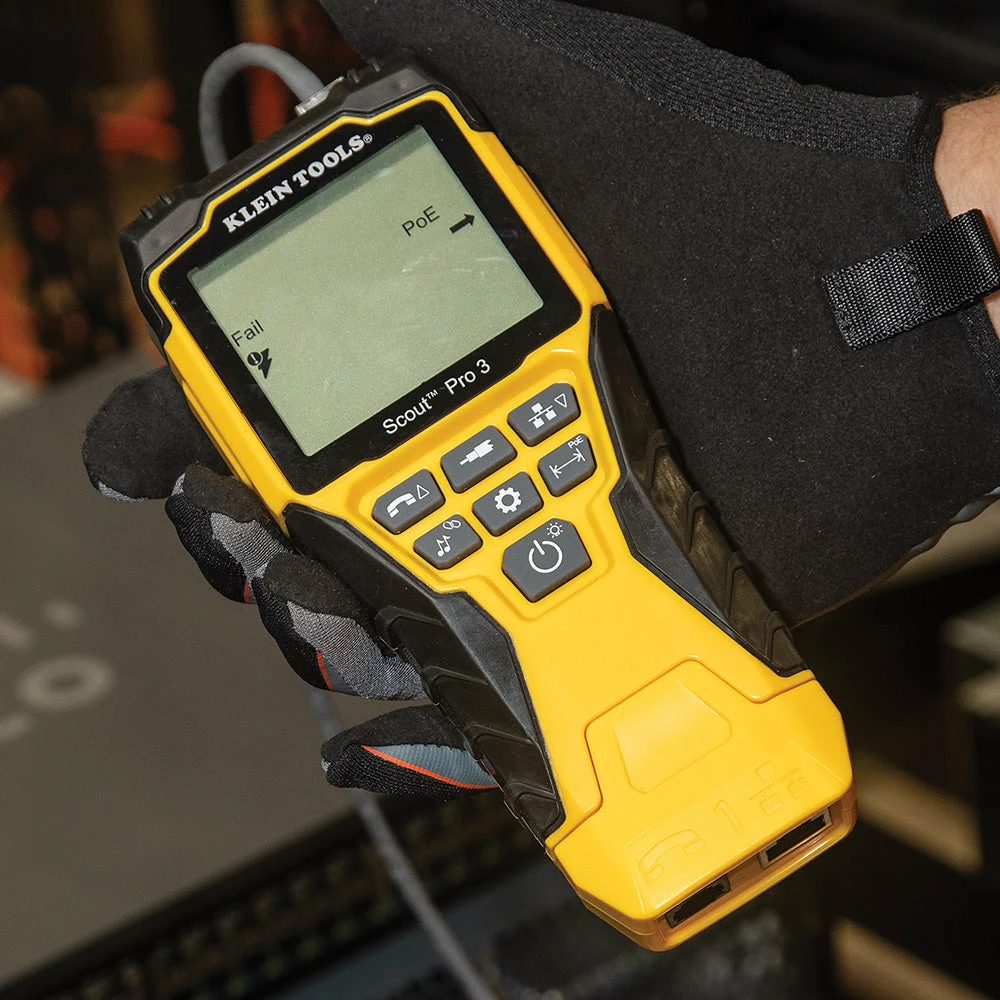

Tools & Equipment Klein VDV501-853 Scout Pro 3 Cable Power Tester With Test/Map Remote Kit

Features

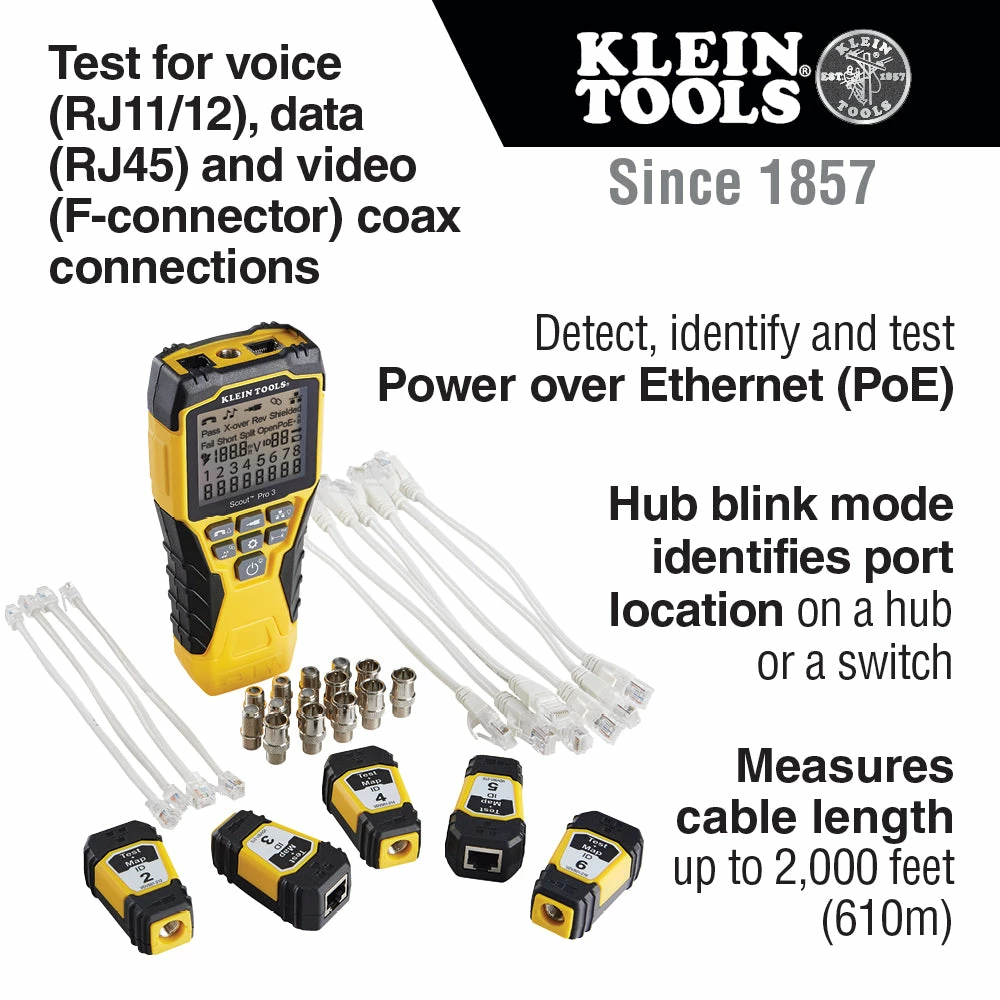

• Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

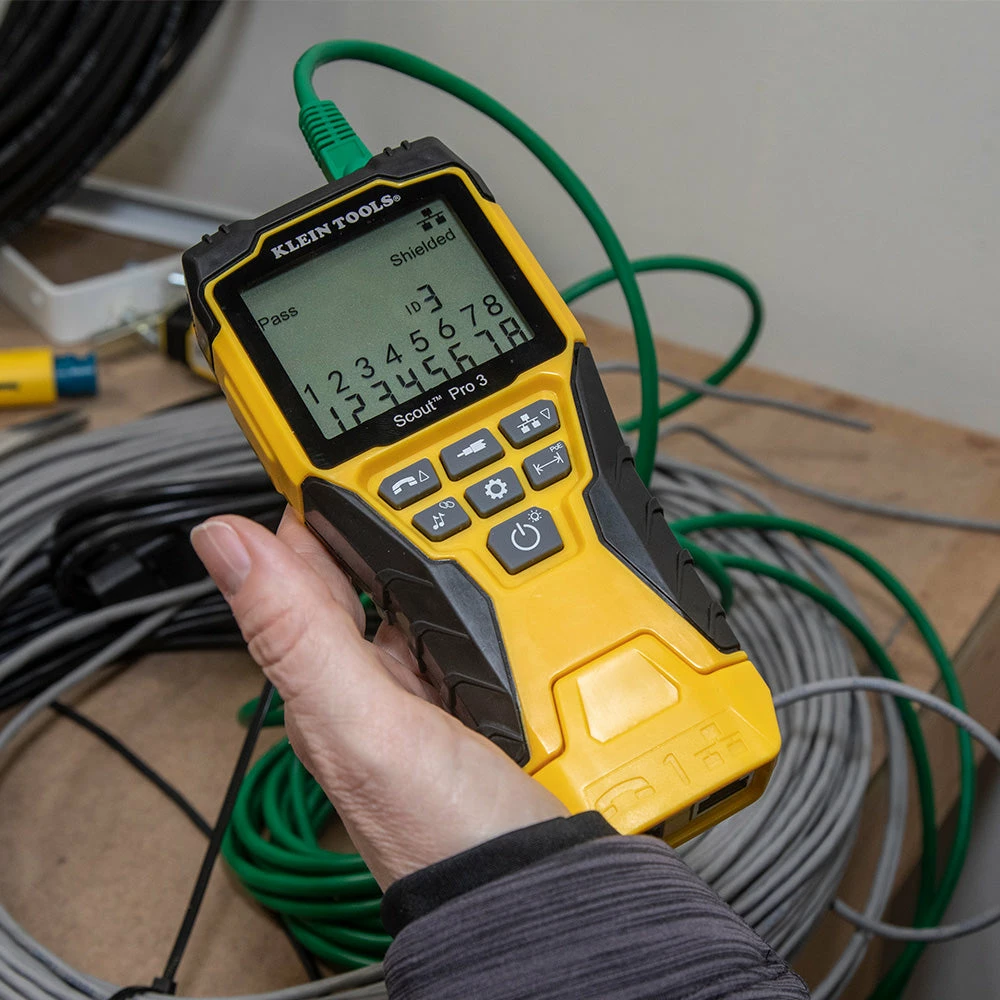

• Backlit LCD screen displays cable length, wiremap, cable ID and test results
• Wiremap testing, testing for Miswires, Split Pairs, Short Faults, Open Faults, and Shield
• Measures cable length up to 2000 feet
• Trace cables, wire pairs and individual conductor wires with a multi-style tone generator
• Detect, identify and test Power over Ethernet (PoE)
• Identify multiple cable runs with location-mapping remotes
• Hub blink mode to identify port location on a hub or a switch
• 1 dockable smart remote, 5 loose smart remotes plus 7 female-to-female and 2 female-to-male coax adapters
• Includes a 9V battery and convenient carrying case

What’s in The Box

• Tester, Self-storing Test/Map Remote (#1)
• 5 – Test/Map Remotes (#2 – #6)
• 7 – Coaxial Barrel Adapters (female-to-female)
• 7 – Coaxial Barrel Adapters (male-to-female)
• 7 – RJ45 Jumper
• 2 – RJ11 Jumper
• 2 – RJ12 Jumper
• Carrying case
• 9V alkaline battery
• Owner’s Manual

Warranty

• Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	VDV501-853
Brand	Klein
Application	Cable Testing
Material	Plastic Metal
Type	Twisted Pair, DATA, Voice, LAN, and Coaxial
Cable Type	DATA- Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7 COAXIAL- RG59, RG6/6Q
Test-n-map ID Remotes	Self Storing (5) Test/Map Remotes (#2 – #6)
Batteries	9v Alkaline
Battery Life	50 hours active
Drop Protection	2m
Supported Remotes	18
Connection and Adapter Types	RJ11, RJ12, RJ45, Coax F
Display	LCD Backlit
Multiple Style Tone Generator	Yes (5) Requires Tracing Probe (Cat. No. VDV500-123) Sold Separately
Faults Detected	Open, Short, Miswire
Test and Measure Types	Ethernet, Data, Coaxial
Length	7 in
Width	1.5 in
Height	3.2 in
Weight	1.2 lbs
