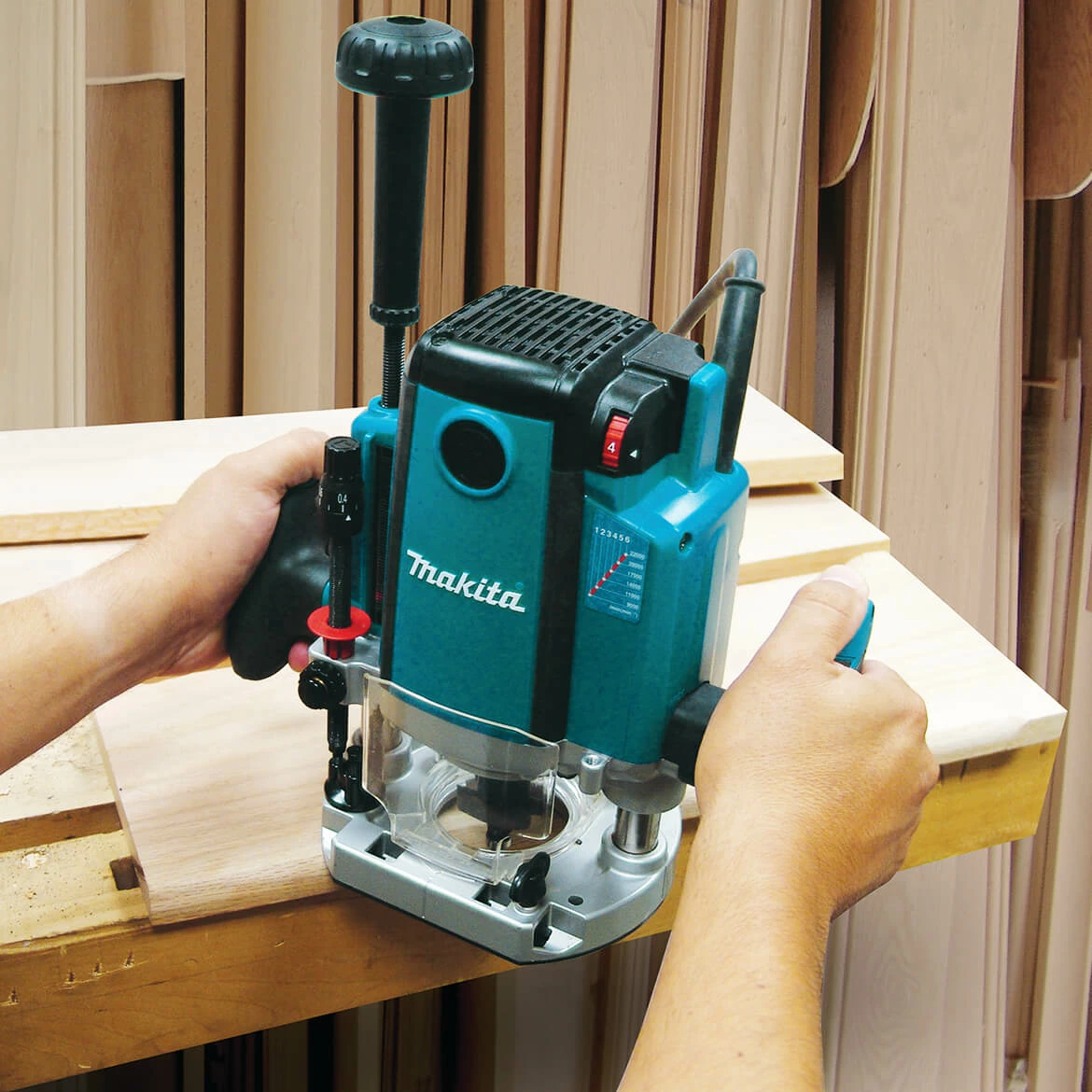

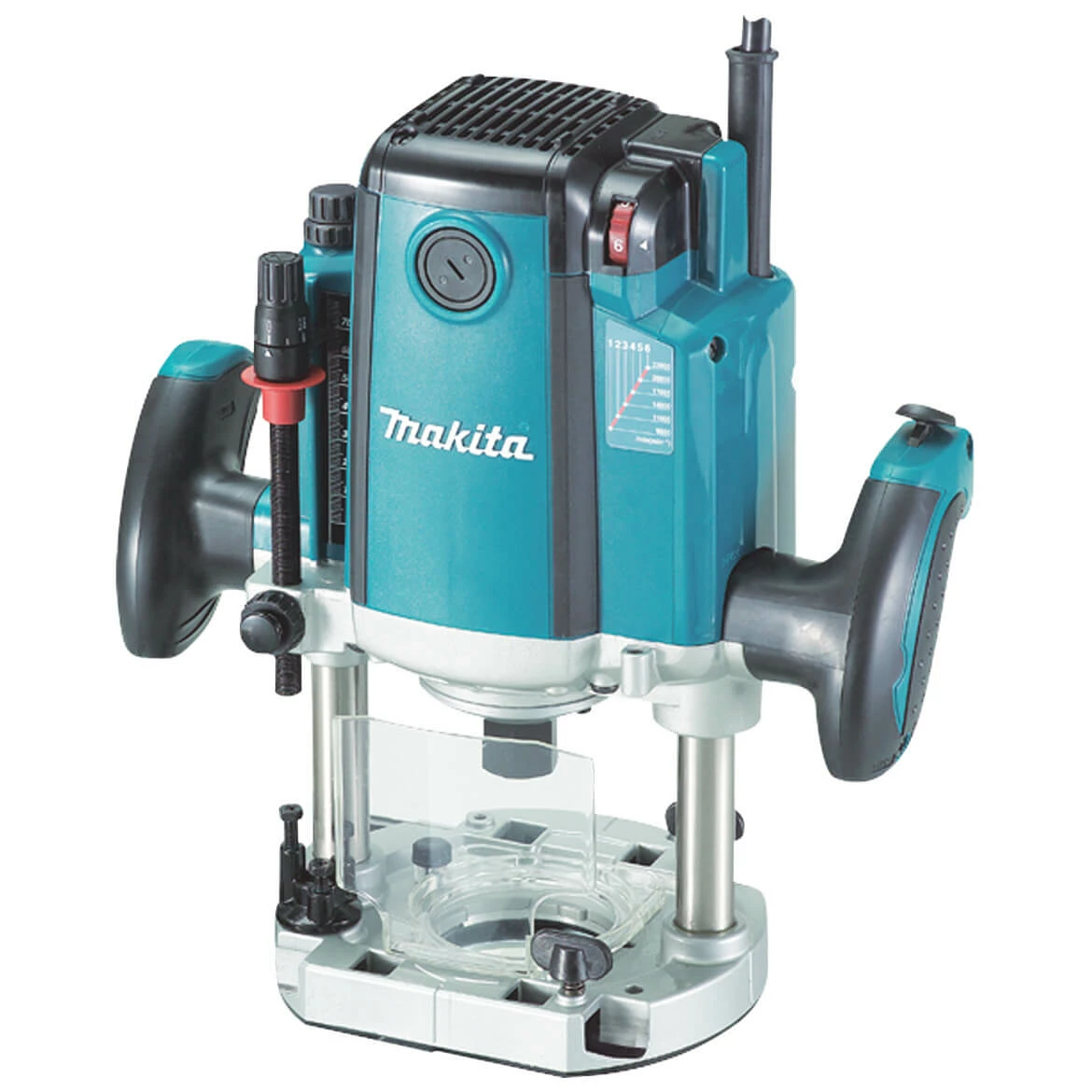

Tools & Equipment Makita RP2301FC 3-1/4 HP 15.0 Amp 9,000-22,000 Rpm 2-3/4-Inch Plunge Router

Features

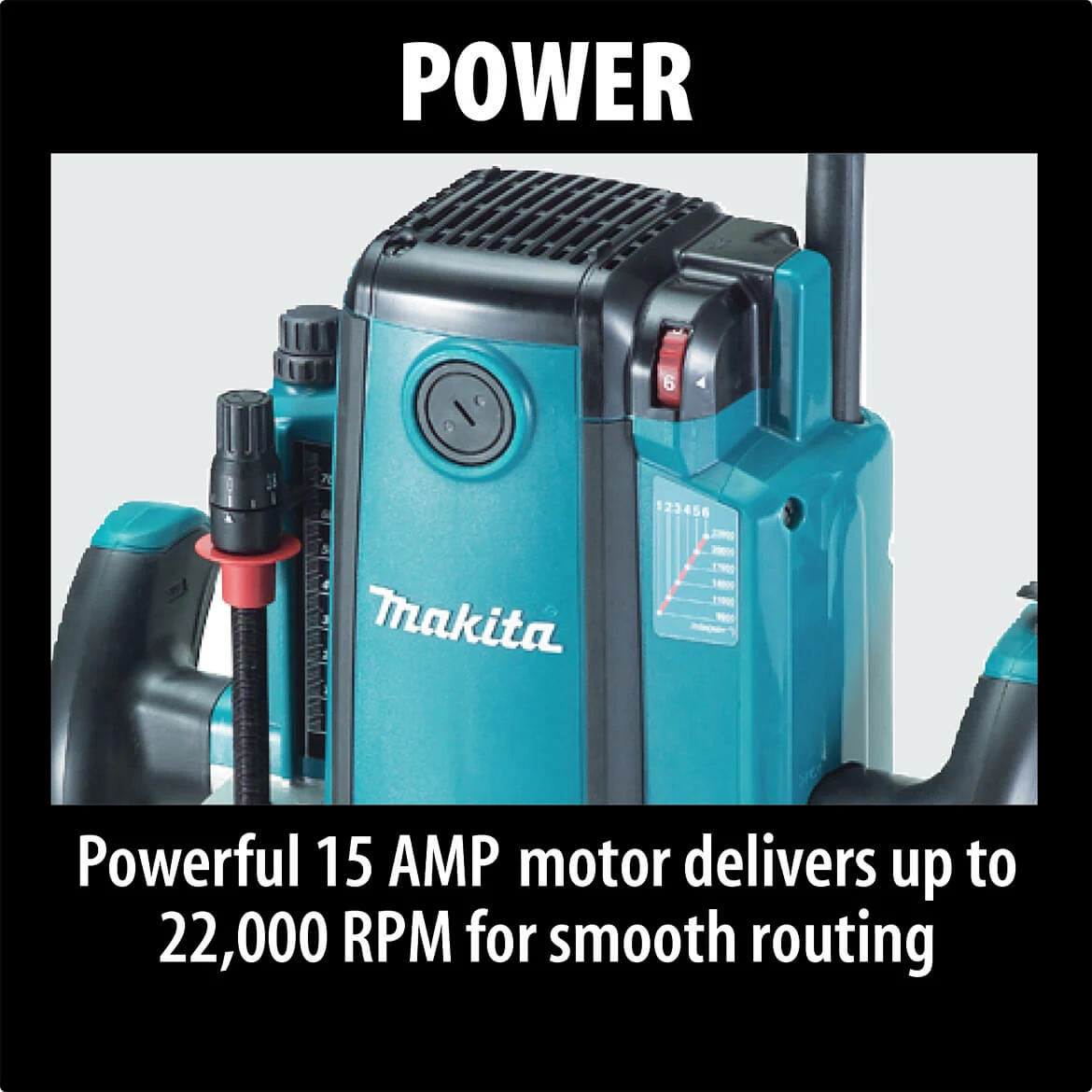

• Powerful 15.0 AMP motor delivers 9,000-22,000 RPM for smooth routing

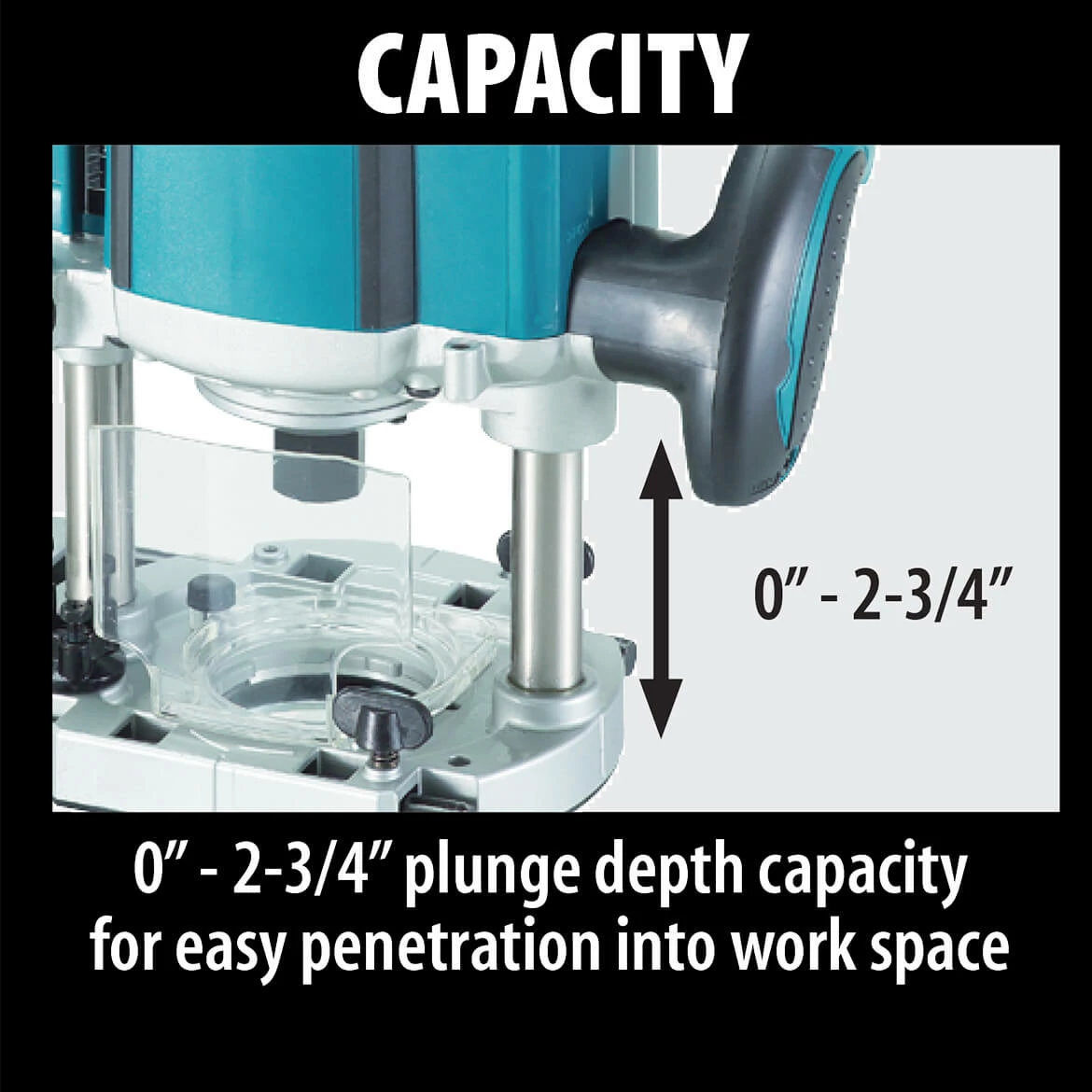

• 0 – 2-3/4 plunge depth capacity for easy penetration into work piece
• Electronic speed control maintains constant speed under load
• Variablr speed control dial enables user to match the speed to the application
• Soft start feature for smooth start-ups
• Electric brake for increased productivity

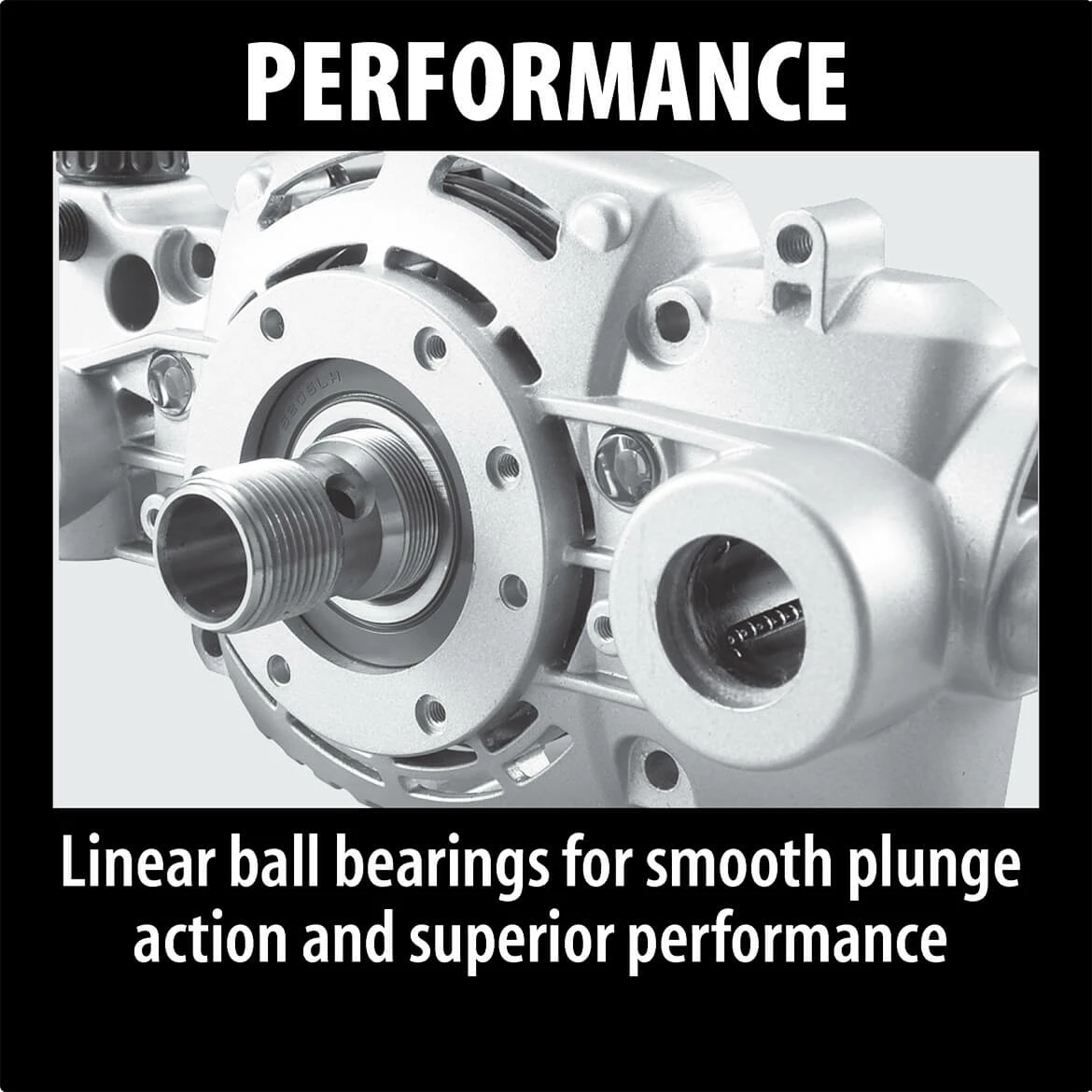

• Linear ball bearings for smooth plunge action and superior performance

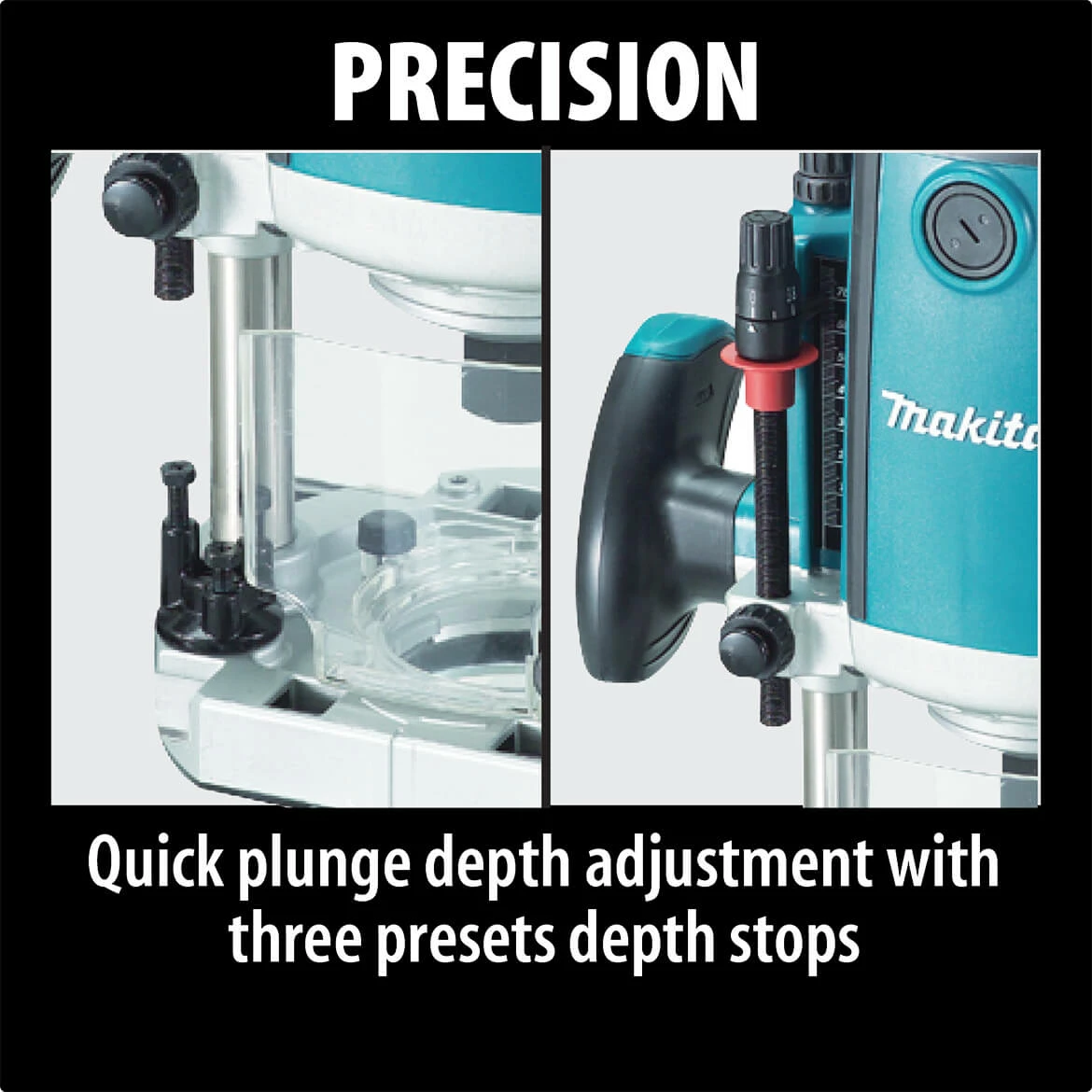

• Quick release plunge depth adjustment with micro control along with 3 preset depth stops for added precision
• Built-in twin L.E.D. lights illuminate the work area for increased visibility
• Oversized ball bearing construction for longer tool life
• Ergonomic rubberized handles with built-in large two-finger switch for added control and use
• Conveniently located plunge lock lever for efficient operation
• Shaft lock for quick and easy bit changes
• Tool-less template guide system for quick and easy installation and removal
• Lock-on trigger switch for continuous operation
• Built in fan with labyrinth construction minimizes dust from entering the tool for longer tool life
• Easy-to-read depth scales
• Chip deflector engineered to direct chips away from the operator
• Durable flat top design for stability when changing bits
• Uses 1/4 and 1/2 shank router bits
• Double insulated

What’s in The Box

• Extended Depth Adjustment Knob (158980-5)
• 1/2 Collet (763622-4)
• 1/4 Collet (763803-0)
• Wrench (781030-7)
• Owner’s Manual

Warranty

• 1-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Collet Capacities	1/4 and 1/2
Plunge Capacity	0 – 2-3/4
No Load Speed	9,000 – 22,000 RPM
AMPS	15.0
Max. Horsepower	3-1/4
Height	12-1/4
Net Weight (lbs.)	13.4
Shipping Weight (lbs.)	17.6
UPC Code	088381099431
