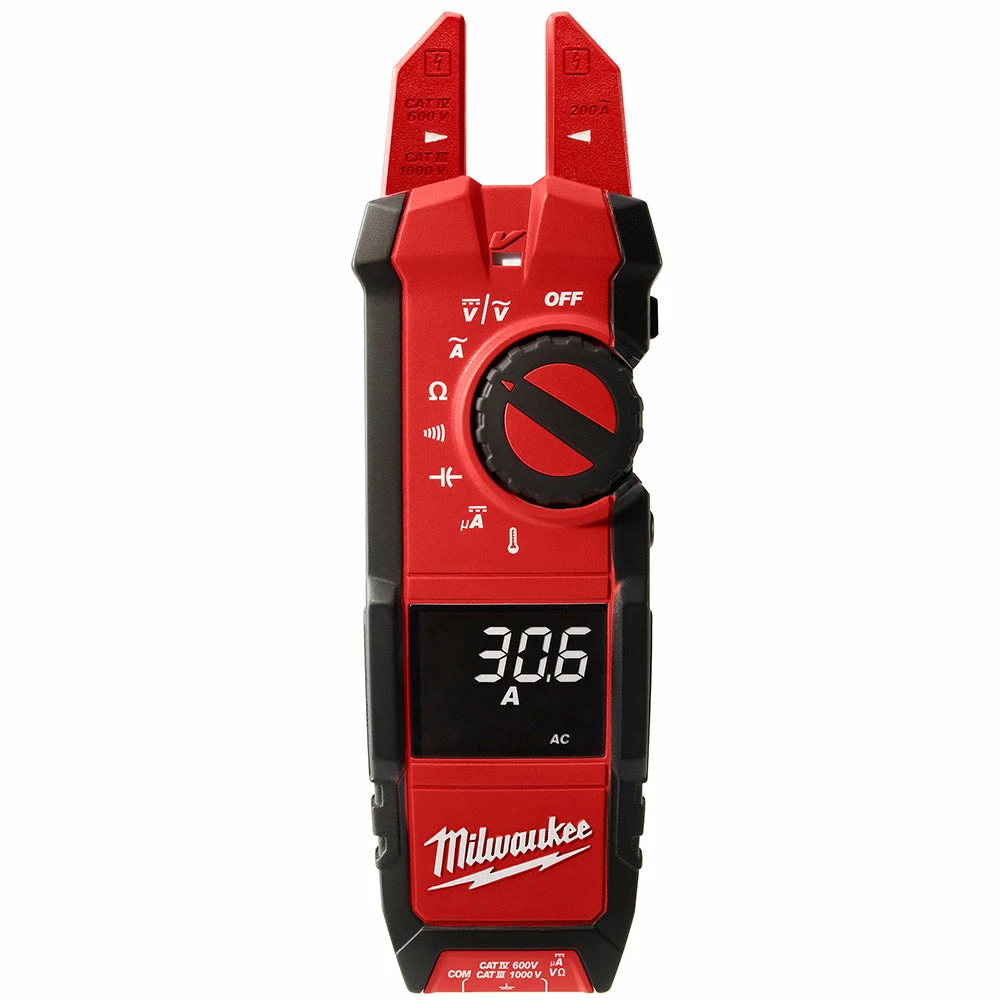

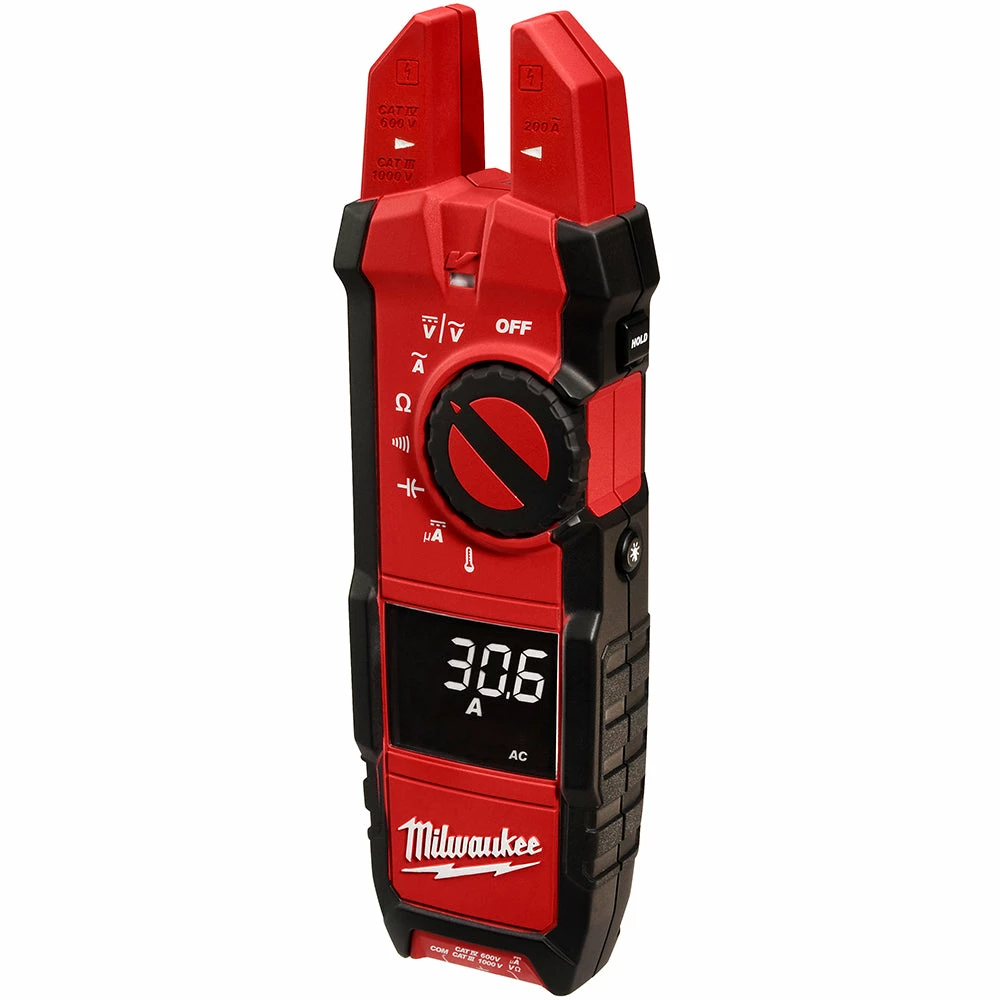

Tools & Equipment Milwaukee 2206-20 200-Amp 1,000V Hvac And Refridgeration Fork Meter

Features

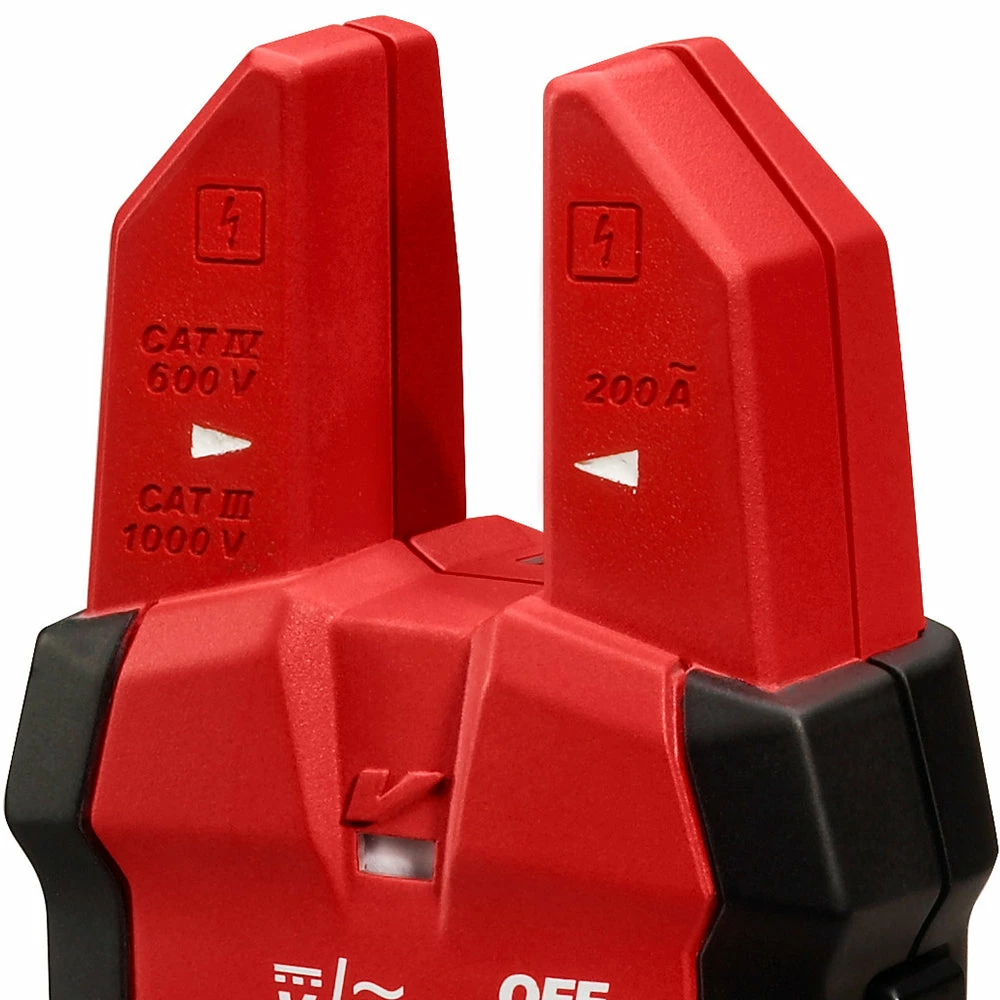

• Measures up to 200 amps, Wide 0.63a jaw opening
• Wide Voltage range to 1000 volts AC /DC
• True-RMS for accurate measurement in all applications
• Built-In Voltage Detector and LED Work Light
• Thermocouple (dual banana) input for contact temperature measurement
• 600 uA DC for Flame Rectification
• High Contrast, White on Black Display with Backlight for easy reading
• Rugged over-molding increases durability and user grip

What’s in The Box

• (1) Fork Meter for HVAC/R (2206-20)
• (1) Test Lead Set
• (1) Dual Banana Thermocouple
• (2) AA Batteries
• (1) Manual

Warranty

• 5 Years Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Fork Opening	.63
TRMS	Yes
Safety Rating	CAT IV 600V / CAT III 1000V
Microamps DC	1,000?A
Voltage AC/DC	1000V
Resistance	40M?
Continuity	Audible
Capacitance	1,000?F
Contact Temperature	-40Degree F to 752Degree F (-40Degree C to 400Degree C)
Display Backlight	Yes
Display Type	White on Black LCD
Non-Contact Voltage	Yes
LED Work Light	Yes
Rugged Over-molding	Yes
Tool Warranty	5 Years
Switch Type	Dial
Battery Type	Alkaline (AA)
Length	8
