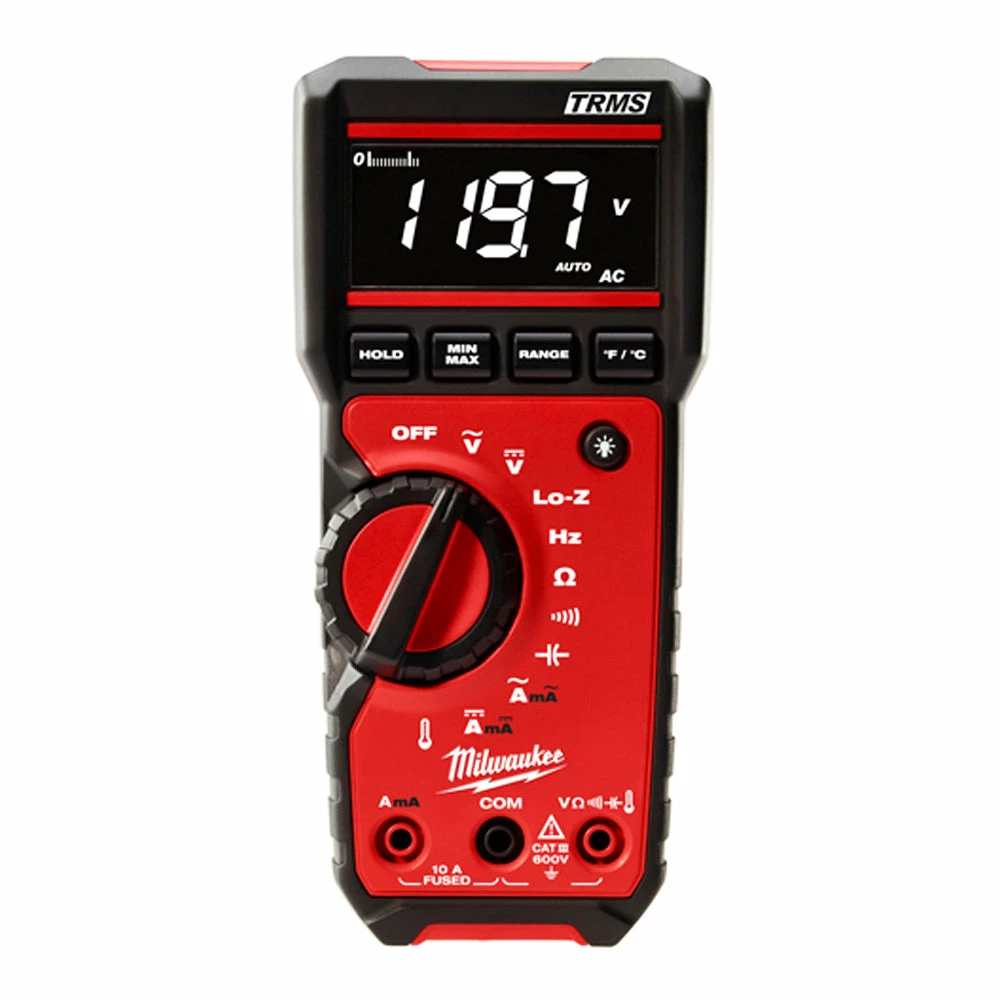

Tools & Equipment Milwaukee 2217-20NST 600V NIST Lo-Z Measuring True-RMS Digital Multimeter

Features

• Wide Voltage range to 600 AC /DC volts
• Auto range to millivolts and milliamp ranges
• True RMS for accurate measurement in all applications
• Lo-Z measurement to eliminate ghost voltage
• Frequency measurements from 10Hz to 50kHz
• Contact temperature measurement from -40 to 752aDegreeF
• Current Measurement to 10A AC/DC
• High Contrast, White on Black Display with Backlight for easy reading
• Rugged over-molding increases durability and user grip

What’s in The Box

• (1) True RMS Multimeter (2217-20NST)
• (1) Electrical Test Lead Set
• (1) Dual Banana Thermocouple
• (2) AA Batteries
• (1) NIST Certificate of Calibration with Data
• (1) Manual

Warranty

• 5 Years Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Safety Category Rating	CAT III 600V
Voltage AC/DC	600V
Lo-Z	Yes
Frequency	10 Hz – 50.00 kHz
Resistance	40M?
Continuity	Audible
Capacitance	1,000?F
Current AC/DC	10.00A
Contact Temperature	-40aDegree F to 752aDegree F (-40aDegree C to 400aDegree C)
Backlight	Yes
Display Type	White on Black LCD
HOLD/MIN/MAX	Yes
Bargraph	Yes
Rugged Overmolding	Yes
Accessory Attachment	Magnetic Meter Holder
Tool Warranty	5 Years
Battery Type	Alkaline (AA)
Calibration Needed	Yes – Recommend calibration service once every year
Certifications	NIST
Switch Type	Dial
Length	6-1/2
