Tools & Equipment Milwaukee 2973-22 M18 120’ Pipeline Sewer Camera Inspection System Kit

Features

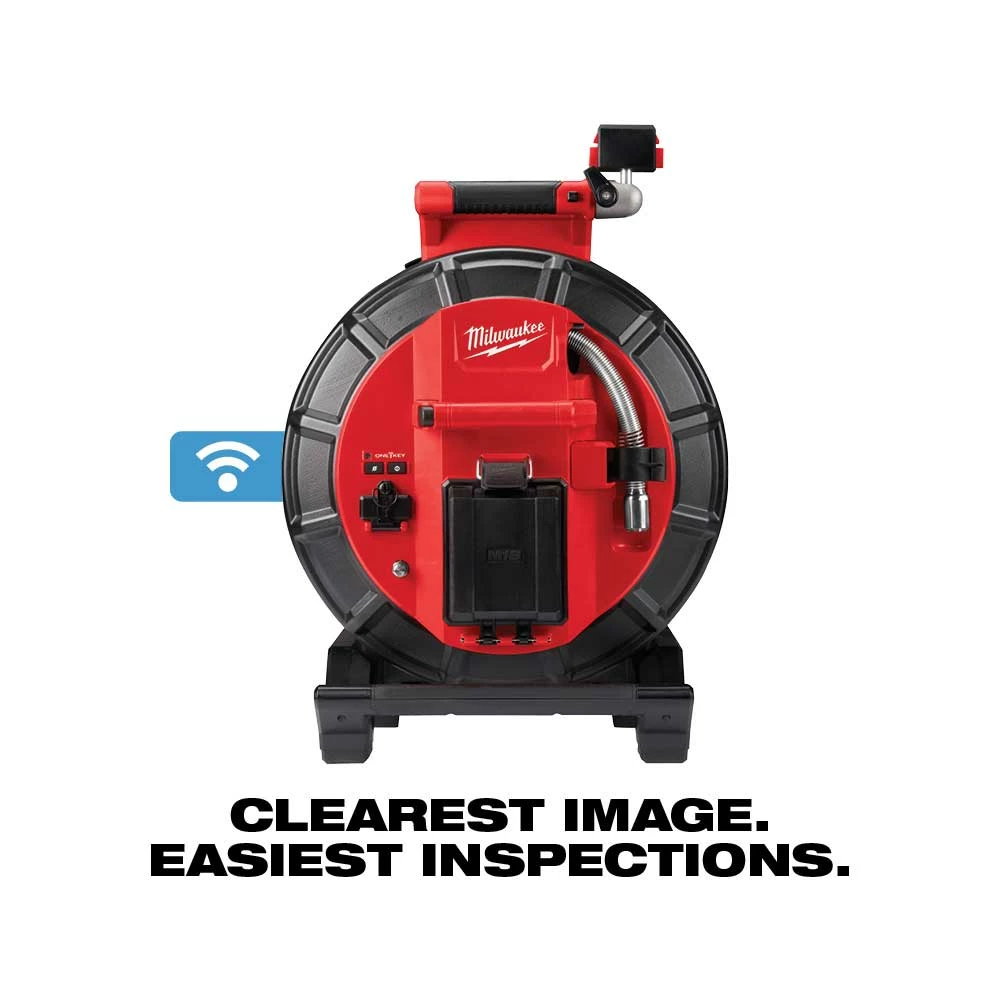

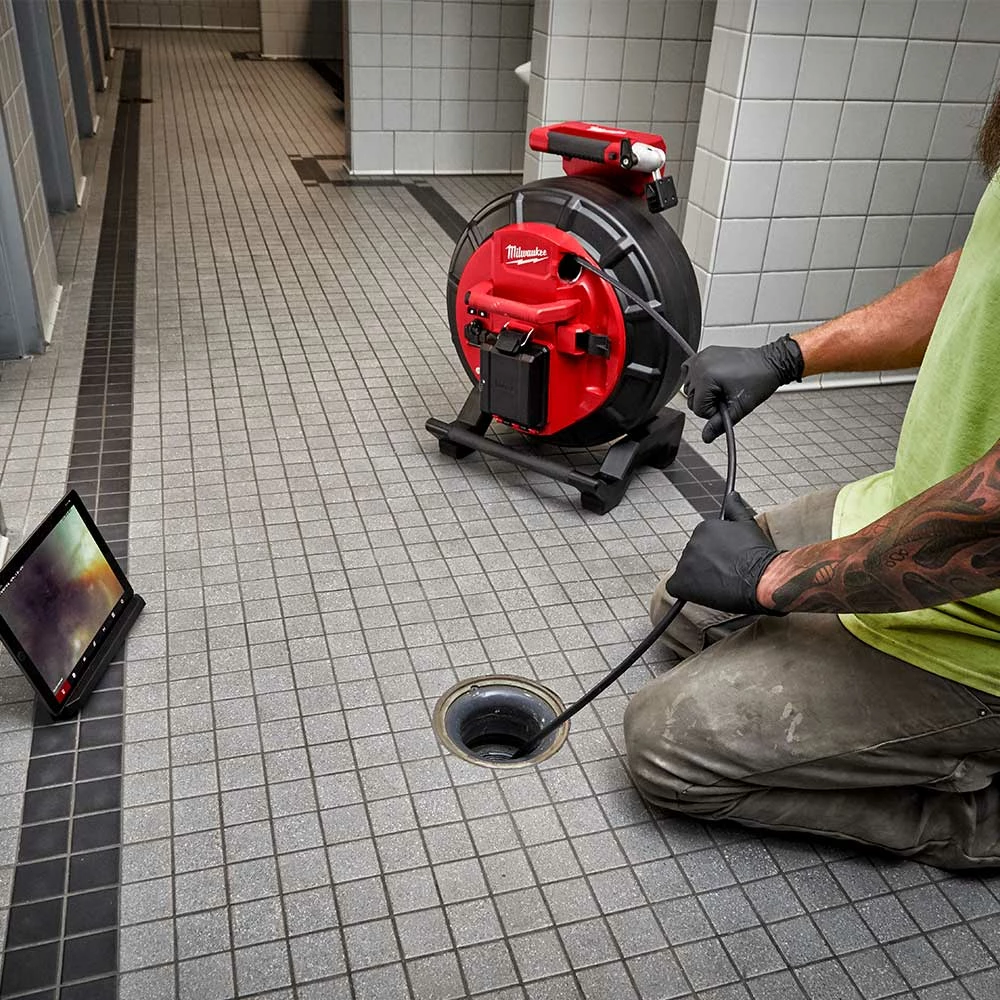

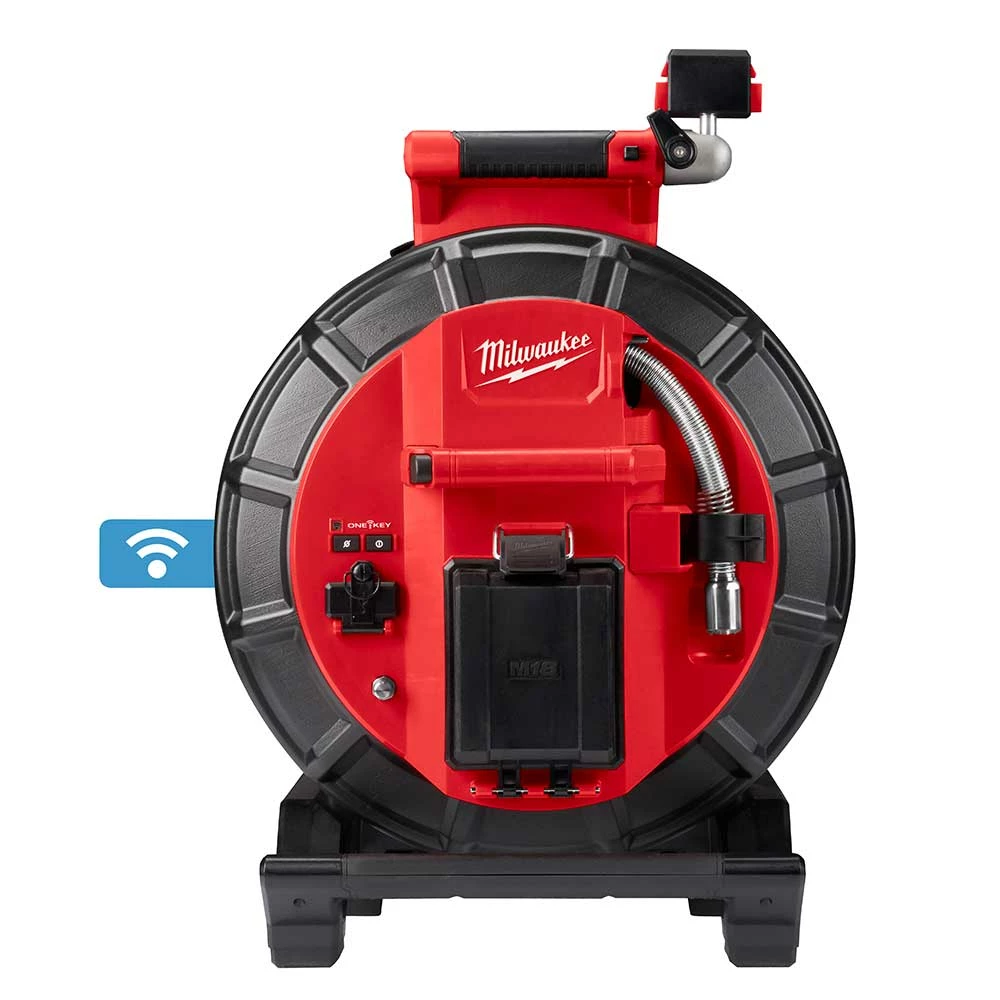

• 120 ft Pipeline Inspection System
• 1080p camera resolution providing the industry’s clearest image inside of drain lines

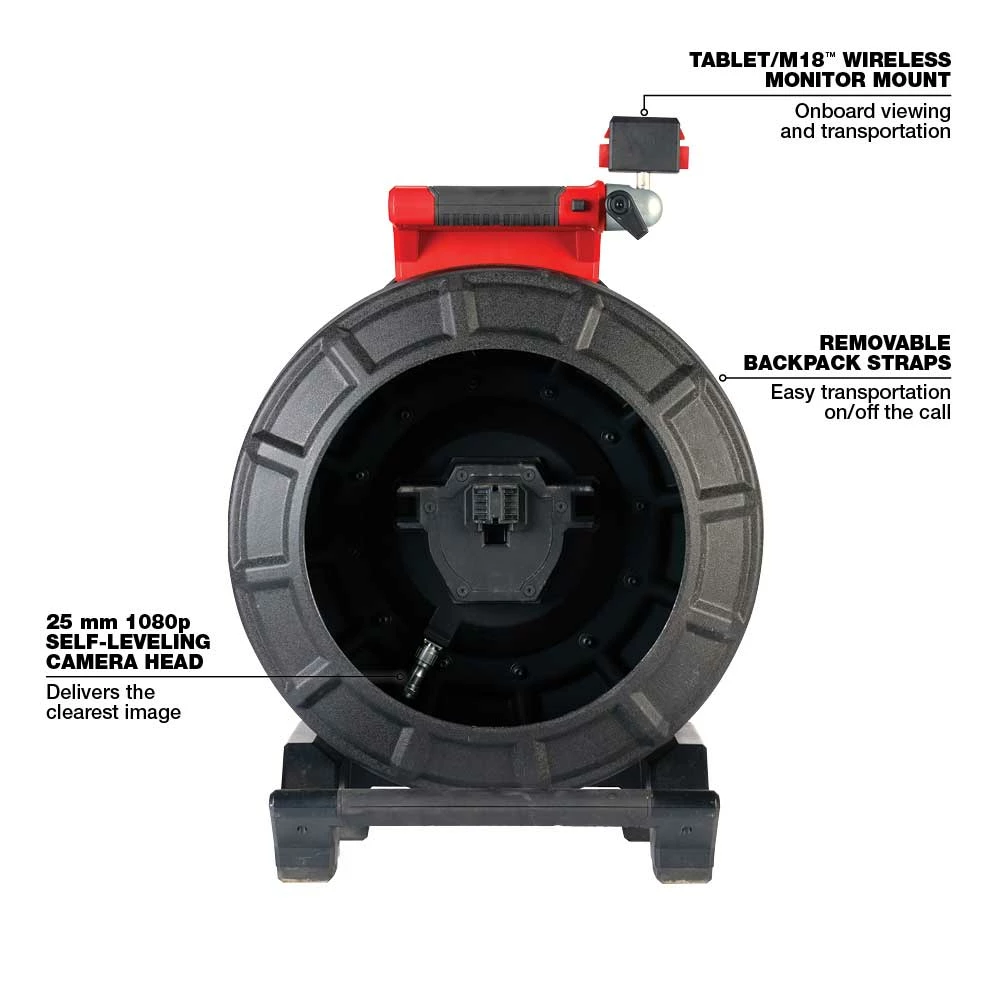

• 25 mm self-leveling HD camera head
• 10 mm Push Cable Diameter provides best mix of stiffness and flexibility
• Powered by the M18 500GB Control Hub
• Removable backpack straps for hands-free carrying
• Onboard monitor mount for viewing and transportation
• Swap batteries without system shutdown

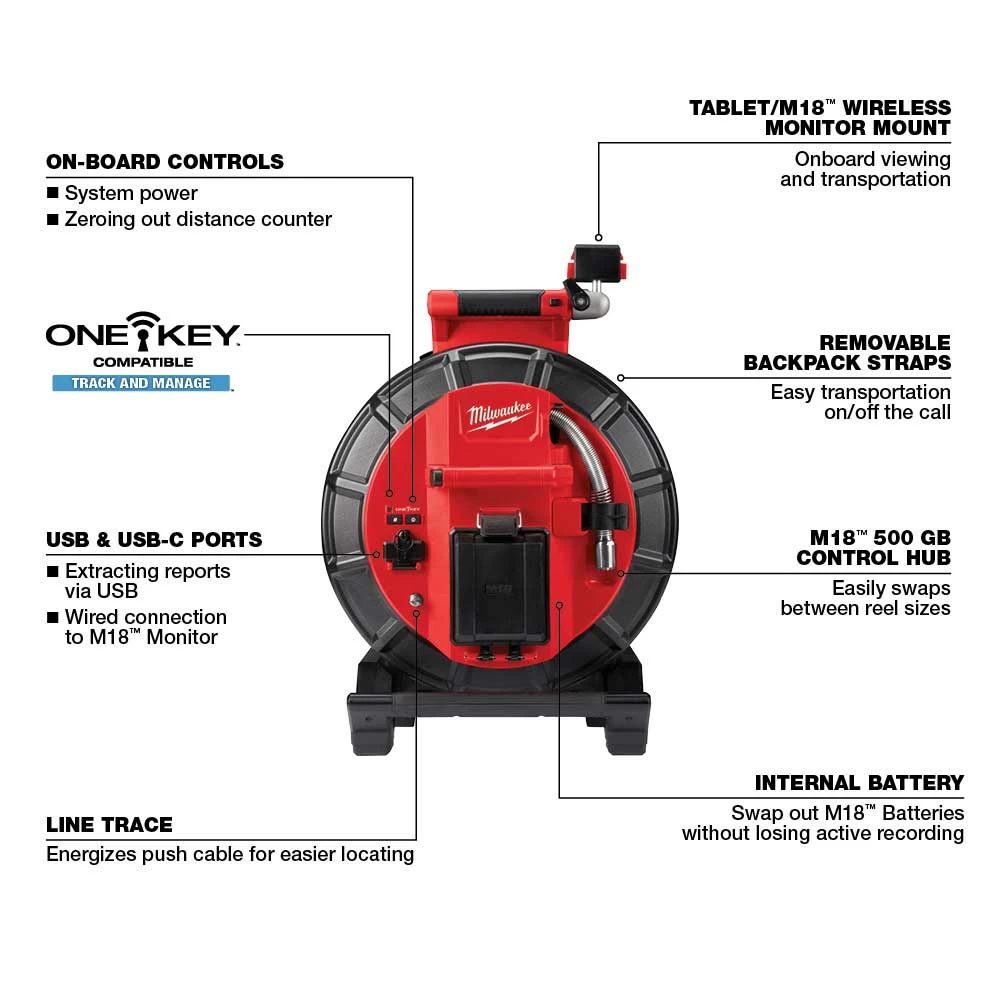

• 500GB Control Hub
• Record, Edit and Share to Mobile Devices
• Swap Batteries without System Shutdown

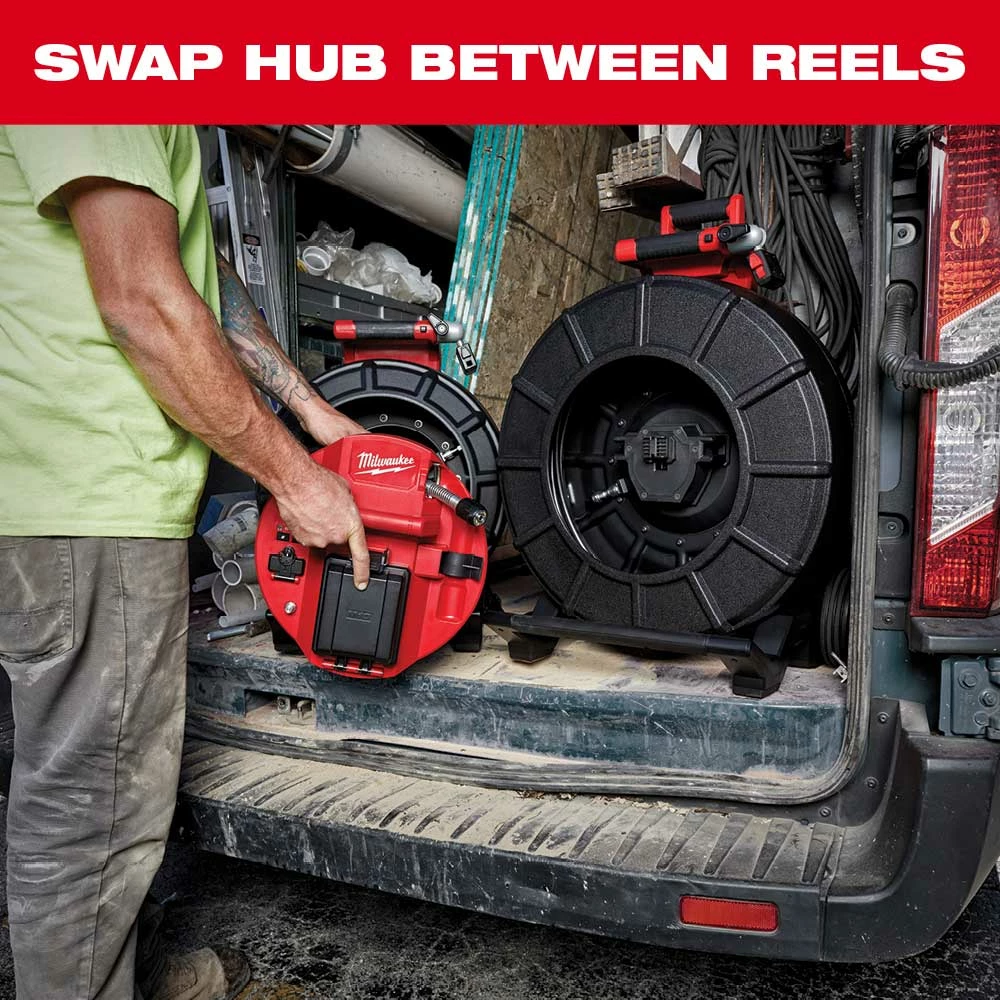

• Unmatched Versatility, Control Hub Swaps Between Reels
• Up to 200′ of Wireless or wired connectivity to viewing device
• On board USB port allows for saving findings on memory stick
• One-Key technology allows for tracking, tool security, and inventory management
• Up to 9 hours of runtime with an M18 REDLITHIUM 5.0AH Battery
• Wired connection backup to the M18 Wireless Monitor via USB-C port
• Water tight battery door protects against water and debris
• Integrated handle and latch allow for easy one handed installation
• Sealed Battery Door
• Sealed USB Door

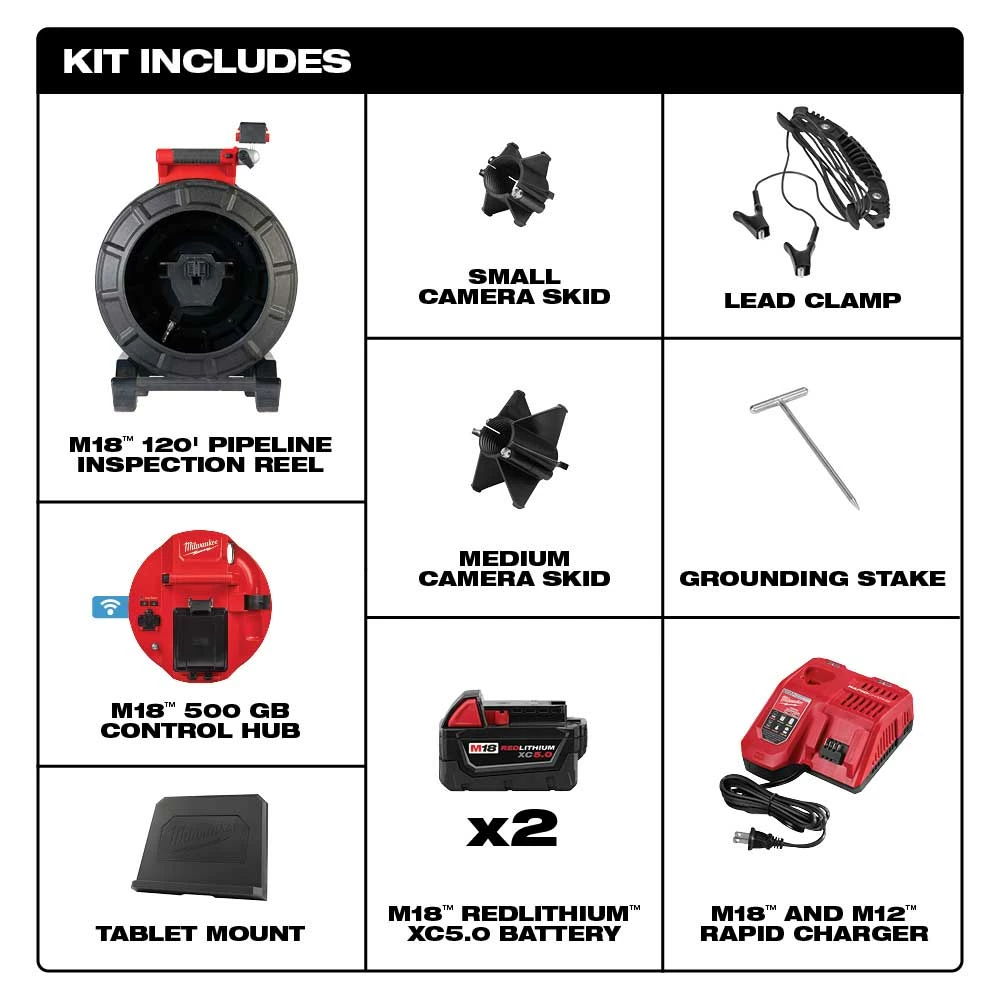

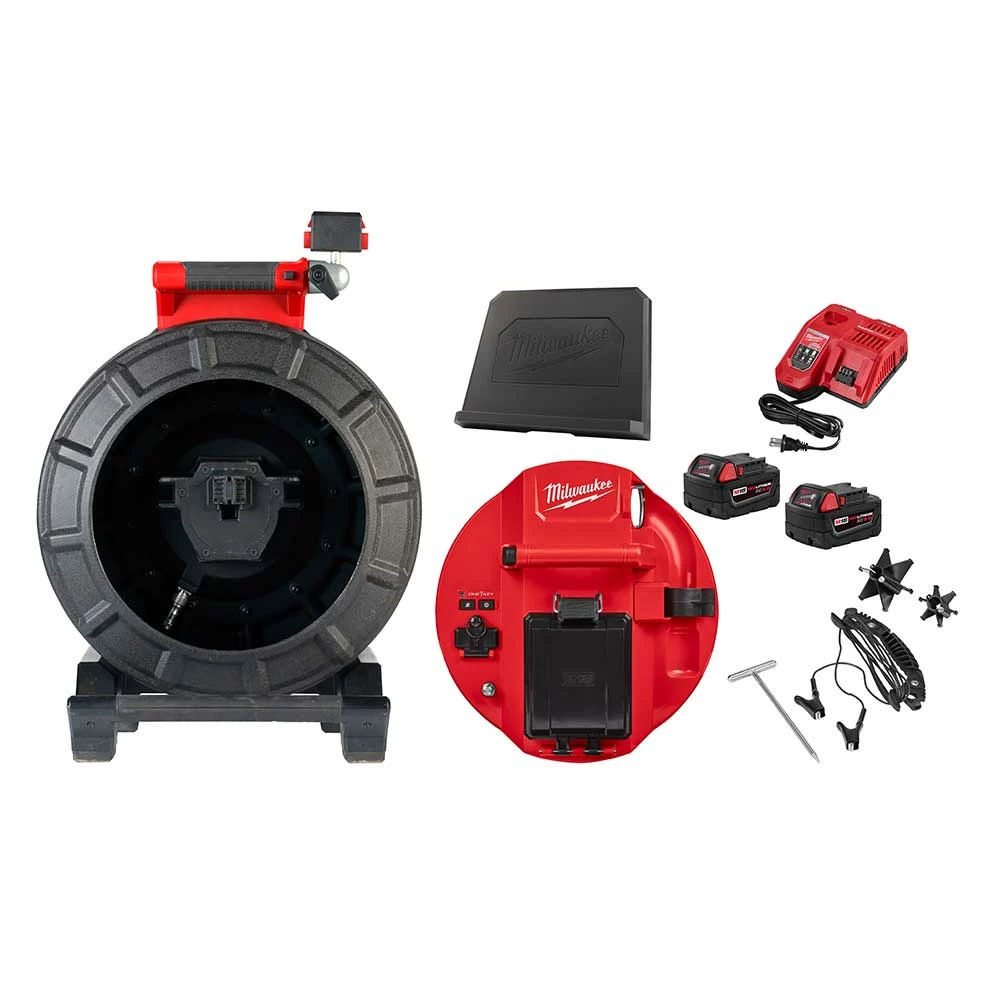

What’s in The Box

• 120’ Pipeline Inspection Reel (2973-20)
• M18 500GB Control Hub (Tool Only)(2970-20)
• (2) M18 REDLITHIUM XC5.0 Extended Capacity Battery Pack(48-11-1850)
• M18 / M12 Rapid Charger(48-59-1808)
• Tablet Mount(48-53-2970)
• Medium camera head skid for 25mm camera
• Small camera head skid for 25mm camera
• Grounding stake with lead clamps and cable
• Owner’s Manual

Warranty

• 5 Year Limited Factory Warranty
• 1 Year Camera Head Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	2973-22
Brand	Milwaukee
120 ft Pipeline Inspection System
Line Capacity	2 in – 6 in
Push Cable Length	120 ft
Push Cable Diameter	10mm
Camera Resolution	1080p
Camera Head Ingress Protection	IP67
Sonde Frequency	512 Hz, 33 kHz
Line Trace Frequency	33 kHz, 83 kHz
Length	13.3 in
Width	17.8 in
Height	22.7 in
Weight	26 lbs
500GB Control Hub
Volts	M18
Power	Cordless
Video Display	M18 Wireless Monitor or Milwaukee Pipeline Inspection App
Wireless Range	200 ft
Runtime	9 hours
Photo Format	JPEG
Video Format	MPEG4
Internal Storage	500 gb
Data Transfer Method	USB, wireless to mobile devices
Line Trace Frequency	33 kHz, 83kHz
Length	12.2 in
Width	13 in
Height	13.5 in
Weight	8 lbs
