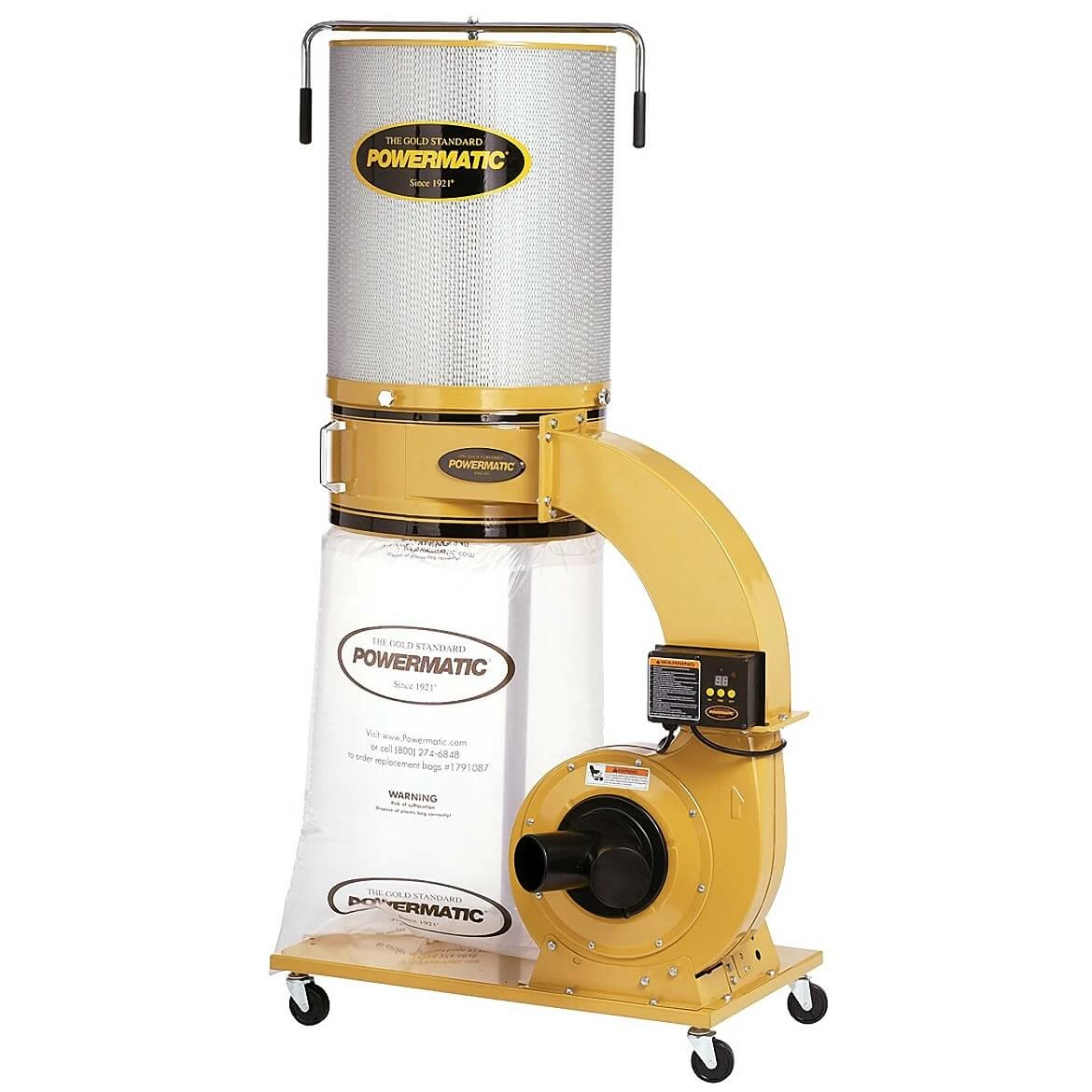

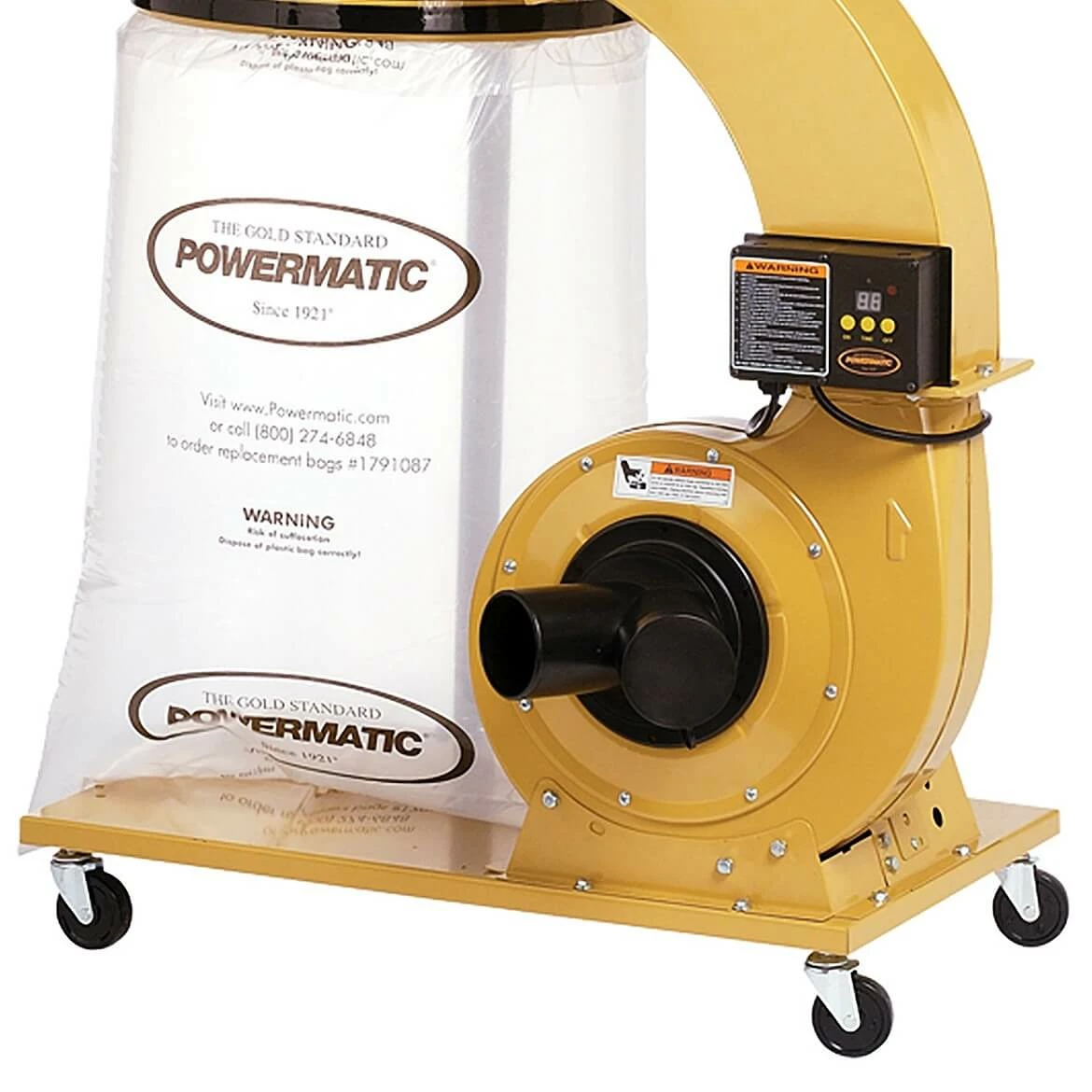

Tools & Equipment Powermatic 1791079K Dust Collection W/ Canister Kit For PM1300TX-CK 1.75HP 1PH

Features

• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes

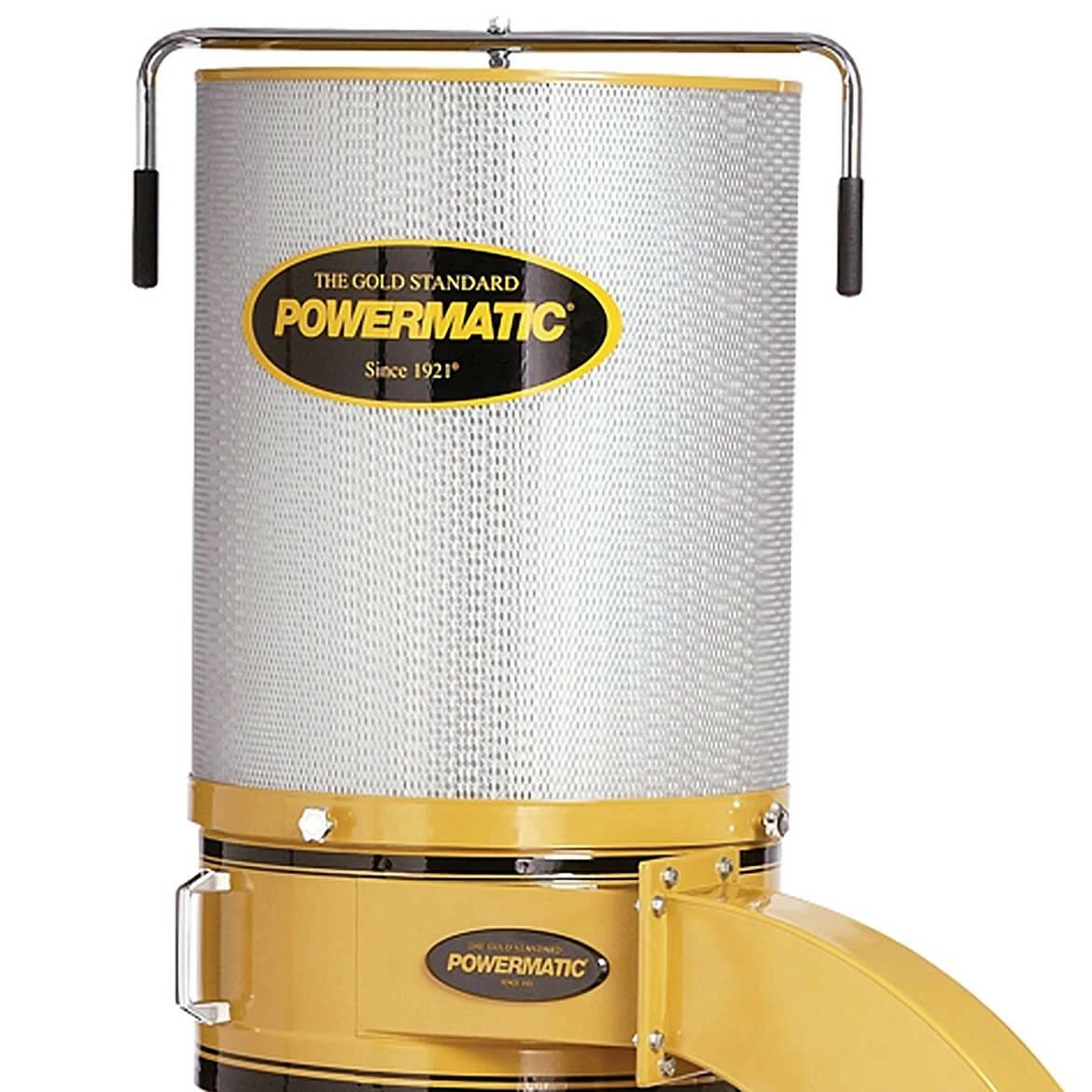

• Canister filter offers over six times filtering surface area of standard bags
• All-metal duct construction for rigidity and improved air flow
• Dual 4″ dust ports for simultaneous collection from two machines
• 1-3/4HP motor offers plenty of power for effective air movement
• Cloth collection bag with view window uses snap ring for rapid installation/removal
• 10 cubic feet capacity collection bag reduces number of bag changes.
• Tall filter bag requires less cleaning due to the larger surface area
• Four swivel casters for easy maneuverability

What’s in The Box

• Powermatic PM1300TX-CK, 1.75HP 1PH 115/230V, 2-Micron Canister Kit
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791079K
UPC	731325175226
Air Flow @ 6″ (CFM)	1,064
Number of Air Inlets	3
Efficiency (Micron)	2
Static Pressure (WC)	11.31
Sound Rating (DB)	75 – 90
Bag Diameter (In.)	20
Collection Bag Capacity (Cu. Ft.)	10
Collection Bag Length (In.)	30
Filter Bag/Canister Length (In.)	26
Impeller Diameter (In.)	12
Impeller Fins	6
Impeller Material	Steel
Velocity @ 6″ (CFM)	5,374
1-Hose Connection Diameter (In.)	6
2-Hoses Connection Diameter (In.)	4
Motor Power (HP)	1-3/4
Motor Phase	1
Motor Voltage (V.)	115, 230
Prewired Voltage (V.)	115
Motor Current (Amps)	15, 7-1/2
