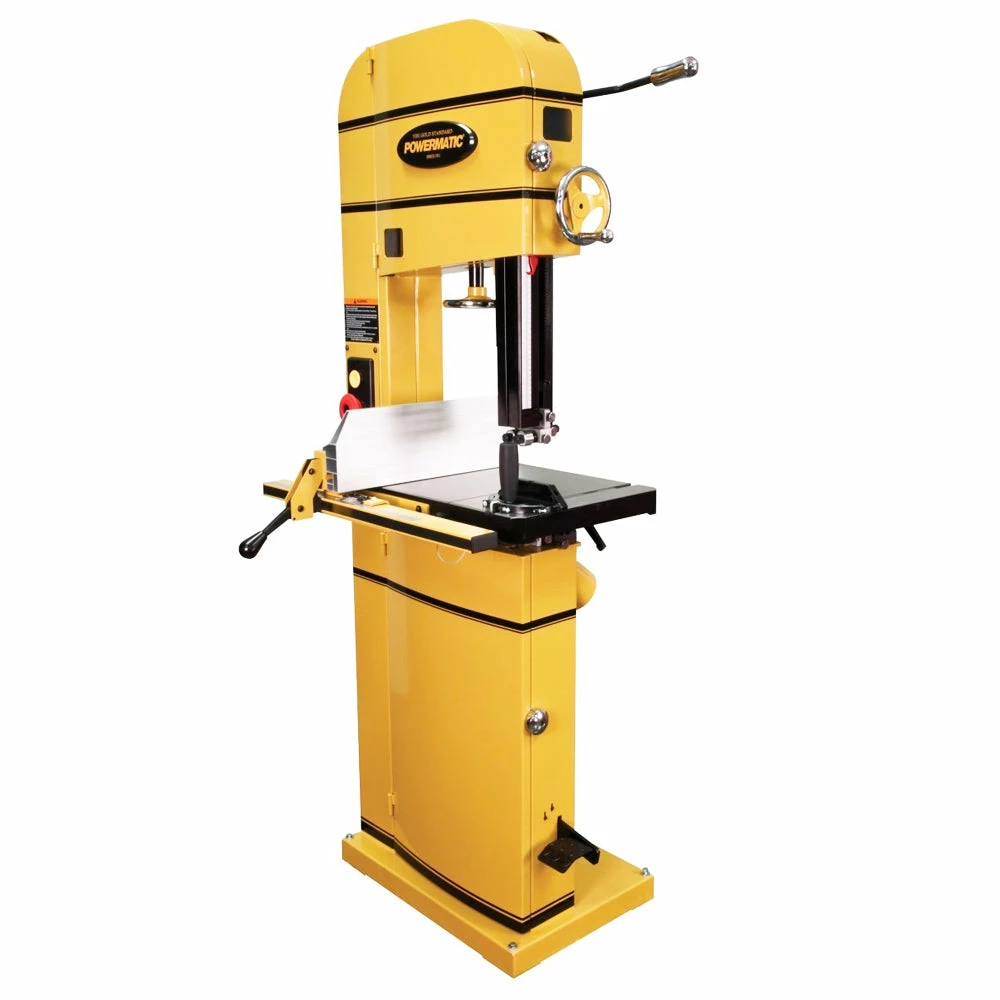

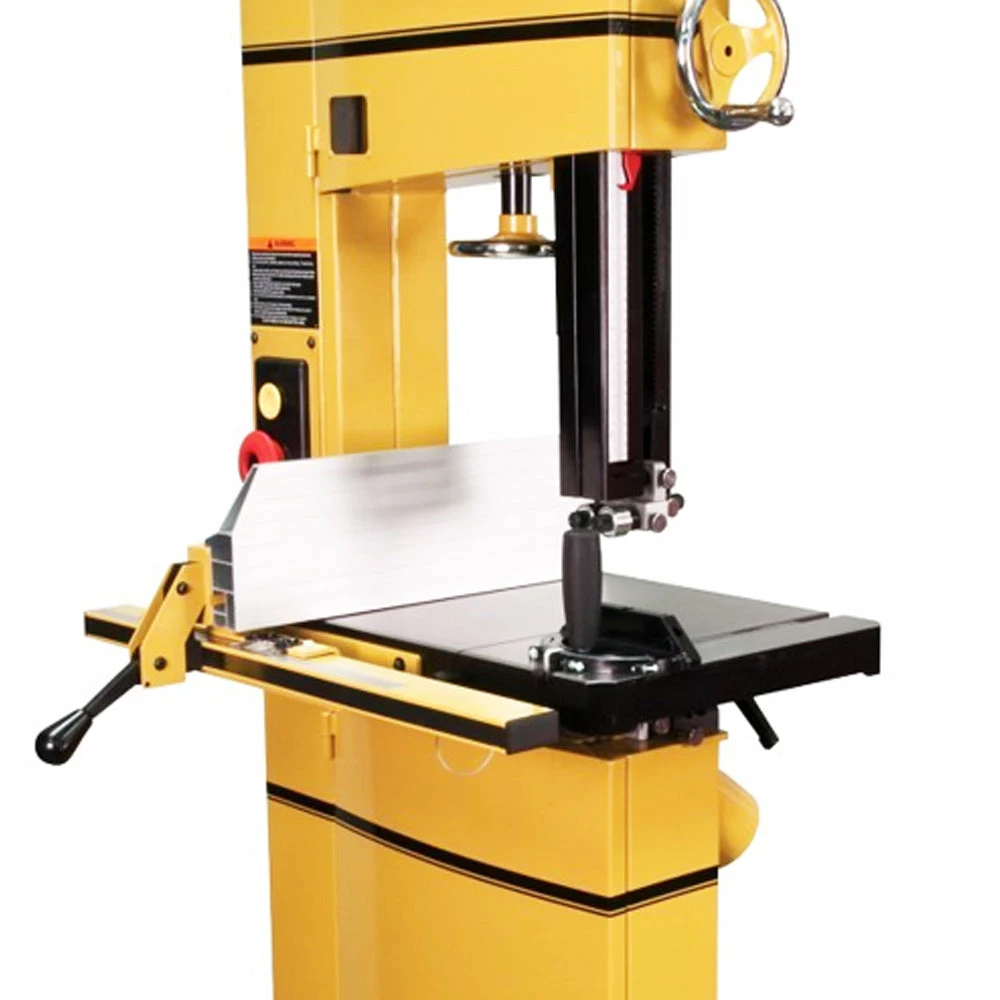

Tools & Equipment Powermatic PM1500 3-Hp 230V 15″ Heavy Duty Cast Iron Bandsaw

Features

• 14-1/2” of throat and 14” of resaw provide more capacity than a traditional 14” bandsaw
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for heavy work pieces
• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table
• Positive locking cam with pressure adjustment
• Oversized side plate can be used in the horizontal or vertical position
• Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned or released (patent pending)
• Heavy duty upper wheel support and tracking mechanism for smooth operation
• Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
• High end blade guides with tool less adjustment provide stability, increasing cut accuracy
• Four sided blade guard for optimum protection
• Integrated foot brake stops a coasting blade
• Magnetic Switch protects the motor from harm due to potential electrical supply issues
• Heavy duty 3 horsepower motor provides power needed for all projects

What’s in The Box

• Powermatic PM1500 Bandsaw, 3HP 1PH 230V
• Owners Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery

Specifications

Model	1791500
UPC	731325224269
Cutting Capacity Width (In.)	14-1/2
Cutting Capacity Height (In.)	14
Blade Length (In.)	153
Table Size (L x W) (In.)	21-1/2 x 16
Blade Speed (SFPM)	3100
Blade Width (In.)	1/8 – 1
Maximum Saw Blade Width (In.)	1
Table Height from Floor (In.)	40
Table Tilt (Deg.)	10 Left, 45 Right
Minimum Saw Blade Width (In.)	1/8
Miter Gauge Positive Stops	45, 90
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Phase	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Current (Amps)	12
