Tools & Equipment Powermatic PM2013B-3 5-Hp 230/460V 20″ X 18″ Heavy Duty Vertical Bandsaw

Features

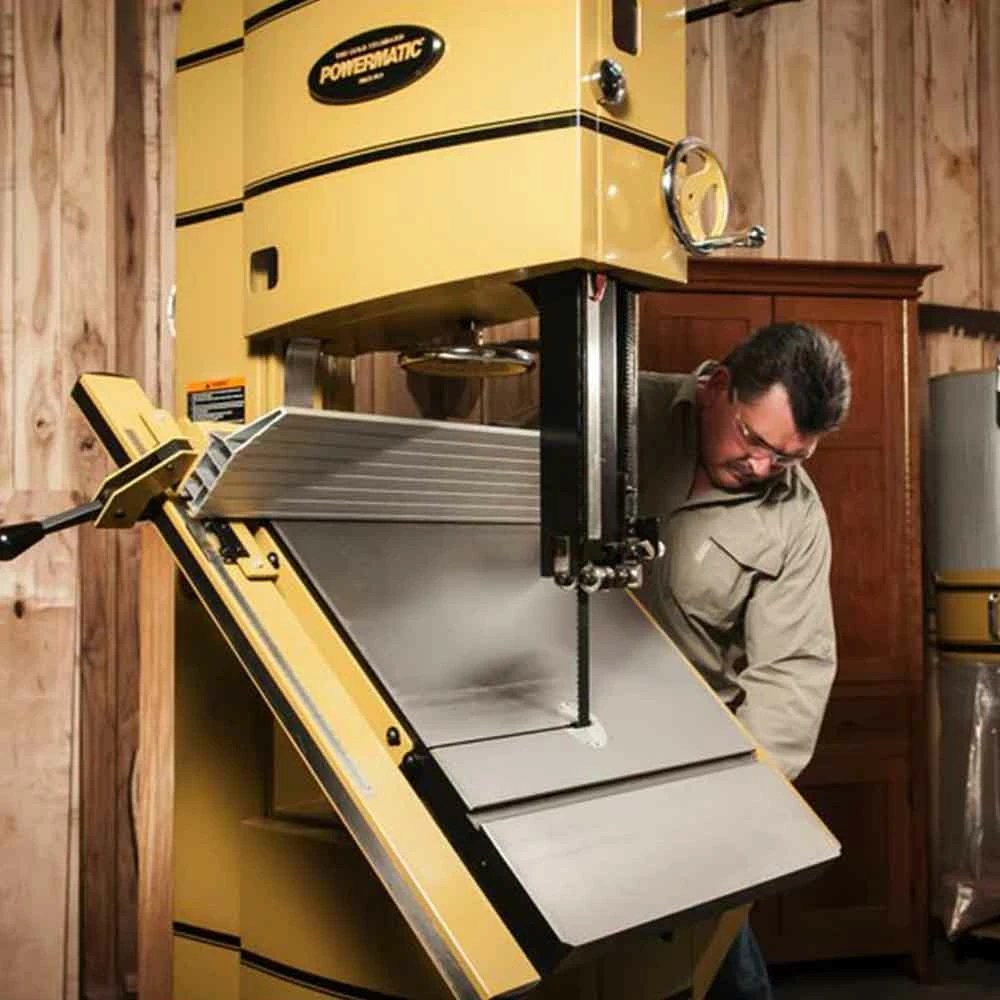

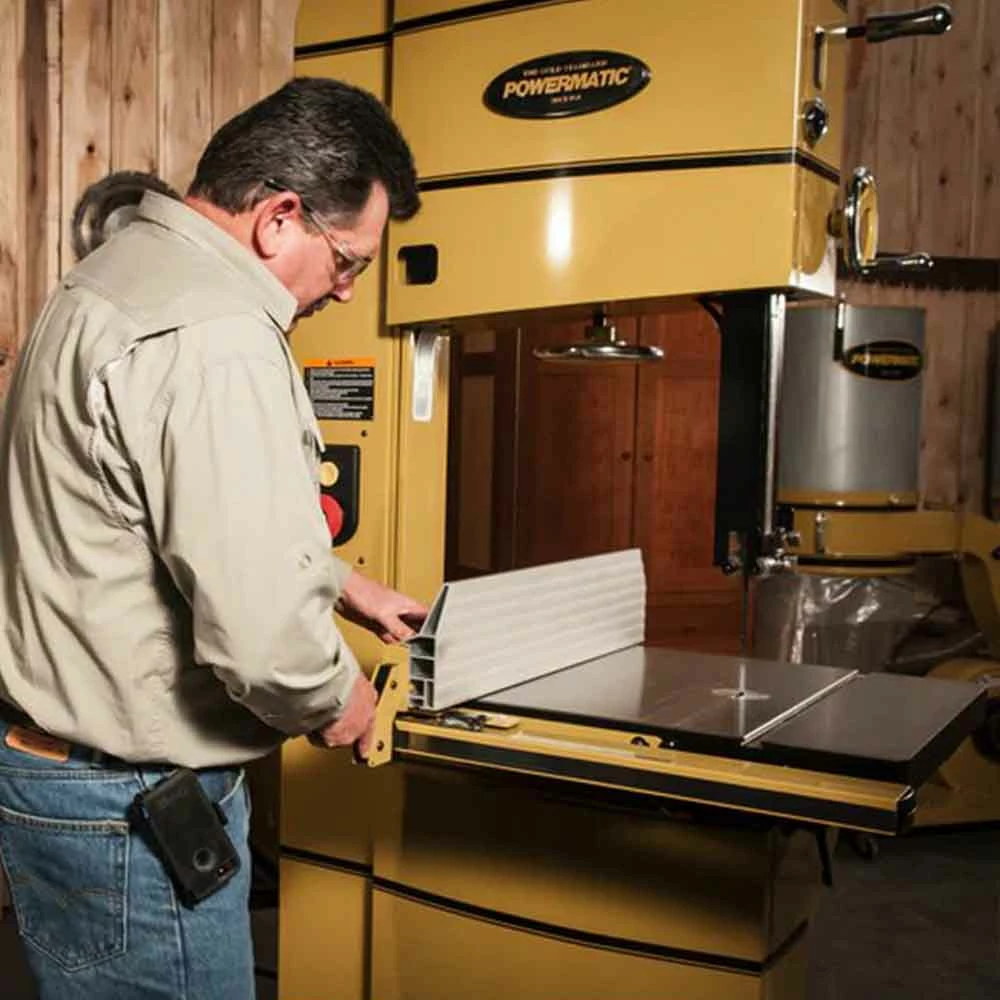

• Exclusive Powermatic T-Square style Accu-Fence maximizes accuracy and safety
• The Accu-Fence has complete adjustability for aligning to blade and squaring to table
• Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
• Positive locking cam with pressure adjustment
• Oversized side plate can be used in the horizontal or vertical position

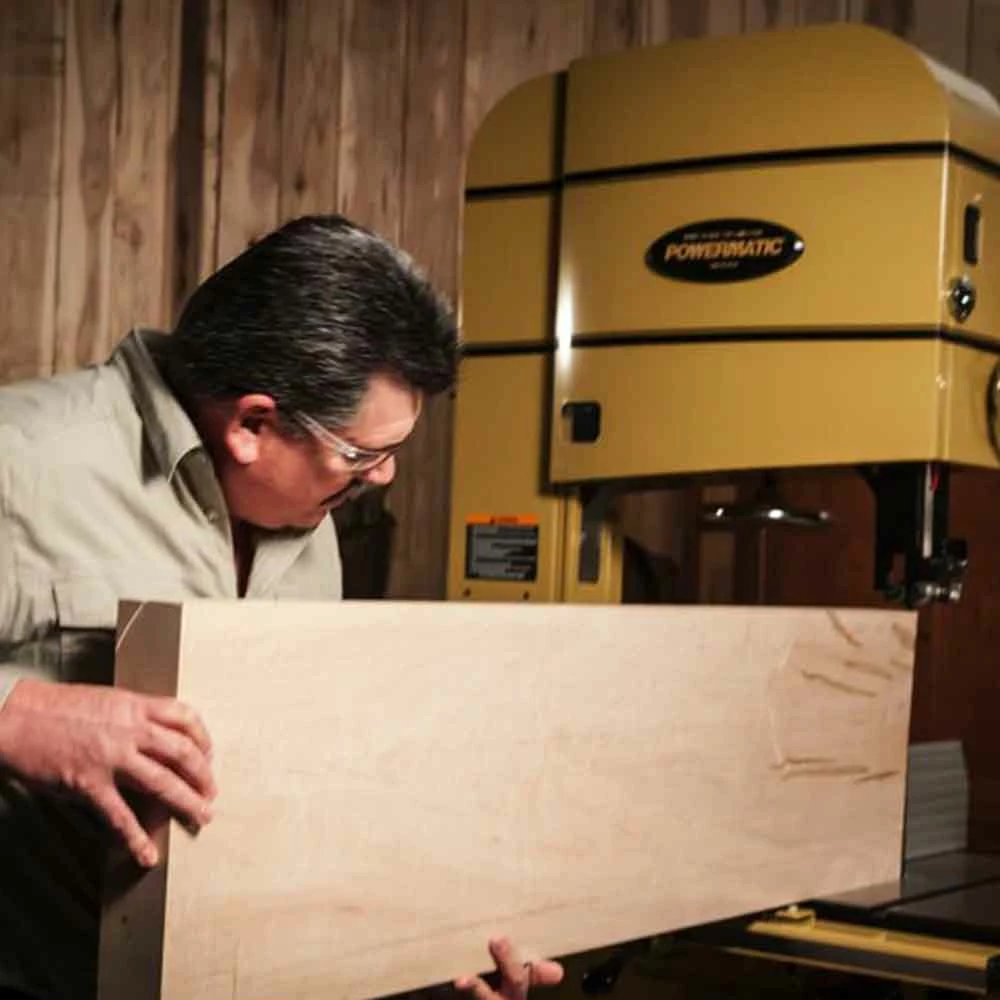

• Solid steel resaw post for optimum rigidity
• Blade tension release with electrical interlock prevents the band saw from starting when the blade is de-tensioned

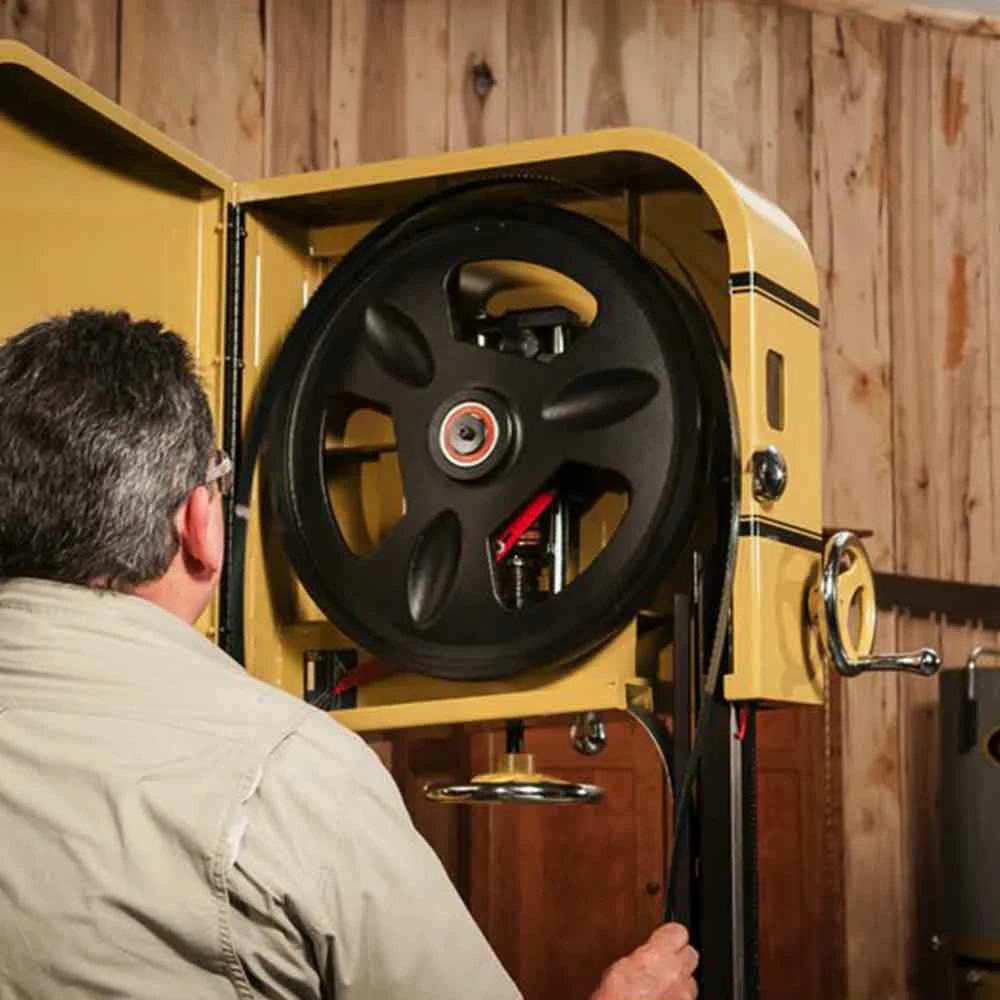

• Heavy duty upper wheel support and tracking mechanism for smooth operation

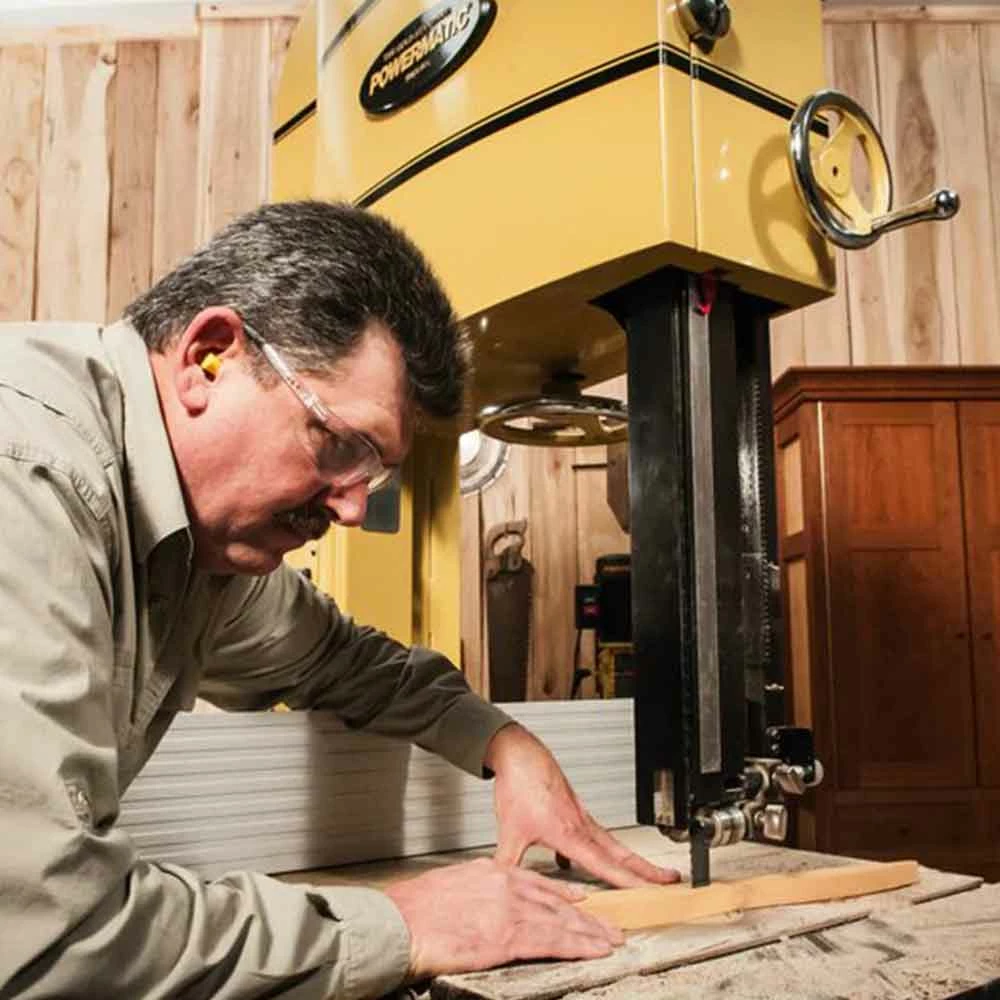

• High end blade guides with tool less adjustment provide stability and increase cut accuracy
• Four sided blade guard for optimum protection
• Integrated foot brake stops a coasting blade
• Magnetic switch protects the motor from harm due to potential electrical supply issues
• Heavy-duty 5 horsepower motor provides power needed for all projects

What’s in The Box

• PM2013B-3 230-Volt 5 HP 20 x 18-Inch 3-Phase Vertical Band Saw – 1791258B
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	PM2013B-3
Sku	1791258B
Brand	Powermatic
Length (in.)	40
Width (in.)	42
Height (in.)	81
Weight (lbs.)	935
AC Voltage	230 / 460
Blade Length (in.)	170
Blade Speed (SFM)	2,300 / 4,400
Cutting Capacity (W x H) (in.)	20 x 18
Dust Port Size (in.)	4
Horsepower	5
Min. Dust Collection (CFM)	600
Miter Positive Stops (Degrees)	45 / 90
Motor Phase	3
PreWired Voltage	230
Table Dimensions (in.)	24 x 27
Table Height (in.)	36
Table Tilt (Left) (Degrees)	10
Table Tilt (Right) (Degrees)	45
Type	Band Saw
