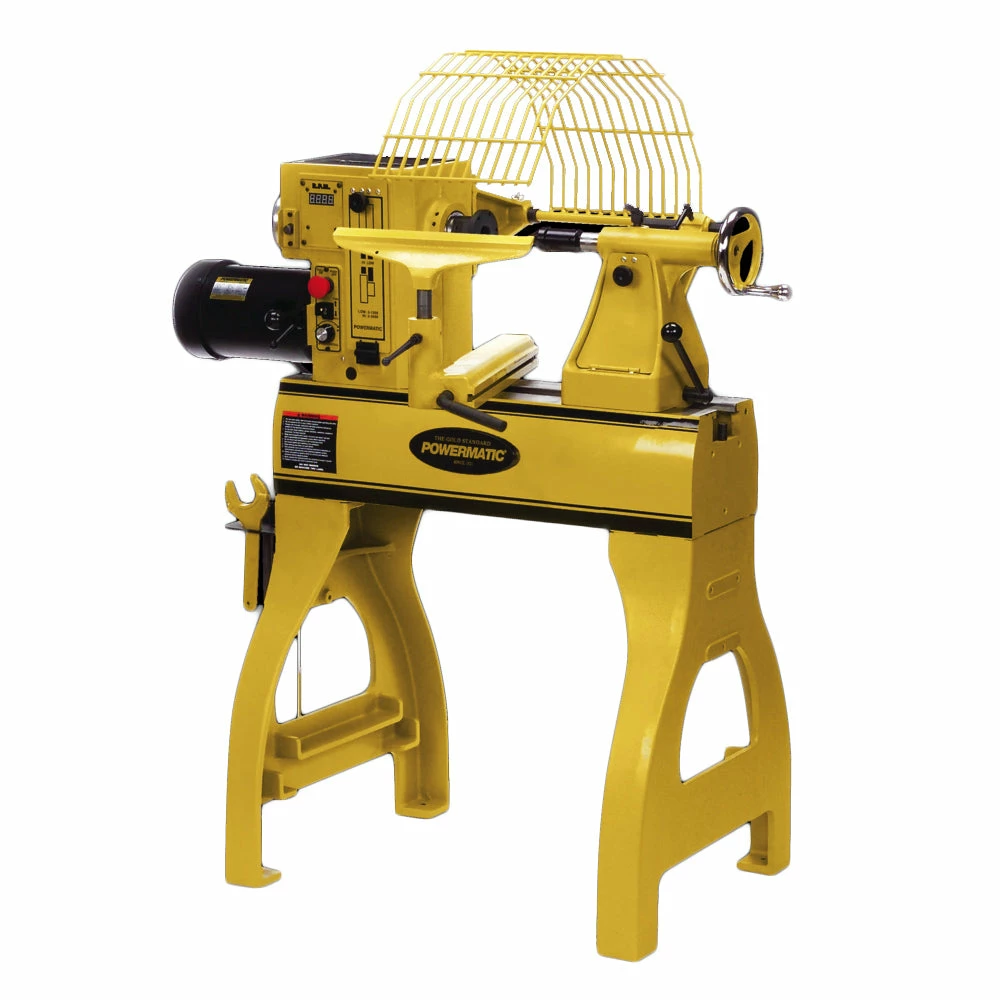

Tools & Equipment Powermatic PM2020 2-Hp 220V Short Bed Variable Speed Lathe W/ Sliding Headstock

Features

• Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
• Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
• Redesigned tool rest geometry allows for better chisel movement along the tool rest
• Laser etched quill is self-ejecting.
• Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
• Attached tool caddy allows convenient access to centers, wrenches, etc.
• Tailstock has internal storage for additional accessories
• Chrome trimmed handwheels are ergonomic for a comfortable feel
• 2HP TEFC Motor
• 14″ tool rest
• 3″ face plate and face plate wrench
• Multiple ball-bearing live center
• Brass tipped knockout rod

What’s in The Box

• Powermatic PM2020 Short Bed Lathe, 2HP 1/3PH 230V
• Owners Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories.
• 5 Year – Woodworking Machinery
• 30 Day Satisfaction Guaranteed

Specifications

Model	1792020
UPC	731325352597
Swing Over Bed (In.)	20
Swing Over Tool Rest Base (In.)	17
Distance Between Centers (In.)	20
Headstock Movement	Full Length of Bed
Spindle Taper	MT2
Ram Travel Quill Travel	4-1/2
Spindle Threads (In. x TPI)	1-1/4″ x 8 TPI
Spindle Speeds	High 125-3200; Low 50-1200
Speed Range	50-3200
Number of Indexing Positions	48
Centerline of Spindle to Floor (In.)	44
Bed Construction	Cast Iron
Motor Power (HP)	2
Motor Phase	1
Motor Voltage (V.)	220
Motor Current (Amps)	6.2
Recommended Circuit Size (Amps.)	20
