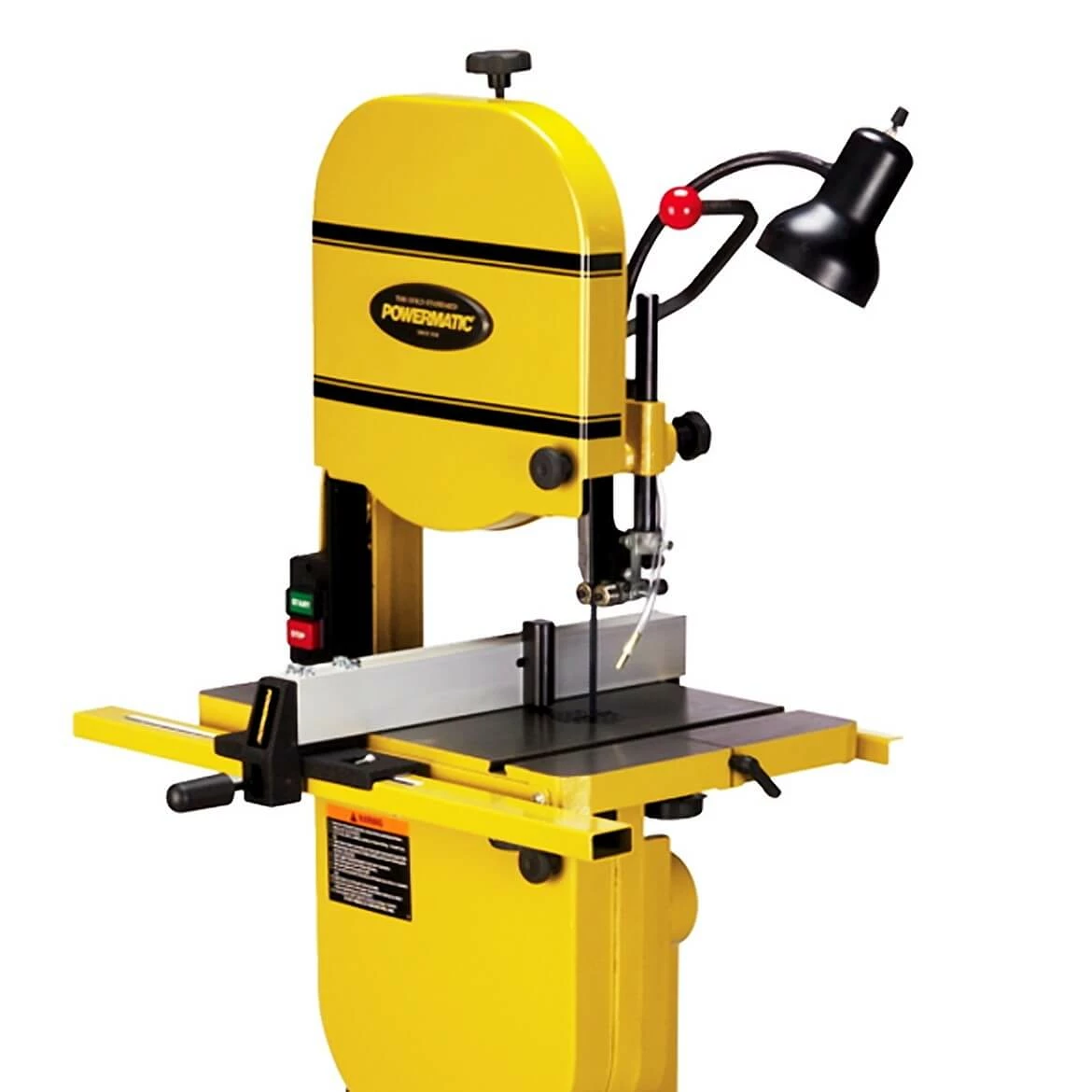

Tools & Equipment Powermatic PWBS-14CS 14″ Bandsaw 1.5HP 1PH 115/230V – 1791216K

Features

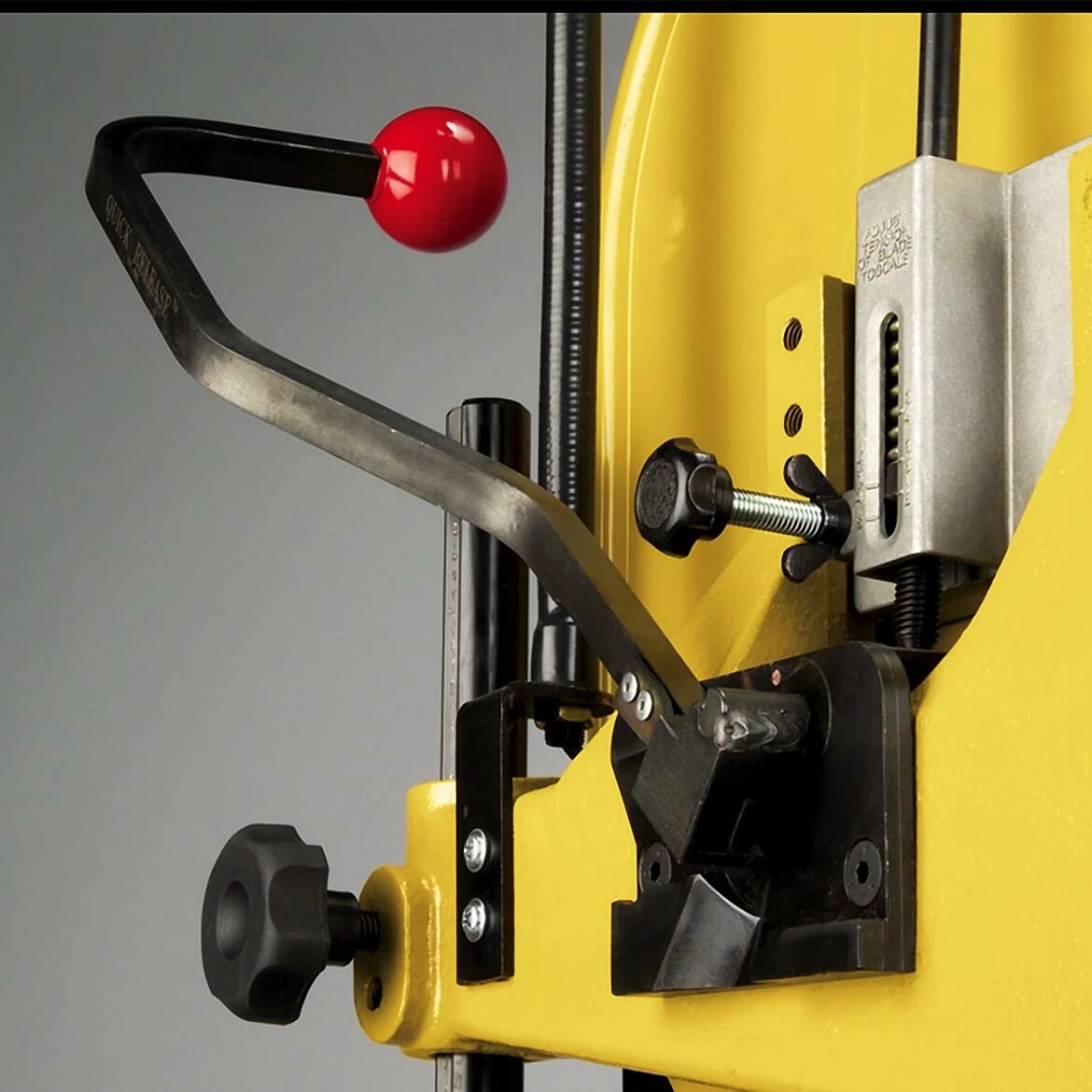

• CARTER quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
• Extra-large, two piece cast iron table consists of a 15″ x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″
• Chip blower ensures a clean, visible cut line
• Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
• Exclusive design, quick-release precision T-square style rip fence with 4″ resaw attachment
• Precision balanced, nine spoke cast iron wheels reduce vibration
• Easy to read tensioning gauge settings indicated in “blade width” increments
• Full 6″ under guide capacity with 13-1/2″ width capacity
• 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
• Rigid one-piece welded stand requires no assembly
• CARTER quick tension release
• Adjustable miter gauge
• T-style rip fence with resaw assembly
• Gooseneck work lamp and chip blower
• Riser block

What’s in The Box

• Powermatic PWBS-14CS, 14″ Bandsaw, 1.5HP 1PH 115/230V
• Owner’s Manual

Warranty

• 5-Year on Woodworking machinery
• 2-Year on Industrial or commercial woodworking machinery
• 1-Year on Motors
• 30 Day Satisfaction Guaranteed

Specifications

Model	1791216K
UPC	662755489372
Style (Type)	Bandsaw
Band Saw Size/Wheel Diameter (In.)	14
Cutting Capacity Width (In.)	13-1/2
Cutting Capacity Height (In.)	6
Blade Length (In.)	93-1/2
Table Size (L x W) (In.)	15 x 15
Blade Speed (SFPM)	3,000
Table Size with Extension (L x W)	15 x 20-1/2
Maximum Saw Blade Width (In.)	3/4
Table Height from Floor (In.)	44
Table Tilt (Deg.)	10 Left, 45 Right
Minimum Saw Blade Width (In.)	1/8
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-1/2
Motor Phase	1 P
Motor Voltage (V.)	115, 230
Prewired Voltage (V.)	115
Motor Current (Amps)	11, 5-1/2
