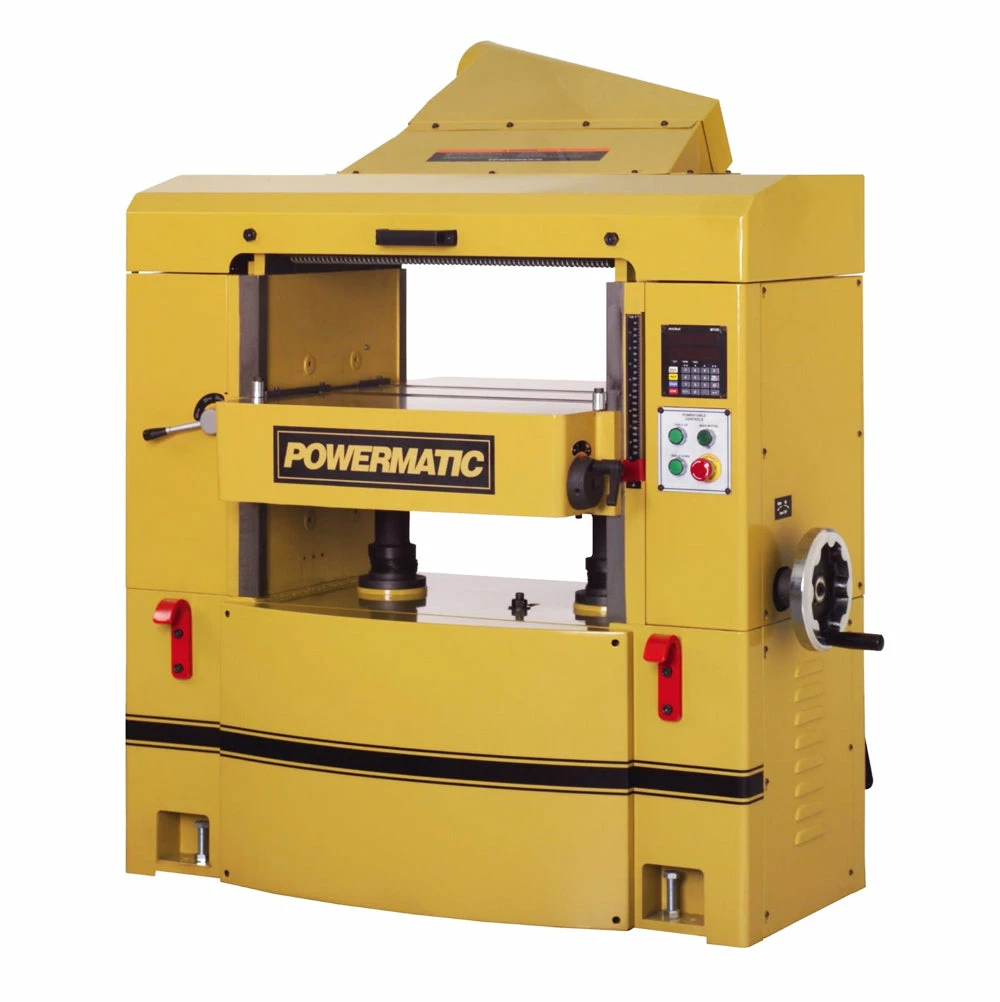

Tools & Equipment Powermatic WP2510 15-Hp 230/460V 25″ Planer W/ Solid Steel Helical Cutterhead

Features

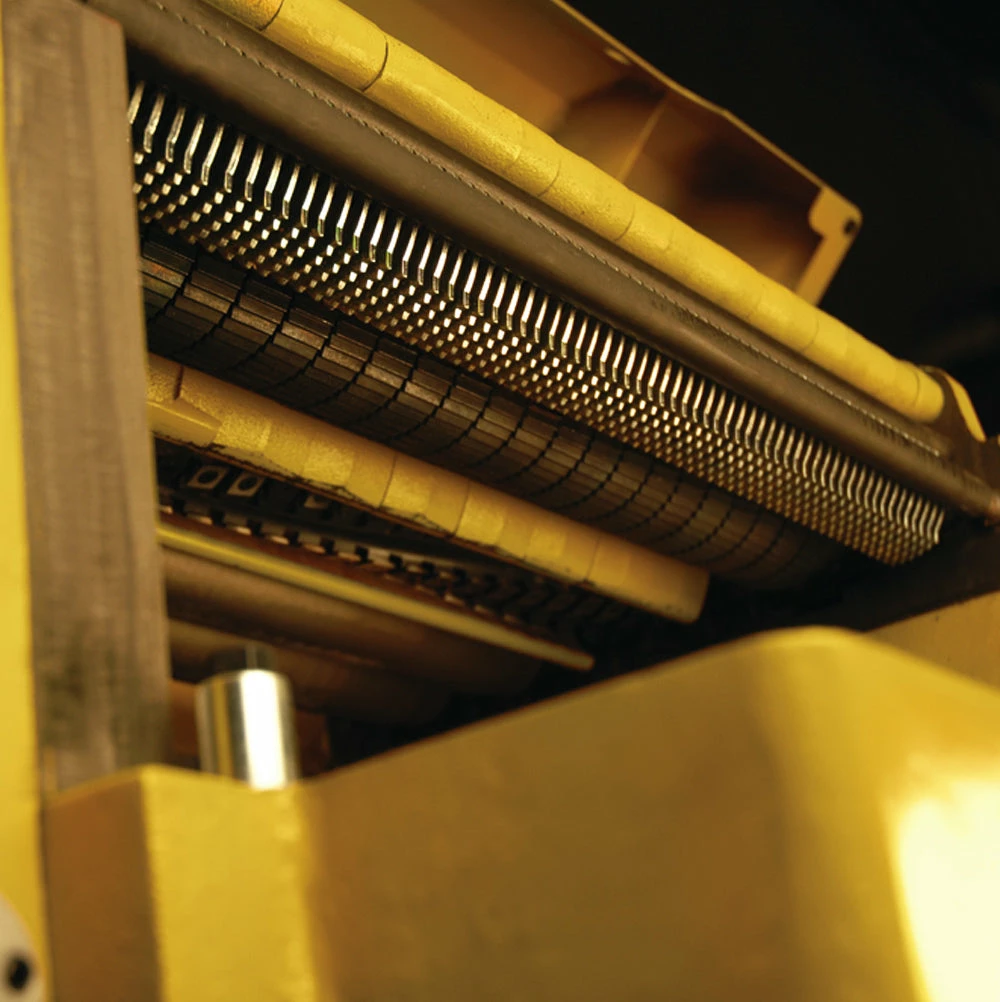

• Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
• Digital readout and simple PC controller make quick and easy table height set ups

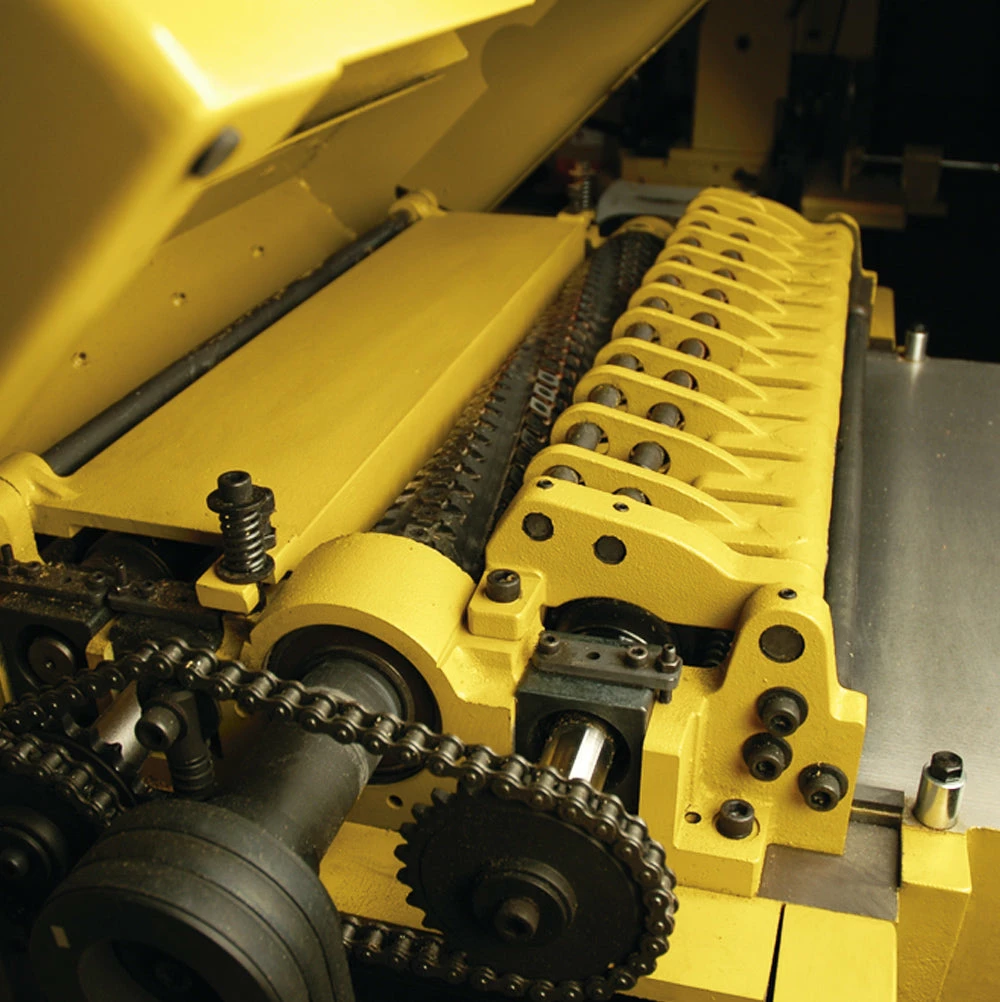

• Segmented serrated infeed roll with segmented chip breakers has 1/4″ independent yield, for planing multiple height stock
• Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
• 3″ diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
• Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0″ to 0.050″ at a touch
• Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
• Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
• 3 speed feed selector allows you to quickly change feed rates
• Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock

What’s in The Box

• Powermatic WP2510, 25″ Planer, 15HP 3PH 230/460V Helical Head
• Helical head with four sided inserts
• Segmented infeed rollers
• Segmented chip breakers
• Tool kit with pneumatic screwdriver for removing the cutterhead insert blades
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery

Specifications

Model	1791303
UPC	662755523427
Style (Type)	Planer
Cutterhead Speed (RPM)	5,000
Cutterhead Diameter (In.)	3-3/8
Cuts Per Minute	30,000
Number of Knives	174 Four-Sided Inserts
Maximum Depth of Cut (In.)	1/4
Maximum Full Width Depth of Cut (In.)	1/8
Maximum Planing Width (In.)	25
Maximum Planing Thickness (In.)	9-1/4
Minimum Planing Length (In.)	10
Feed Rate (FPM)	20, 25, 30
Segmented Infeed Roller Diameter (In.)	3
Outfeed Roller Diameter (In.)	3
Bed Rollers Adjustable from Front	0 – 0.05
Maximum Height of Rollers Parallel to Tabletop (In.)	0.05
Table Size (L x W) (In.)	32-3/16 x 26
Table Support	2 Column
Column Diameter (In.)	2-1/2
Digital Readout	Inch / Metric
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	5
Motor Power (HP)	15
Motor Phase	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
