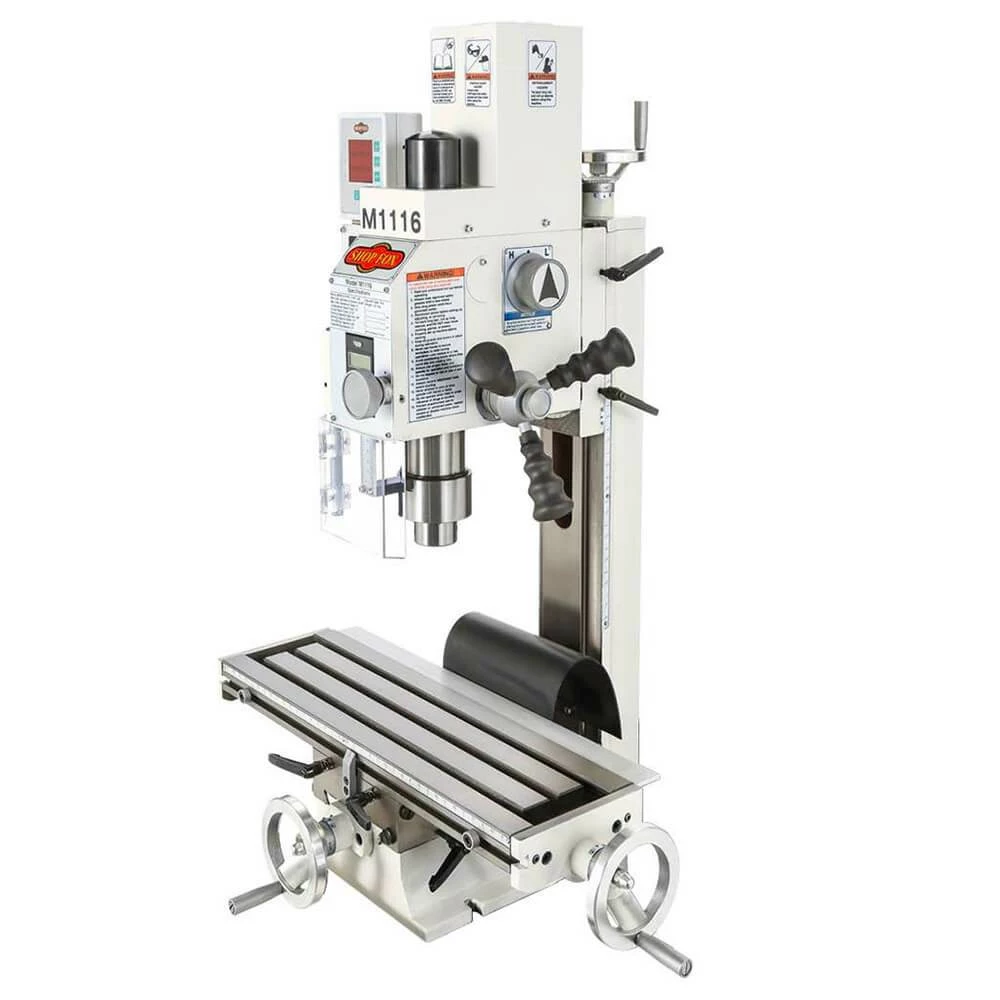

Tools & Equipment Shop Fox M1116 110-Volt 8-Amp 3/4 HP 1-Phase Variable Speed Mill/Drill W/ DRO

Features

• 3-Axis DRO.
• Dovetail column.
• Safety shut off switch.
• DRO on spindle.
• Fine feed head control.
• 2-Speed gearbox.
• Clear guard on spindle.
• Rubber chip guards on ways.
• Zero setting dials.
• Dials read inches.
• Forward/Reverse switch.

What’s in The Box

• Shop Fox 110-Volt 8-Amp 3/4 HP 1-Phase Variable Speed Mill/Drill w/ DRO – M1116
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	M1116
Brand	Shop Fox
Voltage	110V
Amperage	8 Amp
Horsepower	3/4 HP
Phase	Single Phase
Spindle taper	R8
Spindle travel (In.)	2 In.
T-slots (In.)	3 at 2-1/2 In. centers, 7/16 In.
Head travel (In.)	11 In.
Head tilt	90Degree left and right
Max. distance spindle to table (In.)	13 In.
Swing (In.)	15 In.
Table travel (longitudinal) (In.)	18-7/8 In.
Table travel (cross) (In.)	5-1/2 In.
Table size (In.)	5-1/2 x 19-11/16 In.
Spindle speed (Rpm)	50-2250 Rpm
Floor-to-table height (In.)	37-1/2 In.
Stand footprint (In.)	15-3/4 x 16-1/2 In.
Shipping Weight (lbs)	176 lbs
