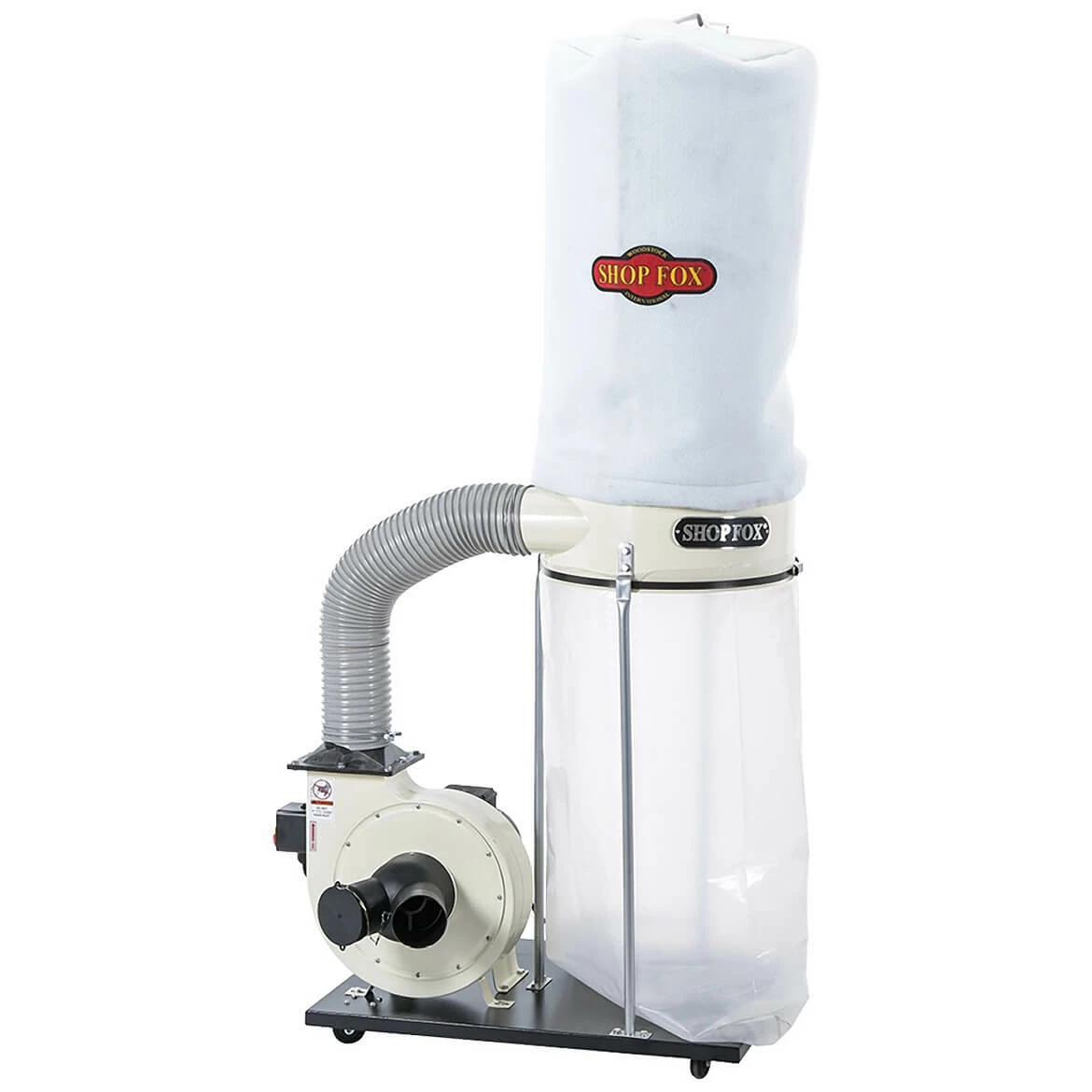

Tools & Equipment Shop Fox W1666 2 H.P. 1,550 Cfm Dust Collector W/ Heavy-Duty 12″ Steel Impeller

Features

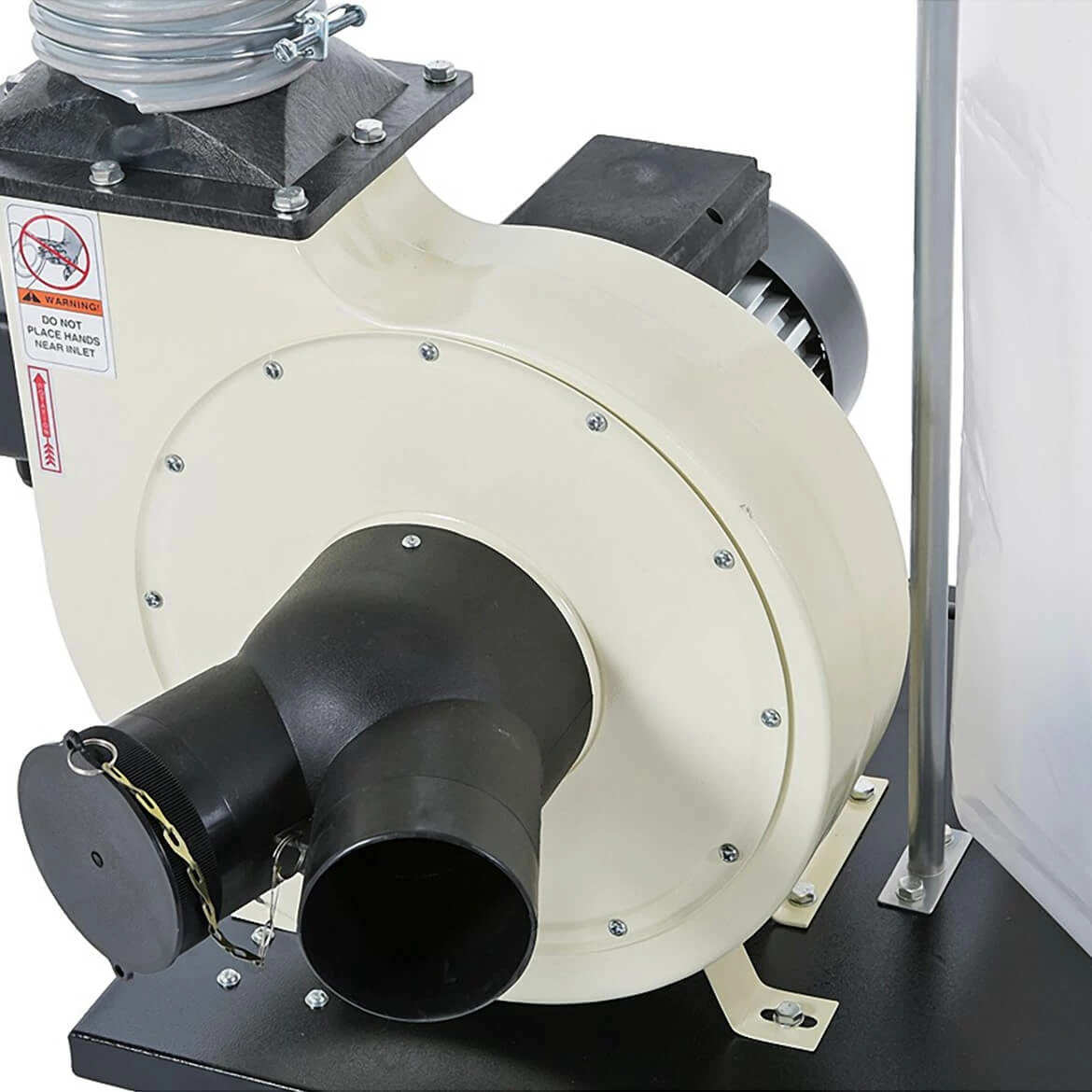

• 6 Inlet with a removable Y fitting with two 4 openings
• Powder coated paint
• moves 1,550 cubic feet of air every minute

What’s in The Box

• W1666 SHOP FOX 2 HP 1,550 CFM Dust Collector
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

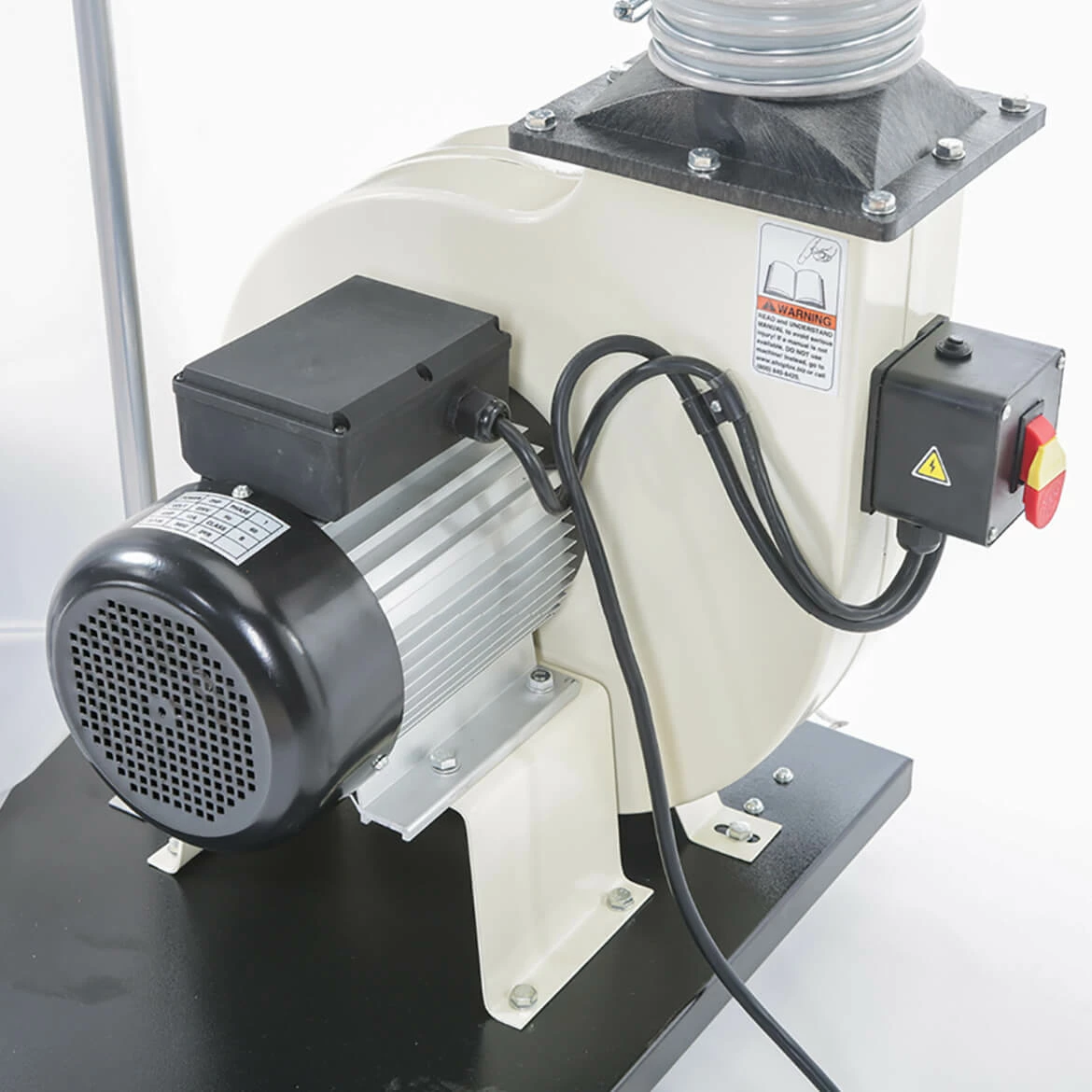

Motor size:	2 HP, 220V, Single-phase, 3,450 RPM
Motor Amp draw:	220V – 12A

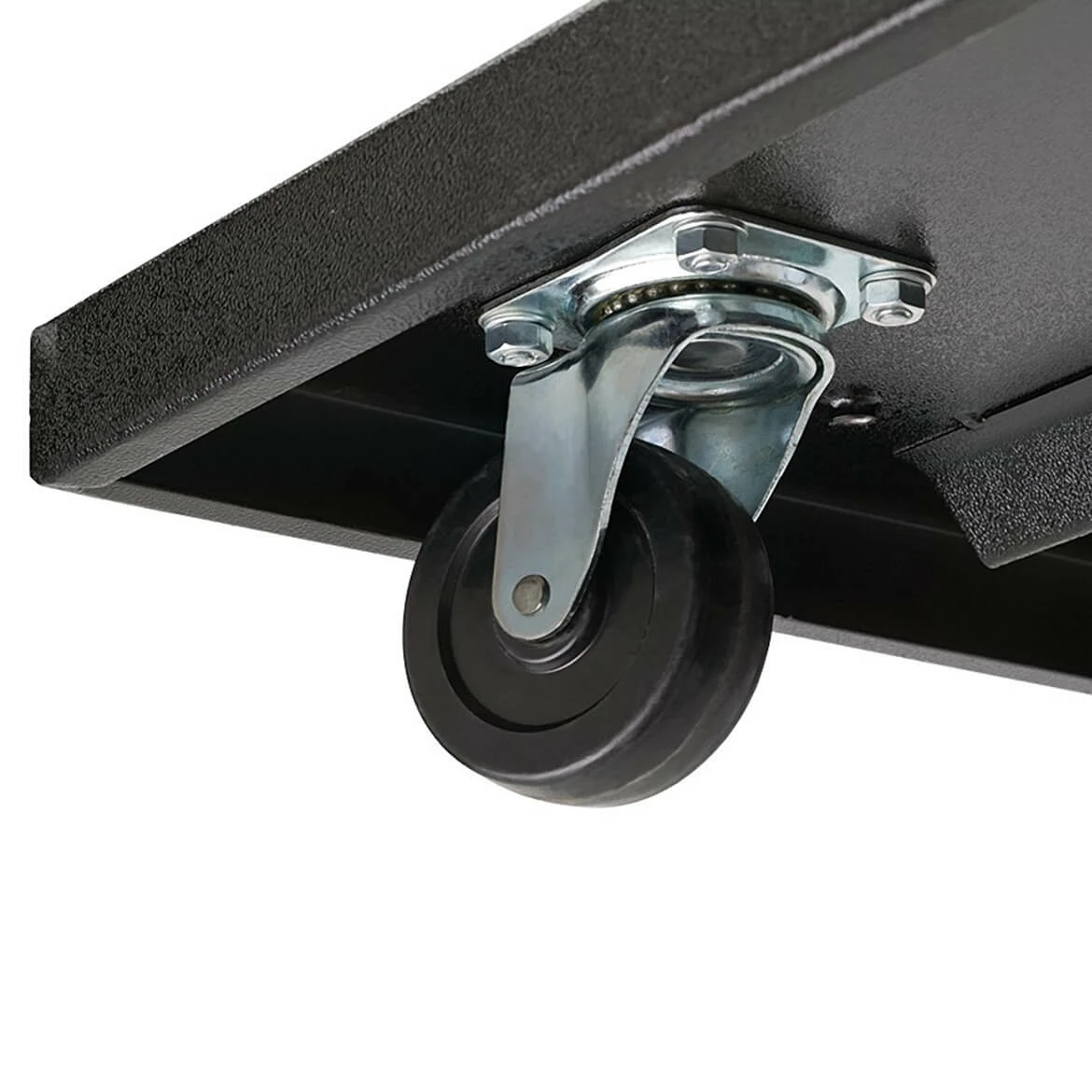

Portable base size:	21-1/2 x 33-1/2
Bag volume:	5.4 cubic feet
Height (with bags inflated):	78
Bag size (Dia. x depth):	19 x 33 (2)
Impeller:	Balanced steel, radial fin 12
Air suction capacity:	Approx. 1,550 CFM
Static pressure:	12.3
Standard bag filtration:	30 Micron
Approximate shipping weight:	142 lbs.
