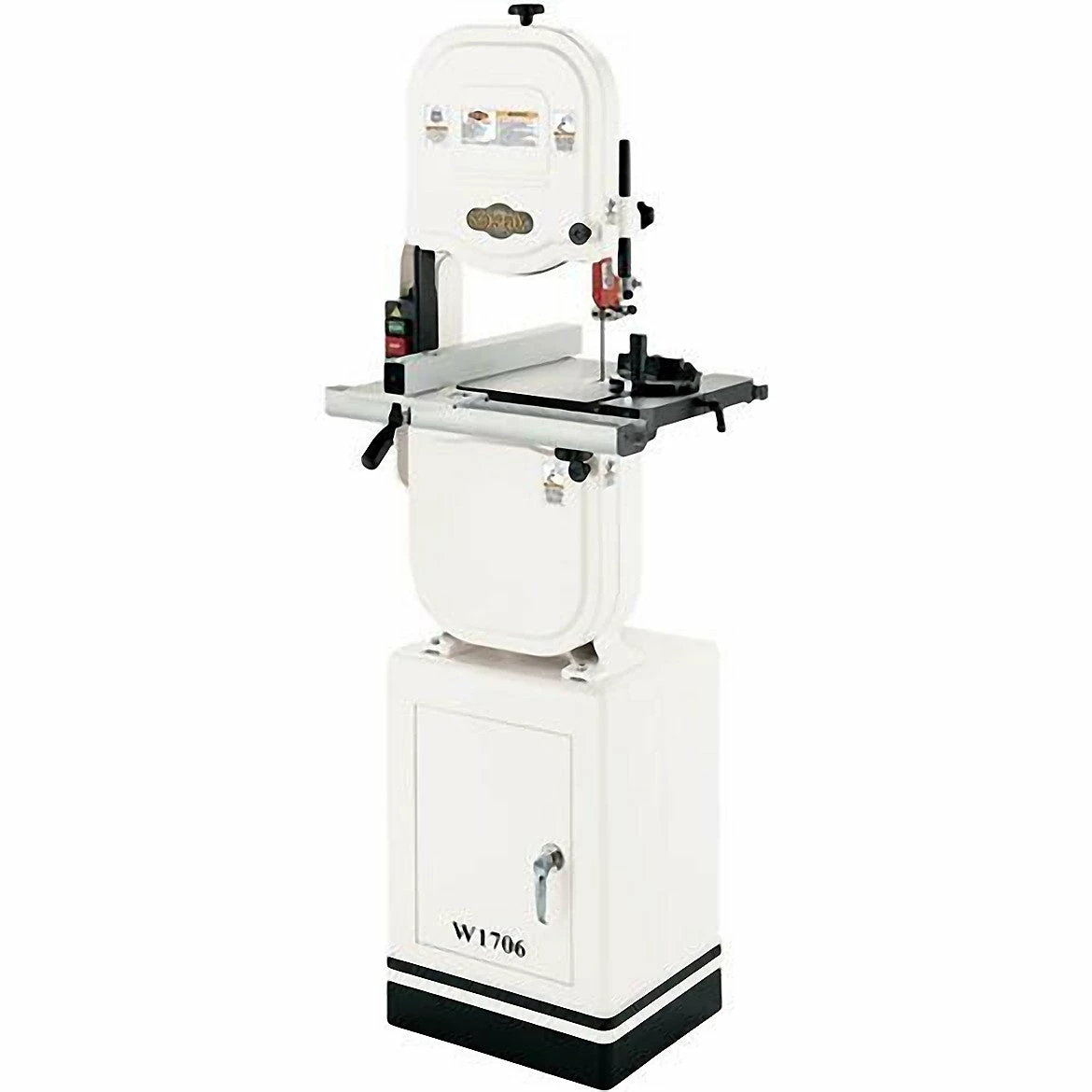

Tools & Equipment Shop Fox W1706 1 Hp 14″ Bandsaw W/ Extruded Aluminum Fence/Rails & Cabinet Stand

Features

• Precision ground cast iron table

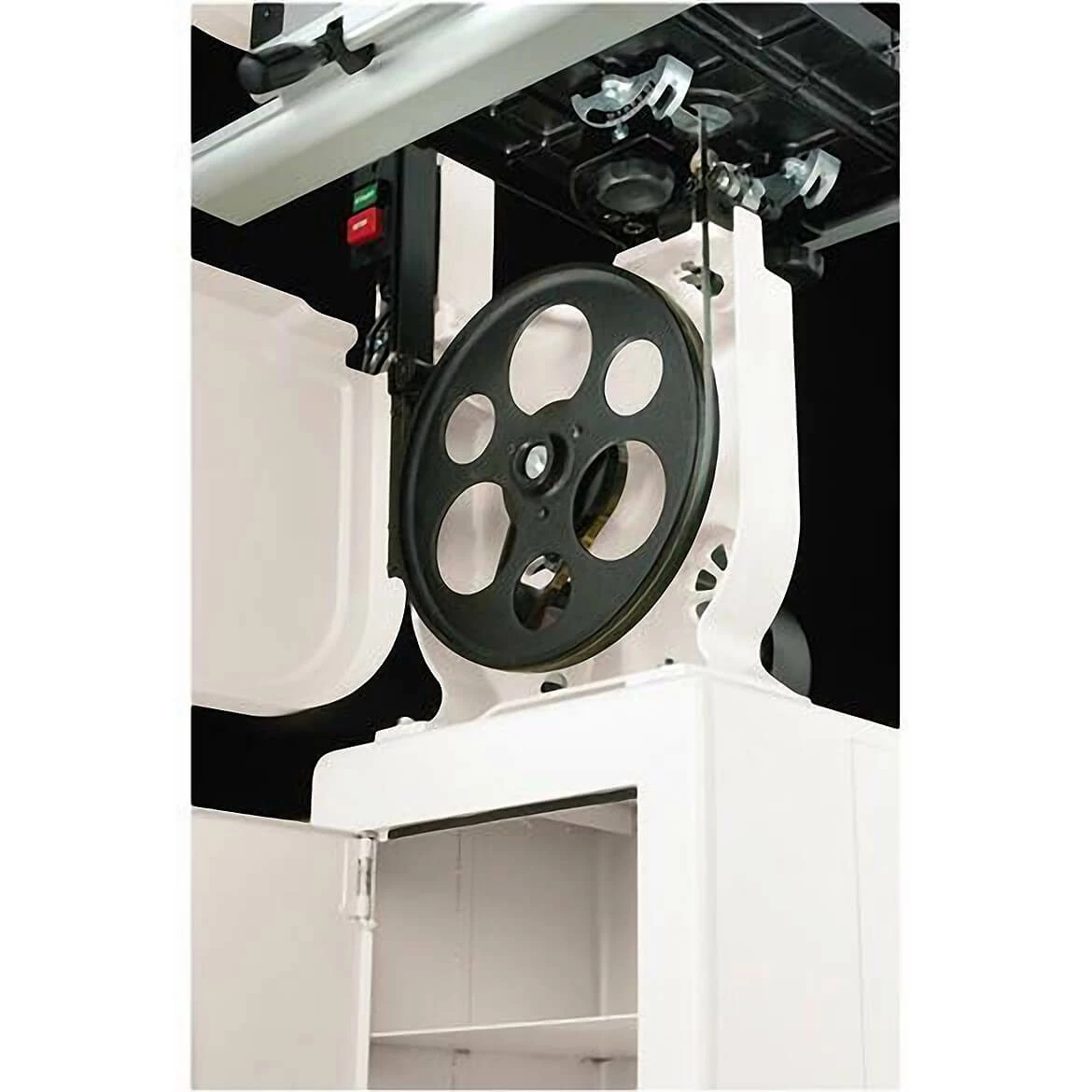

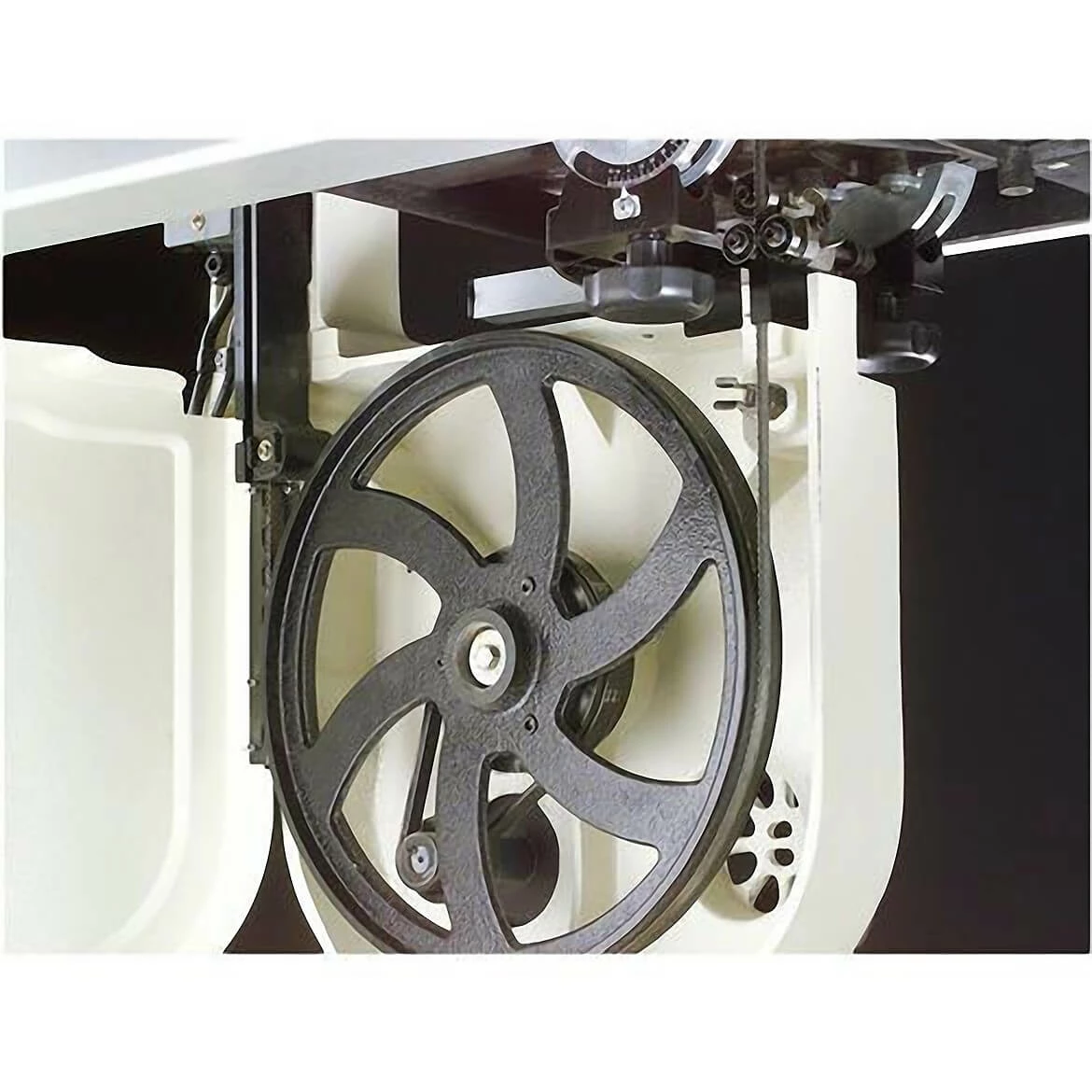

• Cast iron blade wheels

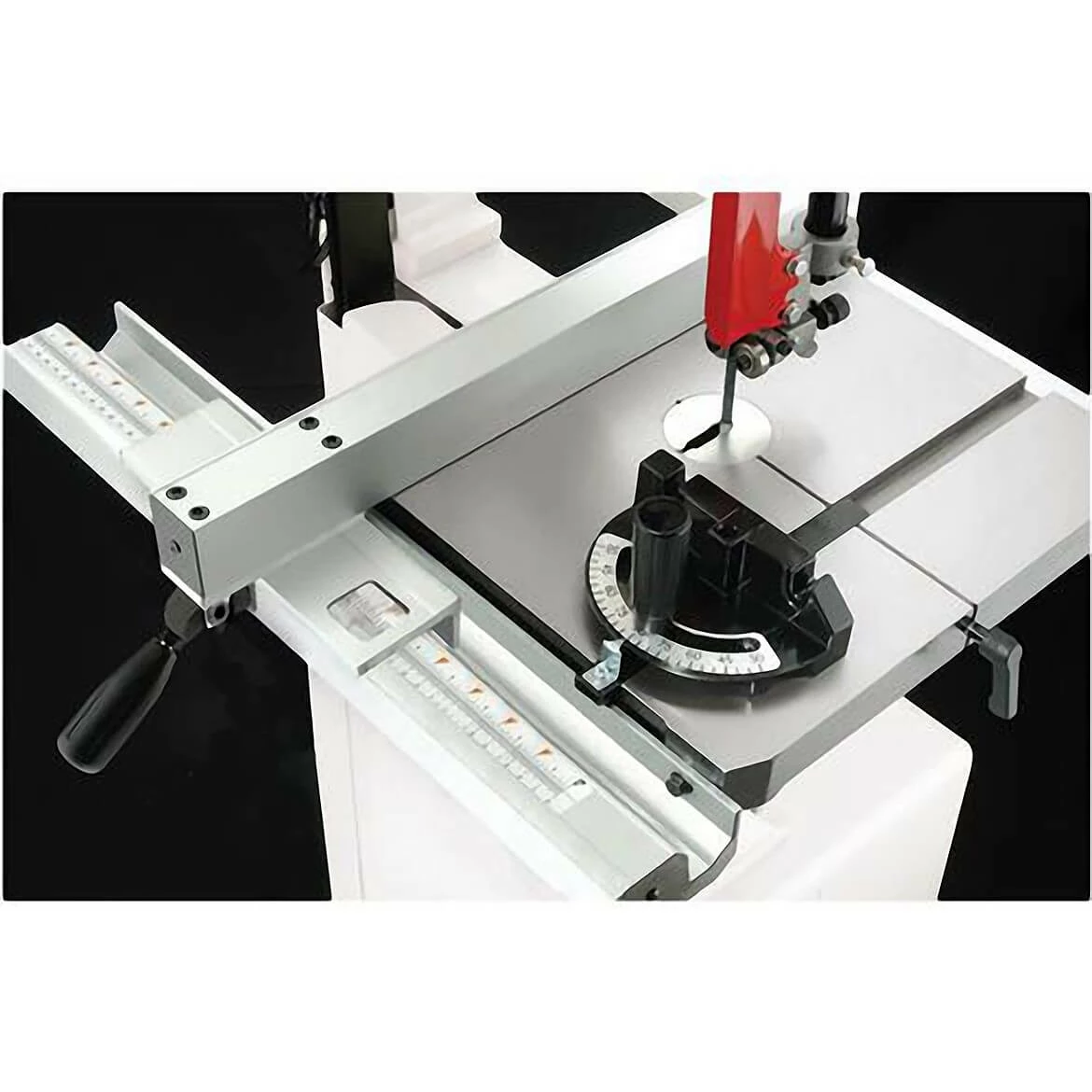

• Deluxe extruded aluminum fence
• Ball bearing blade guides
• Cabinet type stand (full storage)
• Upper and lower ball bearing blade guides
• All ball bearing construction
• 4 dust port
• Fence scale with magnifying window
• Quick change blade release/tensioning

What’s in The Box

• W1706 SHOP FOX 1 HP 14 Bandsaw
• Owner’s Manual
• Includes one 3/8 blade, fence and miter gauge

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Motor:	1 HP, TEFC, 110V/220V, single-phase, 1,725 RPM
Amps:	11 @ 110V, 5.5 @ 220V
Blade size:	93-1/2 (1/8 to 3/4 wide)
Blade size w/ extension block:	105
Table size:	14 x 14 x 1-1/2
Table height above floor:	43
Cutting capacity (throat):	13-1/2
Maximum cutting height:	6
Table tilt:	45Degree right, 10Degree left
Blade speeds:	1,500 and 3,200 FPM
Frame construction:	Cast iron
Footprint:	18W x 15-1/2D
Approximate shipping weight:	305 lbs.
