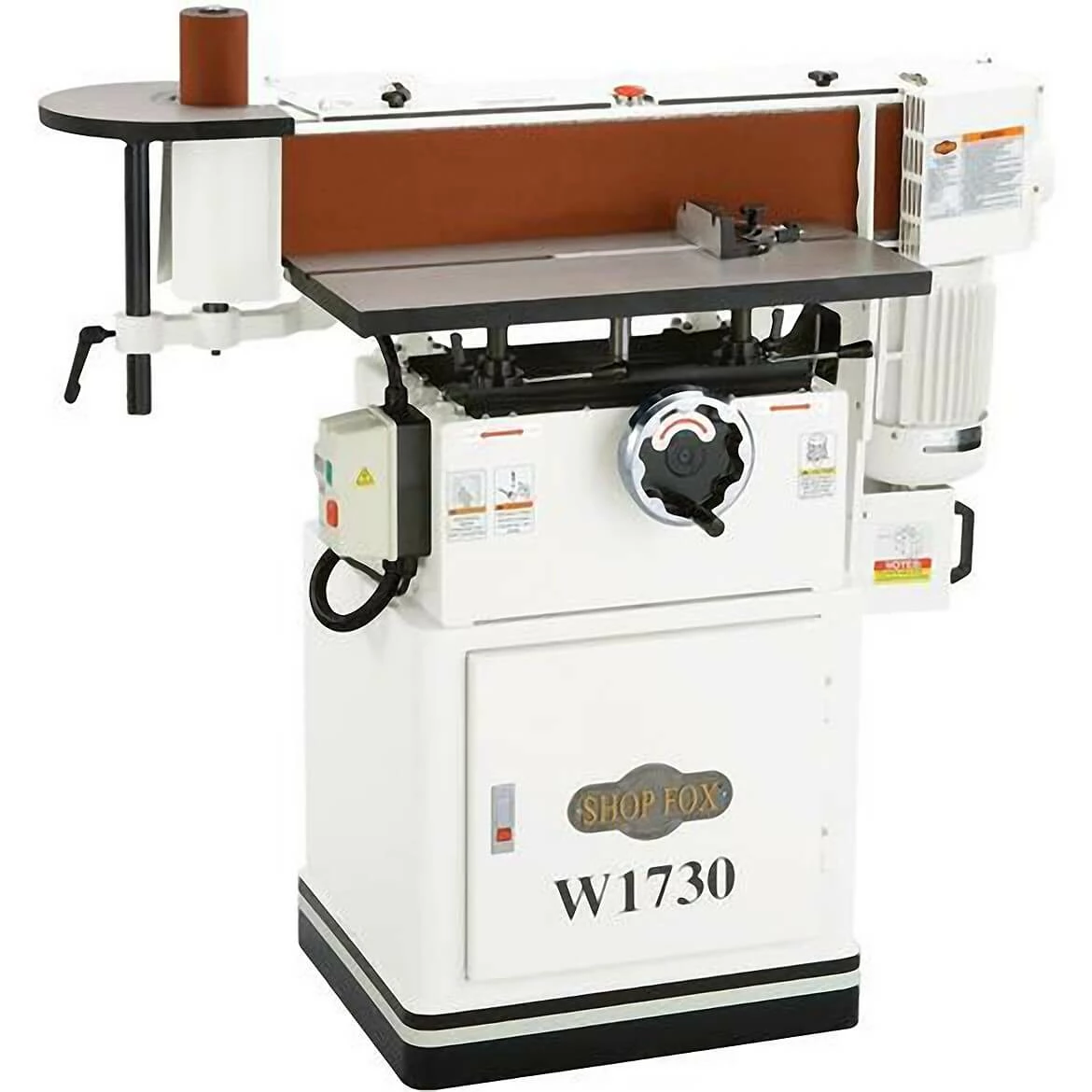

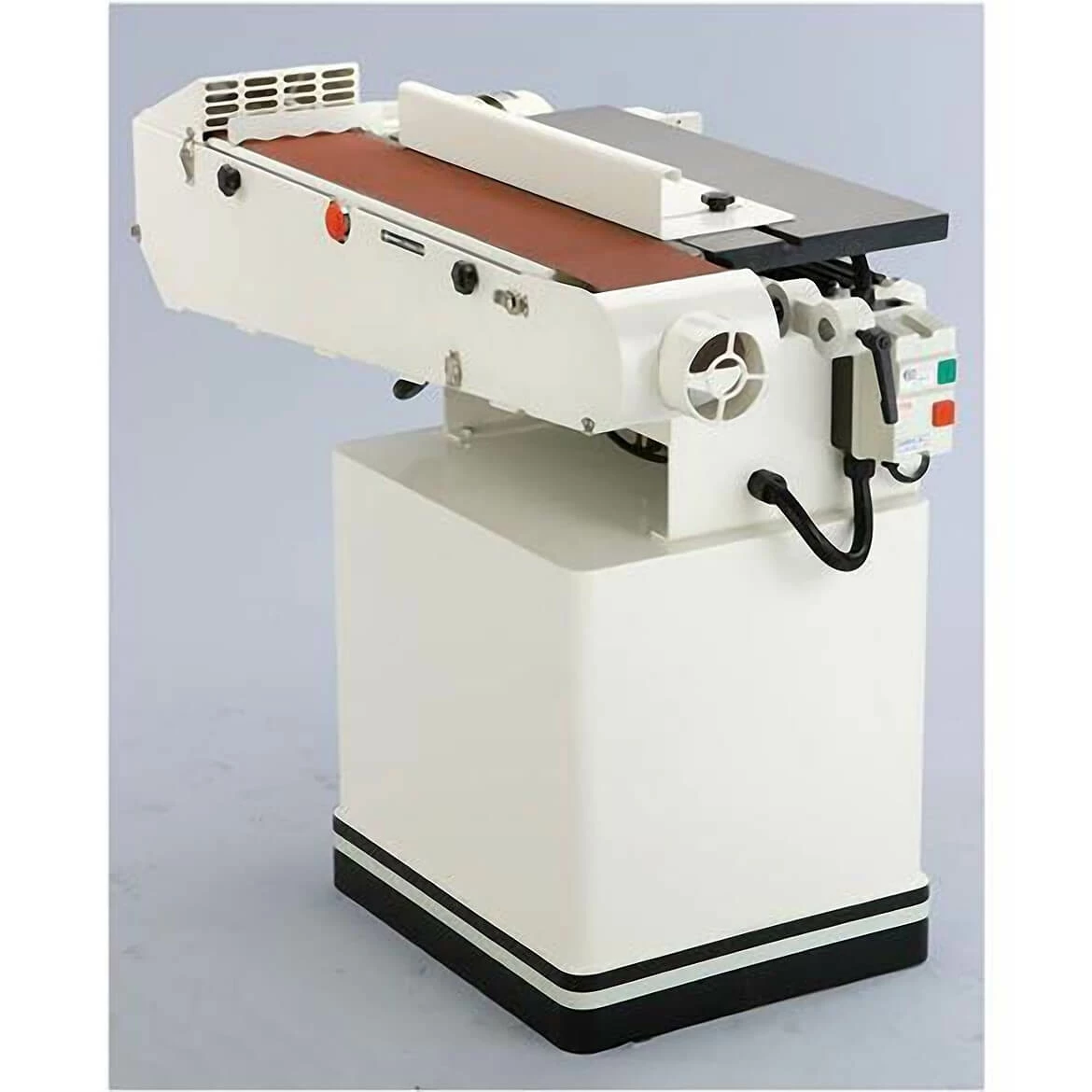

Tools & Equipment Shop Fox W1730 Oscillating Edge Sander 0 To 90 Degree Tilting Platen & 2Hp Motor

Features

• Large precision ground cast iron table
• Magnetic switch w/ thermal overload protector
• Shielded andamp; lubricated ball bearings
• Powder coated paint
• Built-in 4 dust port
• Split adjustment fence
• Pedestal switch
• Integrated mobile base

What’s in The Box

• W1763 SHOP FOX 2-1/2 HP Shaper
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Motor:	2 HP, 220V, single-phase, TEFC
Dust Ports:	(2) 4
Table size:	26-7/8 x 12
Table travel:	3-3/4 Vertical, 5 Horizontal
Aux. table size:	10 x 11-1/2
Aux. table travel:	10

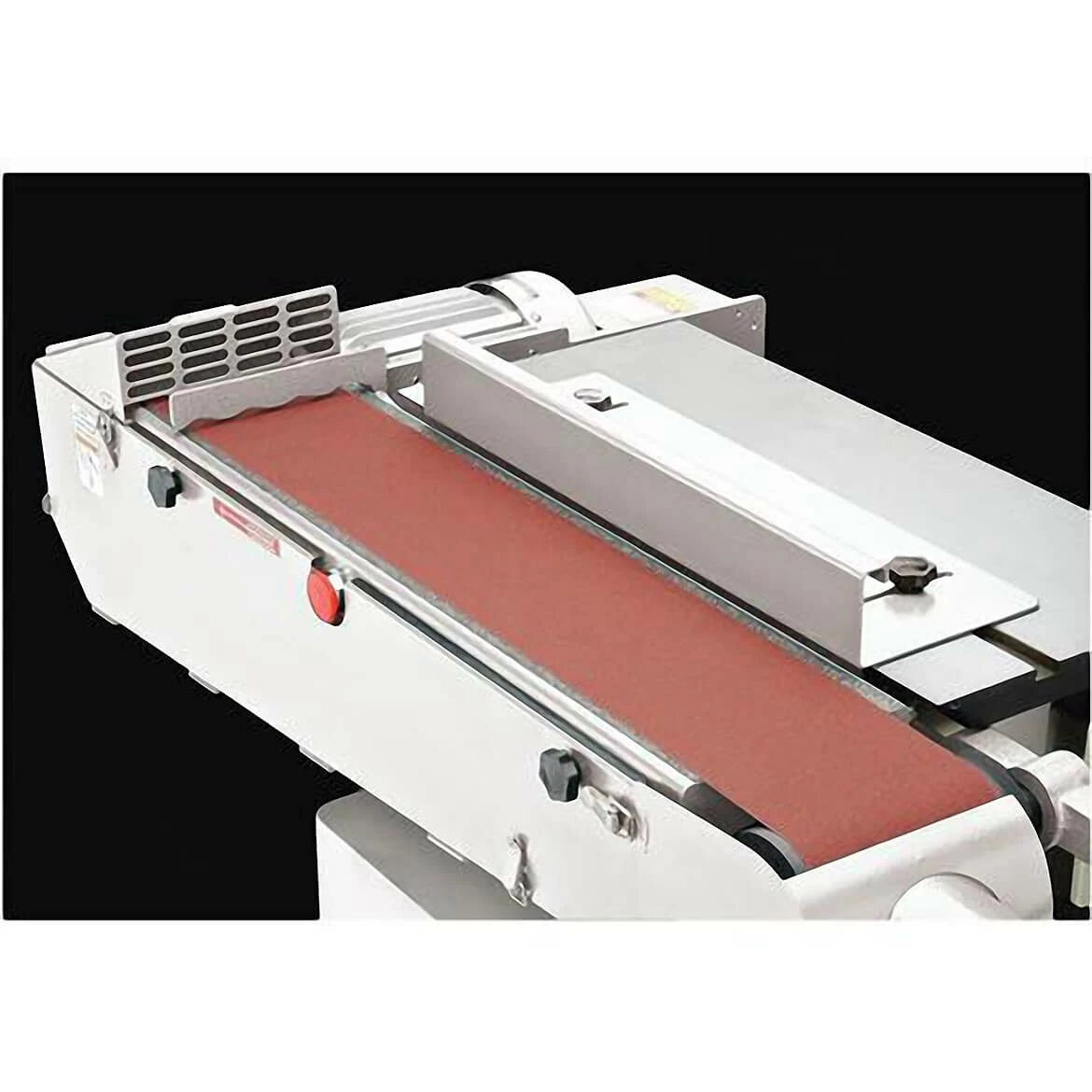

Sanding belt size:	6 x 89
Sanding belt speed:	3150 FPM
Sanding belt oscillation stroke:	3/4
Drive drum diameter:	7
Idler roller diameter:	3-7/8
Platen with graphite pad:	6-3/4 x 30-1/4
Platen tilt:	0Degree through 90Degree (5Degree scale)

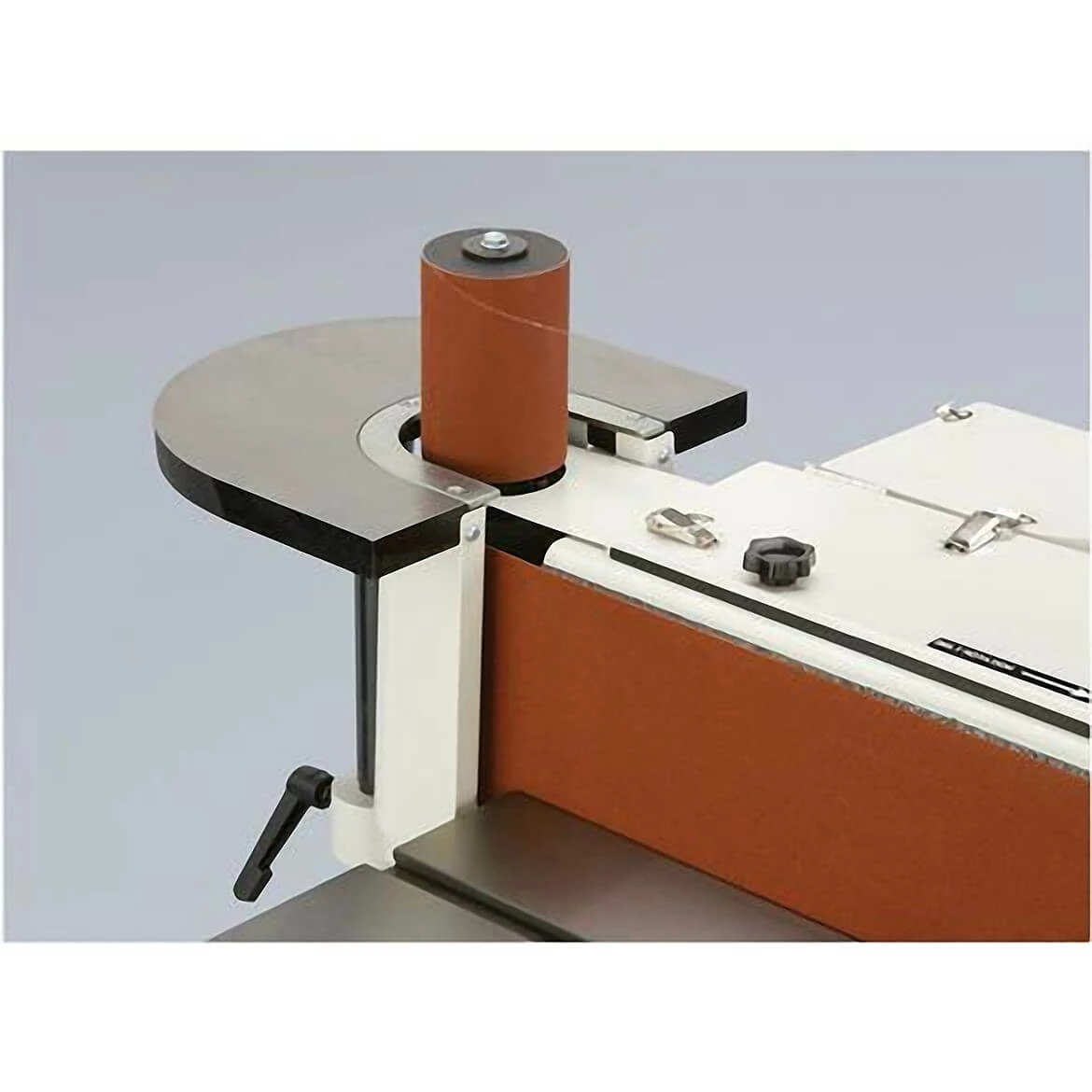

3 spindle drums:	1-1/2, 2, 3 x 4-1/2 high
Item Weight:	443 pounds
Product Dimensions:	47.2 x 43.3 x 29.8
