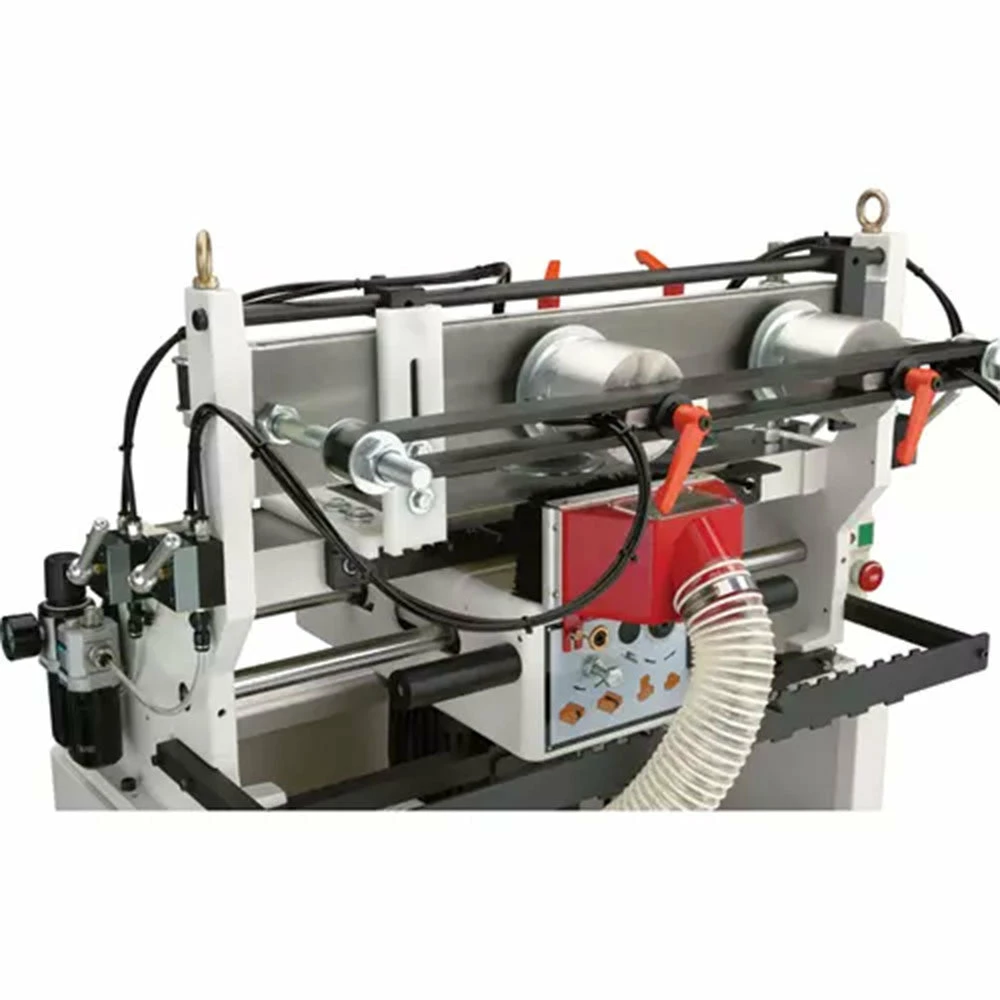

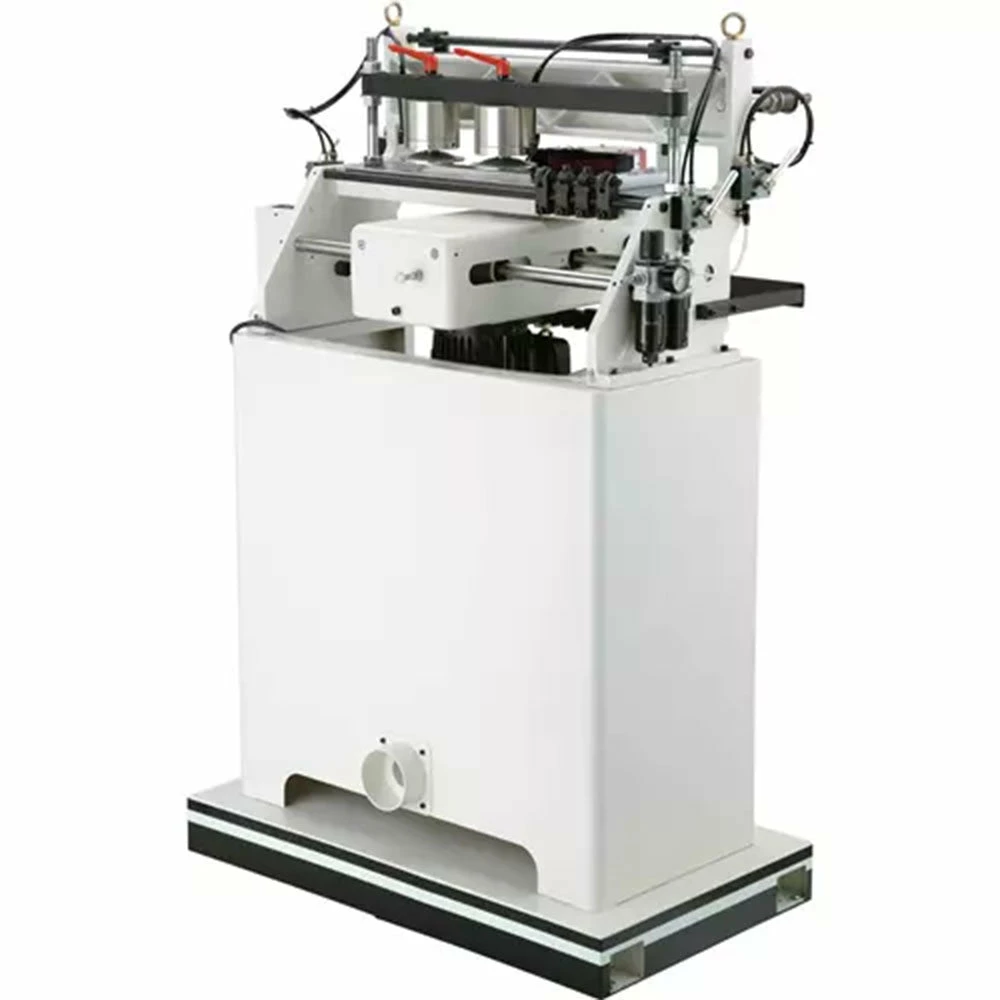

Tools & Equipment Shop Fox W1805 16-1/2″ Ergonomic Dovetail Machine W/ Pneumatic Clamps

Features

• 4″ dust port
• Precision-milled cast-iron table frame
• Cast aluminum carriage
• Steel stand
• Hardened-and-ground chrome steel slide ways
• Ball bearing linear guides

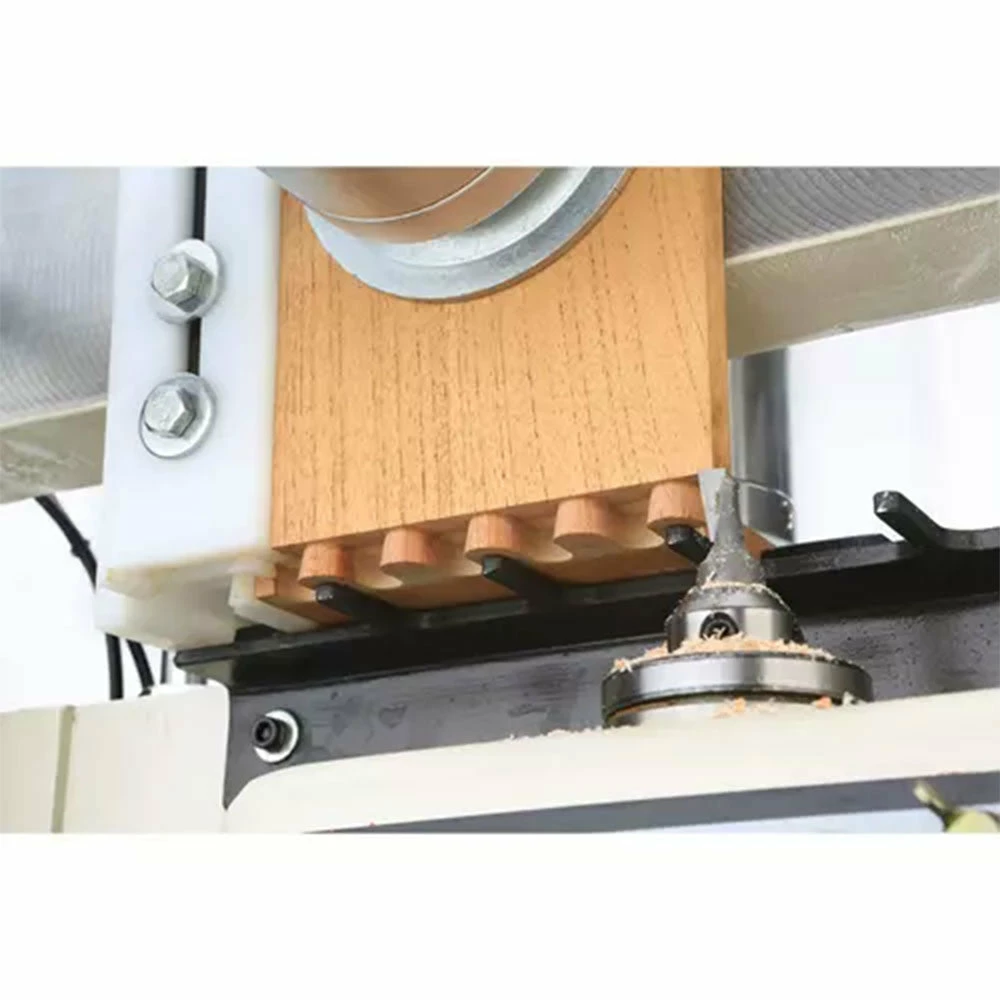

• Four-sided dovetail template bar

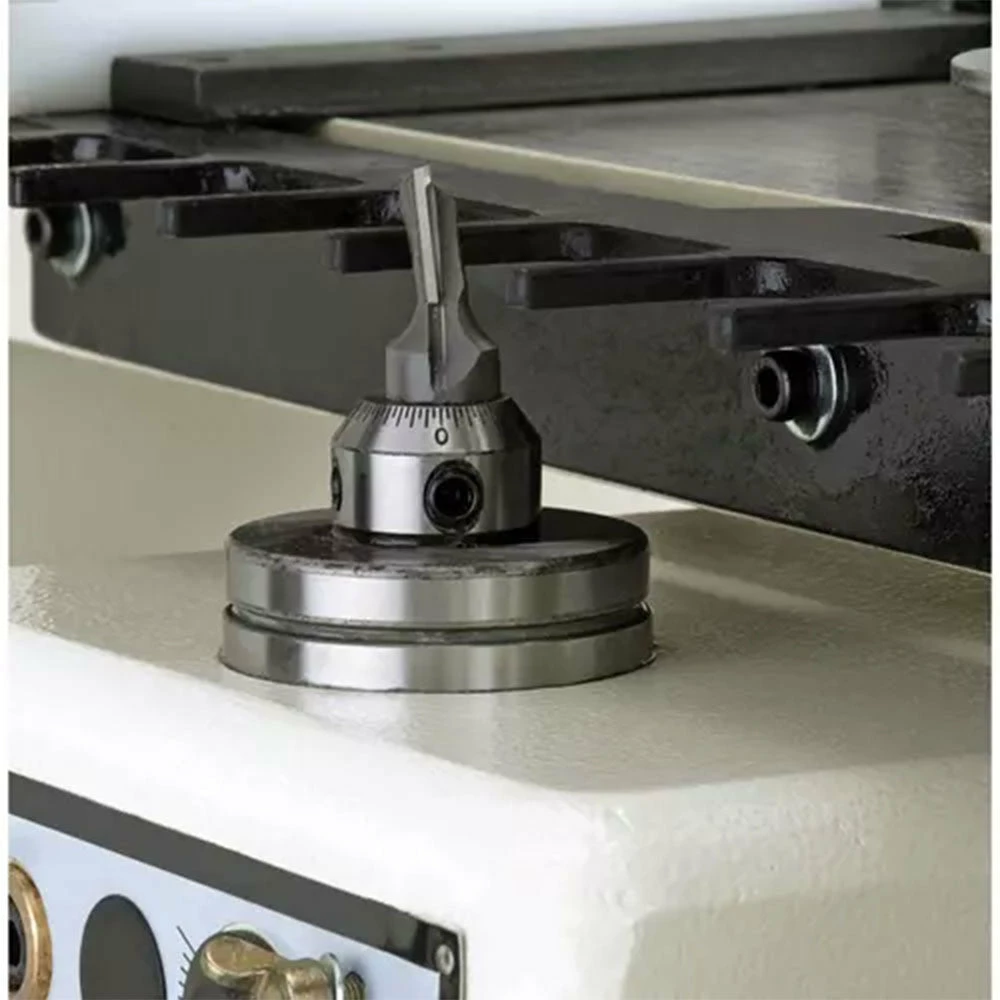

• Micro-adjustable spindle head
• Workpiece stops

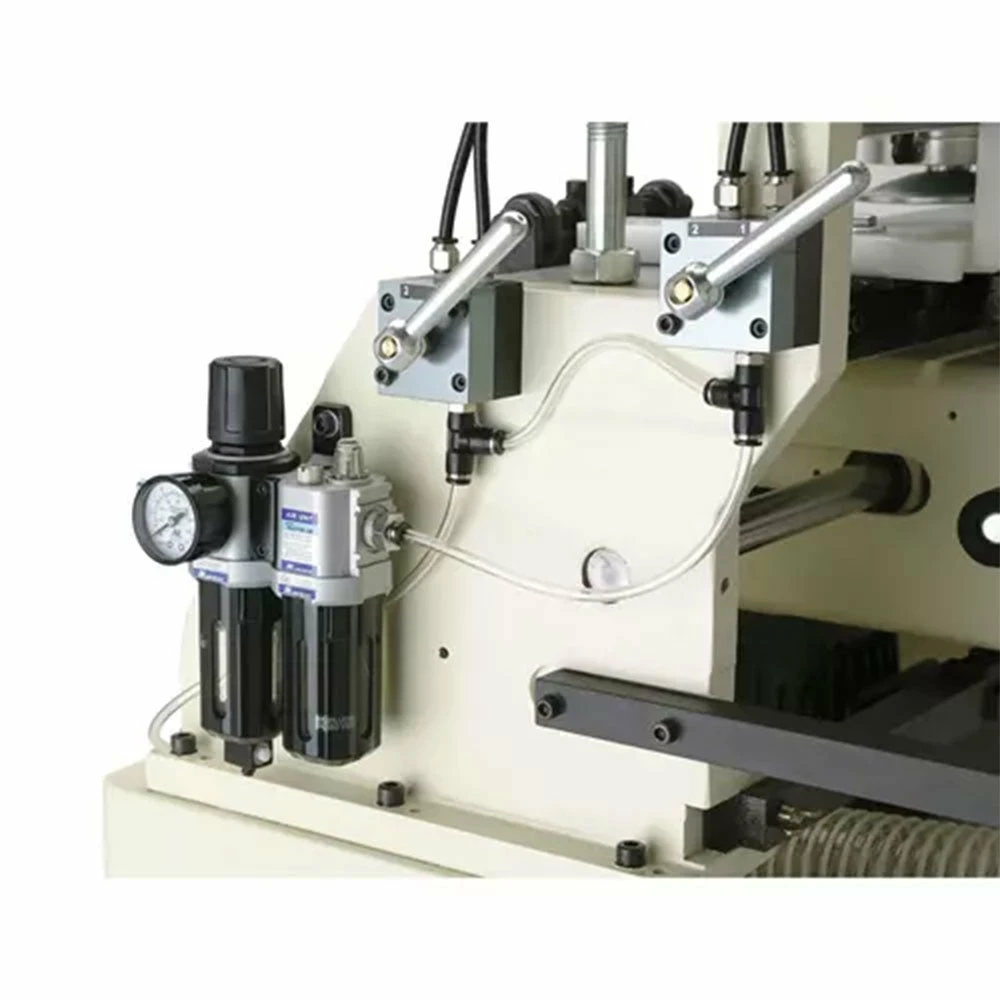

• Quick air cylinder clamp, air filter/regulator/lubricator with pressure gauge
• Spring-loaded carriage for smooth operation
• Magnetic switch with thermal overload protection

What’s in The Box

• 16-1/2″ Dovetail Machine – W1805
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	W1772
Brand	Shop Fox
Motor	1 HP, 110V/220V, prewired 220V, single-phase
Table size	24″ x 7-3/4″
Floor to table height	46-7/16″
Overall size	35-5/8″W x 56-7/8″H x 26-1/2″D
Number of spindles	1
Spindle speed	18,500 RPM
Dovetail bit	10° angle x 5/8″ left-hand
Dovetail templates	1″, 1-1/2″, 2″, 2-1/2″
Dovetail bit shank	1/2″ (12mm)
Max. dovetail height	3/4″
Min. dovetail height	3/16″
Max. stock thickness	2-3/8″
Min. stock thickness	13/32″
Max. stock size	59″L x 16-1/2″W
Min. stock size	7-7/8″L x 2-3/8″W
Weight	492 lbs.
