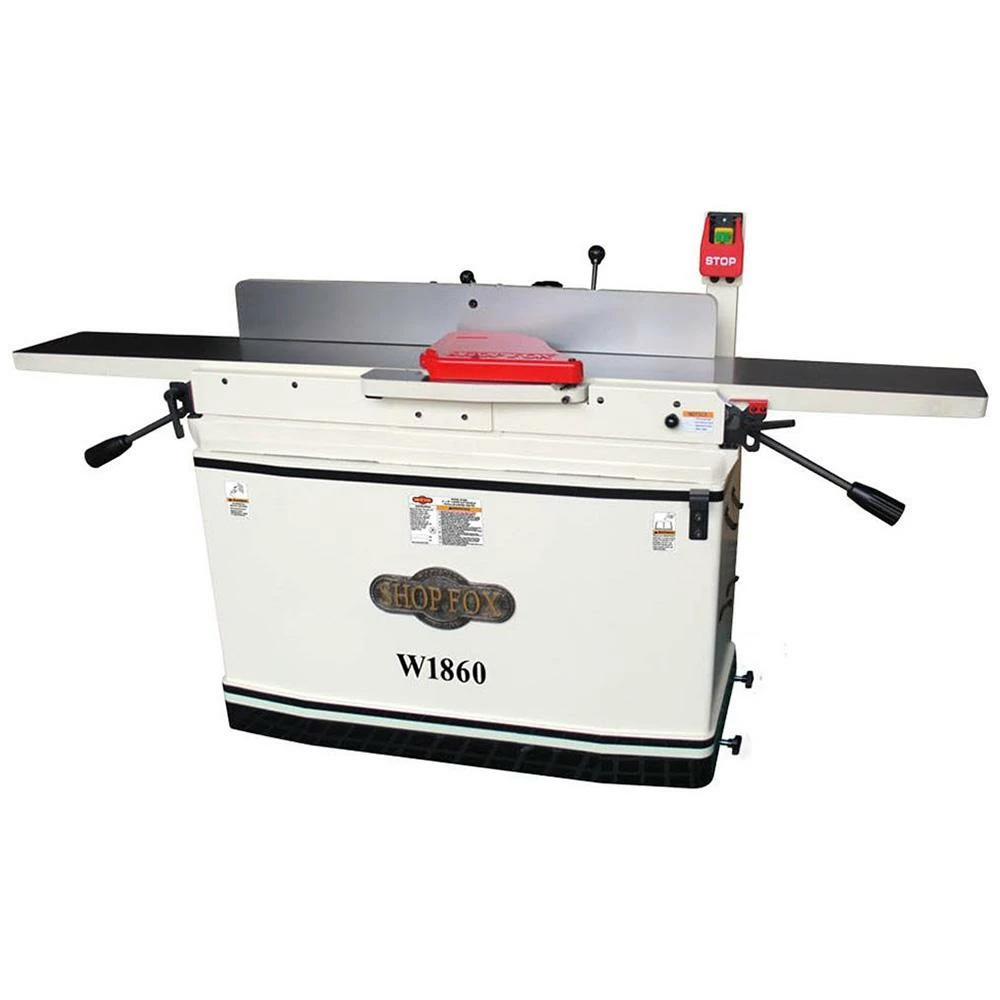

Tools & Equipment Shop Fox W1860 230 Volt 8 Inch X 76 Inch Parallelogram Spiral Cutterhead Jointer

Features

• Lever-adjusted table height with depth gauge
• Center-mounted fence with rack and pinion adjustment
• Built-in mobile base
• Precision-ground cast-iron tables
• Extra long 40 infeed table
• Powder-coated finish
• 4 dust port with built-in dust chute
• Motor: 3 HP, 230V, single-phase
• Total table size: 9 x 76
• Fence size: 4-5/8 x 38
• Maximum depth of cut: 1/8
• Rabbeting capacity: 1/2
• Cutterhead speed: 5500 RPM
• Cutterhead diameter: 3-1/16
• Cuts per minute: 22,000
• Number of cutterhead inserts: 36
• Insert size: 15.0 x 15.0 x 2.5mm
• Power transfer: Poly V-belt
• Switch: magnetic push-button switch with large off paddle for safety
• Fence system: positive stops at +/- 45 degrees and 90 degrees
• Approximate shipping weight: 470 lbs.
• CSA certified

What’s in The Box

• 8-Inch x 76-Inch Parallelogram Jointer
• Mobile Base
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	W1860
Brand	Shop Fox
Voltage	230V
Jointer Size	8 in.
Cutterhead Type	Spiral
Cutterhead Diamter	3-1/16 in.
Num. of Cutter Spirals	4
Num. of Indexable Cutters	36
Cutterhead Speed	5,500 Rpm
Max. Width of Cut	8 in.
Max. Depth of Cut	1/8 in.
Min. Workpiece Length	10 in.
Min. Workpiece Thickness	1/2 in.
Max. Rabbeting Depth	1/2 in.
Number of Cuts Per Minute	22,000
Phase	Single
Frequency	60 Hz
Horsepower	3 Hp
No Load Speed	3,450 Rpm
Power Transfer	Belt Drive
Bevel Jointing	0 – 45 Degrees L/R
Bearings	Sealed and Permanently Lubricated
Full-Load Current Rating	12A
Minimum Circuit Size	20A
Body Assembly	Cast Iron
Dust Port Size	4 in.
Cutter Insert Type and Size	Indexable Carbide 15mm x 15mm x 2.5mm
Power Cord Length	6 ft.
Power Cord Gauge	14 AWG
Table Adjustment Type and Movement	Lever Action and Parallelogram
Table Size (L x W)	76 in. x 8 in.
Table Thickness	1-3/4 in.
Fence Stops	45, 90, 135-Degrees
Fence Size (L x W x H)	38 in. x 1-1/4 in. x 4-1/2 in.
Footprint (L x W)	40 in. x 16 in.
Length	76 in.
Width	25 in.
Height	41-1/2 in.
Product Weight	365 lbs.
