Tools & Equipment Stabila 04500TR LAR160 1800′ Green Beam Rotation Self-Leveling Laser Kit

Features

• Fully automatic, motor-driven rotation laser – high levelling accuracy of ± 0.1 mm/m, fast self-levelling function within 20 seconds.
• STABILA GREENBEAM technology for improved visibility of the rotating laser beam – green laser beams are four times more visible to the human eye than red beams.
• Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and right angle (90°) in vertical operation.
• Protection class IP 65 – dustproof and waterproof.
• Shock-absorbent STABILA soft grip casing provides protection against impacts – the stable housing cover also protects the laser optics.
• Easy to use via three control buttons – on/off, tilt mode, manual mode.
• Battery drawer – easy replacement, even directly on the tripod.
• Large working area with REC 160 R/G set receiver – up to 600 m in diameter.
• Two 5/8″ threads integrated in the housing.
• Target plate with magnetic holder and cross-hair.
• Stable carrying case.
• Weatherproof – waterproof and dustproof in accordance with protection class IP 65.

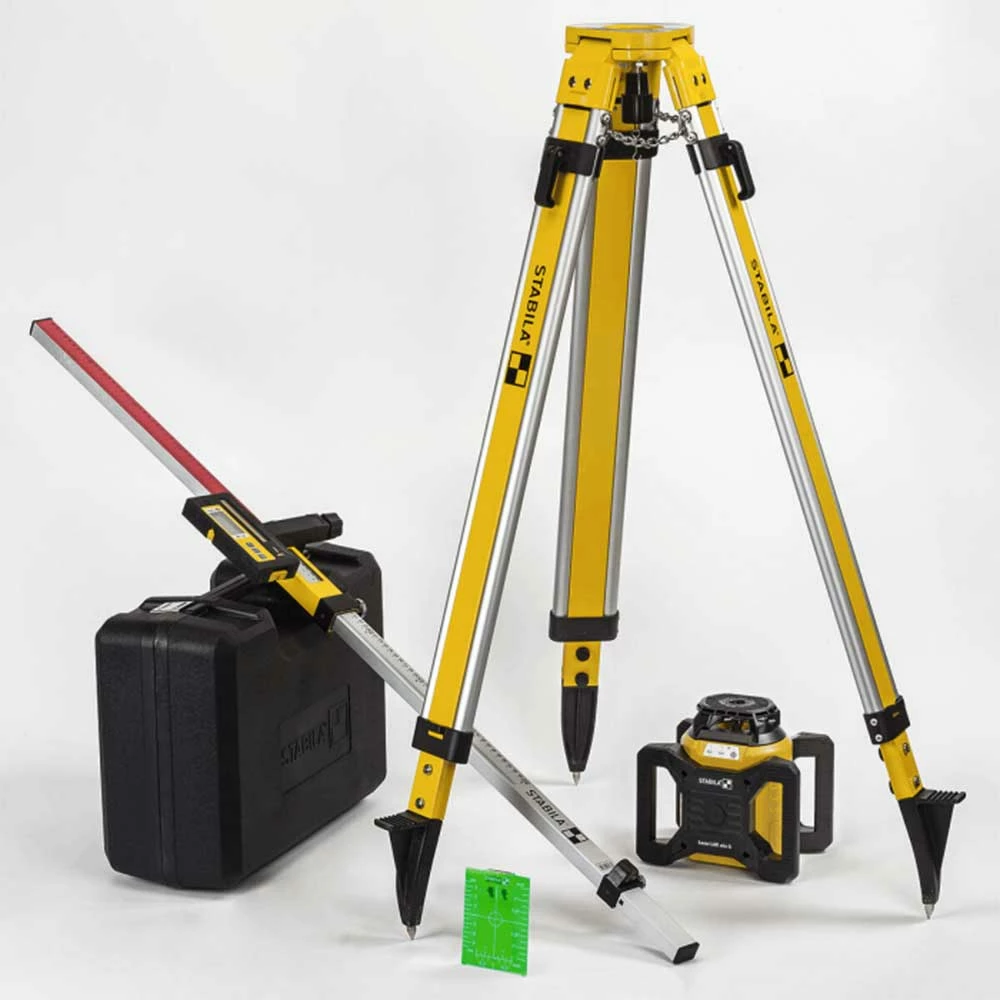

What’s in The Box

• LAR 160 G Laser
• Digital receiver (IP67 dust and waterproof)
• Fixed Head Tripod (36″-68″)
• Hi/Lo Elevation Rod (52″-84″)
• Target Plate
• Laser Glasses
• Hard Shell Case
• Owner’s Manual

Warranty

• 2 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	04500TR
Brand	Stabila
Laser Class	2
Range	1800 ft
Laser Wave Length	510 – 530 nm
Self-Leveling Range	5 degree
Waterproof	IP65
Accuracy	1/8 in at 100 ft
Operating Life	20 hr
Laser Color	Green
Tripod Connection	5/8×11 in
Battery Type	D
Depth	9.3 in
Width	24 in
Height	54 in
Weight	36.4 lb
