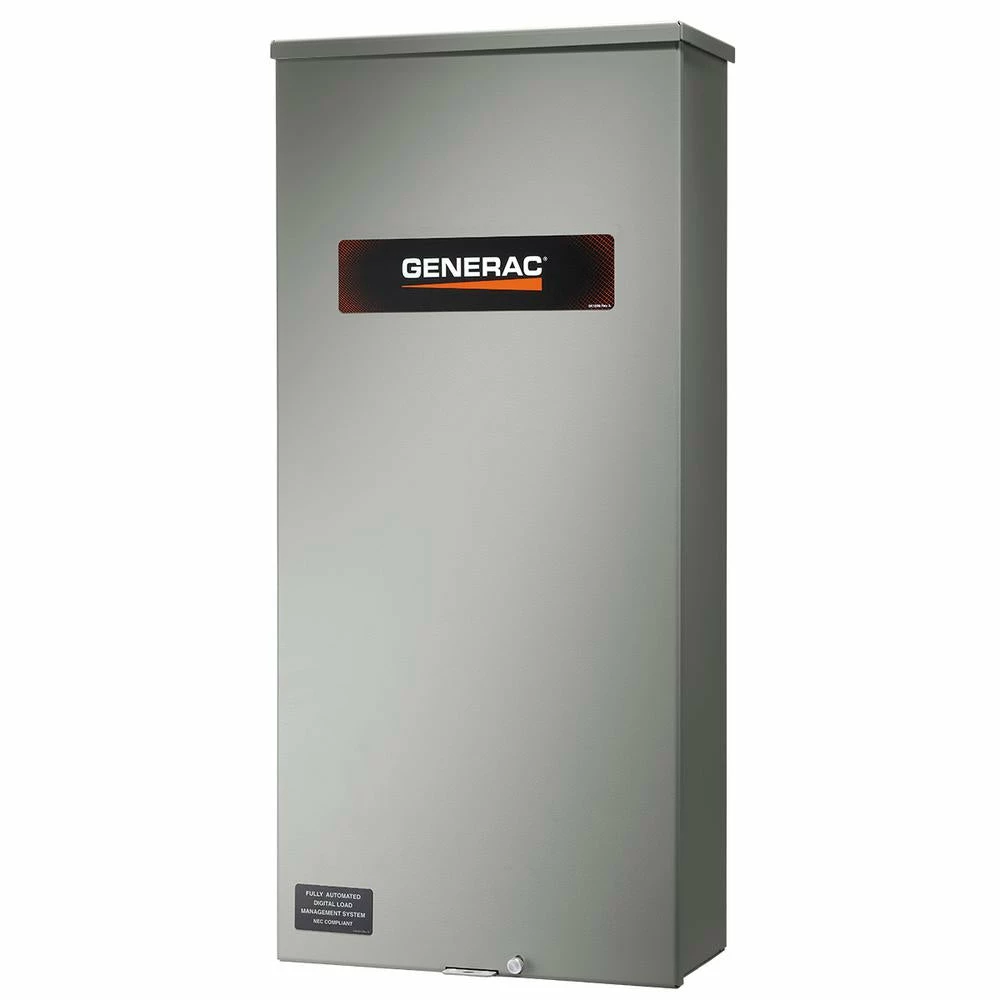

Transfer Switches Generac RXSW200A3 200-Amp 240-Volt Single-Phase Automatic Transfer Switch

Features

• Through the use of digital power technology, Generac’s singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware.
• Designed for use with single-phase generators that utilize an Evolution or Nexus Controller.
• Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection.
• Simplify installation with a board that combines load management and transfer switch hardware.
• Gain even more flexibility when used in tandem with Smart Management Modules.
• Decreases transfer switch complexity.
• The Smart A/C Module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload).
• Smaller fuses integrated into the control board.

What’s in The Box

• Generac 120/240-Volt 200-Amp NEMA 3R Automatic Smart Transfer Switch – RXSW200A3
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	RXSW200A3
Brand	Generac
Voltage	120/240V
Phase	Single-Phase
Frequency	60 Hertz
Rated Amps	200 Amps
Enclosure	NEMA 3R
Transfer Switch Style	Service Disconnect
Max Utility Input	200 Amps
Max Generator Input	200 Amps
Maximum Wattage	48000 Watts
Product Dimensions (LxWxH)(In.)	6.3 x 13.5 x 30 In.
Shiping Weight (lbs)	39 lbs
