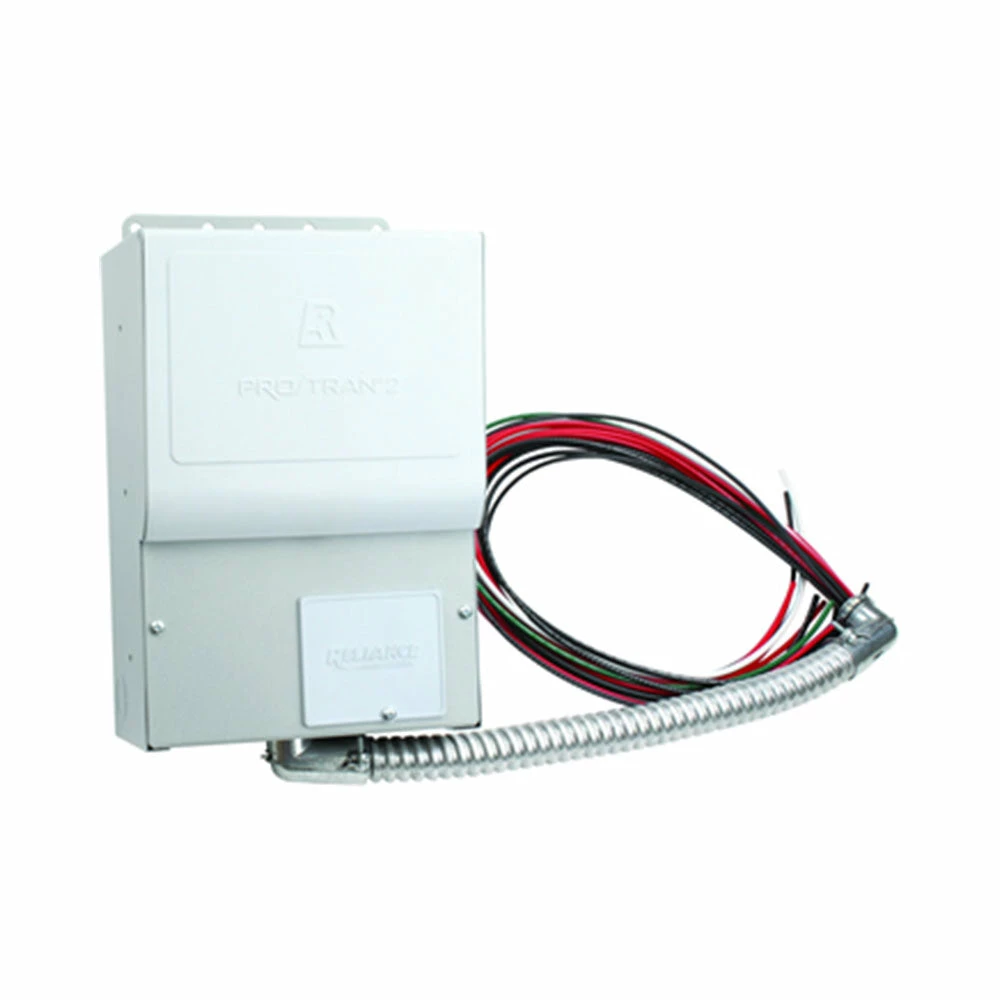

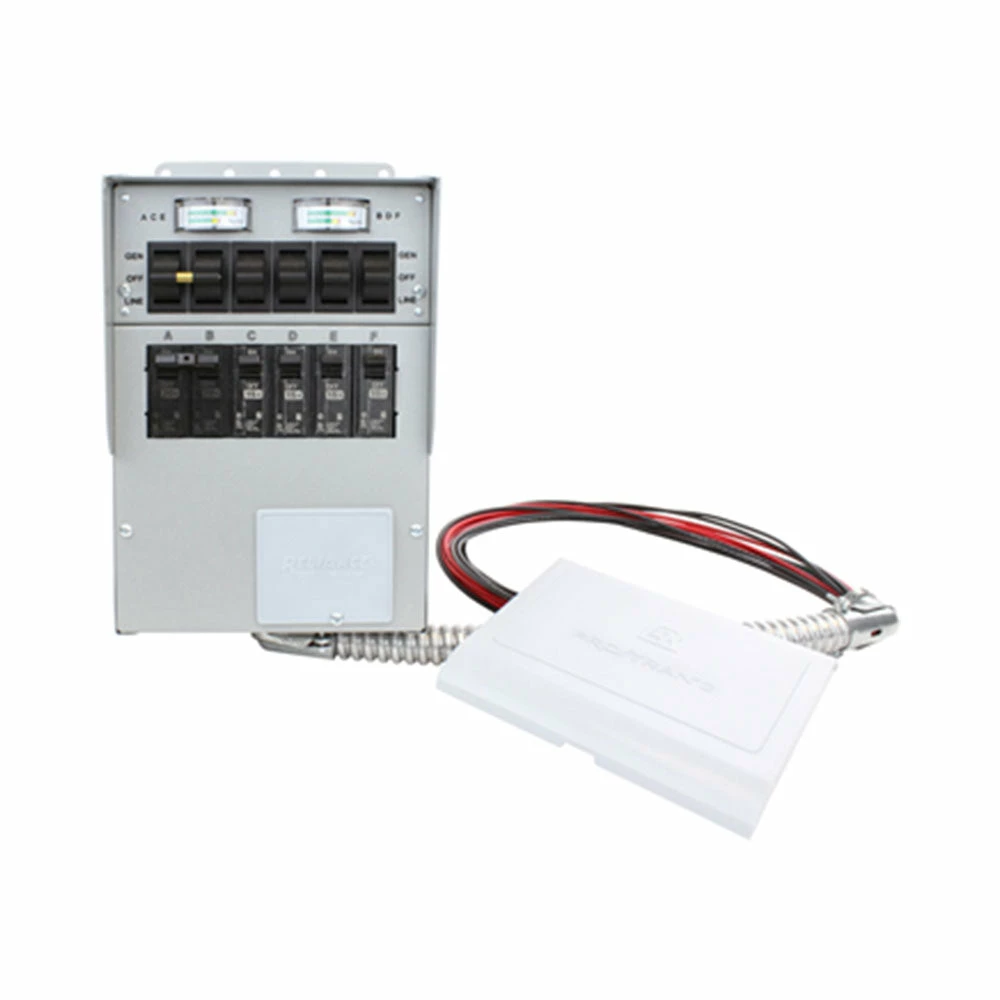

Transfer Switches Reliance 306A 120-240-Volt 30-Amp 6-Circuit Pro/Tran Indoor Transfer Switch

Features

• Pro/Tran 2 30-Amp 6-Circuit 120/240V Manual Transfer Switch
• The next generation of Loadside manual transfer switches
• Safest Way to Distribute Power
• Eliminates dangerous backfeeds and electrical overloads
• (4) 15A 1-Pole and (1) 20A 2-Pole
• NEW Color-Coded Built-In Wattage Meter
• Helps you balance and manager generator load
• Versatile Connection
• Allows hardwiring OR plug-in connection via power inlet (included)
• Hinged, Non-Metalic Cover
• Protects toggle swtiches/breakrs and povides a finished apperance
• Powder-Coated Steel Cabinet For Indoor Installation
• 18 Flexible conduit w/ all factory wires clearly marked/colored
• (6) Combination 1/2 and 3/4 knockouts for easier installation
• Easily re-configured in the field for multiple 2-pole circuits
• Safety and Certifications
• Certified for use by Underwriter Laboratories to UL Stanard 1008
• Meets all requirements of article 702 of the NEC ANSI/NFPA 70

What’s in The Box

• 120/240-Volt 30-Amp 6-Circuit Indoor Transfer Switch – 306A
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Model	306A
Brand	Reliance
Max. Generator Running Watts	7,500
Phase	Single
Frequency	60
Circuits	4 – 15A/120V 1 – 20A/240V
Max. Single-Pole Circuits	6
Max. Double-Pole Circuits	3
Max. Combined Load at 125 Vac	60
Max. Combined Load at 250 Vac	30
Power Inlet	L14-30
Recommended Cord Size (Guage)	10
Conduit Size (in.)	3/4
Conduit Length (in.)	16
Watt Meters	Yes
Dimensions (HxWxD) (in.)	11.25 x 7.75 x 4.5 (28.58 x 19.69 x 11.43 cm)
Cabinet Type	Indoor
